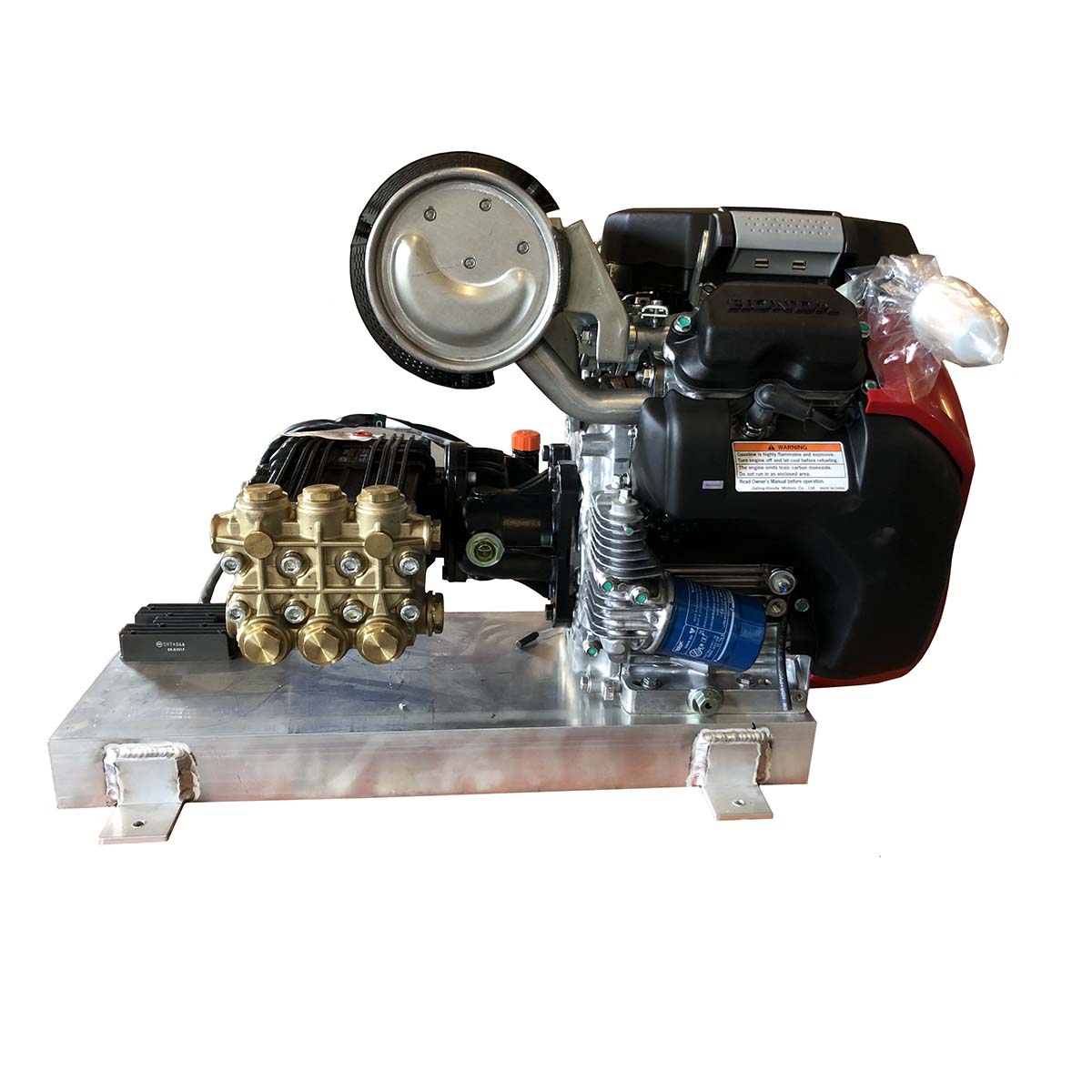

Udor GKC2135GR118 & Honda GX690 Electric Start Engine Assembly on Aluminum Channel (5.5 gpm, 5000 psi)
Udor GKC2135GR118 & Honda GX690 Electric Start Engine Assembly on Aluminum Channel (5.5 gpm, 5000 psi)
Brand:
Udor
Weight:
150.0 lb
Item #
GX690GKC2135
Udor GKC2135GR118 & Honda GX690 Electric Start Engine Assembly on Aluminum Channel (5.5 gpm, 5000 psi)
Udor GKC2135GR118 & Honda GX690 Electric Start Engine Assembly on Aluminum Channel (5.5 gpm, 5000 psi)
Brand:
Udor
Weight:
150.0 lb
Item #
GX690GKC2135
Regular price
$3,549.00
Sale price
$3,549.00
Regular price
List Price:
$5,100.00
Unit price
per
Couldn't load pickup availability

Earn 10,647 points with this purchase.

Collapsible content
Product Overview
For the professional power washer - capable of up to 5.5 gpm or 5000 psi. Only the highest quality - Honda GX690 engine and Udor GKC (CKC) pump - to ensure reliability and maximum profit for the operator. This is assembled in house and fully customizable.
Manufacturer description
Udor GKC (CKC) series pump:
Honda V-twin engines offer higher horsepower, improved adaptability, quiet operation, and greater fuel efficency. Not to mention a 3 year warranty.
FUEL EFFICIENT OPERATION:
-Fuel economy is similar to fuel injection, with the simplicity of carburetion
-Digital CDI ignition system with variable timing
-Includes a rev limiter to protect against damage from over-revving
-Two barrel inner-vent carburetor for more precise fuel metering
-Insert style rod bearings
HIGH OUTPUT PERFORMANCE:
-Hemispherical combustion chamber delivers rapid combustion
-9.3:1 compression ratio generates high power output without the need for premium fuel
-Forged steel crankshaft
-Pressure fed crankshaft bearings
SMOOTH PERFORMANCE:
-Integrated cylinder and head
-Racing inspired forged steel connecting rods EXCEPTIONALLY QUIET:
-High capacity 36 blade cooling fan
-Aluminum push rods with steel tips - lighter weight, lower vibration, and quieter operation
PROVEN RELIABILITY:
-High capacity pump facilitates consistent oil delivery -Dual cylindrical air filter
-Large diameter air intake for superior cooling
-Oil Alert
EASY TO USE AND MAINTAIN:
-Hour meter available
-Conveniently located controls, with several configurations available based on user preference
-Automotive-type spin-on oil filter
EASY STARTING:
-Automatic mechanical de-compression system
-Variable ignition timing
EMISSIONS COMPLIANT:
-CARB and EPA certified
-No catalyst necessary
- 13" x 9-3/4" x 5-1/2" H (Excluding gear reduction)
- Heavy Duty Bronze Connecting Rod Assemblies with Guide Pins for Perfect Cap Alignment 2 Lbs. Each
- Heavy Duty Reinforced Nickel Plated Heads with External and Internal Bracing
- Large Diameter Stainless Steel Valve Caps with Increased Thread Depth
- 3/4" Inlet 3/8" Outlet
- Reinforcing Ring on Inlet and Discharge Ports
- Deeper Back Covers For Increased Oil Capacity. 40 Oz. Crank Case Capacity
Honda V-twin engines offer higher horsepower, improved adaptability, quiet operation, and greater fuel efficency. Not to mention a 3 year warranty.
FUEL EFFICIENT OPERATION:
-Fuel economy is similar to fuel injection, with the simplicity of carburetion
-Digital CDI ignition system with variable timing
-Includes a rev limiter to protect against damage from over-revving
-Two barrel inner-vent carburetor for more precise fuel metering
-Insert style rod bearings
HIGH OUTPUT PERFORMANCE:
-Hemispherical combustion chamber delivers rapid combustion
-9.3:1 compression ratio generates high power output without the need for premium fuel
-Forged steel crankshaft
-Pressure fed crankshaft bearings
SMOOTH PERFORMANCE:
-Integrated cylinder and head
-Racing inspired forged steel connecting rods EXCEPTIONALLY QUIET:
-High capacity 36 blade cooling fan
-Aluminum push rods with steel tips - lighter weight, lower vibration, and quieter operation
PROVEN RELIABILITY:
-High capacity pump facilitates consistent oil delivery -Dual cylindrical air filter
-Large diameter air intake for superior cooling
-Oil Alert
EASY TO USE AND MAINTAIN:
-Hour meter available
-Conveniently located controls, with several configurations available based on user preference
-Automotive-type spin-on oil filter
EASY STARTING:
-Automatic mechanical de-compression system
-Variable ignition timing
EMISSIONS COMPLIANT:
-CARB and EPA certified
-No catalyst necessary
Features
Udor GKC (CKC) Pump Specs:
GX690 Specs:
- Max flow: 5.5 gpm
- Max pressure: 5000psi
- Inlet: 3/4" NPT
- Gearbox: 1-1/8"
- Warranty: 1 year commercial warranty (limited to manufacturer defects)
GX690 Specs:
- Engine Type: Air-cooled 4-stroke OHV
- Bore x Stroke: 78 X 72 mm
- Displacement: 688 cm3
- Net Power Output: 22.1 hp (16.5 kW) @ 3,600 rpm
- Net Torque: 35.6 lbs ft (48.3 Nm) @ 2,500 rpm
- PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
- Compression Ratio: 9.3:1
- Lamp/Charge coil options: 2.7A, 17A, 26A
- Carburetor: Horizontal type, two barrel butterfly valve, internal vent
- Ignition System: Digital CDI with variable ignition timing
- Starting System: Electric
- Lubrication System: Forced lubrication
- Governor System: Mechanical
- Air cleaner: Dual element
- Oil Capacity: 2.1 US qt (2.0l)
- Fuel: Unleaded 86 octane or higher
- Dry Weight: 96.8 lb (44 kg)
- Warranty: 3 year commercial warranty (limited to manufacturer defects)
-
