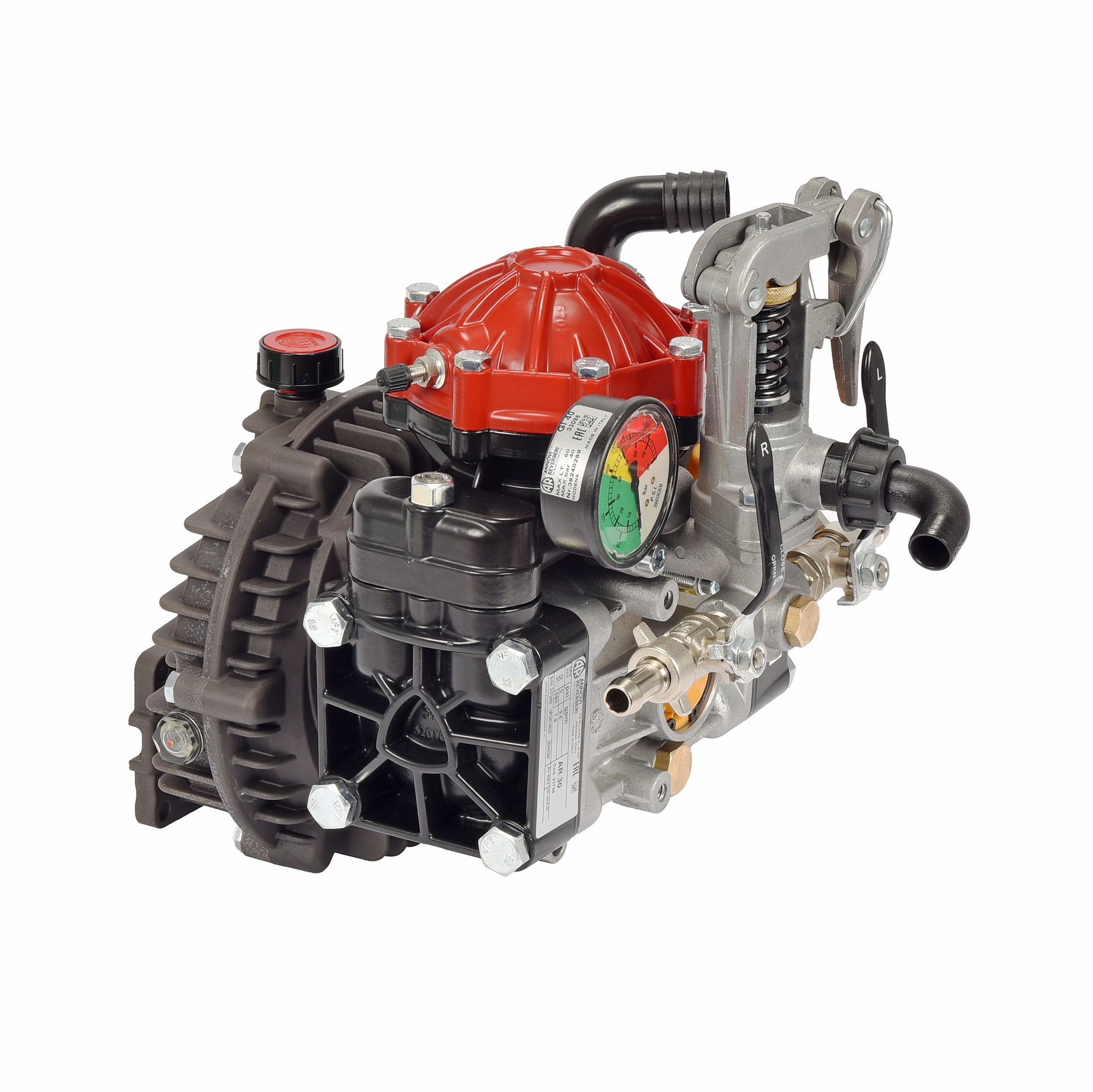

Hypro D30GRGI Pump

Hypro D30GRGI Pump

Item Code:
9910D30GRGI
Weight:
33.0 lb
Manufacturer:
Hypro
Our price:
$886.89
List price:
$2,046.00
Overview:

Built to help effectively deliver chemicals to their intended targets, this Hypro D30GRGI Pump is a durable component intended for use in commercial, industrial and agricultural sprayer systems. Its pressure and output settings are precision-tooled for optimal performance with small or medium-sized sprayers, assisting in the targeted distribution of your liquid product onto desired surfaces for consistent, even coverage every time.

Manufacturer Description:

Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of small to medium-sized sprayers. Hypro medium pressure diaphragm pumps can be adapted for male 1-3/8" splined shaft, female 1-3/8" splined shaft, 1" solid shaft, or gear reduction drive options. Pumps include a pulsation dampener except for Models 9910-D303, D403, and D503s.

Features:

  • Max flow: 9.5 gpm
  • Max pressure: 580 psi

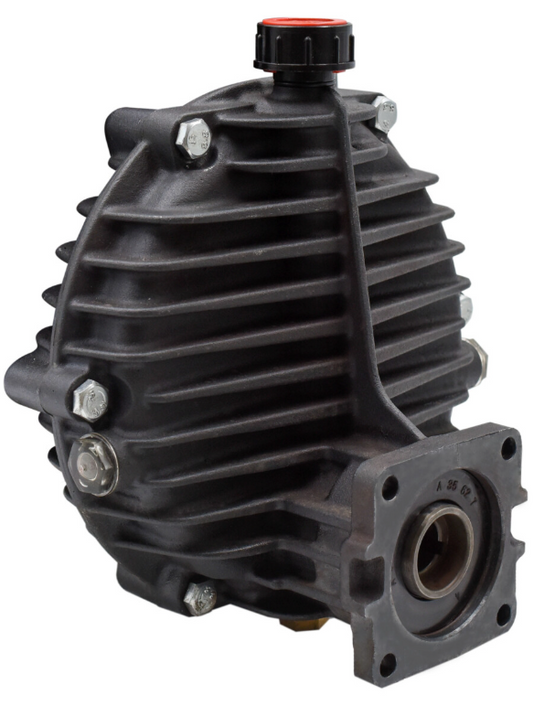

  • Includes 9910-GS40GI pressure regulator and 9910-KIT1640 gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp gas engines
  • Port sizes: 1" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 33 lbs

Parts breakdown

Parts list

  • Ref No: 1
  • Part No: 9910629011
  • Qty Req: 1
Our price: $252.72 List price: $312.00
  • Ref No: 4
  • Part No: 9910621430
  • Qty Req: 8
Our price: $3.00 List price: $3.71
  • Ref No: 6
  • Part No: 9910620120
  • Qty Req: 2
Our price: $55.28 List price: $68.25
  • Ref No: 7
  • Part No: 9910620140
  • Qty Req: 2
Our price: $46.37 List price: $57.25
  • Ref No: 8
  • Part No: 9910620110
  • Qty Req: 2
Our price: $80.19 List price: $99.00
  • Ref No: 9
  • Part No: 9910580470
  • Qty Req: 2
Our price: $5.55 List price: $6.85
  • Ref No: 10
  • Part No: 9910380300
  • Qty Req: 2
Our price: $25.11 List price: $31.00
  • Ref No: 11
  • Part No: 9910380080
  • Qty Req: 4
Our price: $1.71 List price: $2.11
  • Ref No: 12
  • Part No: 9910160230
  • Qty Req: 2
Our price: $12.93 List price: $15.97
  • Ref No: 14
  • Part No: 99101040180
  • Qty Req: 2
Our price: $16.69 List price: $20.60
  • Ref No: 15
  • Part No: 9910580360
  • Qty Req: 2
Our price: $13.14 List price: $16.22
  • Ref No: 16
  • Part No: 9910180150
  • Qty Req: 2
Our price: $1.63 List price: $2.01
  • Ref No: 18
  • Part No: 9910620030
  • Qty Req: 4
Our price: $1.75 List price: $2.16
  • Ref No: 20
  • Part No: 9910111120
  • Qty Req: 2
Our price: $6.51 List price: $8.03
  • Ref No: 21
  • Part No: 9910620020
  • Qty Req: 1
Our price: $7.09 List price: $8.76
  • Ref No: 22
  • Part No: 9910620210
  • Qty Req: 1
Our price: $2.46 List price: $3.04
  • Ref No: 24
  • Part No: 9910620190
  • Qty Req: 1
Our price: $162.00 List price: $200.00
  • Ref No: 23
  • Part No: 9910620291
  • Qty Req: 1
Our price: $7.09 List price: $8.76
  • Ref No: 28
  • Part No: 9910180101
  • Qty Req: 2
Our price: $1.59 List price: $1.96
  • Ref No: 29
  • Part No: 9910550030
  • Qty Req: 1
Our price: $15.85 List price: $19.57
  • Ref No: 30
  • Part No: 9910550040
  • Qty Req: 1
Our price: $1.75 List price: $2.16
  • Ref No: 31
  • Part No: 9910550056
  • Qty Req: 1
Our price: $10.01 List price: $12.36
  • Ref No: 32
  • Part No: 9910620160
  • Qty Req: 1
Our price: $4.76 List price: $5.87
  • Ref No: 33
  • Part No: 9910550060
  • Qty Req: 1
Our price: $61.56 List price: $76.00
  • Ref No: 21
  • Part No: 9910550331
  • Qty Req: 2
Our price: $1.50 List price: $1.85
  • Ref No: 34
  • Part No: 9910620130
  • Qty Req: 1
Our price: $21.69 List price: $26.78
  • Ref No: 35
  • Part No: 9910620330
  • Qty Req: 1
Our price: $12.10 List price: $14.94
  • Ref No: 36
  • Part No: 9910620170
  • Qty Req: 1
Our price: $257.58 List price: $318.00
  • Ref No: 37
  • Part No: 9910620150
  • Qty Req: 1
Our price: $93.96 List price: $116.00
  • Ref No: 38
  • Part No: 9910550340
  • Qty Req: 1
Our price: $7.76 List price: $9.58
  • Ref No: 39
  • Part No: 9910550350
  • Qty Req: 2
Our price: $1.59 List price: $1.96
  • Ref No: 40
  • Part No: 9910550242
  • Qty Req: 1
Our price: $4.17 List price: $5.15
  • Ref No: 41
  • Part No: 9910550370
  • Qty Req: 1
Our price: $13.14 List price: $16.22
  • Ref No: 42
  • Part No: 9910390060
  • Qty Req: 4
Our price: $1.59 List price: $1.96
  • Ref No: 44
  • Part No: 9910621780
  • Qty Req: 8
Our price: $2.84 List price: $3.50
  • Ref No: 45
  • Part No: 9910629211
  • Qty Req: 1
Our price: $86.67 List price: $107.00
  • Ref No: 47
  • Part No: 9910622070
  • Qty Req: 1
Our price: $199.26 List price: $246.00
  • Ref No: 49
  • Part No: 9910650542
  • Qty Req: 1
Our price: $1.75 List price: $2.16
  • Ref No: 50
  • Part No: 9910180020
  • Qty Req: 1
Our price: $36.45 List price: $45.00
  • Ref No: 51
  • Part No: 9910390290
  • Qty Req: 1
Our price: $2.09 List price: $2.58
  • Ref No: 58
  • Part No: 9910620630
  • Qty Req: 1
Our price: $12.72 List price: $15.71
  • Ref No: 59
  • Part No: 9910620021
  • Qty Req: 1
Our price: $56.09 List price: $69.25
  • Ref No: 60
  • Part No: 9910650660
  • Qty Req: 1
Our price: $37.87 List price: $46.75
  • Ref No: 61
  • Part No: 9910650670
  • Qty Req: 1
Our price: $13.56 List price: $16.74
  • Ref No: 62
  • Part No: 9910650690
  • Qty Req: 1
Our price: $18.56 List price: $22.92
  • Ref No: 65
  • Part No: 9910620190
  • Qty Req: 1
Our price: $162.00 List price: $200.00
  • Ref No: 66
  • Part No: 24060023
  • Qty Req: 1
Our price: $6.40 List price: $7.90
  • Ref No: 67
  • Part No: 9910740290
  • Qty Req: 1
Our price: $1.71 List price: $2.11
  • Ref No: 68
  • Part No: 9910620930
  • Qty Req: 1
Our price: $2.75 List price: $3.40
  • Ref No: 69
  • Part No: 9910620940
  • Qty Req: 1
Our price: $2.75 List price: $3.40
  • Ref No: 70
  • Part No: 9910380230
  • Qty Req: 1
Our price: $46.78 List price: $57.75
  • Ref No: 74
  • Part No: 9910390270
  • Qty Req: 2
Our price: $1.50 List price: $1.85
  • Ref No: 76
  • Part No: 9910110130
  • Qty Req: 1
Our price: $15.02 List price: $18.54
