Hypro D30 Pump

Hypro D30 Pump

Brand:
Hypro
Weight:
23.0 lb
Item #
9910D30
23 reviews
Skip to product information
1 of 1

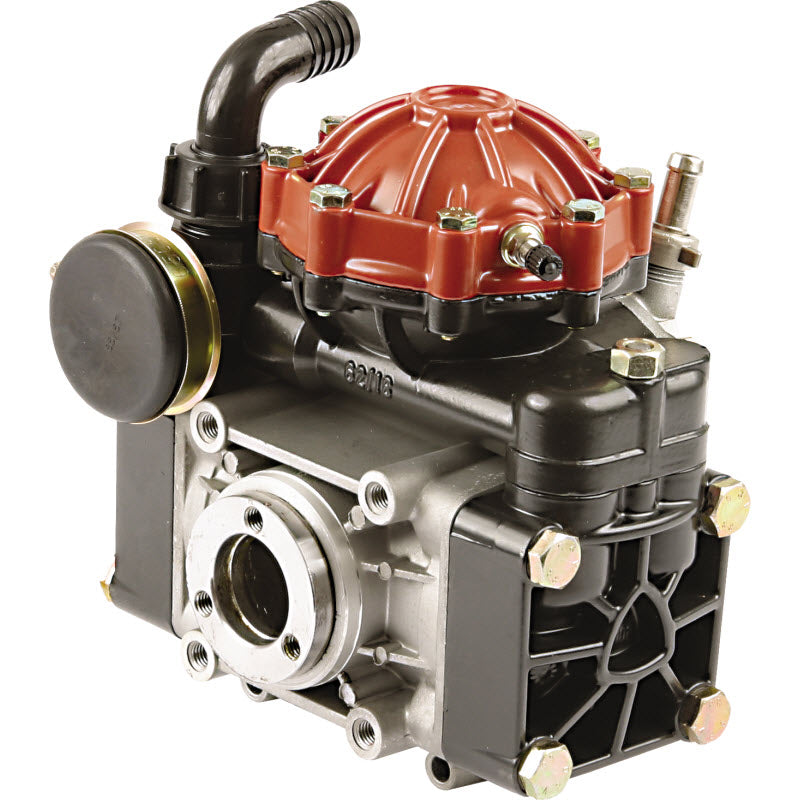

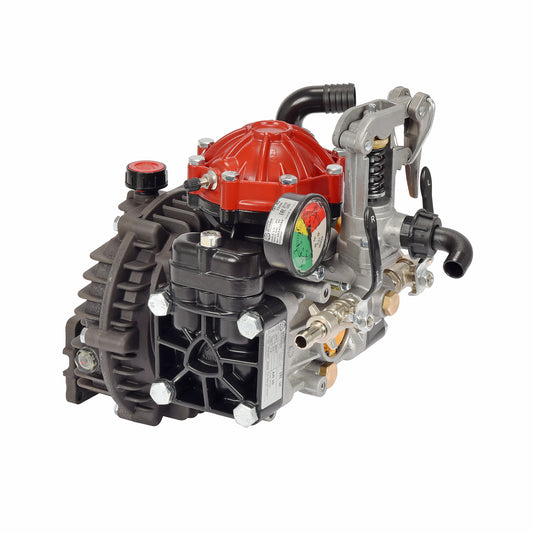

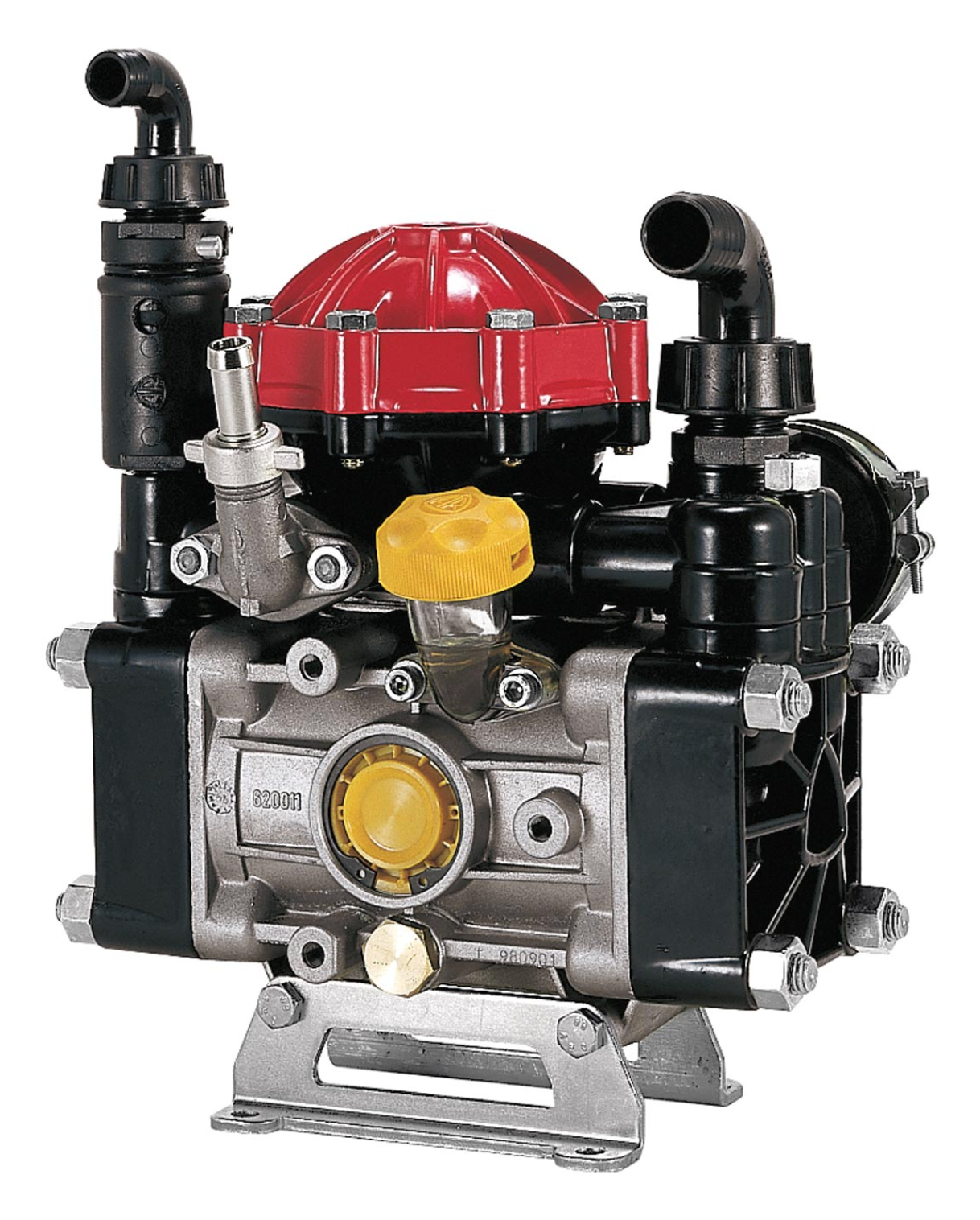

Hypro D30 Pump

Hypro D30 Pump

Brand:
Hypro
Weight:
23.0 lb
Item #
9910D30
23 reviews

Regular price $494.19
Sale price $494.19 Regular price List Price: $1,141.00

Earn 1,483 points with this purchase.

View full details

Collapsible content

Product Overview

When you need to distribute herbicides, pesticides, liquid fertilizers and other potentially hazardous chemicals via a sprayer system, this is the pump you need. The Hypro D30 Pump is a medium-pressure diaphragm model, designed to work with small or medium-sized sprayers. Crafted with durability and precision quality in mind, it is a perfect component for regular use in industrial, commercial or agricultural settings.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon.

Manufacturer description

Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of small to medium-sized sprayers. Hypro medium pressure diaphragm pumps can be adapted for male 1-3/8" splined shaft, female 1-3/8" splined shaft, 1" solid shaft, or gear reduction drive options. Pumps include a pulsation dampener except for Models 9910-D303, D403, and D503s.

Features

  • Max flow: 9.5 gpm
  • Max pressure: 580 psi
  • Max rpm: 550
  • Port sizes: 1" HB inlet, 1/2" HB outlet
  • Shaft: Flanged for shaft kit or gearbox
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum

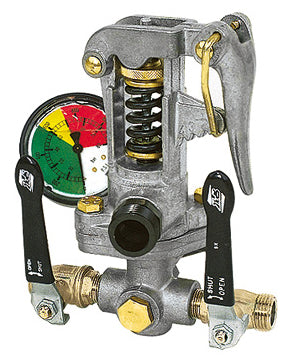

  • Recommended pressure regulator: 9910-GS40GI

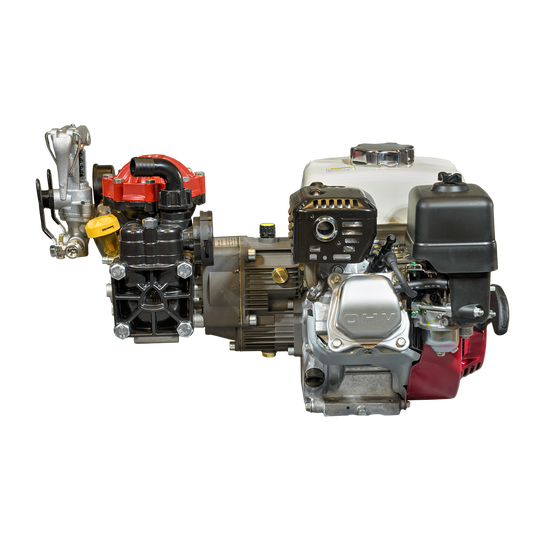

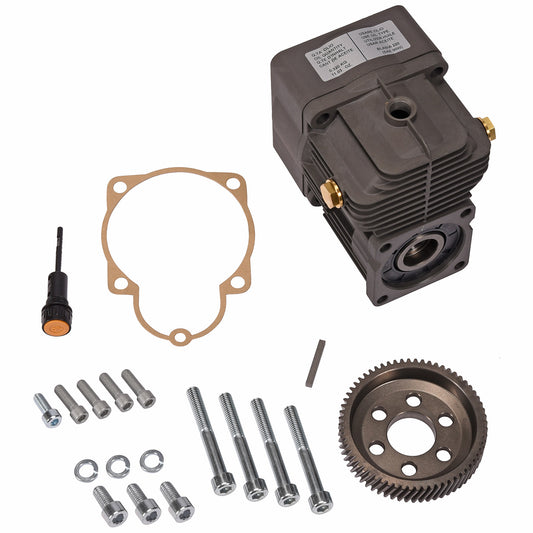

  • Recommended gearbox: 9910-KIT1640 with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines
  • Max fluid temperature: 140°F
  • Weight: 23 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Body w/ Bolts
    • Ref No: 1
    • Part No: 9910629011
    • Qty Req: 1
    Our price: $284.46 List price: $351.19
  • Right Head Assembly (DX) D30
    • Ref No: 2
    • Part No: 9910620101
    • Qty Req: 1
    Our price: $123.21 List price: $152.11
  • Left Head Assembly (SX) D30
    • Ref No: 3
    • Part No: 9910620102
    • Qty Req: 1
    Our price: $139.50 List price: $172.22
  • Bolt 12 x 55
    • Ref No: 4
    • Part No: 9910621430
    • Qty Req: 8
    Our price: $3.22 List price: $3.97

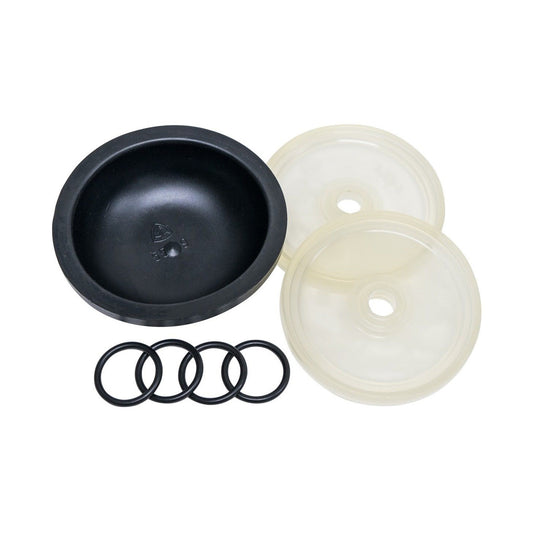

  • Diaphragm, Buna-N (Opt.)
    • Ref No: 5
    • Part No: 9910620080
    • Qty Req: 2
    Our price: $31.54 List price: $38.94
  • Piston Diaphragm, Desmopan (Std.)
    • Ref No: 5
    • Part No: 9910620085
    • Qty Req: 2
    Our price: $34.19 List price: $42.21
  • Piston
    • Ref No: 6
    • Part No: 9910620120
    • Qty Req: 2
    Our price: $55.56 List price: $68.59
  • Connecting Rod
    • Ref No: 7
    • Part No: 9910620140
    • Qty Req: 2
    Our price: $52.20 List price: $64.44
  • Sleeve
    • Ref No: 8
    • Part No: 9910620110
    • Qty Req: 2
    Our price: $90.27 List price: $111.44
  • Connecting rod ring
    • Ref No: 9
    • Part No: 9910580470
    • Qty Req: 2
    Our price: $5.92 List price: $7.31
  • Connecting Rod Pin
    • Ref No: 10
    • Part No: 9910380300
    • Qty Req: 2
    Our price: $25.24 List price: $31.16
  • Ring Pin
    • Ref No: 11
    • Part No: 9910380080
    • Qty Req: 4
    Our price: $2.73 List price: $3.37
  • Piston Ring
    • Ref No: 12
    • Part No: 9910160230
    • Qty Req: 2
    Our price: $15.28 List price: $18.87
  • Retaining Washer
    • Ref No: 14
    • Part No: 99101040180
    • Qty Req: 2
    Our price: $18.78 List price: $23.18
  • Diaphragm Bolt
    • Ref No: 15
    • Part No: 9910580360
    • Qty Req: 2
    Our price: $14.04 List price: $17.33
  • Nut
    • Ref No: 16
    • Part No: 9910180150
    • Qty Req: 2
    Our price: $1.64 List price: $2.02

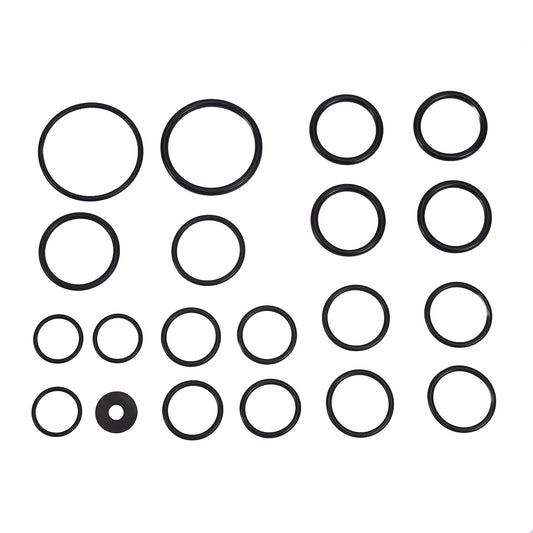

  • O-Ring
    • Ref No: 18
    • Part No: 9910620030
    • Qty Req: 4
    Our price: $1.97 List price: $2.43

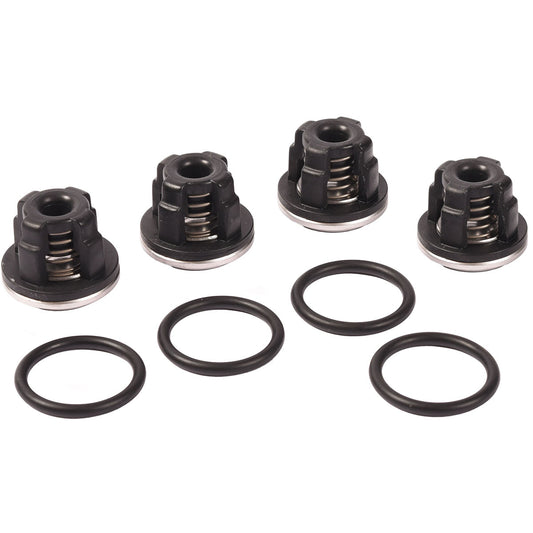

  • Complete Valve Assembly
    • Ref No: 19
    • Part No: 99101409050
    • Qty Req: 4
    Our price: $28.70 List price: $35.43
  • Retaining Ring
    • Ref No: 20
    • Part No: 9910111120
    • Qty Req: 2
    Our price: $7.32 List price: $9.04
  • Cover
    • Ref No: 21
    • Part No: 9910620020
    • Qty Req: 1
    Our price: $7.59 List price: $9.37
  • O-Ring
    • Ref No: 22
    • Part No: 9910620210
    • Qty Req: 1
    Our price: $2.48 List price: $3.06
  • Retaining Ring
    • Ref No: 23
    • Part No: 9910620291
    • Qty Req: 1
    Our price: $7.13 List price: $8.80
  • Bearing
    • Ref No: 24
    • Part No: 9910620190
    • Qty Req: 1
    Our price: $135.07 List price: $225.12
  • Washer
    • Ref No: 26
    • Part No: 9910550331
    • Qty Req: 2
    Our price: $1.51 List price: $1.86
  • M6 X 30 Bolt
    • Ref No: 25
    • Part No: 9910850850
    • Qty Req: 2
    Our price: $2.78 List price: $3.43
  • O-Ring
    • Ref No: 28
    • Part No: 9910180101
    • Qty Req: 2
    Our price: $1.60 List price: $1.97

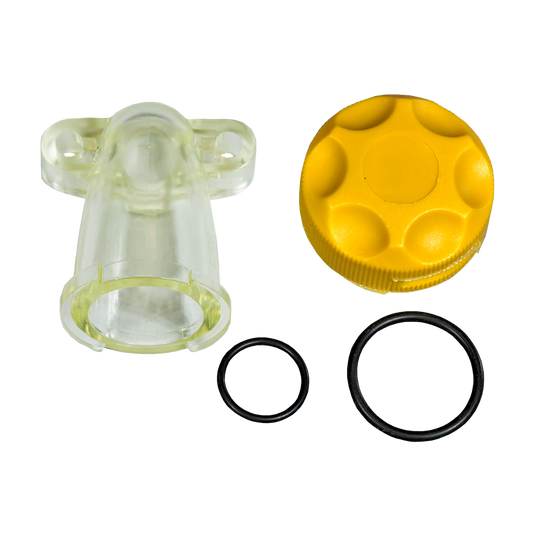

  • Oil Sight Glass for Hypro D30
    • Ref No: 29
    • Part No: 9910550030
    • Qty Req: 1
    Our price: $19.00 List price: $23.46
  • O-Ring
    • Ref No: 30
    • Part No: 9910550040
    • Qty Req: 1
    Our price: $1.76 List price: $2.17
  • Oil Sight Glass Cap
    • Ref No: 31
    • Part No: 9910550056
    • Qty Req: 1
    Our price: $11.52 List price: $14.22
  • Spacer
    • Ref No: 32
    • Part No: 9910620160
    • Qty Req: 1
    Our price: $5.35 List price: $6.61
  • Roller bearing
    • Ref No: 33
    • Part No: 9910550060
    • Qty Req: 1
    Our price: $64.27 List price: $79.34
  • Seal Ring
    • Ref No: 34
    • Part No: 9910620130
    • Qty Req: 1
    Our price: $24.41 List price: $30.14
  • Retainer Ring
    • Ref No: 35
    • Part No: 9910620330
    • Qty Req: 1
    Our price: $12.16 List price: $15.01
  • Crankshaft
    • Ref No: 36
    • Part No: 9910620170
    • Qty Req: 1
    Our price: $289.93 List price: $357.94
  • Suction Manifold
    • Ref No: 37
    • Part No: 9910620150
    • Qty Req: 1
    Our price: $95.66 List price: $118.10
  • Threaded Adapter
    • Ref No: 38
    • Part No: 9910550340
    • Qty Req: 1
    Our price: $8.74 List price: $10.79
  • O-Ring
    • Ref No: 39
    • Part No: 9910550350
    • Qty Req: 2
    Our price: $1.79 List price: $2.21
  • Ring Nut
    • Ref No: 40
    • Part No: 9910550242
    • Qty Req: 1
    Our price: $9.23 List price: $11.39
  • Hose Barb 1"
    • Ref No: 41
    • Part No: 9910550370
    • Qty Req: 1
    Our price: $13.20 List price: $16.30
  • O-Ring
    • Ref No: 42
    • Part No: 9910390060
    • Qty Req: 4
    Our price: $1.79 List price: $2.21
  • Bolt
    • Ref No: 44
    • Part No: 9910621780
    • Qty Req: 8
    Our price: $3.19 List price: $3.94
  • Upper Air Chamber
    • Ref No: 45
    • Part No: 9910629211
    • Qty Req: 1
    Our price: $87.11 List price: $107.54
  • Accumulator Diaphragm, Buna-N
    • Ref No: 46
    • Part No: 9910550190
    • Qty Req: 1
    Our price: $24.75 List price: $30.55
  • Lower Air Chamber Body
    • Ref No: 47
    • Part No: 9910622070
    • Qty Req: 1
    Our price: $224.29 List price: $276.90
  • O-ring
    • Ref No: 49
    • Part No: 9910650542
    • Qty Req: 1
    Our price: $1.97 List price: $2.43
  • Air Valve
    • Ref No: 50
    • Part No: 9910180020
    • Qty Req: 1
    Our price: $41.03 List price: $50.66
  • O-Ring
    • Ref No: 51
    • Part No: 9910390290
    • Qty Req: 1
    Our price: $2.10 List price: $2.59
  • Diaphragm Holder **No longer available, DO NOT ORDER, replaced by suction dampening kit- 659213.**
    • Ref No: 60
    • Part No: 9910650660
    • Qty Req: 1
    Our price: $34.90 List price: $32.21
  • Dampener Diaphragm, Buna AR30/50
    • Ref No: 61
    • Part No: 9910650670
    • Qty Req: 1
    Our price: $14.30 List price: $17.65
  • Clamp
    • Ref No: 62
    • Part No: 9910650690
    • Qty Req: 1
    Our price: $18.65 List price: $23.03
  • Oil drain plug
    • Ref No: 66
    • Part No: 24060023
    • Qty Req: 1
    Our price: $11.32 List price: $13.97
  • O-Ring
    • Ref No: 67
    • Part No: 9910740290
    • Qty Req: 1
    Our price: $1.92 List price: $2.37
  • Spacer
    • Ref No: 68
    • Part No: 9910620930
    • Qty Req: 1
    Our price: $3.10 List price: $3.83
  • Spacer
    • Ref No: 69
    • Part No: 9910620940
    • Qty Req: 1
    Our price: $2.95 List price: $3.64
  • Bearing
    • Ref No: 70
    • Part No: 9910380230
    • Qty Req: 1
    Our price: $52.65 List price: $65.00
  • Nut
    • Ref No: 74
    • Part No: 9910390270
    • Qty Req: 2
    Our price: $1.68 List price: $2.08
  • Discharge Flange Housing
    • Ref No: 75
    • Part No: 9910450145
    • Qty Req: 1
    Our price: $36.51 List price: $45.07
  • 1/2" Hose Barb & Nut
    • Ref No: 76
    • Part No: 9910110130
    • Qty Req: 1
    Our price: $15.09 List price: $18.63
