Hypro GS40GI Control Unit/Regulator

Hypro GS40GI Control Unit/Regulator

Brand:
Hypro
Weight:
3.34 lb
Item #
9910GS40GI
30 reviews
  • Hypro GS40GI Control Unit/Regulator
1 1

Hypro GS40GI Control Unit/Regulator

Hypro GS40GI Control Unit/Regulator

Brand:
Hypro
Weight:
3.34 lb
Item #
9910GS40GI
30 reviews

$156.09
$156.09 List Price: $323.44

Earn 468 points with this purchase.

See Details

View full details

Product Overview

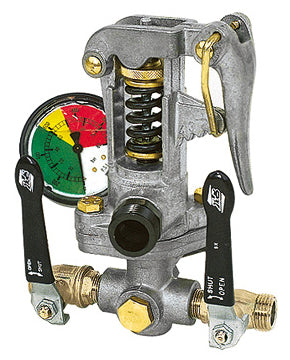

Hypro/AR pump models 9910-D30(AR30) and 9910-D50 (AR50) need this Hypro/AR GS40GI (GI40) Control Unit/Regulator for smooth, consistent sprayer functioning. Capable of flow rates of up to 21 GPM (79.5 LPM), it can withstand a maximum pressure of 580 PSI. Your new unit comes with a pressure gauge, one complete bypass lever, a 3/4" HB bypass and two 1/2" HB outlets. It also boasts the added ability for remote mounting if you purchase 9910-KIT1741.

Manufacturer description

This control unit, for mounting on pump models 9910-D30 (AR30) and 9910-D50 (AR50), is capable of handling flow rates up to 21 gpm (79.5 lpm) and pressures up to 580 psi (40 bar). It includes pressure gauge, one adjustable high pressure relief valve, one complete bypass lever, two 1/2" HB outlets with individual shut-offs, and one 3/4" HB bypass. Kit 9910-KIT1741 is available for remote mounting.

Resources

Download Product Manual

Features

  • Mounts to pump models: 9910-D30 (AR30), 9910-D50 (AR50)
  • Max flow: 21 gpm
  • Max pressure: 580 psi
  • Port sizes: 3/4" hose barb bypass, two 1/2" hose barb outlets with individual shut-offs
  • Pressure gauge: 0-1000 psi, color coded, glycerin filled
  • Weight: 3.5 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Relief Valve Poppet Retainer
    • Ref No: 83
    • Part No: 9910320433
    • Qty Req: 1
    Our price: $17.77 List price: $21.42
  • Gasket Seal O-Ring for GS40GI Regulators
    • Ref No: 84
    • Part No: 9910320511
    • Qty Req: 1
    Our price: $4.89 List price: $5.87
  • Tension Spring Guide/Seal
    • Ref No: 85
    • Part No: 9910390140
    • Qty Req: 1
    Our price: $9.75 List price: $12.50
  • Hose Barb 3/4"
    • Ref No: 86
    • Part No: 9910550460
    • Qty Req: 1
    Our price: $5.81 List price: $7.46
  • Barb Nut
    • Ref No: 87
    • Part No: 9910550450
    • Qty Req: 1
    Our price: $4.55 List price: $5.84
  • O-Ring
    • Ref No: 89
    • Part No: 9910180101
    • Qty Req: 2
    Our price: $1.74 List price: $1.89
  • Adaptor
    • Ref No: 90
    • Part No: 9910550440
    • Qty Req: 1
    Our price: $5.04 List price: $6.47
  • Support Housing
    • Ref No: 91
    • Part No: 9910320410
    • Qty Req: 1
    Our price: $59.94 List price: $70.30
  • Pin
    • Ref No: 92
    • Part No: 9910320480
    • Qty Req: 1
    Our price: $3.25 List price: $4.17
  • Lever Guide
    • Ref No: 93
    • Part No: 9910320460
    • Qty Req: 1
    Our price: $30.31 List price: $33.92
  • Pressure Release Lever
    • Ref No: 94
    • Part No: 9910320470
    • Qty Req: 1
    Our price: $24.74 List price: $28.86
  • Locking Clip
    • Ref No: 95
    • Part No: 9910320490
    • Qty Req: 1
    Our price: $8.04 List price: $10.32
  • Pressure Adjustment Nut
    • Ref No: 96
    • Part No: 9910320450
    • Qty Req: 1
    Our price: $10.35 List price: $13.27
  • Threaded Guide
    • Ref No: 97
    • Part No: 9910320440
    • Qty Req: 1
    Our price: $10.17 List price: $13.05
  • Tension Spring
    • Ref No: 98
    • Part No: 9910110190
    • Qty Req: 1
    Our price: $6.31 List price: $8.10
  • Tension Spring Retainer
    • Ref No: 99
    • Part No: 9910230120
    • Qty Req: 1
    Our price: $5.79 List price: $7.43
  • Remote Discharge Mounting Bracket
    • Ref No: 100
    • Part No: 9910320406
    • Qty Req: 1
    Our price: $38.26 List price: $47.61
  • Discharge Flange Housing
    • Ref No: 101
    • Part No: 9910450145
    • Qty Req: 1
    Our price: $39.67 List price: $50.87
  • 1/2" Hose Barb & Nut
    • Ref No: 102
    • Part No: 9910110130
    • Qty Req: 1
    Our price: $16.40 List price: $18.09
  • Bolt (M8 X 35)
    • Ref No: 103
    • Part No: 9910160660
    • Qty Req: 2
    Our price: $1.69 List price: $1.84
  • Nut
    • Ref No: 104
    • Part No: 9910390270
    • Qty Req: 2
    Our price: $1.83 List price: $2.28
  • Relief Valve Body
    • Ref No: 105
    • Part No: 9910620220
    • Qty Req: 1
    Our price: $82.04 List price: $88.67
  • Replacement Ball Valve with Hose Barb for GS40GI Pressure Regulators
    • Ref No: 106A
    • Part No: 9910KIT2497
    • Qty Req: 1
    Our price: $74.71 List price: $79.08
  • Outlet ball valve w/o barb
    • Ref No: 106B
    • Part No: 9910130491
    • Qty Req: 1
    Our price: $36.35 List price: $51.92
  • Plug
    • Ref No: 107
    • Part No: 9910130171
    • Qty Req: 1
    Our price: $4.99 List price: $6.27
  • Spring Holder
    • Ref No: 109
    • Part No: 9910450110
    • Qty Req: 1
    Our price: $18.56 List price: $23.80
  • O-Ring
    • Ref No: 110
    • Part No: 9910550350
    • Qty Req: 1
    Our price: $1.95 List price: $2.19
  • 9910-550545 Pressure Gauge (Color Coded, Oil-Filled)
    • Ref No: 111
    • Part No: 9910550545
    • Qty Req: 1
    Our price: $64.15 List price: $78.14
  • Bolt
    • Ref No: 112
    • Part No: 9910180370
    • Qty Req: 2
    Our price: $4.36 List price: $4.95
  • Tension Spring
    • Ref No: 113
    • Part No: 9910320420
    • Qty Req: 1
    Our price: $7.66 List price: $9.81
  • Relief Valve Seat (Viton-Black) for Hypro GS40GI Regulators
    • Ref No: 114
    • Part No: 9910110122
    • Qty Req: 1
    Our price: $34.57 List price: $44.33
  • Relief Valve Seat (Urethane-Red) for Hypro GS40GI Regulators
    • Ref No: 114
    • Part No: 9910110121
    • Qty Req: 1
    Our price: $8.46 List price: $10.32
