Hypro 9910KIT1640 Gear Box

Hypro 9910KIT1640 Gear Box

Brand:
Hypro
Weight:
7.07 lb
Item #
9910KIT1640
6 reviews
1 1

Hypro 9910KIT1640 Gear Box

Hypro 9910KIT1640 Gear Box

Brand:
Hypro
Weight:
7.07 lb
Item #
9910KIT1640
6 reviews

$423.31
$423.31 List Price: $845.92

Earn 1,270 points with this purchase.

See Details

View full details

Product Overview

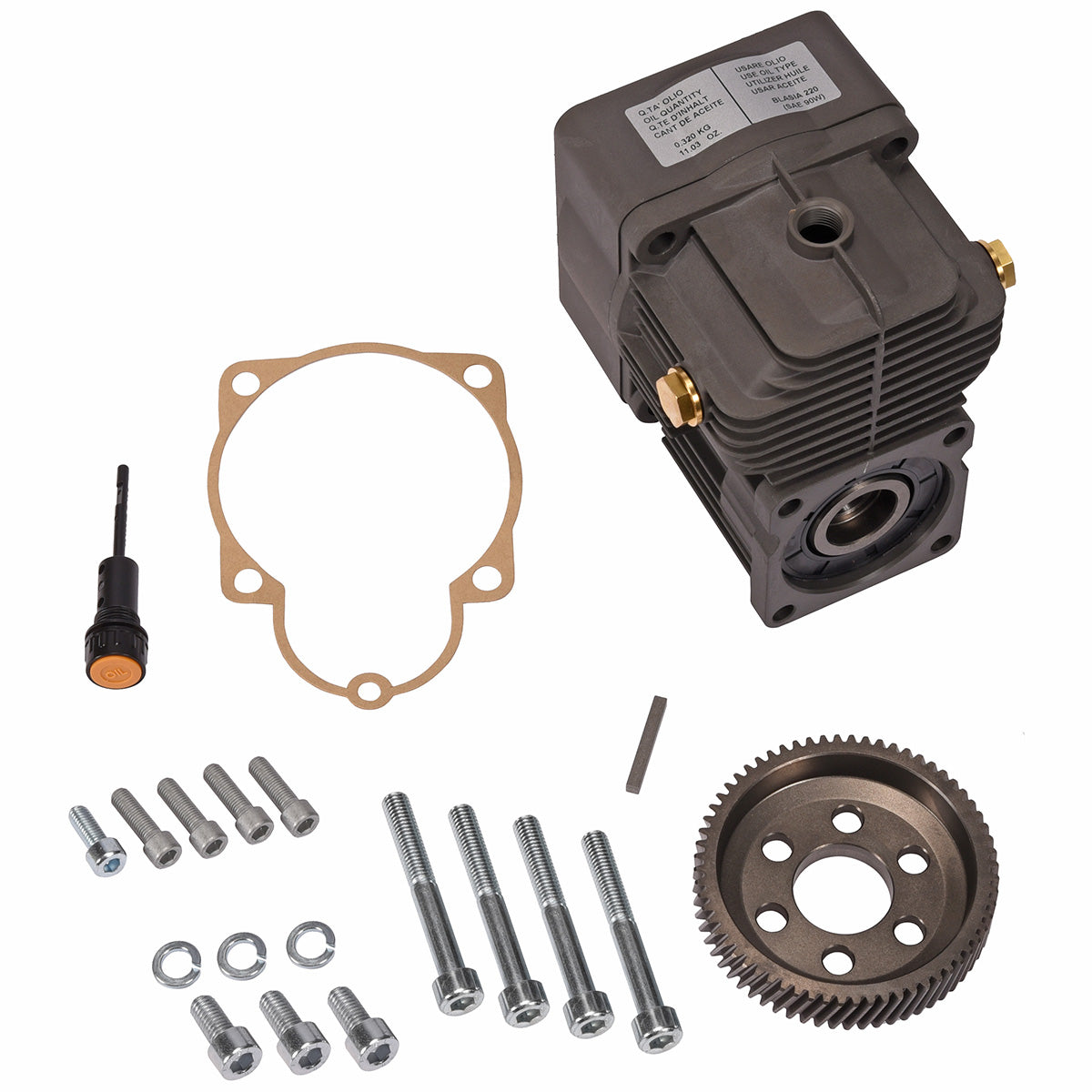

This 9910KIT-1640 (AR1636) gear box from Hypro/AR is designed to fit 5.5 HP gas engines and fits pump models 9910-D30 (AR30), 9910-D303 (AR303), 9910-D403 (AR403) and AR40. If you want to use pumps like 9910-D50 (AR50), 9910-D503 (AR503) or 9910-D813 (AR813), just ensure that they don't exceed this boxes 5.5 HP threshold. This is a 6:1 box and comes with a 3/4" shaft for ease of use.

Manufacturer description

6:1 gear box for standard 5.5 hp gas engine with 3/4" shaft. Fits pump models 9910-D30 (AR30), 9910-D303 (AR303) 9910-D403 (AR403) and AR40. This kit can also be used with 9910-D50, 9910-D503 and 9910-D813, providing that pumps are operated at lower pressures that do not exceed 5.5 hp gas engine capability.

Resources

Download Product Manual

Features

  • Ratio: 6:1 gearbox
  • Engine size: 5 to 6.5 hp gas engines with 3/4" solid keyed shaft
  • Fits pump models: 9910-D30 (AR30), 9910-D303 (AR303) 9910-D403 (AR403), and AR40; can also be used with 9910-D50 (AR50), 9910-D503 (AR503) and 9910-D813 (AR813) but you will not generate the max pressure pump can produce
  • Gear oil: 80/90 weight

Parts breakdown

Diagram

Diagram parts

Parts list

  • O-Ring
    • Ref No: 1
    • Part No: 9910620561
    • Qty Req: 1
    Our price: $7.42 List price: $8.90
  • Bolt
    • Ref No: 2
    • Part No: 9910180030
    • Qty Req: 1
    Our price: $2.05 List price: $2.63
  • Pump Adapter Flange
    • Ref No: 3
    • Part No: 9910621000
    • Qty Req: 1
    Our price: $226.90 List price: $234.01
  • Bearing
    • Ref No: 4
    • Part No: 9910620990
    • Qty Req: 1
    Our price: $93.58 List price: $111.88
  • Gear
    • Ref No: 5
    • Part No: 9910651620
    • Qty Req: 1
    Our price: $256.55 List price: $272.69
  • Lockwasher
    • Ref No: 6
    • Part No: 9910200231
    • Qty Req: 6
    Our price: $1.90 List price: $2.16
  • Allen Bolt
    • Ref No: 7
    • Part No: 9910620470
    • Qty Req: 3
    Our price: $2.70 List price: $3.27
  • Gearbox Body
    • Ref No: 8
    • Part No: 9910620960
    • Qty Req: 1
    Our price: $214.09 List price: $251.40
  • Oil drain plug
    • Ref No: 9
    • Part No: 24060023
    • Qty Req: 2
    Our price: $12.34 List price: $15.23
  • O-Ring
    • Ref No: 10
    • Part No: 9910740290
    • Qty Req: 2
    Our price: $2.09 List price: $2.31
  • Bolt
    • Ref No: 11
    • Part No: 9910651000
    • Qty Req: 4
    Our price: $11.61 List price: $11.84
  • Bolt
    • Ref No: 12
    • Part No: 9910621010
    • Qty Req: 4
    Our price: $6.35 List price: $7.13
  • Vent Plug
    • Ref No: 13
    • Part No: 99101140370
    • Qty Req: 1
    Our price: $16.32 List price: $16.88
  • Pinion Gear (Replaced 620970)
    • Ref No: 14
    • Part No: 9910621660
    • Qty Req: 1
    Our price: $251.78 List price: $354.99
  • Retaining Ring (Ext.)
    • Ref No: 15
    • Part No: 9910320240
    • Qty Req: 2
    Our price: $3.73 List price: $4.36
  • Bearing
    • Ref No: 16
    • Part No: 9910961780
    • Qty Req: 1
    Our price: $82.04 List price: $87.87
  • Retaining Ring (Int.)
    • Ref No: 17
    • Part No: 9910961790
    • Qty Req: 1
    Our price: $6.38 List price: $7.63
  • Seal
    • Ref No: 18
    • Part No: 9910961800
    • Qty Req: 1
    Our price: $32.70 List price: $35.69
  • Key, for GX160, D30, etc
    • Ref No: 19
    • Part No: 9910881090
    • Qty Req: 1
    Our price: $10.94 List price: $13.02
  • Gasket
    • Ref No: 20
    • Part No: 9910620950
    • Qty Req: 1
    Our price: $3.69 List price: $4.40
  • Old Style Gear
    • Ref No: 27
    • Part No: 9910620980
    • Qty Req: 1
    Our price: $359.65 List price: $429.00
