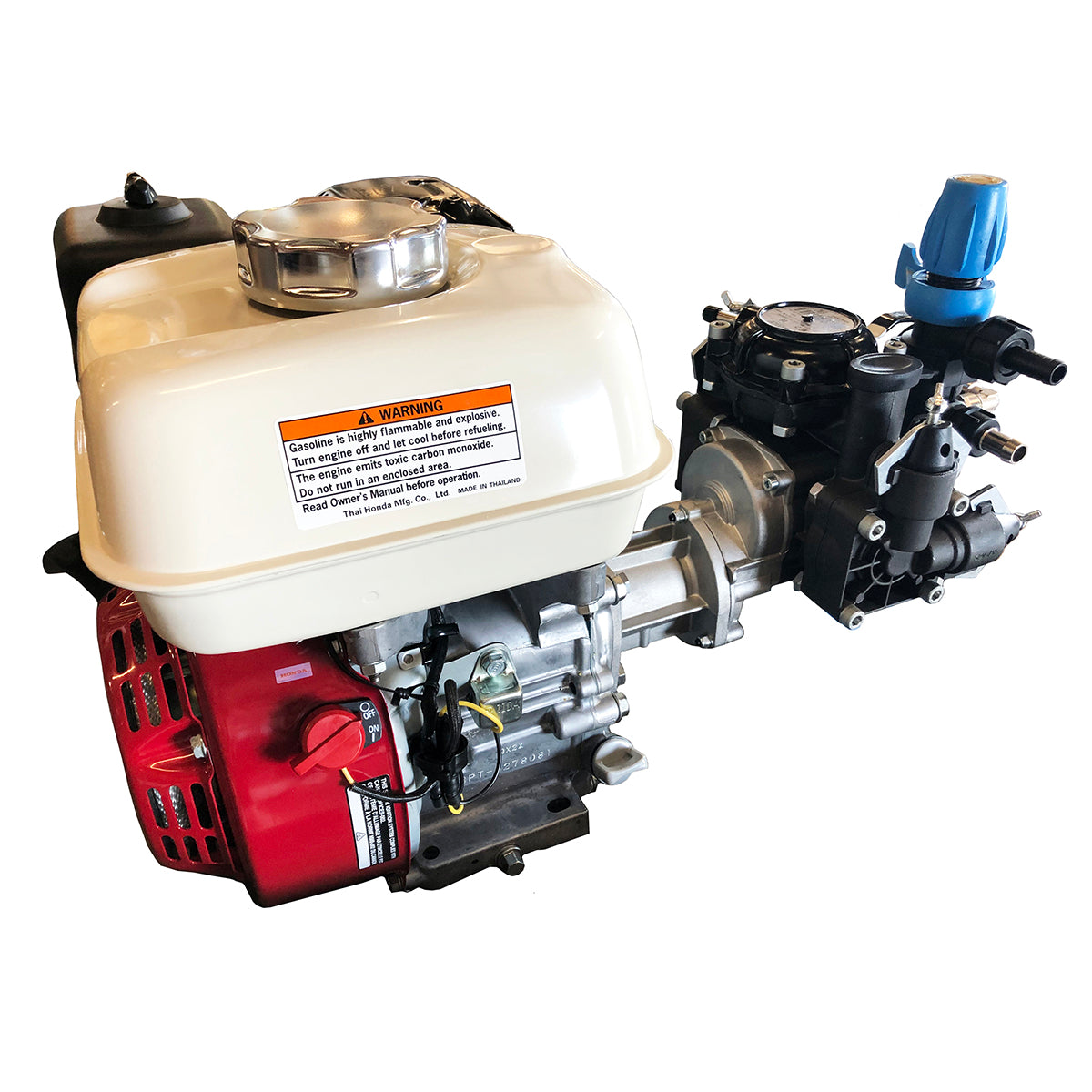

Comet MC25GR (MC25DS) & Honda GX160 Engine Assembly

Comet MC25GR (MC25DS) & Honda GX160 Engine Assembly

Item Code:
GXMC25
Weight:
55.0 lb
Manufacturer:
Kings Sprayers
Our price:
$879.00
List price:
$2,200.00
Overview:

Shipped fully assembled to keep you up and running this Comet MC25GR (MC25DS) & Honda GX160 Engine is a replacement combo for Kings Steel Sprayers. Can also be adapted to your current sprayer - please contact us for assistance! Spray up to 5 gpm or 350 psi.

Manufacturer Description:

Two diaphragm pump with gear reduction for gas engines with 3/4" shaft. Includes pressure regulator with manual dump lever. The MC Series are constructed of anodized aluminum for maximum pressure, while maintaining resistance to most agricultural chemicals.

Honda's GX series engines are legendary for superior reliability and performance. And there's no doubt about it: the GX160 lives up to the legend. Lower noise levels, lower vibration, and lower emissions without sacrificing power output or performance.

Features:

MC25GR (MC25DS) Specs:
  • Max flow: 5 gpm
  • Max pressure: 350 psi
  • Includes 1204/674 pressure regulator and gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp gas engines
  • Port sizes: 1" HB inlet, 3/8" HB outlet, 5/8" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F

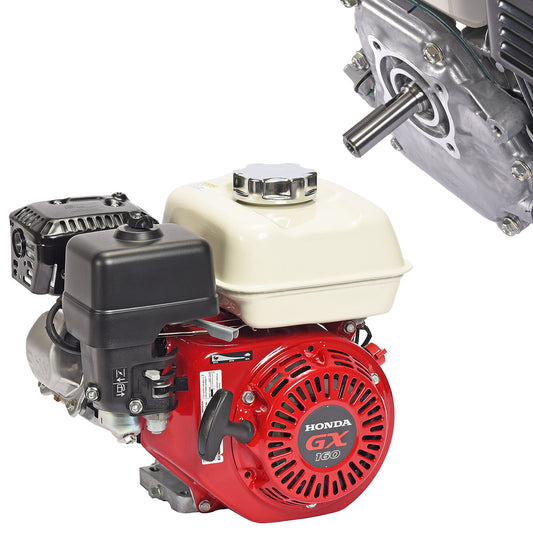

Honda GX160 Recoil Start Engine:
  • Engine type: Air-cooled 4-stroke OHV
  • Starting sytem: Recoil starter
  • Shaft: 3/4" solid keyed
  • Bore x stroke: 68 x 45 mm
  • Displacement: 163 cm3
  • Net power output: 4.8 HP (3.6 kW) @ 3600 rpm
  • Net torque: 7.6 lb-ft (10.3 Nm) @ 2500 rpm
  • PTO shaft rotation: Counterclockwise from PTO shaft side
  • Compression ratio: 9.0 : 1
  • Lamp/Charge coil options: 25W, 50W / 1A, 3A, 7A
  • Carburetor: Butterfly
  • Ignition system: Transistorized magneto
  • Lubrication system: Splash
  • Governor system: Centrifugal mechanical
  • Air cleaner: Dual element
  • Oil capacity: 0.61 US qt. (0.58 L)
  • Fuel tank capacity: 3.3 US qts (3.1 liters)
  • Fuel: Unleaded 86 octane or higher
  • Dry weight 33 lbs (15.1 kg)
  • Dimensions: 12.2 in long x 14.3 in wide x 13.6 in high (312 x 362 x 346 mm)
  • Warranty: 3 year commercial warranty (limited to manufacturer defects)
