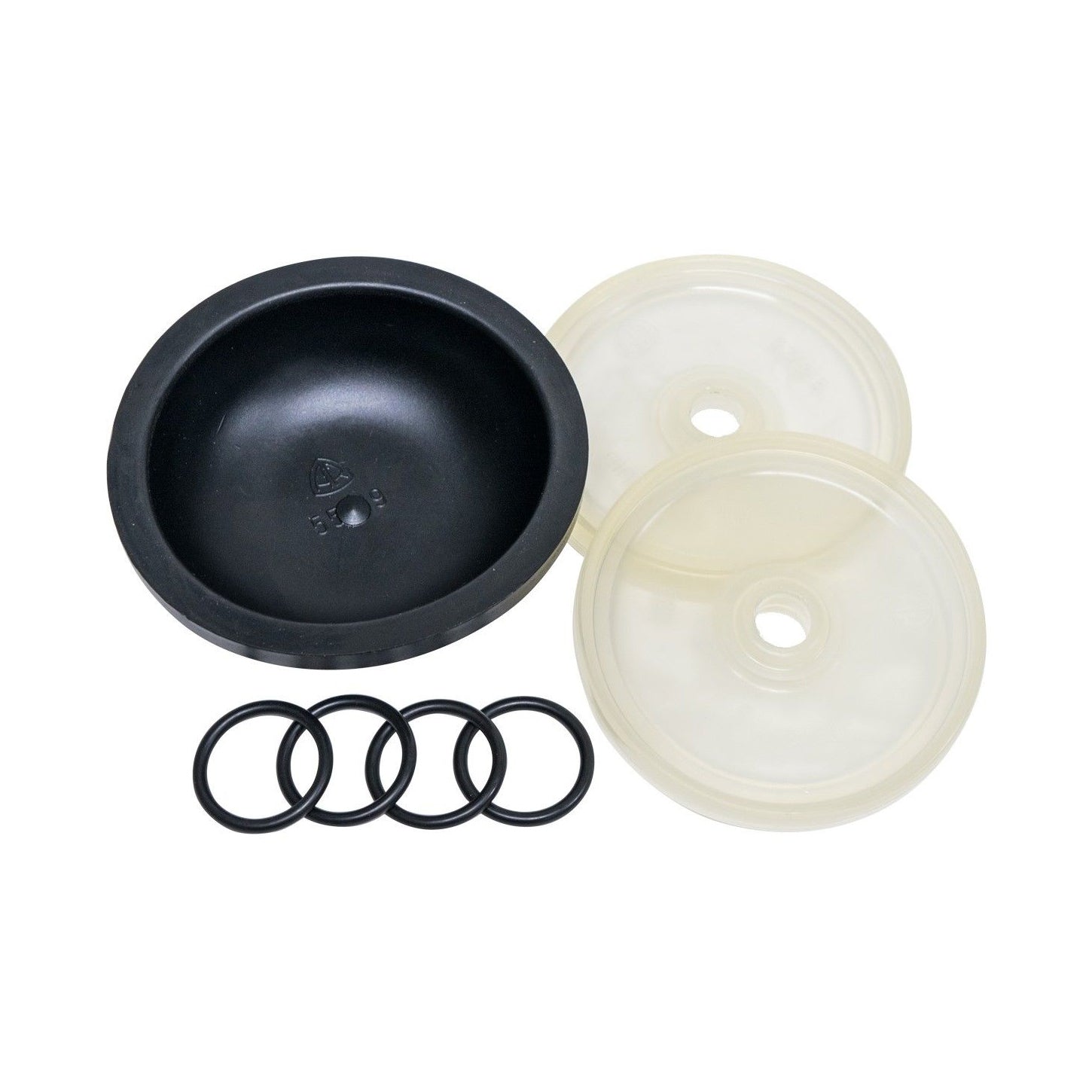

To swap out a worn or damaged diaphragm on the Hypro D30/AR30 pump, use this 9910-KIT1724 (AR43283) Diaphragm Kit. Avoid any further mixing of your fluids with the oil in the crank case with this kit, which includes everything you need to do a full replacement. It contains two piston diaphragms, an accumulator diaphragm, and four o-rings.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps and related parts; however, the pumps and repair parts are still available and will now feature factory labeling.

The Hypro D30 Diaphragm Repair Kit (9910-KIT1724/AR43283) will provide repairs for the diaphragms on your Hypro D30 pump. If the oil in your diaphragm pump has a milky gray color, you most likely will need to replace the diaphragms. Running a diaphragm pump with oil that is mixed with chemical can cause extensive damage to your pump. Keep this kit handy if your D30 is in constant use. We recommend changing the diaphragms every 3 months or 500 hours of use.

Download Product Manual

• Qty 2 9910-620085 Piston Diaphragm, Desmopan®
• Qty 4 9910-620030 O-Ring
• Qty 1 9910-550190 Accumulator Diaphragm, Buna-N
