**This assembly has been updated to include the latest version of the pump (AR30-GR3/4-GCI), featuring an upgraded gearbox with an improved pinion design**

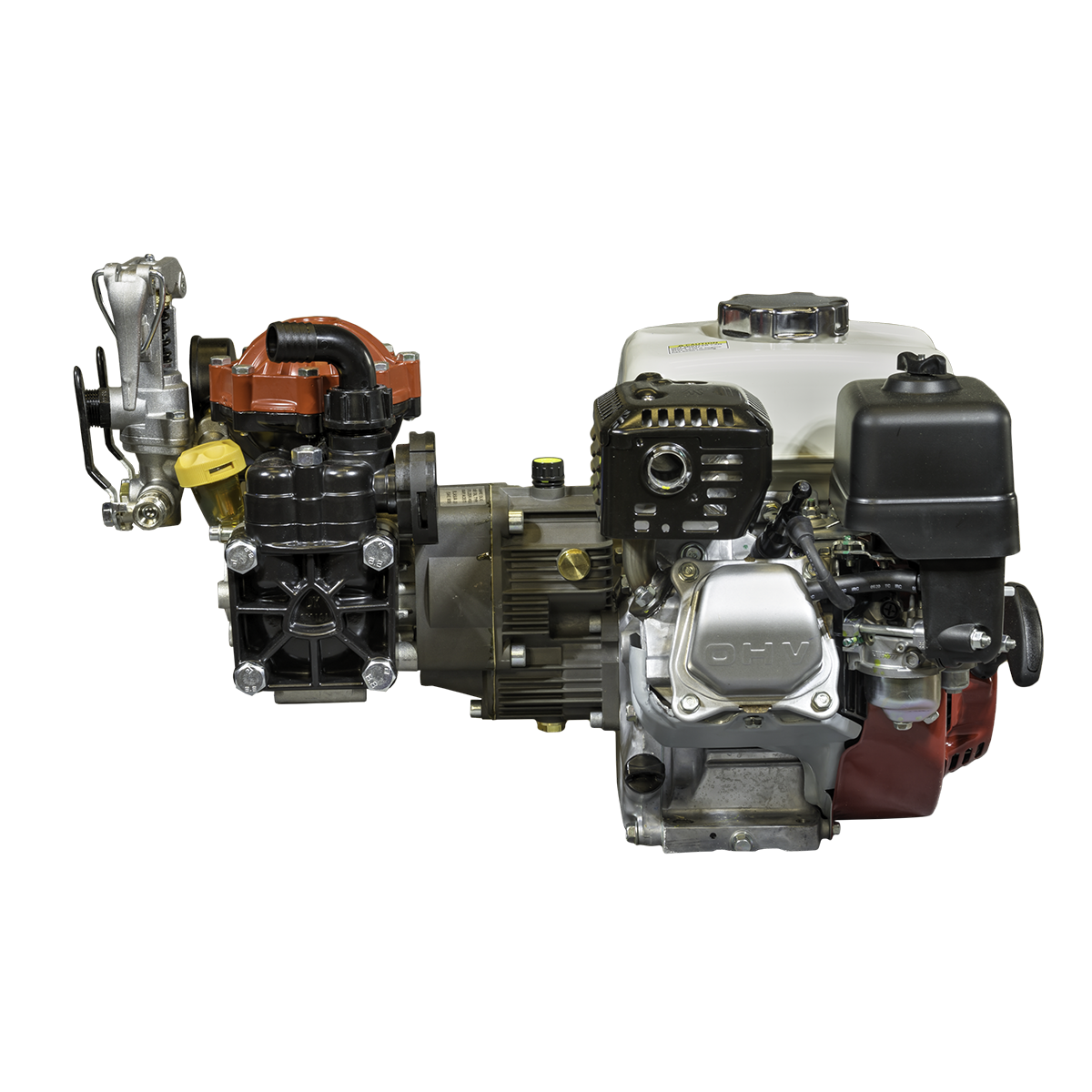

For plenty of power and consistent liquid delivery, choose this Hypro D30GRGI (AR30) & GX160 Engine Assembly for your sprayer. Perfectly tooled to handle medium-pressure applications, it comes with a maximum pressure capacity of 580 PSI and an upper flow limit of 9.5 GPM. And with its impressive 5.5 horsepower Honda commercial-grade engine, you'll value it for sprayer applications of pesticide, herbicide and liquid fertilizer.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts; however, the pumps and repair parts are still available and will now feature factory labeling.

Hypro/AR medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Pressure and output are designed for optimum performance of small to medium-sized sprayers. Honda's GX series engines are legendary for superior reliability and performance. And there's no doubt about it: the GX160 lives up to the legend. Lower noise levels, lower vibration, and lower emissions without sacrificing power output or performance.

D30GRGI (AR30):

• Max flow: 9.5 GPM
• Max pressure: 580 PSI
• Includes 9910-GS40GI pressure regulator and 9910-KIT1640 gearbox with 3/4” hollow shaft for 5 to 6.5 HP gas engines
• Port sizes: 1” HB inlet, (2) 1/2” HB outlet, 3/4” HB bypass
• Pump shaft rotation: CW and CCW
• Diaphragms: 2 semi-hydraulic BlueFlex
• Housing: Anodized aluminum
• Max fluid temp: 140°F

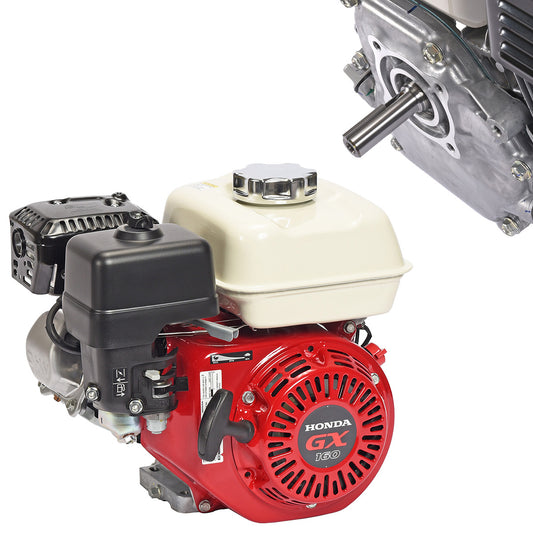

Honda GX160 (Recoil Start):

• Type: Air-cooled 4-stroke OHV
• Starting system: Recoil starter
• Shaft: 3/4” solid keyed (CCW rotation)
• Displacement: 163 cc
• Power: 4.8 HP @ 3600 RPM
• Torque: 7.6 lb-ft @ 2500 RPM
• Compression ratio: 9.0:1
• Ignition: Transistorized magneto
• Lubrication system: Splash
• Air cleaner: Dual element
• Oil capacity: 0.61 US qt
• Fuel tank capacity: 3.3 qt (86+ octane)
• Dry weight: 33 lbs
• Dimensions: 12.2" L x 14.3" W x 13.6"H
• Warranty: 3-year commercial warranty (manufacturer defects only)
