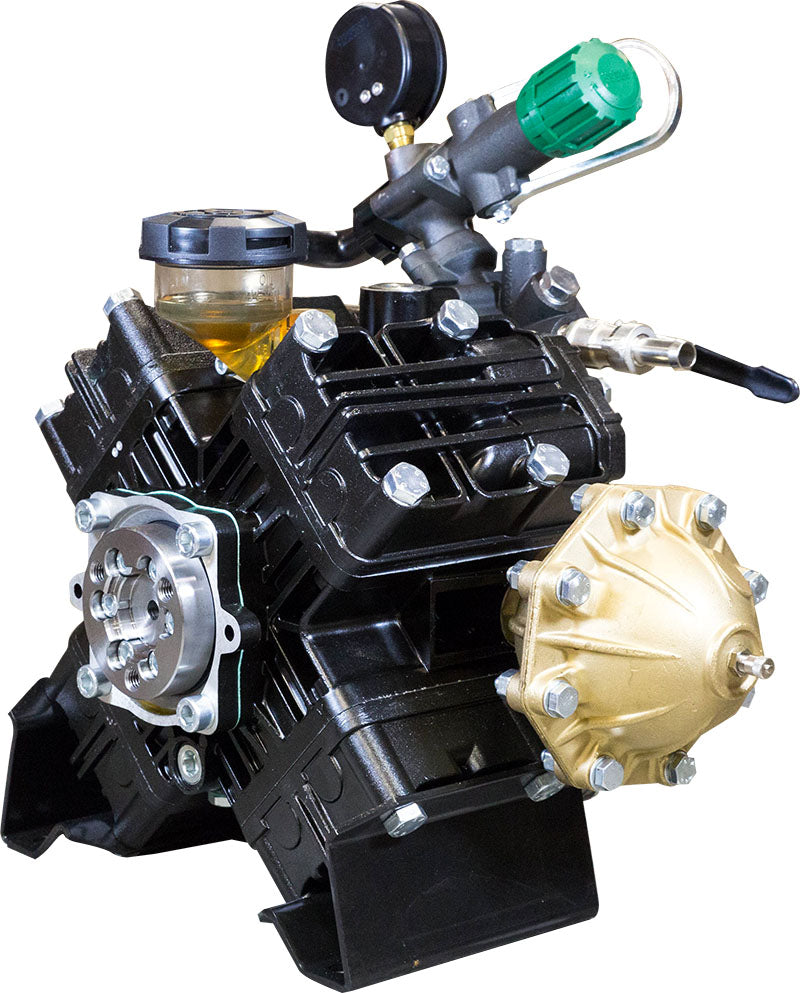

Udor DELTA-100 Diaphragm Pump

Udor DELTA-100 Diaphragm Pump

Brand:
Udor
Weight:
52.0 lb
Item #
DELTA100

Regular price $1,475.49
Sale price $1,475.49 Regular price List Price: $2,682.70

Earn 4,426 points with this purchase.

View full details

Collapsible content

Product Overview

The Udor DELTA-100 Diaphragm Pump is a medium-pressure, four-diaphragm pump that is ideal for a broad range of agricultural and horticultural spraying applications. This unit efficiently manages turf and tree spraying, lawn care, fluid transfer, pest control, hydrostatic testing, and de-icing materials. The pump can handle a variety of liquids, including liquid fertilizers, herbicides, suspension products, pesticides, and abrasive materials.

Manufacturer description

Four diaphragm pump with universal drive face has pulsation dampener & control unit with adjustable pressure regulator, manual dump lever, dual ball valve outlets & pressure gauge. UDOR DELTA Series Pumps Are Internally Manifolded With Anodized Aluminum Construction. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features

  • Max flow: 26 gpm
  • Max pressure: 560 psi
  • Max speed: 540 rpm

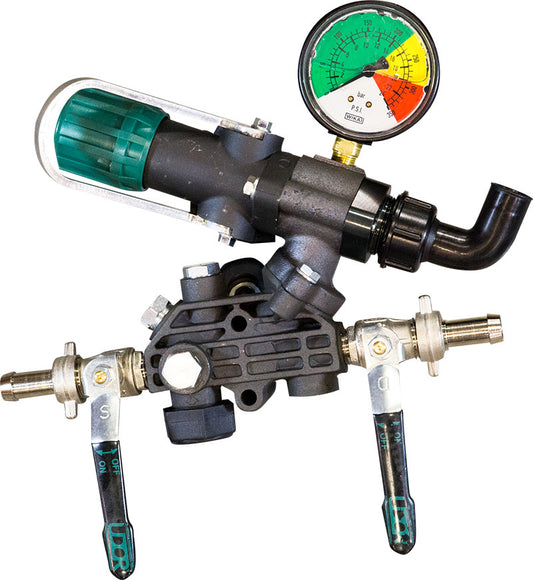

  • Includes 6047.06 control unit
  • Port sizes: 1-1/2" HB inlet, (2) 1/2" HB with individual shut-off outlet, 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 4, semi-hydraulic, Desmopan® standard Buna available
  • Recommended gearbox: 5034.B5 with 1" hollow shaft for mounting on 16 to 20 hp engines
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 51 lbs
