Udor KAPPA-100/C Diaphragm Pump

Udor KAPPA-100/C Diaphragm Pump

Item Code:
KAPPA100C
Weight:
52.0 lb
Manufacturer:
Udor
Our price:
$1,240.64
List price:
$2,255.70
Overview:

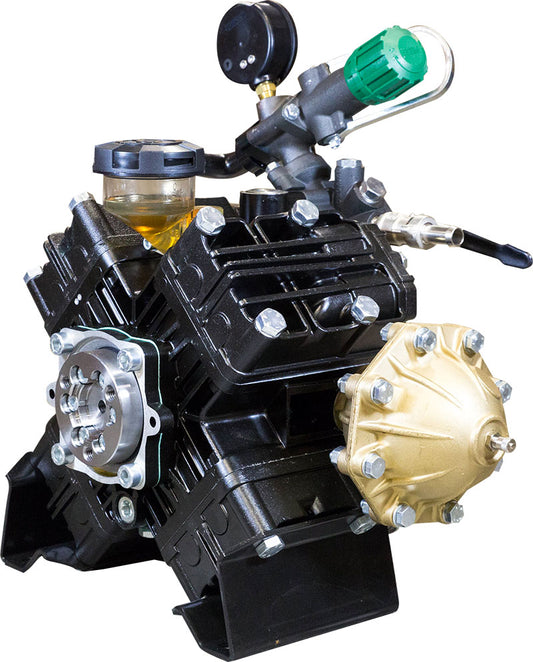

The Udor KAPPA-100/C Diaphragm Pump is a four-diaphragm, medium-pressure agricultural pump with an adjustable pressure control unit regulator, dual ball valve controlled outlet ports, built-in pulsation dampener, 1-3/8" male 6-spline PTO shaft, and manual dump lever. High flow, high pressure diaphragm pump suitable for many applications including poultry house and agricultural spraying.

Manufacturer Description:

Four diaphragm pump with pulsation dampener & control unit with adjustable pressure regulator, manual dump lever, dual ball valve outlets & pressure gauge. Has 1-3/8", 6-spline male PTO shaft. UDOR KAPPA Series Pumps Are Internally Manifolded With Anodized Aluminum Construction. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features:

  • Max flow: 26 gpm
  • Max pressure: 560 psi
  • Max speed: 540 rpm
  • Includes 6047.06 control unit
  • Port sizes: 1-1/2" HB inlet, (2) 1/2" HB with individual shut-off outlet, 3/4" HB bypass

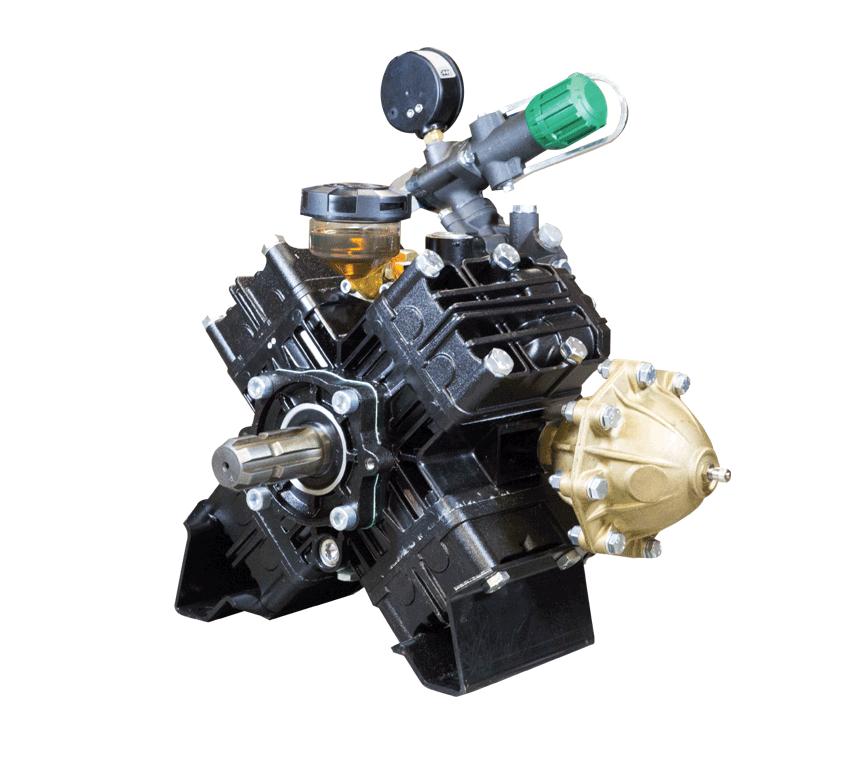

  • Shaft: 1-3/8", 6-spline male PTO shaft on the front
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 4, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 51 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 5
  • Part No: 000107
  • Qty Req: 2
Our price: $44.32 List price: $53.40
  • Ref No: 78
  • Part No: 000310
  • Qty Req: 1
Our price: $208.99 List price: $251.80
  • Ref No: 170
  • Part No: 000727
  • Qty Req: 1
Our price: $23.99 List price: $28.90
  • Ref No: 540
  • Part No: 020898
  • Qty Req: 1
Our price: $13.70 List price: $16.50
  • Ref No: 558
  • Part No: 020821
  • Qty Req: 1
Our price: $188.91 List price: $227.60
  • Ref No: 632
  • Part No: 020945
  • Qty Req: 1
Our price: $573.61 List price: $691.10
  • Ref No: 700
  • Part No: 021404
  • Qty Req: 1
Our price: $145.25 List price: $175.00
  • Ref No: 701
  • Part No: 021405
  • Qty Req: 1
Our price: $105.66 List price: $127.30
  • Ref No: 804
  • Part No: 030132
  • Qty Req: 2
Our price: $12.20 List price: $14.70
  • Ref No: 832
  • Part No: 030251
  • Qty Req: 2
Our price: $12.20 List price: $14.70
  • Ref No: 845
  • Part No: 030301
  • Qty Req: 8
Our price: $1.33 List price: $1.60
  • Ref No: 871
  • Part No: 030404
  • Qty Req: 2
Our price: $1.99 List price: $2.40
  • Ref No: 925
  • Part No: 050170
  • Qty Req: 1
Our price: $143.42 List price: $172.80
  • Ref No: 977
  • Part No: 060205
  • Qty Req: 1
Our price: $2.99 List price: $3.60
  • Ref No: 1042
  • Part No: 060425
  • Qty Req: 1
Our price: $14.19 List price: $17.10
  • Ref No: 1072
  • Part No: 060509
  • Qty Req: 1
Our price: $1.33 List price: $1.60
  • Ref No: 1122
  • Part No: 060816
  • Qty Req: 1
Our price: $16.93 List price: $20.40
  • Ref No: 1301
  • Part No: 090316
  • Qty Req: 1
Our price: $33.95 List price: $40.90
  • Ref No: 1381
  • Part No: 110127
  • Qty Req: 8
Our price: $2.32 List price: $2.80
  • Ref No: 1382
  • Part No: 110129
  • Qty Req: 10
Our price: $1.99 List price: $2.40
  • Ref No: 1395
  • Part No: 110148
  • Qty Req: 1
Our price: $5.64 List price: $6.80
  • Ref No: 1398
  • Part No: 110142
  • Qty Req: 1
Our price: $2.32 List price: $2.80
  • Ref No: 1408
  • Part No: 110163
  • Qty Req: 1
Our price: $10.29 List price: $12.40
  • Ref No: 1421
  • Part No: 110188
  • Qty Req: 1
Our price: $8.30 List price: $10.00
  • Ref No: 1434
  • Part No: 1101D1
  • Qty Req: 1
Our price: $4.73 List price: $5.70
  • Ref No: 1460
  • Part No: 120237
  • Qty Req: 2
Our price: $41.75 List price: $50.30
  • Ref No: 1578
  • Part No: 120518
  • Qty Req: 4
Our price: $87.07 List price: $104.90
  • Ref No: 1702
  • Part No: 600601
  • Qty Req: 8
Our price: $25.39 List price: $30.59
  • Ref No: 1721
  • Part No: 601706
  • Qty Req: 4
Our price: $109.81 List price: $132.30
  • Ref No: 1801
  • Part No: 601529
  • Qty Req: 4
Our price: $156.95 List price: $189.10
  • Ref No: 1843
  • Part No: 140307
  • Qty Req: 2
Our price: $1.00 List price: $1.20
  • Ref No: 1845
  • Part No: 140310
  • Qty Req: 6
Our price: $0.94 List price: $1.13
  • Ref No: 1967
  • Part No: 150207
  • Qty Req: 4
Our price: $21.75 List price: $26.20
  • Ref No: 2051
  • Part No: 150615
  • Qty Req: 8
Our price: $5.35 List price: $6.45
  • Ref No: 2152
  • Part No: 151919
  • Qty Req: 4
Our price: $58.52 List price: $70.50
  • Ref No: 2251
  • Part No: 160302
  • Qty Req: 1
Our price: $7.26 List price: $8.75
  • Ref No: 2268
  • Part No: 160332
  • Qty Req: 9
Our price: $6.47 List price: $7.80
  • Ref No: 2473
  • Part No: 180454
  • Qty Req: 8
Our price: $1.74 List price: $2.10
  • Ref No: 2583
  • Part No: 180505
  • Qty Req: 4
Our price: $1.99 List price: $2.40
  • Ref No: 2589
  • Part No: 180531
  • Qty Req: 2
Our price: $1.49 List price: $1.80
  • Ref No: 2593
  • Part No: 180514
  • Qty Req: 8
Our price: $3.15 List price: $3.80
  • Ref No: 2594
  • Part No: 180524
  • Qty Req: 6
Our price: $1.58 List price: $1.90
  • Ref No: 2603
  • Part No: 180512
  • Qty Req: 12
Our price: $2.41 List price: $2.90
  • Ref No: 7671
  • Part No: 140309
  • Qty Req: 12
Our price: $1.00 List price: $1.20
