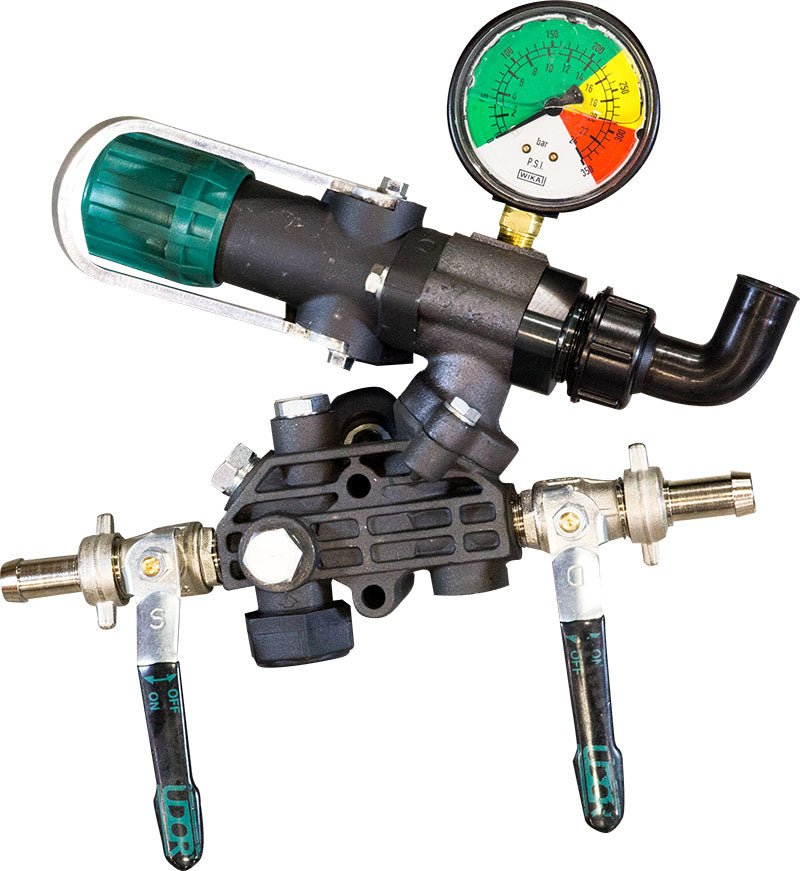

6047.06 Control Unit KAPPA-75/100

6047.06 Control Unit KAPPA-75/100

1 review
Item Code:
604706
Weight:
3.6 lb
Manufacturer:
Udor
Our price:
$237.20
List price:
$320.54
Overview:

The 6047.06 Control Unit KAPPA-75/100 is the ideal component to get for either the Kappa 75 or Kappa 100 diaphragm pumps. It can be attached directly to the pump or mounted remotely. Additionally, it is able to enter the pump at a right angle, allowing it to function more efficiently and have a much longer lifespan. This piece includes a pressure gauge, two _" ball valve discharge ports and a manual dump lever.

Manufacturer Description:

The 6047-06 & 6047.06/LP are pump or remote mounted control units. They have right angle entry from the main body to the adjustable pressure regulator for smoother operation and longer life. They include a manual dump valve, two (2) 1/2" ball valve discharge ports, and pressure gauge. Liquid handling parts are black anodized aluminum, stainless steel, and glass-filled nylon. The 6047.06 is standard on KAPPA-75 & KAPPA-100 pumps. The 6047.06/LP is fitted with a lighter spring and gauge for lower pressure applications and is recommended for RO-70 pumps.

Features:

  • Mounts to pump models: KAPPA-75, KAPPA-100
  • Max flow: 26 gpm
  • Max pressure: 560 psi
  • Port sizes: 3/4" hose barb bypass, two 1/2" hose barb outlets with individual shut-offs
  • Pressure gauge: 0-1000 psi, color coded, glycerin filled
  • Weight: 5 lbs

Parts breakdown

Parts list

  • Ref No: 358
  • Part No: 020219
  • Qty Req: 2
Our price: $8.04 List price: $9.68
  • Ref No: 459
  • Part No: 020510
  • Qty Req: 1
Our price: $19.66 List price: $23.69
  • Ref No: 460
  • Part No: 020511
  • Qty Req: 2
Our price: $16.33 List price: $19.67
  • Ref No: 1034
  • Part No: 060409
  • Qty Req: 2
Our price: $7.35 List price: $8.86
  • Ref No: 1040
  • Part No: 060426
  • Qty Req: 1
Our price: $7.87 List price: $9.48
  • Ref No: 1071
  • Part No: 060505
  • Qty Req: 2
Our price: $1.37 List price: $1.65
  • Ref No: 1124
  • Part No: 060845
  • Qty Req: 1
Our price: $43.00 List price: $51.81
  • Ref No: 1233
  • Part No: 090124
  • Qty Req: 1
Our price: $8.38 List price: $10.09
  • Ref No: 1275
  • Part No: 090225
  • Qty Req: 1
Our price: $8.46 List price: $10.20
  • Ref No: 1304
  • Part No: 090326
  • Qty Req: 1
Our price: $5.30 List price: $6.39
  • Ref No: 1368
  • Part No: 110104
  • Qty Req: 1
Our price: $1.97 List price: $2.37
  • Ref No: 1370
  • Part No: 110106
  • Qty Req: 2
Our price: $1.88 List price: $2.27
  • Ref No: 1374
  • Part No: 110112
  • Qty Req: 2
Our price: $1.88 List price: $2.27
  • Ref No: 1389
  • Part No: 110141
  • Qty Req: 1
Our price: $1.97 List price: $2.37
  • Ref No: 1501
  • Part No: 120340
  • Qty Req: 1
Our price: $50.87 List price: $61.29
  • Ref No: 1841
  • Part No: 140306
  • Qty Req: 1
Our price: $1.20 List price: $1.44
  • Ref No: 1843
  • Part No: 140307
  • Qty Req: 6
Our price: $0.94 List price: $1.13
  • Ref No: 1936
  • Part No: 150123
  • Qty Req: 1
Our price: $23.60 List price: $28.43
  • Ref No: 2251
  • Part No: 160302
  • Qty Req: 1
Our price: $3.82 List price: $4.60
  • Ref No: 2257
  • Part No: 160314
  • Qty Req: 1
Our price: $5.04 List price: $6.08
  • Ref No: 2379
  • Part No: 180117
  • Qty Req: 1
Our price: $12.91 List price: $15.55
  • Ref No: 2477
  • Part No: 180810
  • Qty Req: 2
Our price: $1.80 List price: $2.16
  • Ref No: 2478
  • Part No: 180468
  • Qty Req: 2
Our price: $1.45 List price: $1.75
  • Ref No: 2479
  • Part No: 180474
  • Qty Req: 4
Our price: $1.71 List price: $2.06
  • Ref No: 2630
  • Part No: 181001
  • Qty Req: 1
Our price: $4.36 List price: $5.25
  • Ref No: 5003
  • Part No: 060846
  • Qty Req: 1
Our price: $43.00 List price: $51.81
  • Ref No: 7330
  • Part No: 060429
  • Qty Req: 1
Our price: $5.81 List price: $7.00
  • Ref No: 7700
  • Part No: 160322
  • Qty Req: 1
Our price: $1.62 List price: $1.96
