Hypro Pump - 7560N

Hypro Pump - 7560N

Brand:
Hypro
Weight:
13.5 lb
Item #
7560N
1 review

$513.84
$513.84 List Price: $934.26

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 1,542 points with this purchase.

See Details

View full details

Product Overview

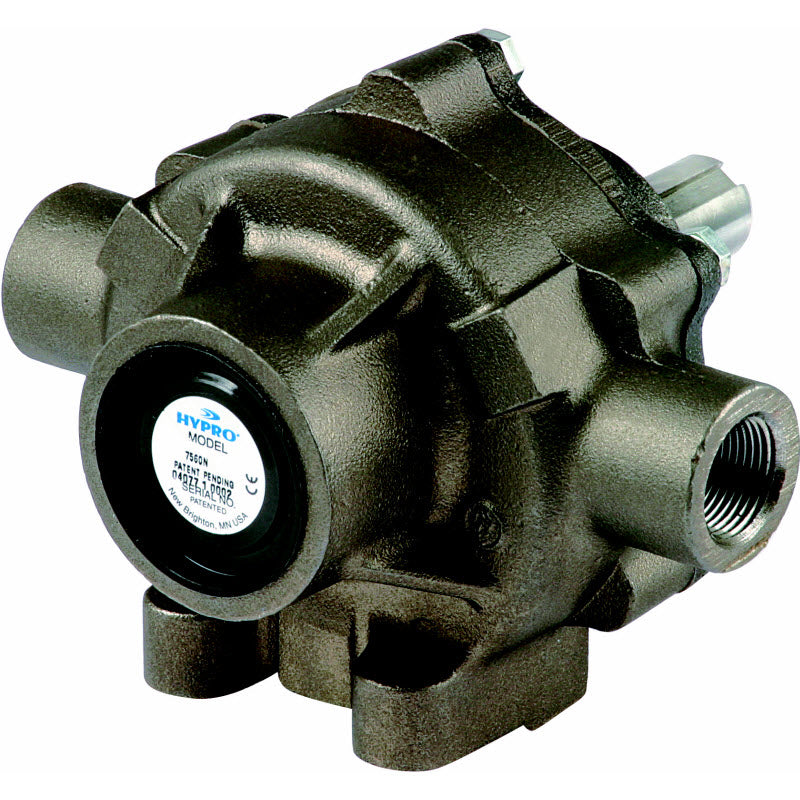

Hypro Roller Pump

Model: 7560N

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids.


Features:


  • Max flow: 22.5 gpm
  • Max pressure: 300 psi
  • Max speed: 1000 rpm
  • Port sizes: 3/4" NPT
  • Pump shaft rotation: CCW
  • 15/16" solid stainless steel shaft


Additional Features:


  • 12 gpm/45.4 lpm at 540 rpm
  • 22.5 gpm/85.2 lpm at 1000 rpm

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Bearing Cover
    • Ref No: 1
    • Part No: 23000020
    • Qty Req: 1
    Our price: $1.94 List price: $2.39
  • Main Bearing - Hypro Pumps
    • Ref No: 2
    • Part No: 20080001
    • Qty Req: 2
    Our price: $19.73 List price: $24.36
  • Viton Seal (Std.)
    • Ref No: 3
    • Part No: 21120003
    • Qty Req: 2
    Our price: $21.76 List price: $26.87
  • Buna-N Seal (Optional)
    • Ref No: 3
    • Part No: 21120001
    • Qty Req: 2
    Our price: $20.65 List price: $25.49
  • Bolt
    • Ref No: 4
    • Part No: 22100004
    • Qty Req: 4
    Our price: $1.18 List price: $1.46
  • Endplate (Ni-Resist) with Seal
    • Ref No: 5
    • Part No: 02047500N
    • Qty Req: 1
    Our price: $194.44 List price: $231.92
  • O-Ring Gasket for Endplate
    • Ref No: 6
    • Part No: 17200014
    • Qty Req: 1
    Our price: $2.92 List price: $3.60
  • Super Roller (Standard)
    • Ref No: 7
    • Part No: 10050004
    • Qty Req: 8
    Our price: $4.84 List price: $5.97
  • Teflon Rollers (Optional)
    • Ref No: 7
    • Part No: 10550004
    • Qty Req: 8
    Our price: $25.25 List price: $31.17
  • Rotor and Shaft Assembly
    • Ref No: 8
    • Part No: 34300745
    • Qty Req: 1
    Our price: $284.93 List price: $351.76
  • Base Kit
    • Ref No: 10
    • Part No: 34200003
    • Qty Req: 1
    Our price: $73.65 List price: $90.92
  • Body (Ni-Resist) with Seal
    • Ref No: 11
    • Part No: 01047500N
    • Qty Req: 1
    Our price: $380.15 List price: $453.44
