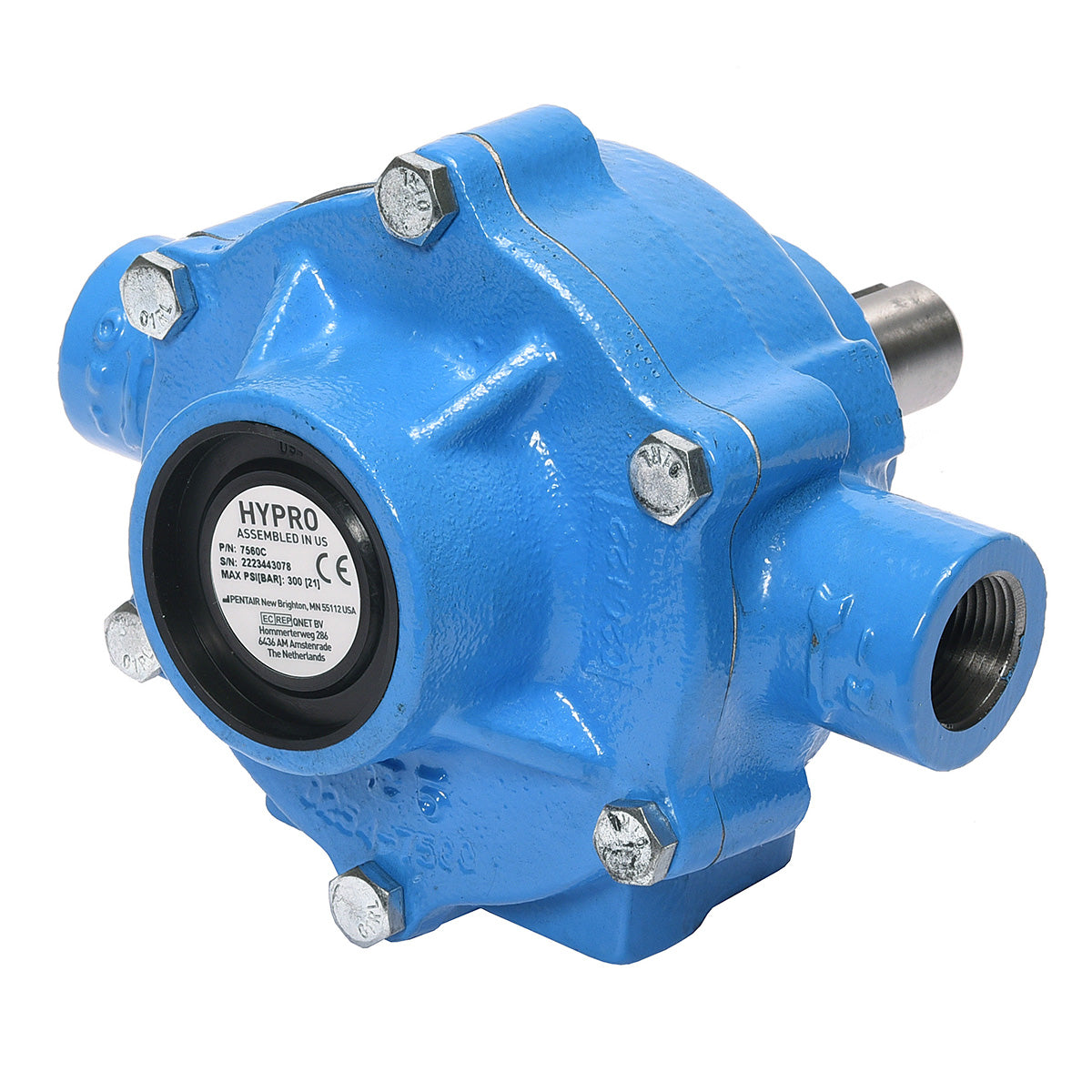

Hypro 7560C Roller Pump

Hypro 7560C Roller Pump

2 reviews
Item Code:
7560C
Weight:
13.0 lb
Manufacturer:
Hypro
Our price:
$229.75
List price:
$417.72
Overview:

Lightweight and low-torque, the Hypro 7560C roller pump provides easy-to-control spray coverage for small to medium size operations. With output variance between 12 and 22.5 gpms, this pump is versatile and adapts to most coverage needs. And at just 13 lbs, the pump is extremely easy to operate and install. Find the solution to getting your fertilizer, herbicides, emulsions and pesticides where they need to be with ease.

Manufacturer Description:

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.

Features:

  • Max flow: 22.5 gpm
  • Max pressure: 300 psi
  • Max rpm: 1000
  • Port sizes: 3/4" FNPT
  • Pump shaft rotation: CCW
  • Housing: Cast iron
  • Rotor: Cast iron
  • Roller material: Super rollers standard, Poly and Teflon® available
  • Roller quantity: 8
  • Shaft seals: Viton® standard, Buna available
  • Shaft: 15/16" solid stainless steel
  • 12 gpm/45.4 lpm at 540 rpm
  • 22.5 gpm/85.2 lpm at 1000 rpm
  • Max fluid temperature: 140°F
  • Weight: 13 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 1
  • Part No: 23000020
  • Qty Req: 1
Our price: $1.65 List price: $2.04
  • Ref No: 2
  • Part No: 20080001
  • Qty Req: 2
Our price: $16.89 List price: $20.85
  • Ref No: 3
  • Part No: 21120003
  • Qty Req: 2
Our price: $18.62 List price: $22.99
  • Ref No: 4
  • Part No: 22100004
  • Qty Req: 6
Our price: $1.01 List price: $1.25
  • Ref No: 10
  • Part No: 34200003
  • Qty Req: 1
Our price: $63.06 List price: $77.85
  • Ref No: 12
  • Part No: 23000022
  • Qty Req: 1
Our price: $1.65 List price: $2.04
  • Ref No: 13
  • Part No: 16100005
  • Qty Req: 1
Our price: $1.82 List price: $2.25
  • Ref No: 13
  • Part No: 16100059
  • Qty Req: 1
Our price: $5.04 List price: $6.22
