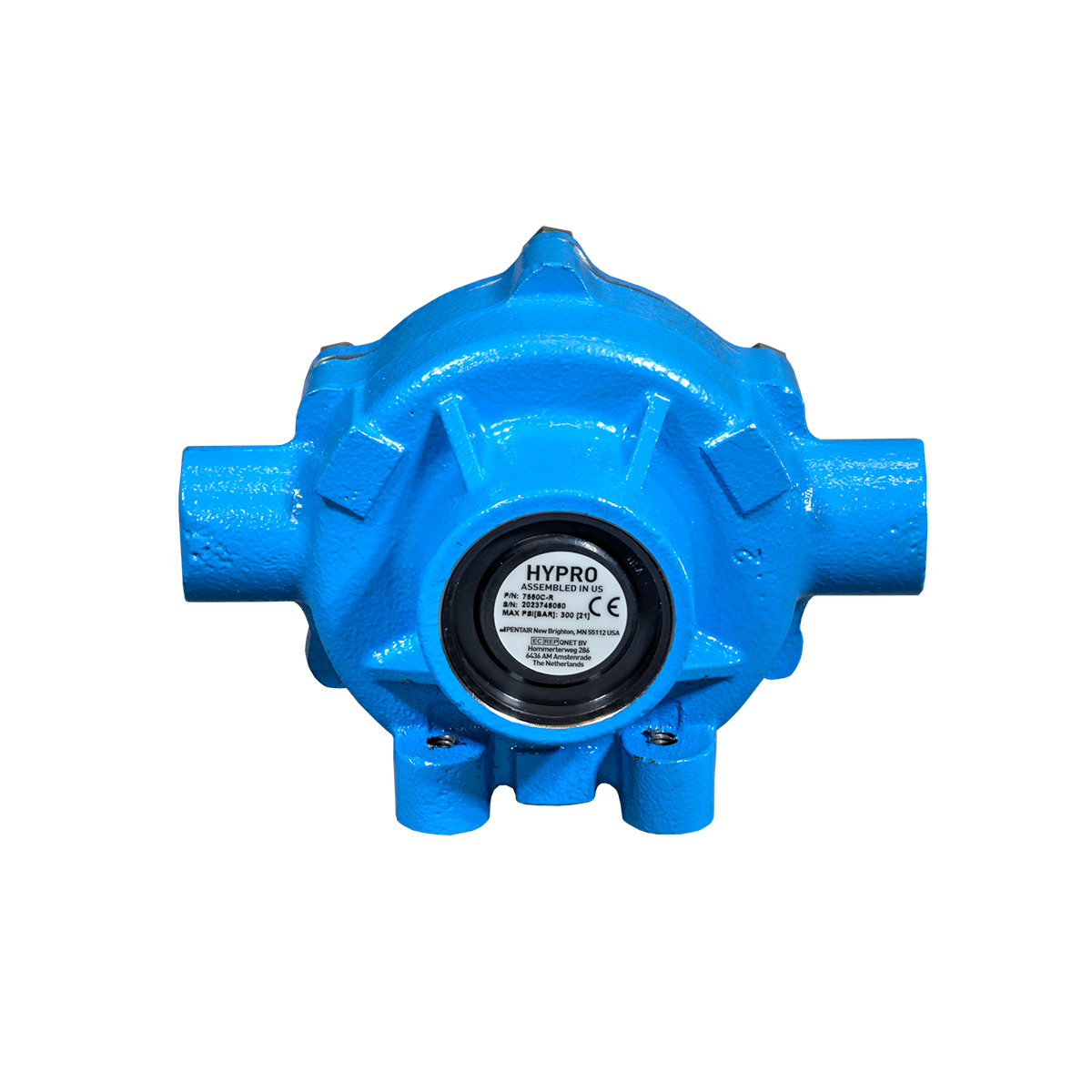

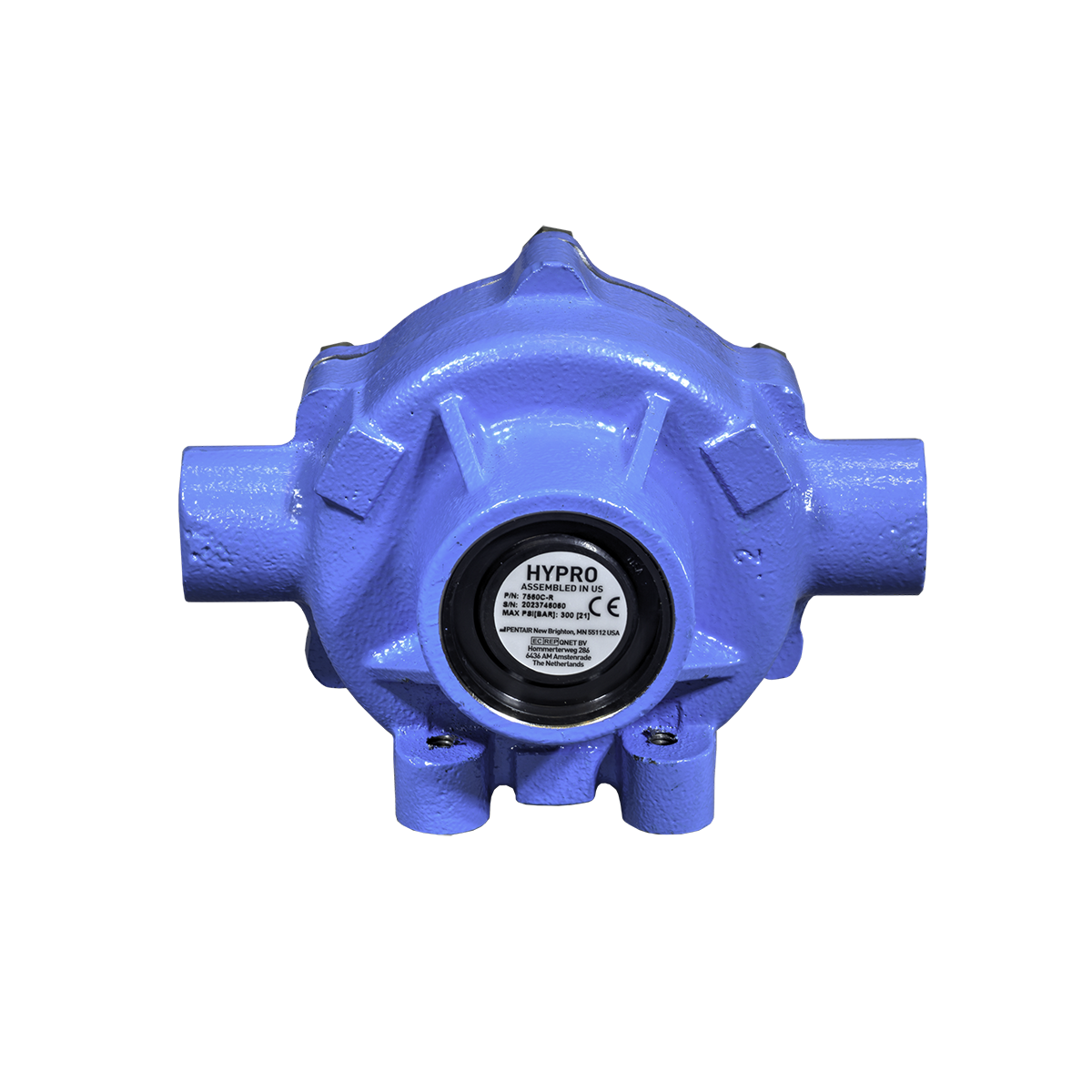

Hypro 7560C-R Roller Pump

Hypro 7560C-R Roller Pump

9 reviews
Item Code:
7560CR
Weight:
13.23 lb
Manufacturer:
Hypro
Our price:
$235.73
List price:
$428.60
Overview:

Versatile and powerful, the 7560 series roller pump from Hypro is the top choice for small to medium spray needs. Able to withstand up to 1000 rpm, this pump is capable of producing up to 22.5 gallons per minute at nearly 300 psi. Output rates are also adjustable, between 12 and 22.5 gpms. Built for industrial use, the 7560 Hypro roller pump is chemical resistant and polymer coated.

Manufacturer Description:

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.

Features:

  • Max flow: 22.5 gpm
  • Max pressure: 300 psi
  • Max rpm: 1000
  • Port sizes: 3/4" FNPT
  • Pump shaft rotation: CW
  • Housing: Cast iron
  • Rotor: Cast iron
  • Roller material: Super rollers standard, Poly and Teflon® available
  • Roller quantity: 8
  • Shaft seals: Viton® standard, Buna available
  • Shaft: 15/16" solid stainless steel
  • 12 gpm/45.4 lpm at 540 rpm
  • 22.5 gpm/85.2 lpm at 1000 rpm
  • Max fluid temperature: 140°F
  • Weight: 13 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 1
  • Part No: 23000020
  • Qty Req: 1
Our price: $1.65 List price: $2.04
  • Ref No: 2
  • Part No: 20080001
  • Qty Req: 2
Our price: $16.89 List price: $20.85
  • Ref No: 3
  • Part No: 21120003
  • Qty Req: 2
Our price: $18.62 List price: $22.99
  • Ref No: 4
  • Part No: 22100004
  • Qty Req: 6
Our price: $1.01 List price: $1.25
  • Ref No: 10
  • Part No: 34200003
  • Qty Req: 1
Our price: $63.06 List price: $77.85
  • Ref No: 12
  • Part No: 23000022
  • Qty Req: 1
Our price: $1.65 List price: $2.04
  • Ref No: 13
  • Part No: 16100005
  • Qty Req: 1
Our price: $1.82 List price: $2.25
  • Ref No: 13
  • Part No: 16100059
  • Qty Req: 1
Our price: $5.04 List price: $6.22
