Hypro 7560XL Roller Pump

Hypro 7560XL Roller Pump

Brand:
Hypro
Weight:
13.6 lb
Item #
7560XL
Skip to product information
1 of 1

Hypro 7560XL Roller Pump

Hypro 7560XL Roller Pump

Brand:
Hypro
Weight:
13.6 lb
Item #
7560XL

Regular price $696.02
Sale price $696.02 Regular price List Price: $1,265.49

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 2,088 points with this purchase.

View full details

Collapsible content

Product Overview

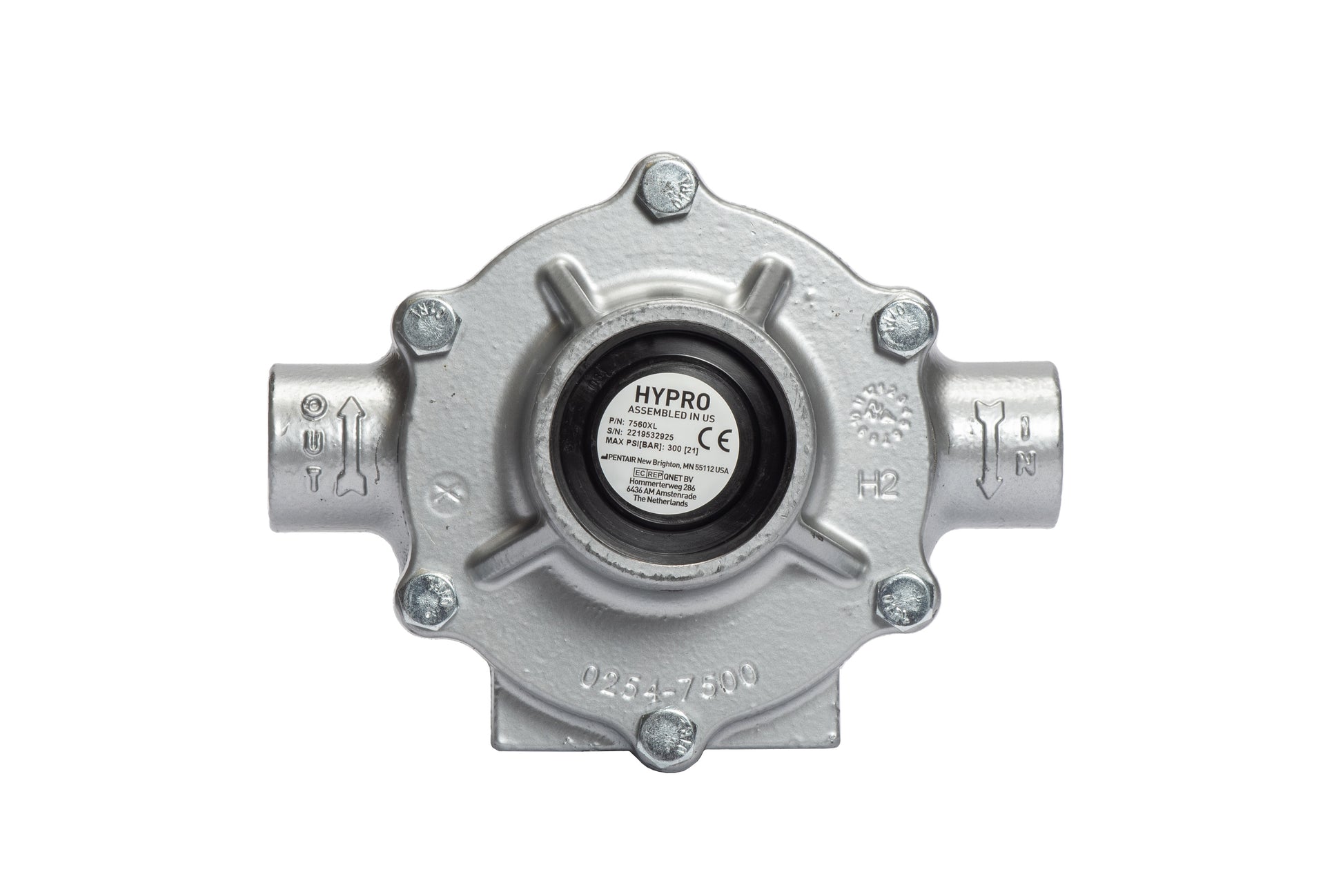

With eight rollers built in, the Hypro 7560XL is a serious spraying machine, capable of producing nearly 22.5 gallons per minute at around 300psi. When you need coverage and control, this model is designed for both. Chemically treated and Viton sealed, every Hypro roller pump is built to withstand the muck and grime of the industrial and agricultural environments. This is a pump that is made to last.

Manufacturer description

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps. Ready for use with Roundup®.

Features

  • Max flow: 22.5 gpm
  • Max pressure: 300 psi
  • Max rpm: 1000
  • Port sizes: 3/4" NPT
  • Pump shaft rotation: CCW
  • Housing: Silvercast
  • Rotor: Silvercast
  • Roller material: Super rollers standard, Poly and Teflon available
  • Roller quantity: 8
  • Shaft seals: Viton standard, Buna available
  • Shaft: 15/16" solid stainless steel
  • 12 gpm/45.4 lpm at 540 rpm
  • 22.5 gpm/85.2 lpm at 1000 rpm
  • Max fluid temperature: 140F
  • Weight: 14 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Bearing Cover
    • Ref No: 1
    • Part No: 23000020
    • Qty Req: 1
    Our price: $1.73 List price: $2.14
  • Main Bearing - Hypro Pumps
    • Ref No: 2
    • Part No: 20080001
    • Qty Req: 2
    Our price: $17.73 List price: $21.89
  • Viton Seal (Std.)
    • Ref No: 3
    • Part No: 21120003
    • Qty Req: 2
    Our price: $19.55 List price: $24.14
  • Buna-N Seal (Optional)
    • Ref No: 3
    • Part No: 21120001
    • Qty Req: 2
    Our price: $17.88 List price: $22.07
  • Bolt
    • Ref No: 4
    • Part No: 22100004
    • Qty Req: 6
    Our price: $1.06 List price: $1.31
  • Endplate SilverCast with Seal
    • Ref No: 5
    • Part No: 02047500X
    • Qty Req: 1
    Our price: $257.77 List price: $318.24
  • O-Ring Gasket for Endplate
    • Ref No: 6
    • Part No: 17200014
    • Qty Req: 1
    Our price: $2.62 List price: $3.24
  • Super Roller (Standard)
    • Ref No: 7
    • Part No: 10050004
    • Qty Req: 8
    Our price: $4.34 List price: $5.36
  • Polypropylene Roller (Optional)
    • Ref No: 7
    • Part No: 10020004
    • Qty Req: 8
    Our price: $3.69 List price: $4.55
  • Teflon Rollers (Optional)
    • Ref No: 7
    • Part No: 10550004
    • Qty Req: 8
    Our price: $21.86 List price: $26.99
  • Rotor and Shaft Assembly
    • Ref No: 8
    • Part No: 34300745
    • Qty Req: 1
    Our price: $256.00 List price: $316.05
  • Base Kit
    • Ref No: 10
    • Part No: 34200003
    • Qty Req: 1
    Our price: $66.21 List price: $81.74
  • Body SilverCast with Seal
    • Ref No: 11
    • Part No: 01047500X
    • Qty Req: 1
    Our price: $677.51 List price: $836.43
  • Shaft Bearing Cover
    • Ref No: 12
    • Part No: 23000022
    • Qty Req: 1
    Our price: $1.73 List price: $2.14
  • Key
    • Ref No: 13
    • Part No: 16100005
    • Qty Req: 1
    Our price: $1.91 List price: $2.36
  • Key (Stainless Steel)
    • Ref No: 15
    • Part No: 16100059
    • Qty Req: 1
    Our price: $5.29 List price: $6.53
