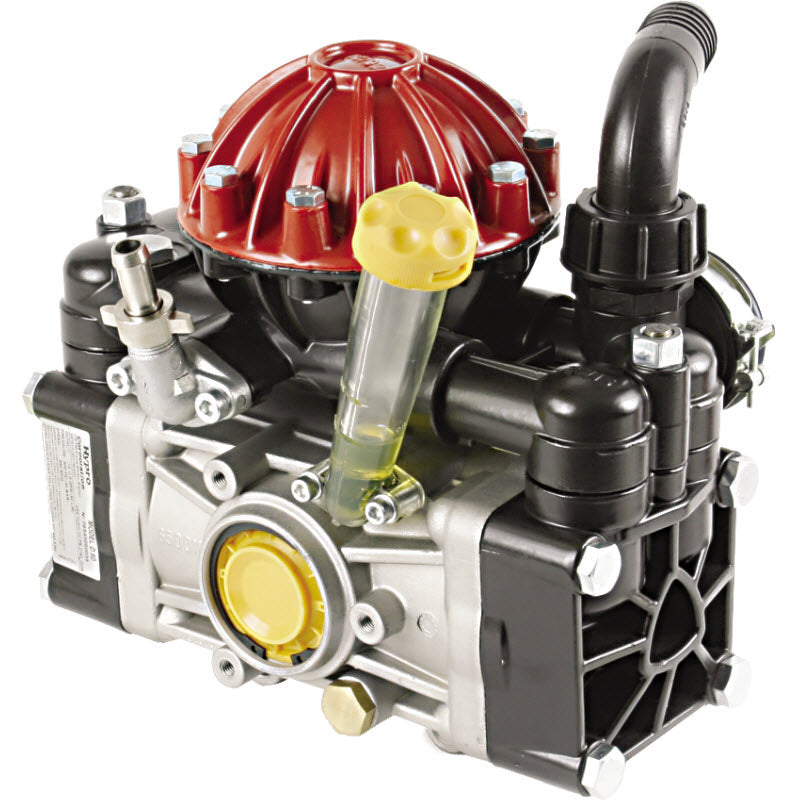

Hypro D50 Pump

Hypro D50 Pump

Brand:
Hypro
Weight:
36.0 lb
Item #
9910D50
2 reviews
Skip to product information
1 of 1

Hypro D50 Pump

Hypro D50 Pump

Brand:
Hypro
Weight:
36.0 lb
Item #
9910D50
2 reviews

Regular price $767.00
Sale price $767.00 Regular price List Price: $1,724.79

Earn 2,301 points with this purchase.

View full details

Collapsible content

Product Overview

Include this superior grade, sturdy Hypro D50 Pump in your sprayer system for maximum effectiveness in substance deployment. With a maximum pressure capacity of 580 PSI and a flow limit of 14.8 GPM, it's ideal for use in assemblies where medium pressure is needed. Use in sprayers delivering herbicides, liquid fertilizers, pesticides and other liquids that require extra care.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon.

Manufacturer description

Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of small to medium-sized sprayers. Hypro medium pressure diaphragm pumps can be adapted for male 1-3/8" splined shaft, female 1-3/8" splined shaft, 1" solid shaft, or gear reduction drive options. Pumps include a pulsation dampener except for Models 9910-D303, D403, and D503s

Features

  • Max flow: 14.8 gpm
  • Max pressure: 580 psi
  • Max rpm: 550
  • Port sizes: 1-1/4" HB inlet, 1/2" HB outlet
  • Shaft: Flanged for shaft kit or gearbox
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum

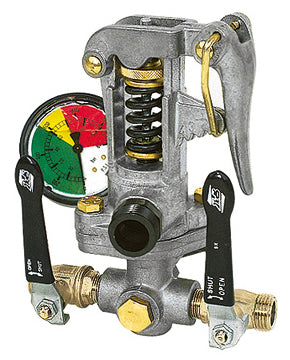

  • Recommended pressure regulator: 9910-GS40GI

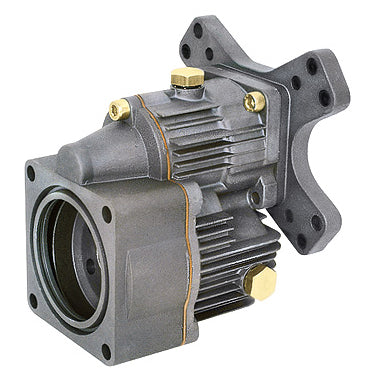

  • Recommended gearbox: 9910-KIT1640 with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines or 9910-KIT1642 with 1" hollow shaft for mounting on 8-9 hp engines
  • Max fluid temperature: 140°F
  • Weight: 35 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Body
    • Ref No: 1
    • Part No: 9910659011
    • Qty Req: 1
    Our price: $258.79 List price: $319.49
  • Left head SX
    • Ref No: 2
    • Part No: 9910650102
    • Qty Req: 1
    Our price: $160.47 List price: $198.11
  • Nut
    • Ref No: 3
    • Part No: 9910320130
    • Qty Req: 4
    Our price: $1.92 List price: $2.37
  • Right head DX
    • Ref No: 4
    • Part No: 9910650101
    • Qty Req: 1
    Our price: $160.47 List price: $198.11
  • M 8 H 10 Nut
    • Ref No: 5
    • Part No: 9910160311
    • Qty Req: 2
    Our price: $6.16 List price: $7.61
  • Retaining Washer
    • Ref No: 6
    • Part No: 9910650390
    • Qty Req: 2
    Our price: $15.83 List price: $19.54
  • Diaphragm Buna-N (Opt.)
    • Ref No: 7
    • Part No: 9910650082
    • Qty Req: 2
    Our price: $31.54 List price: $38.94
  • Diaphragm Desmopan (Std.)
    • Ref No: 7
    • Part No: 9910650085
    • Qty Req: 2
    Our price: $36.22 List price: $44.72
  • Diaphragm Teflon-coated (Opt.)
    • Ref No: 7
    • Part No: 991065008T
    • Qty Req: 2
    Our price: $50.60 List price: $62.47
  • Diaphragm support washer
    • Ref No: 8
    • Part No: 9910650090
    • Qty Req: 2
    Our price: $17.50 List price: $21.61
  • Piston Ring
    • Ref No: 10
    • Part No: 9910650190
    • Qty Req: 2
    Our price: $18.08 List price: $22.32
  • Piston
    • Ref No: 12
    • Part No: 9910650121
    • Qty Req: 2
    Our price: $64.92 List price: $80.15
  • Piston Pin
    • Ref No: 13
    • Part No: 9910650071
    • Qty Req: 2
    Our price: $34.38 List price: $42.45
  • Retainer Ring
    • Ref No: 14
    • Part No: 9910160691
    • Qty Req: 4
    Our price: $2.72 List price: $3.36
  • Connecting Rod
    • Ref No: 15
    • Part No: 9910650142
    • Qty Req: 2
    Our price: $65.94 List price: $81.41
  • Con rod rings
    • Ref No: 16
    • Part No: 9910650130
    • Qty Req: 2
    Our price: $22.84 List price: $28.20
  • Sleeve
    • Ref No: 17
    • Part No: 9910650111
    • Qty Req: 2
    Our price: $109.08 List price: $134.67
  • Retainer Ring
    • Ref No: 18
    • Part No: 9910200390
    • Qty Req: 1
    Our price: $11.95 List price: $14.75
  • Pump Body Cover
    • Ref No: 19
    • Part No: 9910650040
    • Qty Req: 1
    Our price: $14.50 List price: $17.90
  • O-Ring
    • Ref No: 20
    • Part No: 9910650920
    • Qty Req: 1
    Our price: $2.92 List price: $3.60
  • Retainer Ring
    • Ref No: 21
    • Part No: 9910650480
    • Qty Req: 1
    Our price: $13.62 List price: $16.82
  • Bearing
    • Ref No: 22
    • Part No: 9910230330
    • Qty Req: 1
    Our price: $138.51 List price: $171.00
  • Retainer Ring
    • Ref No: 23
    • Part No: 9910161050
    • Qty Req: 1
    Our price: $15.30 List price: $18.89
  • Washer
    • Ref No: 25
    • Part No: 9910550331
    • Qty Req: 2
    Our price: $1.51 List price: $1.86
  • Oil Sight Glass
    • Ref No: 26
    • Part No: 9910650030
    • Qty Req: 1
    Our price: $39.89 List price: $49.25
  • O-Ring
    • Ref No: 27
    • Part No: 9910180101
    • Qty Req: 2
    Our price: $1.60 List price: $1.97
  • O-Ring
    • Ref No: 28
    • Part No: 9910550040
    • Qty Req: 5
    Our price: $1.76 List price: $2.17
  • Oil Sight Glass Cap
    • Ref No: 29
    • Part No: 9910550056
    • Qty Req: 1
    Our price: $11.52 List price: $14.22
  • Bearing Spacer
    • Ref No: 30
    • Part No: 9910650160
    • Qty Req: 1
    Our price: $10.69 List price: $13.20
  • Roller Bearing
    • Ref No: 31
    • Part No: 9910650200
    • Qty Req: 1
    Our price: $271.70 List price: $335.43
  • Shaft
    • Ref No: 33
    • Part No: 9910650170
    • Qty Req: 1
    Our price: $331.32 List price: $409.04
  • Flange
    • Ref No: 34
    • Part No: 99101400140
    • Qty Req: 1
    Our price: $19.40 List price: $23.95
  • Complete Valve
    • Ref No: 36
    • Part No: 9910659050
    • Qty Req: 4
    Our price: $42.62 List price: $52.62
  • O-Ring
    • Ref No: 37
    • Part No: 9910320030
    • Qty Req: 4
    Our price: $4.16 List price: $5.13
  • Complete lower air chamber
    • Ref No: 38
    • Part No: 9910659204
    • Qty Req: 1
    Our price: $302.21 List price: $373.10
  • Air Chamber Diaphragm
    • Ref No: 39
    • Part No: 9910650520
    • Qty Req: 1
    Our price: $40.12 List price: $49.53
  • Upper air chamber
    • Ref No: 40
    • Part No: 9910659206
    • Qty Req: 1
    Our price: $117.22 List price: $144.72
  • Air Valve
    • Ref No: 41
    • Part No: 9910180020
    • Qty Req: 1
    Our price: $41.03 List price: $50.66
  • O-ring
    • Ref No: 42
    • Part No: 9910650542
    • Qty Req: 1
    Our price: $1.97 List price: $2.43
  • Bolt
    • Ref No: 43
    • Part No: 9910621780
    • Qty Req: 10
    Our price: $3.19 List price: $3.94
  • O-Ring
    • Ref No: 45
    • Part No: 9910390290
    • Qty Req: 1
    Our price: $2.10 List price: $2.59
  • Suction Manifold
    • Ref No: 46
    • Part No: 9910650150
    • Qty Req: 1
    Our price: $122.17 List price: $150.83
  • Threaded Adapter
    • Ref No: 47
    • Part No: 9910450120
    • Qty Req: 1
    Our price: $15.37 List price: $18.98
  • Ring Nut
    • Ref No: 49
    • Part No: 9910580060
    • Qty Req: 1
    Our price: $13.62 List price: $16.82
  • Hose Barb 1-1/4"
    • Ref No: 50
    • Part No: 9910580040
    • Qty Req: 1
    Our price: $22.07 List price: $27.25
  • Key
    • Ref No: 51
    • Part No: 9910650250
    • Qty Req: 1
    Our price: $4.95 List price: $6.11
  • Through-shaft (AP-A)
    • Ref No: 53
    • Part No: 9910650171
    • Qty Req: 1
    Our price: $599.01 List price: $739.52
  • PTO shaft adapter
    • Ref No: 56
    • Part No: 9910650300
    • Qty Req: 1
    Our price: $163.63 List price: $202.01
  • Bolt
    • Ref No: 57
    • Part No: 9910680350
    • Qty Req: 4
    Our price: $2.48 List price: $3.06
  • Seal (AP-A Model)
    • Ref No: 58
    • Part No: 9910650490
    • Qty Req: 1
    Our price: $20.89 List price: $25.79
  • Spacer (AP-A Model)
    • Ref No: 59
    • Part No: 9910650041
    • Qty Req: 1
    Our price: $68.40 List price: $84.45
  • Diaphragm Holder **No longer available, DO NOT ORDER, replaced by suction dampening kit- 659213.**
    • Ref No: 60
    • Part No: 9910650660
    • Qty Req: 1
    Our price: $34.90 List price: $32.21
  • Dampener Diaphragm, Buna AR30/50
    • Ref No: 61
    • Part No: 9910650670
    • Qty Req: 1
    Our price: $14.30 List price: $17.65
  • Clamp
    • Ref No: 62
    • Part No: 9910650690
    • Qty Req: 1
    Our price: $18.65 List price: $23.03
  • Shield, 199 mm
    • Ref No: 63
    • Part No: 99101500350
    • Qty Req: 2
    Our price: $52.50 List price: $64.82
  • M10 X 16 Bolt
    • Ref No: 64
    • Part No: 9910820670
    • Qty Req: 4
    Our price: $2.48 List price: $3.06
  • Complete bushing
    • Ref No: 65
    • Part No: 9910659080
    • Qty Req: 2
    Our price: $27.81 List price: $34.33
  • Oil drain plug
    • Ref No: 66
    • Part No: 24060023
    • Qty Req: 1
    Our price: $11.32 List price: $13.97
  • O-Ring
    • Ref No: 67
    • Part No: 9910740290
    • Qty Req: 1
    Our price: $1.92 List price: $2.37
  • Support Washer
    • Ref No: 68
    • Part No: 99101400110
    • Qty Req: 1
    Our price: $37.85 List price: $46.73
  • Bolt
    • Ref No: 69
    • Part No: 9910540290
    • Qty Req: 2
    Our price: $2.98 List price: $3.68
  • Discharge Flange Housing
    • Ref No: 70
    • Part No: 9910450145
    • Qty Req: 1
    Our price: $36.51 List price: $45.07
  • O-Ring
    • Ref No: 71
    • Part No: 9910550350
    • Qty Req: 1
    Our price: $1.79 List price: $2.21
  • 1/2" Hose Barb & Nut
    • Ref No: 72
    • Part No: 9910110130
    • Qty Req: 1
    Our price: $15.09 List price: $18.63
  • Base
    • Ref No: 74
    • Part No: 9910320392
    • Qty Req: 2
    Our price: $30.09 List price: $37.15
  • Bolt
    • Ref No: 75
    • Part No: 9910750060
    • Qty Req: 10
    Our price: $8.59 List price: $10.61
  • Washer
    • Ref No: 81
    • Part No: 9910380241
    • Qty Req: 3
    Our price: $1.51 List price: $1.86
  • Washer
    • Ref No: 82
    • Part No: 99101200521
    • Qty Req: 3
    Our price: $13.85 List price: $17.10
