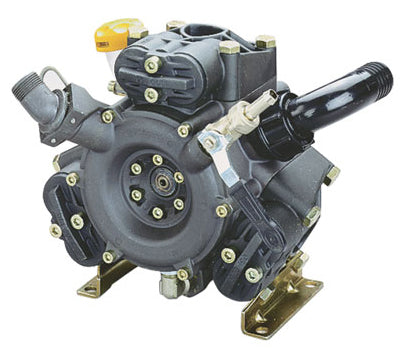

Hypro D503GRGI34 Pump

Hypro D503GRGI34 Pump

Brand:
Hypro
Weight:
45.0 lb
Item #
9910D503GRGI34
Skip to product information
1 of 1

Hypro D503GRGI34 Pump

Hypro D503GRGI34 Pump

Brand:
Hypro
Weight:
45.0 lb
Item #
9910D503GRGI34

Regular price $1,524.48
Sale price $1,524.48 Regular price List Price: $2,771.78

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 4,573 points with this purchase.

View full details

Collapsible content

Product Overview

13.7 gpm, 580 psi. Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Diaphragm Bolt
    • Ref No: 1
    • Part No: 9910580360
    • Qty Req: 3
    Our price: $14.04 List price: $17.33
  • Retaining Washer
    • Ref No: 2
    • Part No: 99101040180
    • Qty Req: 3
    Our price: $18.78 List price: $23.18
  • Diaphragm, Buna-N (Opt.)
    • Ref No: 3
    • Part No: 9910620080
    • Qty Req: 3
    Our price: $31.54 List price: $38.94
  • Piston Diaphragm, Desmopan (Std.)
    • Ref No: 3
    • Part No: 9910620085
    • Qty Req: 3
    Our price: $34.19 List price: $42.21
  • Piston Sleeve
    • Ref No: 4
    • Part No: 99101300110
    • Qty Req: 3
    Our price: $114.79 List price: $141.71
  • Piston Ring
    • Ref No: 5
    • Part No: 9910160230
    • Qty Req: 3
    Our price: $15.28 List price: $18.87
  • Piston
    • Ref No: 6
    • Part No: 9910620120
    • Qty Req: 3
    Our price: $55.56 List price: $68.59
  • Connecting Rod Pin
    • Ref No: 7
    • Part No: 9910380300
    • Qty Req: 3
    Our price: $25.24 List price: $31.16
  • Ring Pin
    • Ref No: 8
    • Part No: 9910380080
    • Qty Req: 3
    Our price: $2.73 List price: $3.37
  • Connecting Rod
    • Ref No: 9
    • Part No: 99101300140
    • Qty Req: 3
    Our price: $53.93 List price: $66.58
  • Shaft
    • Ref No: 10
    • Part No: 99101300170
    • Qty Req: 1
    Our price: $302.83 List price: $373.86
  • Retaining Ring
    • Ref No: 11
    • Part No: 99101300120
    • Qty Req: 2
    Our price: $21.17 List price: $26.14
  • Retaining Ring
    • Ref No: 12
    • Part No: 99101300240
    • Qty Req: 1
    Our price: $8.80 List price: $10.87
  • Seal
    • Ref No: 13
    • Part No: 99101300220
    • Qty Req: 1
    Our price: $28.70 List price: $35.43
  • Bearing
    • Ref No: 14
    • Part No: 99101300210
    • Qty Req: 1
    Our price: $85.25 List price: $105.25
  • Retaining Ring
    • Ref No: 15
    • Part No: 99101260790
    • Qty Req: 1
    Our price: $4.66 List price: $5.75
  • Bearing
    • Ref No: 16
    • Part No: 9910180400
    • Qty Req: 1
    Our price: $125.36 List price: $154.77
  • O-Ring
    • Ref No: 17
    • Part No: 9910740290
    • Qty Req: 5
    Our price: $1.92 List price: $2.37
  • Manifold Plate
    • Ref No: 18
    • Part No: 99101300020
    • Qty Req: 1
    Our price: $82.22 List price: $101.51
  • Retaining Ring
    • Ref No: 19
    • Part No: 99101260770
    • Qty Req: 1
    Our price: $1.64 List price: $2.02
  • O-Ring
    • Ref No: 21
    • Part No: 99101300270
    • Qty Req: 1
    Our price: $12.58 List price: $15.53
  • O-Ring
    • Ref No: 22
    • Part No: 9910640030
    • Qty Req: 2
    Our price: $8.69 List price: $10.73
  • Bolt
    • Ref No: 23
    • Part No: 9910880280
    • Qty Req: 6
    Our price: $1.60 List price: $1.97
  • Bolt
    • Ref No: 24
    • Part No: 99101040370
    • Qty Req: 6
    Our price: $4.02 List price: $4.96
  • Outlet Manifold
    • Ref No: 25
    • Part No: 99101300030
    • Qty Req: 1
    Our price: $187.23 List price: $231.15
  • Outlet ball valve w/o barb
    • Ref No: 27
    • Part No: 9910130491
    • Qty Req: 1
    Our price: $85.55 List price: $106.94
  • O-Ring
    • Ref No: 30
    • Part No: 9910390180
    • Qty Req: 2
    Our price: $1.51 List price: $1.86
  • Retainer Clip
    • Ref No: 31
    • Part No: 99101040690
    • Qty Req: 2
    Our price: $24.41 List price: $30.14
  • O-Ring
    • Ref No: 34
    • Part No: 9910390290
    • Qty Req: 2
    Our price: $2.10 List price: $2.59
  • Threaded Adapter
    • Ref No: 35
    • Part No: 9910450120
    • Qty Req: 1
    Our price: $15.37 List price: $18.98
  • Body
    • Ref No: 36
    • Part No: 99101300010
    • Qty Req: 1
    Our price: $557.63 List price: $688.43
  • Ring Nut
    • Ref No: 37
    • Part No: 9910580060
    • Qty Req: 1
    Our price: $13.62 List price: $16.82
  • Hose Barb 1-1/4"
    • Ref No: 38
    • Part No: 9910580040
    • Qty Req: 1
    Our price: $22.07 List price: $27.25
  • Bolt
    • Ref No: 39
    • Part No: 9910200230
    • Qty Req: 4
    Our price: $3.01 List price: $3.72
  • Bolt
    • Ref No: 40
    • Part No: 9910640230
    • Qty Req: 4
    Our price: $3.94 List price: $4.86
  • O-Ring
    • Ref No: 41
    • Part No: 9910480440
    • Qty Req: 6
    Our price: $1.76 List price: $2.17
  • Right Head
    • Ref No: 42
    • Part No: 99101300101
    • Qty Req: 2
    Our price: $155.49 List price: $191.96
  • Left Head
    • Ref No: 43
    • Part No: 99101300102
    • Qty Req: 1
    Our price: $155.49 List price: $191.96
  • O-Ring
    • Ref No: 45
    • Part No: 9910620030
    • Qty Req: 6
    Our price: $1.97 List price: $2.43
  • O-Ring
    • Ref No: 46
    • Part No: 9910540361
    • Qty Req: 6
    Our price: $1.97 List price: $2.43
  • Valve Retainer
    • Ref No: 47
    • Part No: 99101300190
    • Qty Req: 3
    Our price: $46.27 List price: $57.12
  • Bolt
    • Ref No: 48
    • Part No: 9910540290
    • Qty Req: 6
    Our price: $2.98 List price: $3.68
  • Black oil tank cap for Hypro/AR Diaphragm Pumps
    • Ref No: 49
    • Part No: 99101040322
    • Qty Req: 1
    Our price: $32.14 List price: $39.68
  • O-Ring
    • Ref No: 50
    • Part No: 9910650920
    • Qty Req: 1
    Our price: $2.92 List price: $3.60
  • Oil sight glass for Hypro D403, D115 and D135
    • Ref No: 51
    • Part No: 99101040310
    • Qty Req: 1
    Our price: $83.85 List price: $103.52
  • Washer
    • Ref No: 52
    • Part No: 9910550331
    • Qty Req: 2
    Our price: $1.51 List price: $1.86
  • Plug
    • Ref No: 55
    • Part No: 9910130171
    • Qty Req: 1
    Our price: $4.75 List price: $5.86
  • Plug
    • Ref No: 56
    • Part No: 9910770070
    • Qty Req: 1
    Our price: $4.07 List price: $5.02
  • Spacer
    • Ref No: 57
    • Part No: 99101300280
    • Qty Req: 2
    Our price: $4.28 List price: $5.28
  • Mounting Base
    • Ref No: 58
    • Part No: 99101300090
    • Qty Req: 2
    Our price: $16.14 List price: $19.93
  • Bolt
    • Ref No: 59
    • Part No: 99101300360
    • Qty Req: 4
    Our price: $6.08 List price: $7.51
  • M10 X 16 Bolt
    • Ref No: 60
    • Part No: 9910820670
    • Qty Req: 4
    Our price: $2.48 List price: $3.06
  • Shield, 199 mm
    • Ref No: 61
    • Part No: 99101500350
    • Qty Req: 1
    Our price: $52.50 List price: $64.82
  • Thru-Shaft (Opt.)
    • Ref No: 62
    • Part No: 99101300160
    • Qty Req: 1
    Our price: $476.84 List price: $588.69
  • Key
    • Ref No: 63
    • Part No: 9910650250
    • Qty Req: 1
    Our price: $4.95 List price: $6.11
  • PTO shaft adapter
    • Ref No: 68
    • Part No: 9910650300
    • Qty Req: 1
    Our price: $163.63 List price: $202.01
  • Bolt
    • Ref No: 70
    • Part No: 9910680350
    • Qty Req: 1
    Our price: $2.48 List price: $3.06
  • Outlet adapter (3/4" NPT)
    • Ref No: 71
    • Part No: 99101040760
    • Qty Req: 1
    Our price: $53.33 List price: $65.84
  • 3/8" Hose Barb & Nut
    • Ref No: 72
    • Part No: 9910110131
    • Qty Req: 1
    Our price: $11.15 List price: $13.76
  • Cotter Pin
    • Ref No: 80
    • Part No: 99101040950
    • Qty Req: 1
    Our price: $1.39 List price: $1.71
