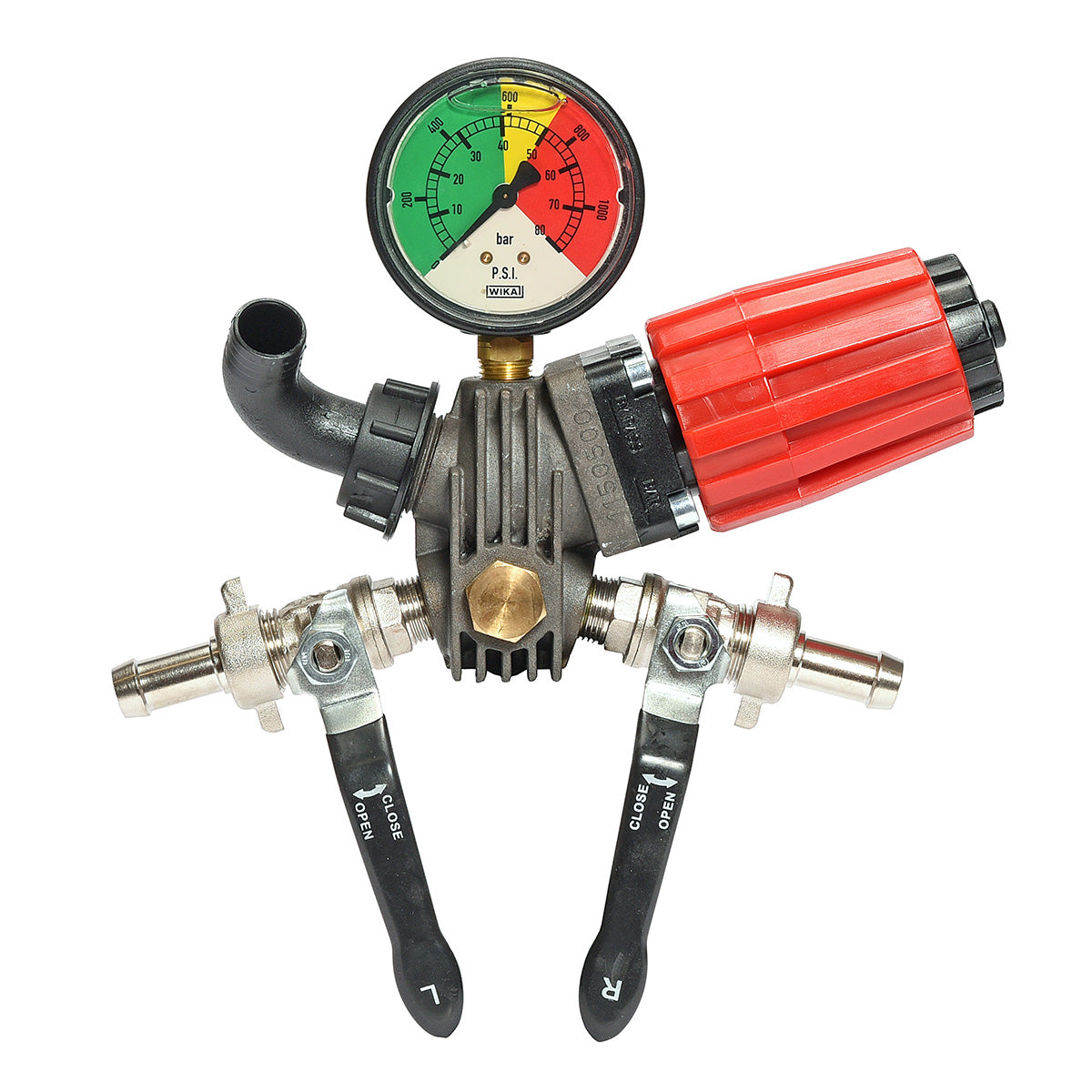

Hypro RM40 Control Unit/Regulator

Hypro RM40 Control Unit/Regulator

Brand:
Hypro
Weight:
3.69 lb
Item #
9910RM40
4 reviews
1 1

Hypro RM40 Control Unit/Regulator

Hypro RM40 Control Unit/Regulator

Brand:
Hypro
Weight:
3.69 lb
Item #
9910RM40
4 reviews

$249.04
$249.04 List Price: $429.38

Earn 747 points with this purchase.

See Details

View full details

Product Overview

Do you own or are you planning to buy a Hypro 9910-D503 diaphragm pump? Use the RM40 to check its current pressure with an easy-to-read pressure gauge. This control unit/regulator can handle quite a bit of pressure but includes an adjustable pressure relief valve just in case. Additional features include a 1" bypass, a complete bypass knob and two hose barb outlets.

Manufacturer description

The 9910-RM40 control unit is designed for convenient control of pressures up to 580 psi and flows up to 24 gpm. It consists of an adjustable pressure relief valve, a manual pressure release lever, and two individual ball valve-controlled 1/2" hose barb outlets. It can be direct mounted onto the 9910-D503 discharge manifold.

Resources

Download Product Manual

Features

  • Mounts to pump models: 9910-D503
  • Max flow: 24 gpm
  • Max pressure: 580 psi
  • Port sizes: 1" hose barb bypass, two 1/2" hose barb outlets with individual shut-offs
  • Pressure gauge: 0-1000 psi, color coded, glycerin filled
  • Weight: 4 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Hose Barb 3/4"
    • Ref No: 1
    • Part No: 9910550460
    • Qty Req: 1
    Our price: $5.81 List price: $7.46
  • Barb Nut
    • Ref No: 3
    • Part No: 9910550450
    • Qty Req: 1
    Our price: $4.55 List price: $5.84
  • O-Ring
    • Ref No: 4
    • Part No: 9910390180
    • Qty Req: 4
    Our price: $1.64 List price: $1.65
  • 9910-550545 Pressure Gauge (Color Coded, Oil-Filled)
    • Ref No: 5
    • Part No: 9910550545
    • Qty Req: 1
    Our price: $64.15 List price: $78.14
  • Retainer Clip
    • Ref No: 6
    • Part No: 99101040690
    • Qty Req: 1
    Our price: $26.52 List price: $31.82
  • Valve Seat
    • Ref No: 9
    • Part No: 99101150520
    • Qty Req: 1
    Our price: $42.36 List price: $53.10
  • Bolt
    • Ref No: 10
    • Part No: 9910680560
    • Qty Req: 1
    Our price: $6.80 List price: $8.16
  • Valve Cap
    • Ref No: 11
    • Part No: 99101040640
    • Qty Req: 1
    Our price: $46.89 List price: $54.86
  • Diaphragm
    • Ref No: 12
    • Part No: 99101040630
    • Qty Req: 1
    Our price: $31.71 List price: $35.30
  • O-Ring
    • Ref No: 13
    • Part No: 9910880830
    • Qty Req: 5
    Our price: $2.06 List price: $2.30
  • Piston
    • Ref No: 14
    • Part No: 99101040620
    • Qty Req: 1
    Our price: $38.22 List price: $49.01
  • Spacer
    • Ref No: 15
    • Part No: 99101150560
    • Qty Req: 1
    Our price: $8.77 List price: $11.25
  • Spacer
    • Ref No: 16
    • Part No: 99101150600
    • Qty Req: 2
    Our price: $3.30 List price: $4.23
  • Pin
    • Ref No: 17
    • Part No: 99101150540
    • Qty Req: 1
    Our price: $5.39 List price: $6.91
  • Body
    • Ref No: 18
    • Part No: 99101150510
    • Qty Req: 1
    Our price: $47.10 List price: $60.39
  • Bolt
    • Ref No: 20
    • Part No: 9910780330
    • Qty Req: 4
    Our price: $2.69 List price: $3.21
  • Bypass Ring
    • Ref No: 21
    • Part No: 99101150530
    • Qty Req: 1
    Our price: $13.43 List price: $17.21
  • Spring
    • Ref No: 22
    • Part No: 9910394760
    • Qty Req: 1
    Our price: $13.71 List price: $17.57
  • Adjustment Knob
    • Ref No: 23
    • Part No: 99101150550
    • Qty Req: 1
    Our price: $18.10 List price: $22.06
  • Spring Retainer
    • Ref No: 24
    • Part No: 99101150570
    • Qty Req: 1
    Our price: $11.62 List price: $14.91
  • Replacement Ball Valve with Hose Barb for GS40GI Pressure Regulators
    • Ref No: 26
    • Part No: 9910KIT2497
    • Qty Req: 2
    Our price: $74.71 List price: $79.08
  • Plug
    • Ref No: 27
    • Part No: 9910130171
    • Qty Req: 1
    Our price: $4.99 List price: $6.27
  • Body
    • Ref No: 28
    • Part No: 99101150500
    • Qty Req: 1
    Our price: $118.75 List price: $152.28
  • Mounting Bracket
    • Ref No: 29
    • Part No: 99101150590
    • Qty Req: 1
    Our price: $21.81 List price: $27.96
  • Washer
    • Ref No: 30
    • Part No: 9910390311
    • Qty Req: 2
    Our price: $2.78 List price: $3.34
  • Bolt
    • Ref No: 31
    • Part No: 9910180431
    • Qty Req: 31
    Our price: $1.79 List price: $2.15
  • Inlet Adapter
    • Ref No: 32
    • Part No: 99101040770
    • Qty Req: 1
    Our price: $51.75 List price: $60.68
  • 1/2" Hose Barb & Nut
    • Ref No: 33
    • Part No: 9910110130
    • Qty Req: 2
    Our price: $16.40 List price: $18.09
  • Barb
    • Ref No: 35
    • Part No: 99101150580
    • Qty Req: 2
    Our price: $16.48 List price: $21.13
  • Outlet adapter (3/4" NPT)
    • Ref No: 36
    • Part No: 99101040760
    • Qty Req: 1
    Our price: $56.00 List price: $60.70
  • Nut
    • Ref No: 37
    • Part No: 99101040790
    • Qty Req: 2
    Our price: $17.51 List price: $22.46
  • Bolt
    • Ref No: 38
    • Part No: 99101150650
    • Qty Req: 1
    Our price: $2.13 List price: $2.73
  • Retaining Ring
    • Ref No: 39
    • Part No: 9910480550
    • Qty Req: 1
    Our price: $1.83 List price: $2.08
  • Cotter Pin
    • Ref No: 40
    • Part No: 99101040950
    • Qty Req: 2
    Our price: $1.51 List price: $1.76
  • Spacer
    • Ref No: 41
    • Part No: 99101150660
    • Qty Req: 1
    Our price: $3.62 List price: $4.65
