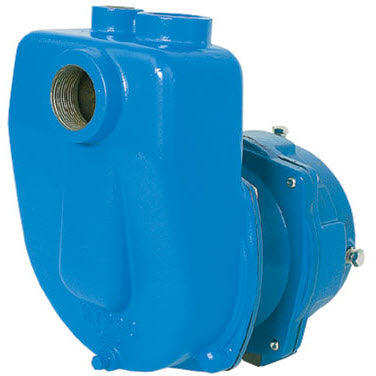

Hypro 9016C-O-SP Centrifugal Pump

Hypro 9016C-O-SP Centrifugal Pump

Brand:
Hypro
Weight:
62.0 lb
Item #
9016COSP
Skip to product information
1 of 1

Hypro 9016C-O-SP Centrifugal Pump

Hypro 9016C-O-SP Centrifugal Pump

Brand:
Hypro
Weight:
62.0 lb
Item #
9016COSP

Regular price $1,445.45
Sale price $1,445.45 Regular price List Price: $2,628.09

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 4,336 points with this purchase.

View full details

Collapsible content

Product Overview

Hypro 9016C-O-SP Self-Priming Gear Driven Centrifugal Pump.

119 gpm, 77 psi.

1-1/2" NPT Inlet x 1-1/4" NPT Outlet. Max RPM 600, 1" Solid Shaft PTO Output.

Hypro self-priming centrifugal pumps handle big, high-capacity farm spraying jobs with ease. They offer outstanding performance without the need for a flooded suction inlet. The pumps are ideal for sprayers that require pump mounting above the carrier tank. High pressure capabilities allow the pump to be used for both tank filling and spraying.

The broad, versatile line includes models with a rugged housing of cast iron.

This series includes models 9006C-O-SP, 9016C-O-SP, and 9028C-O-SP.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Casing (Self-Priming Units)
    • Ref No: 2A
    • Part No: 34300480SP
    • Qty Req: 1
    Our price: $426.36 List price: $526.37
  • Impeller Nut
    • Ref No: 3
    • Part No: 22530001
    • Qty Req: 1
    Our price: $7.79 List price: $9.62
  • Impeller (Nylon)
    • Ref No: 4
    • Part No: 04009000P
    • Qty Req: 1
    Our price: $67.20 List price: $82.96
  • Gasket
    • Ref No: 5
    • Part No: 17000101
    • Qty Req: 1
    Our price: $6.83 List price: $8.43
  • Mechanical Seal (Optional Buna-N)
    • Ref No: 6
    • Part No: 21200010
    • Qty Req: 1
    Our price: $38.82 List price: $47.92
  • 3430-0334 Seal & O-Ring Repair Kit Hypro 9000C-O Centrifugal Pumps
    • Ref No: 6
    • Part No: 34300334
    • Qty Req: 1
    Our price: $62.56 List price: $77.24
  • O-Ring
    • Ref No: 7
    • Part No: 17200083
    • Qty Req: 1
    Our price: $4.14 List price: $5.11
  • Mounting Flange Adapter
    • Ref No: 8
    • Part No: 07529000C
    • Qty Req: 1
    Our price: $307.22 List price: $379.29
  • Hex Head Cap Screw
    • Ref No: 9
    • Part No: 22100020
    • Qty Req: 4
    Our price: $1.12 List price: $1.38
  • O-Ring
    • Ref No: 10
    • Part No: 17200139
    • Qty Req: 1
    Our price: $4.03 List price: $4.97
  • Bearing Lip Seal
    • Ref No: 11
    • Part No: 21300018
    • Qty Req: 1
    Our price: $30.60 List price: $37.78
  • Gasket
    • Ref No: 12
    • Part No: 17000098
    • Qty Req: 1
    Our price: $1.22 List price: $1.50
  • Retainer Ring (Shaft)
    • Ref No: 13
    • Part No: 18100013
    • Qty Req: 1
    Our price: $1.17 List price: $1.45
  • Main Bearing - Hypro Pumps
    • Ref No: 14
    • Part No: 20080001
    • Qty Req: 1
    Our price: $18.61 List price: $22.98
  • Retaining Ring (housing)
    • Ref No: 15
    • Part No: 18200025
    • Qty Req: 1
    Our price: $4.70 List price: $5.80
  • Hex Head Capscrew
    • Ref No: 19
    • Part No: 22100046
    • Qty Req: 3
    Our price: $4.80 List price: $5.93
  • Washer
    • Ref No: 20
    • Part No: 22700003
    • Qty Req: 3
    Our price: $1.22 List price: $1.50
  • Thrust Washer
    • Ref No: 21
    • Part No: 22650003
    • Qty Req: 6
    Our price: $1.68 List price: $2.07
  • Bearing ( included with driver gear)
    • Ref No: 22
    • Part No: 20070052
    • Qty Req: 3
    Our price: $15.62 List price: $19.28
  • Bearing Inner Race
    • Ref No: 23
    • Part No: 20070022
    • Qty Req: 3
    Our price: $7.58 List price: $9.36
  • Key
    • Ref No: 27
    • Part No: 16100005
    • Qty Req: 1
    Our price: $2.01 List price: $2.48
  • Solid Shaft
    • Ref No: 28
    • Part No: 05019016D
    • Qty Req: 1
    Our price: $256.06 List price: $316.12
  • Locking Collar Kit (Hollow Shaft)
    • Ref No: 29
    • Part No: 34350058
    • Qty Req: 1
    Our price: $59.98 List price: $74.05
  • Driver Gear w/ Bearing (540 rpm)
    • Ref No: 31
    • Part No: 39000039
    • Qty Req: 3
    Our price: $46.64 List price: $57.58
  • Impeller Shaft/Pinion Gear (540 rpm)
    • Ref No: 32
    • Part No: 39000010
    • Qty Req: 1
    Our price: $243.30 List price: $300.37
  • Woodruff Key**(1) 540 rpm (2) 1000rpm
    • Ref No: 33
    • Part No: 16100012
    • Qty Req: 1
    Our price: $1.49 List price: $1.84
  • Retaining Ring
    • Ref No: 37
    • Part No: 18000014
    • Qty Req: 1
    Our price: $26.44 List price: $32.64
  • Main Bearing
    • Ref No: 38
    • Part No: 20050002
    • Qty Req: 1
    Our price: $157.56 List price: $194.52
  • Retainer Ring
    • Ref No: 39
    • Part No: 18100001
    • Qty Req: 1
    Our price: $2.02 List price: $2.49
  • Ring Gear
    • Ref No: 40
    • Part No: 39000009
    • Qty Req: 1
    Our price: $96.75 List price: $119.45
  • Cushion Bumper
    • Ref No: 41
    • Part No: 14500004
    • Qty Req: 8
    Our price: $1.26 List price: $1.56
  • Gear Casing
    • Ref No: 42
    • Part No: 07549000C
    • Qty Req: 1
    Our price: $212.03 List price: $261.77
  • Hex Head Capscrew
    • Ref No: 43
    • Part No: 22100026
    • Qty Req: 4
    Our price: $1.18 List price: $1.46
  • Breather Vent
    • Ref No: 44
    • Part No: 24040193
    • Qty Req: 1
    Our price: $26.44 List price: $32.64
  • Oil Seal
    • Ref No: 45
    • Part No: 21020025
    • Qty Req: 1
    Our price: $18.82 List price: $23.24
  • O-Ring
    • Ref No: 46
    • Part No: 17200022
    • Qty Req: 1
    Our price: $1.17 List price: $1.45
  • Oil Plug
    • Ref No: 49
    • Part No: 24060019
    • Qty Req: 4
    Our price: $2.03 List price: $2.51
  • Mounting Clip
    • Ref No: 50
    • Part No: 15200034
    • Qty Req: 1
    Our price: $96.16 List price: $118.72
