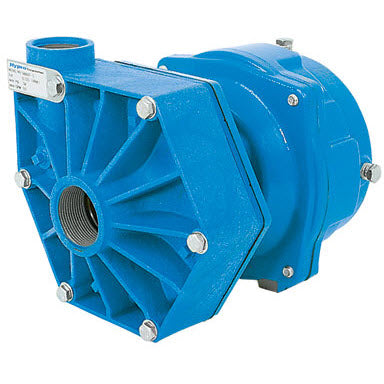

Hypro 9016P-O Centrifugal Pump

Hypro 9016P-O Centrifugal Pump

Brand:
Hypro
Weight:
38.0 lb
Item #
9016PO
1 1

Hypro 9016P-O Centrifugal Pump

Hypro 9016P-O Centrifugal Pump

Brand:
Hypro
Weight:
38.0 lb
Item #
9016PO

$1,129.31
$1,129.31 List Price: $2,053.29

Earn 3,388 points with this purchase.

See Details

View full details

Product Overview

Hypro 9016P-O Gear Driven Polypropylene Centrifugal Pump.

97 gpm, 83 psi.

1-1/2" Inlet x 1-1/4" Outlet.

Max RPM 600, 1" Solid Shaft PTO Output.

Hypro 9006P-O Centrifual Pump.

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids.

The broad, versatile line includes models with rugged housings of polypropylene that stand up to strong chemical herbicides. Polypropylene pumps are lightweight and provide excellent resistance to corrosive chemicals.

This series includes models 9006P-O, 9008P-O, 9016P-O and 9018P-O.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Spacer
    • Ref No: 1
    • Part No: 14100082
    • Qty Req: 1
    Our price: $6.18 List price: $7.63
  • 3430-0333 Seal & O-Ring Repair Kit Hypro Poly Centrifugal Pumps
    • Ref No: 2
    • Part No: 34300333
    • Qty Req: 1
    Our price: $88.63 List price: $109.42
  • O-Ring
    • Ref No: 3
    • Part No: 17210083
    • Qty Req: 1
    Our price: $19.77 List price: $24.41
  • Pipe Plug
    • Ref No: 4
    • Part No: 24060020
    • Qty Req: 4
    Our price: $10.15 List price: $12.53
  • Washer
    • Ref No: 5
    • Part No: 22700057
    • Qty Req: 1
    Our price: $2.69 List price: $3.32
  • Jam Nut
    • Ref No: 6
    • Part No: 22500051
    • Qty Req: 1
    Our price: $2.49 List price: $3.07
  • Impeller Nut
    • Ref No: 7
    • Part No: 22500052
    • Qty Req: 1
    Our price: $1.92 List price: $2.37
  • Pump Casing
    • Ref No: 8
    • Part No: 07009000P
    • Qty Req: 1
    Our price: $54.90 List price: $67.78
  • Woodruff Key (All Except HM3C)
    • Ref No: 9
    • Part No: 16100042
    • Qty Req: 1
    Our price: $7.61 List price: $9.40
  • Impeller (Poly)
    • Ref No: 10
    • Part No: 04039000P
    • Qty Req: 1
    Our price: $72.11 List price: $89.03
  • Hex Head Cap Screw
    • Ref No: 11
    • Part No: 22100087
    • Qty Req: 6
    Our price: $1.47 List price: $1.81
  • Washer
    • Ref No: 12
    • Part No: 22700041
    • Qty Req: 6
    Our price: $1.26 List price: $1.56
  • Back Cover
    • Ref No: 13
    • Part No: 07509000P
    • Qty Req: 1
    Our price: $25.83 List price: $31.89
  • Intermediate Flange
    • Ref No: 14
    • Part No: 07509006C
    • Qty Req: 1
    Our price: $236.92 List price: $292.49
  • Piston Cap Screw
    • Ref No: 15
    • Part No: 22200013
    • Qty Req: 4
    Our price: $2.08 List price: $2.57
  • Flange
    • Ref No: 16
    • Part No: 07529006C
    • Qty Req: 1
    Our price: $348.74 List price: $430.54
  • Shaft
    • Ref No: 17
    • Part No: 05039000
    • Qty Req: 1
    Our price: $296.60 List price: $366.17
  • Bearing Lip Seal
    • Ref No: 19
    • Part No: 21300018
    • Qty Req: 1
    Our price: $30.60 List price: $37.78
  • Retainer Ring (Shaft)
    • Ref No: 20
    • Part No: 18100013
    • Qty Req: 1
    Our price: $1.17 List price: $1.45
  • Main Bearing - Hypro Pumps
    • Ref No: 21
    • Part No: 20080001
    • Qty Req: 1
    Our price: $18.61 List price: $22.98
  • Retaining Ring (housing)
    • Ref No: 22
    • Part No: 18200025
    • Qty Req: 1
    Our price: $4.70 List price: $5.80
  • Hex Head Capscrew
    • Ref No: 23
    • Part No: 22100046
    • Qty Req: 3
    Our price: $4.80 List price: $5.93
  • Washer
    • Ref No: 24
    • Part No: 22700003
    • Qty Req: 3
    Our price: $1.22 List price: $1.50
  • Thrust Washer
    • Ref No: 25
    • Part No: 22650003
    • Qty Req: 6
    Our price: $1.68 List price: $2.07
  • Bearing Inner Race
    • Ref No: 26
    • Part No: 20070022
    • Qty Req: 3
    Our price: $7.58 List price: $9.36
  • Driver Gear w/ Bearing (540 rpm)
    • Ref No: 27
    • Part No: 39000039
    • Qty Req: 3
    Our price: $46.64 List price: $57.58
  • Solid Shaft
    • Ref No: 30B
    • Part No: 05019016D
    • Qty Req: 1
    Our price: $256.06 List price: $316.12
  • Retaining Ring
    • Ref No: 31
    • Part No: 18000014
    • Qty Req: 1
    Our price: $26.44 List price: $32.64
  • Main Bearing
    • Ref No: 32
    • Part No: 20050002
    • Qty Req: 1
    Our price: $157.56 List price: $194.52
  • Oil Seal
    • Ref No: 33
    • Part No: 21020025
    • Qty Req: 1
    Our price: $18.82 List price: $23.24
  • Retainer Ring
    • Ref No: 34
    • Part No: 18100001
    • Qty Req: 1
    Our price: $2.02 List price: $2.49
  • Ring Gear
    • Ref No: 35
    • Part No: 39000009
    • Qty Req: 1
    Our price: $96.75 List price: $119.45
  • Cushion Bumper
    • Ref No: 36
    • Part No: 14500004
    • Qty Req: 8
    Our price: $1.26 List price: $1.56
  • Gasket
    • Ref No: 37
    • Part No: 17000101
    • Qty Req: 1
    Our price: $6.83 List price: $8.43
  • Gear Casing
    • Ref No: 38
    • Part No: 07549000C
    • Qty Req: 1
    Our price: $212.03 List price: $261.77
  • Screw
    • Ref No: 39
    • Part No: 22100088
    • Qty Req: 1
    Our price: $1.26 List price: $1.56
  • Hex Head Capscrew
    • Ref No: 40
    • Part No: 22100026
    • Qty Req: 4
    Our price: $1.18 List price: $1.46
  • Breather Vent
    • Ref No: 41
    • Part No: 24040193
    • Qty Req: 1
    Our price: $26.44 List price: $32.64
  • Oil Plug
    • Ref No: 43
    • Part No: 24060019
    • Qty Req: 4
    Our price: $2.03 List price: $2.51
  • O-Ring
    • Ref No: 44
    • Part No: 17200139
    • Qty Req: 1
    Our price: $4.03 List price: $4.97
  • Gasket
    • Ref No: 45
    • Part No: 17000098
    • Qty Req: 1
    Our price: $1.22 List price: $1.50
  • Gasket (Viton)
    • Ref No: 47
    • Part No: 17000097
    • Qty Req: 1
    Our price: $9.04 List price: $11.16
  • Slinger Ring
    • Ref No: 48
    • Part No: 14100083
    • Qty Req: 1
    Our price: $2.34 List price: $2.89
  • Locking Collar Kit (Hollow Shaft)
    • Ref No: 49
    • Part No: 34350058
    • Qty Req: 1
    Our price: $59.98 List price: $74.05
