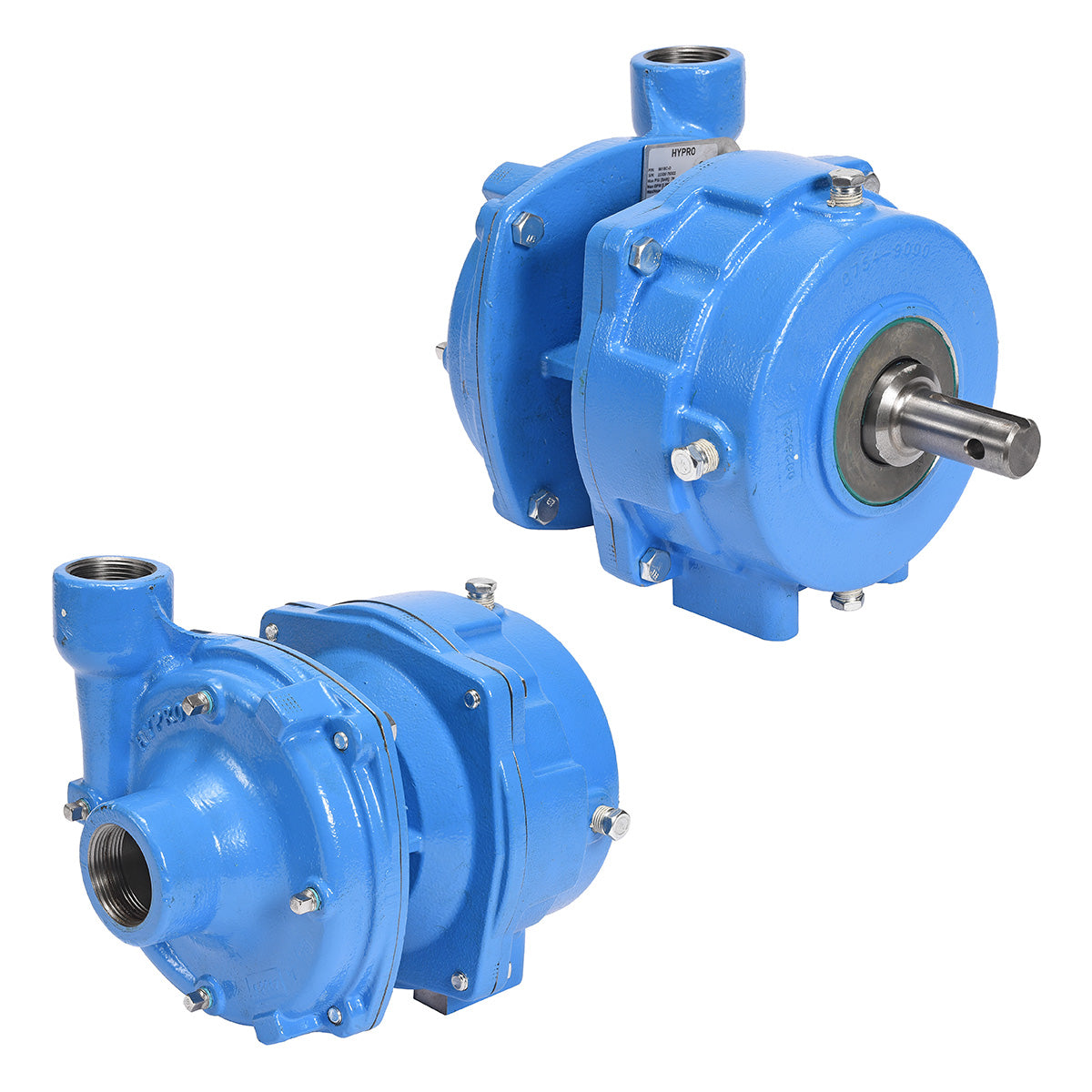

Hypro 9016C-O Centrifugal Pump

Hypro 9016C-O Centrifugal Pump

2 reviews
Item Code:
9016CO
Weight:
45.0 lb
Manufacturer:
Hypro
Our price:
$1,044.49
List price:
$1,899.08
Overview:

The cast iron gear drive housing of the Hypro 9016C-O Centrifugal Pump enables it to withstand maximum fluid temperatures of up to 140 degrees Fahrenheit. It weighs just 44 pounds and the pump clips onto the PTO shield of most tractors effortlessly. The design of this rugged unit makes it reliable and capable of producing heavy-duty service and a long field life.

Manufacturer Description:

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids. The line includes models with rugged housings of cast iron that stand up to strong chemical herbicides. The series includes models 9006C-O, 9008C-O, 9016C-O, 9018C-O, and 9028C-O.

Features:

  • Max flow: 117 gpm
  • Max pressure: 78 psi
  • Max speed: 600 rpm
  • Port sizes: 1-1/2" FNPT inlet, 1-1/4" FNPT outlet
  • Housing: Cast iron
  • Seal material: Viton®/ceramic standard, Life Guard silicon carbide (B) available
  • Impeller: Nylon
  • Shaft: 1" solid
  • Pump shaft rotation: CCW
  • Max fluid temperature: 140°F
  • Weight: 44 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 3
  • Part No: 22530001
  • Qty Req: 1
Our price: $7.42 List price: $9.16
  • Ref No: 4
  • Part No: 04009000P
  • Qty Req: 1
Our price: $64.00 List price: $79.01
  • Ref No: 5
  • Part No: 17000101
  • Qty Req: 1
Our price: $6.50 List price: $8.03
  • Ref No: 7
  • Part No: 17200083
  • Qty Req: 1
Our price: $3.94 List price: $4.87
  • Ref No: 9
  • Part No: 22100020
  • Qty Req: 4
Our price: $1.06 List price: $1.31
  • Ref No: 10
  • Part No: 17200139
  • Qty Req: 1
Our price: $3.83 List price: $4.73
  • Ref No: 11
  • Part No: 21300018
  • Qty Req: 1
Our price: $29.14 List price: $35.98
  • Ref No: 12
  • Part No: 17000098
  • Qty Req: 1
Our price: $1.16 List price: $1.43
  • Ref No: 13
  • Part No: 18100013
  • Qty Req: 1
Our price: $1.12 List price: $1.38
  • Ref No: 14
  • Part No: 20080001
  • Qty Req: 1
Our price: $17.73 List price: $21.89
  • Ref No: 19
  • Part No: 22100046
  • Qty Req: 3
Our price: $4.58 List price: $5.65
  • Ref No: 20
  • Part No: 22700003
  • Qty Req: 3
Our price: $1.16 List price: $1.43
  • Ref No: 21
  • Part No: 22650003
  • Qty Req: 6
Our price: $1.60 List price: $1.97
  • Ref No: 23
  • Part No: 20070022
  • Qty Req: 3
Our price: $7.22 List price: $8.91
  • Ref No: 27
  • Part No: 16100005
  • Qty Req: 1
Our price: $1.91 List price: $2.36
  • Ref No: 28
  • Part No: 05019016D
  • Qty Req: 1
Our price: $243.87 List price: $301.07
  • Ref No: 37
  • Part No: 18000014
  • Qty Req: 1
Our price: $25.18 List price: $31.09
  • Ref No: 38
  • Part No: 20050002
  • Qty Req: 1
Our price: $150.06 List price: $185.26
  • Ref No: 39
  • Part No: 18100001
  • Qty Req: 1
Our price: $1.92 List price: $2.37
  • Ref No: 40
  • Part No: 39000009
  • Qty Req: 1
Our price: $92.15 List price: $113.76
  • Ref No: 41
  • Part No: 14500004
  • Qty Req: 8
Our price: $1.21 List price: $1.49
  • Ref No: 42
  • Part No: 07549000C
  • Qty Req: 1
Our price: $201.93 List price: $249.30
  • Ref No: 43
  • Part No: 22100026
  • Qty Req: 4
Our price: $1.18 List price: $1.46
  • Ref No: 44
  • Part No: 24040193
  • Qty Req: 1
Our price: $25.18 List price: $31.09
  • Ref No: 45
  • Part No: 21020025
  • Qty Req: 1
Our price: $17.93 List price: $22.13
  • Ref No: 46
  • Part No: 17200022
  • Qty Req: 1
Our price: $1.12 List price: $1.38
  • Ref No: 49
  • Part No: 24060019
  • Qty Req: 4
Our price: $1.94 List price: $2.39
  • Ref No: 50
  • Part No: 15200034
  • Qty Req: 1
Our price: $91.59 List price: $113.07
