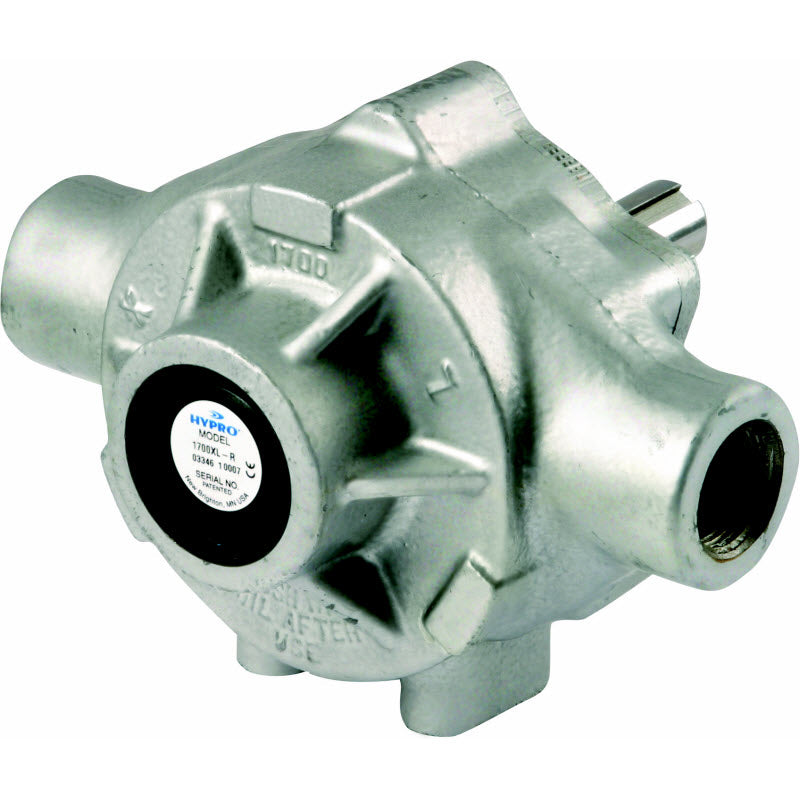

Hypro 1700XL-R Roller Pump

Hypro 1700XL-R Roller Pump

Item Code:
21.15 lb
Our price:
List price:

The Hypro is 1700XL-R is made for the fields. Adept at handling liquid fertilizers, herbicides and pesticides, it requires no check valves yet offers lower starting torque and less friction than other pumps in its class. Built of Silvercast, it provides significantly longer life with better performance than cast iron and Ni-resist models.

Manufacturer Description:

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.ÊReady for use with Roundup®.


  • Max flow: 45 gpm
  • Max pressure: 200 psi
  • Max rpm: 1000
  • Port sizes: 1" FNPTÊ
  • Pump shaft rotation: CW
  • Housing: Silvercast
  • Rotor: Silvercast
  • Roller material: Super rollers standard, Poly and Teflon® available
  • Roller quantity: 5
  • Shaft seals: Viton® standard, Buna available
  • Shaft: 15/16" solid stainless steel
  • 25 gpm/94.6 lpm at 540 rpmÊ
  • 45 gpm/170 lpm at 1000 rpm
  • Max fluid temperature: 140°F
  • Weight: 19 lbs

Parts breakdown
