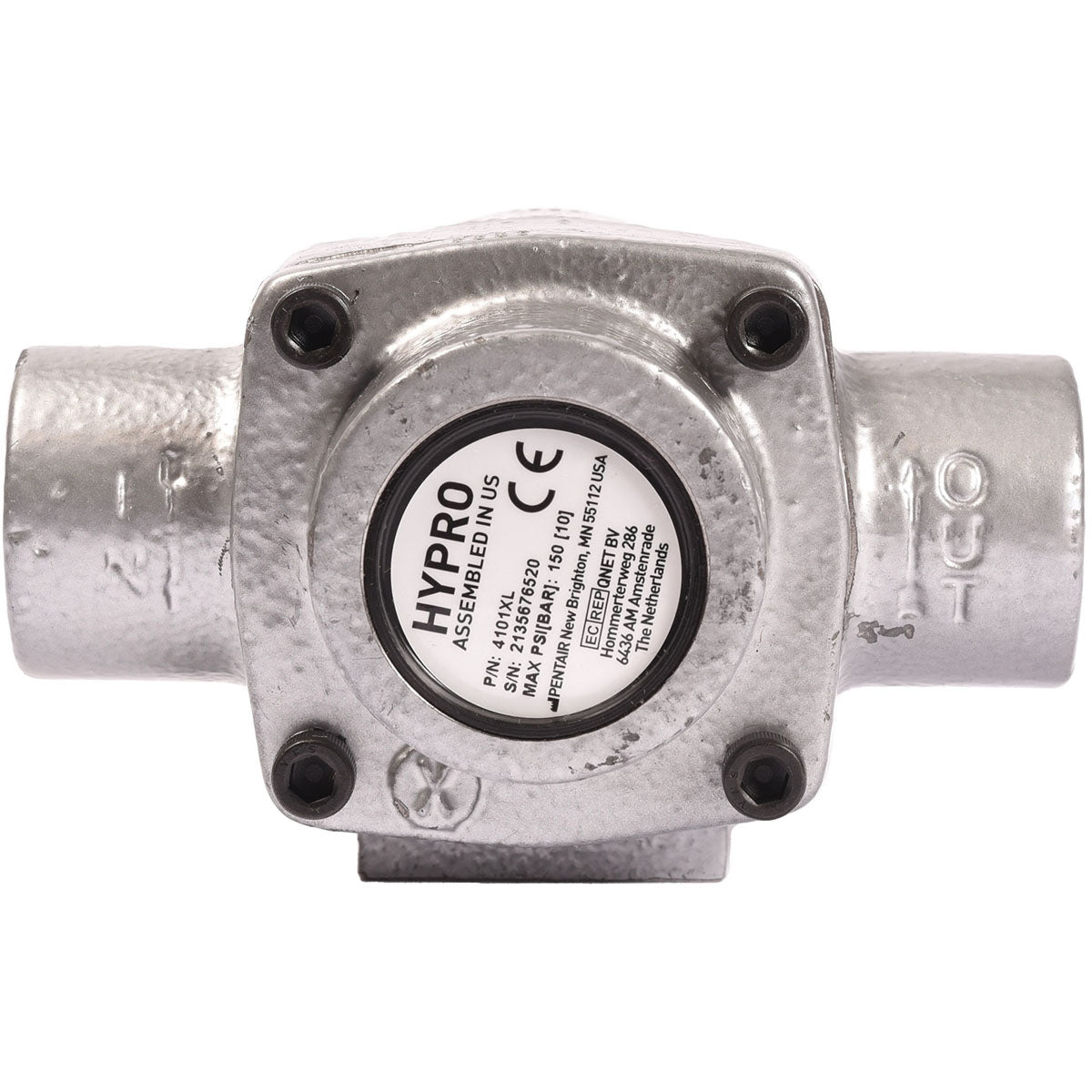

Hypro 4101XL (4101XL-A) Roller Pump

Hypro 4101XL (4101XL-A) Roller Pump

Brand:
Hypro
Weight:
5.4 lb
Item #
4101XL
2 reviews
Skip to product information
1 of 1

Hypro 4101XL (4101XL-A) Roller Pump

Hypro 4101XL (4101XL-A) Roller Pump

Brand:
Hypro
Weight:
5.4 lb
Item #
4101XL
2 reviews

Regular price $453.34
Sale price $453.34 Regular price List Price: $824.26

Earn 1,360 points with this purchase.

View full details

Collapsible content

Product Overview

Low friction and low starting torque make a roller pump efficient and easy to use, and this roller pump from Hypro offers both. This economical pump can generate up to 7 GPM and 150 PSI, and it's built to withstand any industrial fluids like RoundUpĀ®, insecticides, herbicides, emulsives, aromatic solvents and more.

Manufacturer description

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps. Ready for use with Roundup®.

Features

  • Max flow: 7 gpm
  • Max pressure: 150 psi
  • Max rpm: 2600
  • Port sizes: 3/4" FNPT
  • Pump shaft rotation: CW
  • Housing: Silvercast
  • Rotor: Silvercast
  • Roller material: Super rollers standard, Poly and TeflonĀ® available
  • Roller quantity: 4
  • Shaft seals: VitonĀ® standard, Buna available
  • Shaft: 5/8" solid stainless steel
  • Max fluid temperature: 140Ā°F
  • Weight: 5 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Body (SilverCast) with Std. Seal
    • Ref No: 1
    • Part No: 01004101X
    • Qty Req: 1
    Our price: $325.17 List price: $401.44
  • Rotor Assembly (4101N, XL)
    • Ref No: 3
    • Part No: 34300766
    • Qty Req: 1
    Our price: $137.93 List price: $170.29
  • Rotor Assembly (Hollow Shaft)
    • Ref No: 3A
    • Part No: 34300781
    • Qty Req: 1
    Our price: $132.41 List price: $163.47
  • Super Rollers (Std.)
    • Ref No: 5
    • Part No: 10050002
    • Qty Req: 4
    Our price: $4.54 List price: $5.60
  • Polypropylene Rollers (Optional)
    • Ref No: 5
    • Part No: 10020002
    • Qty Req: 4
    Our price: $3.96 List price: $4.89
  • TeflonĀ® Rollers (Optional)
    • Ref No: 5
    • Part No: 10550002
    • Qty Req: 4
    Our price: $29.32 List price: $36.20
  • O-Ring Gasket for Endplate
    • Ref No: 6
    • Part No: 17200104
    • Qty Req: 1
    Our price: $1.13 List price: $1.39
  • Endplate Screw
    • Ref No: 7
    • Part No: 22200018
    • Qty Req: 4
    Our price: $1.06 List price: $1.31
  • Viton Seal (Std.)
    • Ref No: 8
    • Part No: 21070002
    • Qty Req: 2
    Our price: $12.34 List price: $15.23
  • Buna-N Seal (Optional)
    • Ref No: 8
    • Part No: 21020001
    • Qty Req: 2
    Our price: $29.16 List price: $36.00
  • TeflonĀ® Coated Buna-N Seal (Optional)
    • Ref No: 8
    • Part No: 21020001T
    • Qty Req: 2
    Our price: $45.24 List price: $55.85
  • Ball Bearing for Hypro Pumps
    • Ref No: 9
    • Part No: 20000010
    • Qty Req: 2
    Our price: $11.97 List price: $14.78
  • Base Kit (3-1/2")
    • Ref No: 10
    • Part No: 34200024
    • Qty Req: 1
    Our price: $49.66 List price: $61.31
  • Base Kit (4-3/16")
    • Ref No: 11
    • Part No: 34200025
    • Qty Req: 1
    Our price: $54.34 List price: $54.34
  • Adapter (5/8 X 3/4")
    • Ref No: 12
    • Part No: 13200015
    • Qty Req: 1
    Our price: $47.44 List price: $58.57
  • Adapter (5/8 X 5/8)
    • Ref No: 12
    • Part No: 13200016
    • Qty Req: 1
    Our price: $46.34 List price: $57.21
  • Shaft Bearing Cover
    • Ref No: 13
    • Part No: 23000023
    • Qty Req: 1
    Our price: $1.81 List price: $2.24
  • Bearing Cover
    • Ref No: 14
    • Part No: 23000021
    • Qty Req: 1
    Our price: $1.73 List price: $2.14
  • Locking Collar
    • Ref No: 15
    • Part No: 14200001
    • Qty Req: 1
    Our price: $7.04 List price: $8.69
  • Set Screw
    • Ref No: 16
    • Part No: 22300001
    • Qty Req: 1
    Our price: $2.25 List price: $2.78
  • Base
    • Ref No: 17
    • Part No: 15100054
    • Qty Req: 1
    Our price: $16.37 List price: $20.21
  • Bumper
    • Ref No: 18
    • Part No: 14500003
    • Qty Req: 2
    Our price: $1.62 List price: $2.00
  • Head Hex Cap Screw
    • Ref No: 19
    • Part No: 22100003
    • Qty Req: 2
    Our price: $1.14 List price: $1.41
  • Lock Washer
    • Ref No: 20
    • Part No: 22600002
    • Qty Req: 2
    Our price: $1.13 List price: $1.39
