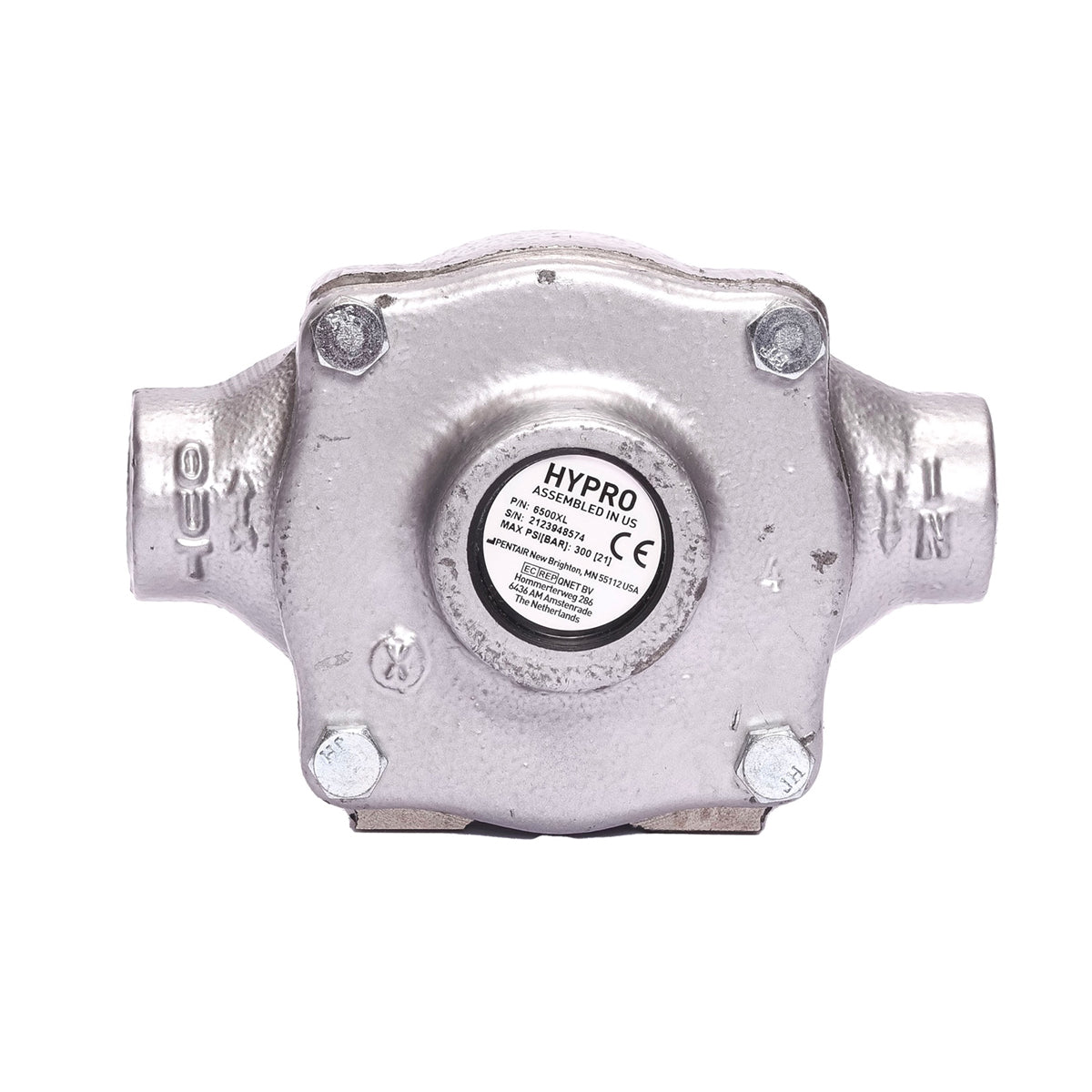

Hypro 6500XL Roller Pump
1
Overview:
The 6500XL roller pump from Hypro will economically displace fluids with a rotary action roller. This uses less friction and makes the pump last longer. The pump is chemical resistant and is ideal for the spraying of liquid fertilizers, aromatic solvents, emulsives, insecticides, and herbicides. This roller pump can deliver a maximum pressure of 300 psi and a maximum flow of 22 gpm.
Manufacturer Description:
Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids.
The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.ÊReady for use with Roundup®.
Features:
- Max flow: 22 gpm
- Max pressure: 300 psi
- Max rpm: 1200
- Port sizes: 3/4" NPT
- Pump shaft rotation: CCW
- Housing: Silvercast
- Rotor: Silvercast
- Roller material: Super rollers standard, Poly and Teflon® available
- Roller quantity: 6
- Shaft seals: Viton® standard, Buna available
- Shaft: 5/8" solid stainless steel
- 9.7 gpm/36.7 lpm at 540 rpm
- 18.2 gpm/68.9 lpm at 1000 rpm
- 21.8 gpm/82.5 lpm at 1200 rpm
- Max fluid temperature: 140°F
- Weight: 9 lbs

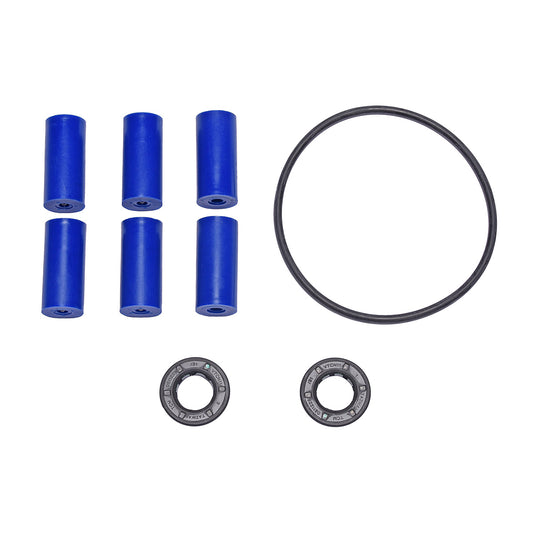

Parts breakdown
