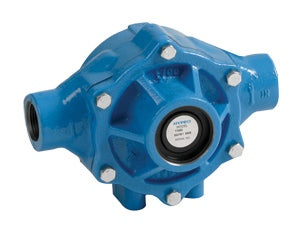

Hypro 1700C Roller Pump

Hypro 1700C Roller Pump

Brand:
Hypro
Weight:
20.0 lb
Item #
1700C
3 reviews

Regular price $381.89
Sale price $381.89 Regular price List Price: $694.34

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 1,146 points with this purchase.

View full details

Collapsible content

Product Overview

With a maximum flow rate of 45 GPM and an upper pressure limit of 200 PSI, this Hypro 1700C Roller Pump is your logical choice for low-pressure sprayer application of insecticide, herbicide, liquid fertilizer or your aromatic solvent. This pump features a rotary-action roller principle, which makes your life easier by requiring no check valves during operation. You also gain less friction and a lower starting torque than what's needed for other pumps.

Manufacturer description

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.

Features

  • Max flow: 45 gpm
  • Max pressure: 200 psi
  • Max rpm: 1000
  • Port sizes: 1" FNPT
  • Pump shaft rotation: CCW
  • Housing: Cast iron
  • Rotor: Cast iron
  • Roller material: Super rollers standard, Poly and Teflon® available
  • Roller quantity: 5
  • Shaft seals: Viton® standard, Buna available
  • Shaft: 15/16" solid stainless steel
  • 25 gpm/94.6 lpm at 540 rpm
  • 45 gpm/170 lpm at 1000 rpm
  • Max fluid temperature: 140°F
  • Weight: 20 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Main Bearing - Hypro Pumps
    • Ref No: 2
    • Part No: 20080001
    • Qty Req: 2
    Our price: $17.73 List price: $21.89
  • Viton Seal (Std.)
    • Ref No: 3
    • Part No: 21120003
    • Qty Req: 2
    Our price: $19.55 List price: $24.14
  • Buna-N Seal (Optional)
    • Ref No: 3
    • Part No: 21120001
    • Qty Req: 2
    Our price: $17.88 List price: $22.07
  • Bolt
    • Ref No: 4
    • Part No: 22100005
    • Qty Req: 6
    Our price: $0.88 List price: $1.09
  • Endplate (Cast Iron) with Seal
    • Ref No: 5
    • Part No: 02001700C
    • Qty Req: 1
    Our price: $118.78 List price: $146.64
  • O-Ring Gasket for Endplate
    • Ref No: 6
    • Part No: 17200099
    • Qty Req: 1
    Our price: $2.39 List price: $2.95
  • Rotor (Cast Iron) with Shaft
    • Ref No: 7
    • Part No: 03001700C
    • Qty Req: 1
    Our price: $225.10 List price: $277.90
  • Shaft Only
    • Ref No: 8
    • Part No: 05001502
    • Qty Req: 1
    Our price: $74.47 List price: $91.94
  • Key
    • Ref No: 9
    • Part No: 16100005
    • Qty Req: 1
    Our price: $1.91 List price: $2.36
  • Set Screw
    • Ref No: 10
    • Part No: 22300018
    • Qty Req: 1
    Our price: $0.90 List price: $1.11
  • Super Roller (Standard)
    • Ref No: 11
    • Part No: 10050005
    • Qty Req: 5
    Our price: $9.51 List price: $11.74
  • Polypropylene Roller
    • Ref No: 11
    • Part No: 10020005
    • Qty Req: 5
    Our price: $8.42 List price: $10.40
  • Body (Cast Iron) with Seal
    • Ref No: 12
    • Part No: 01001700C
    • Qty Req: 1
    Our price: $229.98 List price: $283.92
  • Base Kit-Sold Separately
    • Ref No: 13
    • Part No: 34200010
    • Qty Req: 1
    Our price: $66.77 List price: $82.43
  • Hose Barb 1-1/4"
    • Ref No: 14
    • Part No: 24040191
    • Qty Req: 1
    Our price: $1.24 List price: $1.53
  • Bearing Cover
    • Ref No: 15
    • Part No: 23000020
    • Qty Req: 1
    Our price: $1.73 List price: $2.14
  • Shaft Bearing Cover
    • Ref No: 16
    • Part No: 23000022
    • Qty Req: 1
    Our price: $1.73 List price: $2.14
