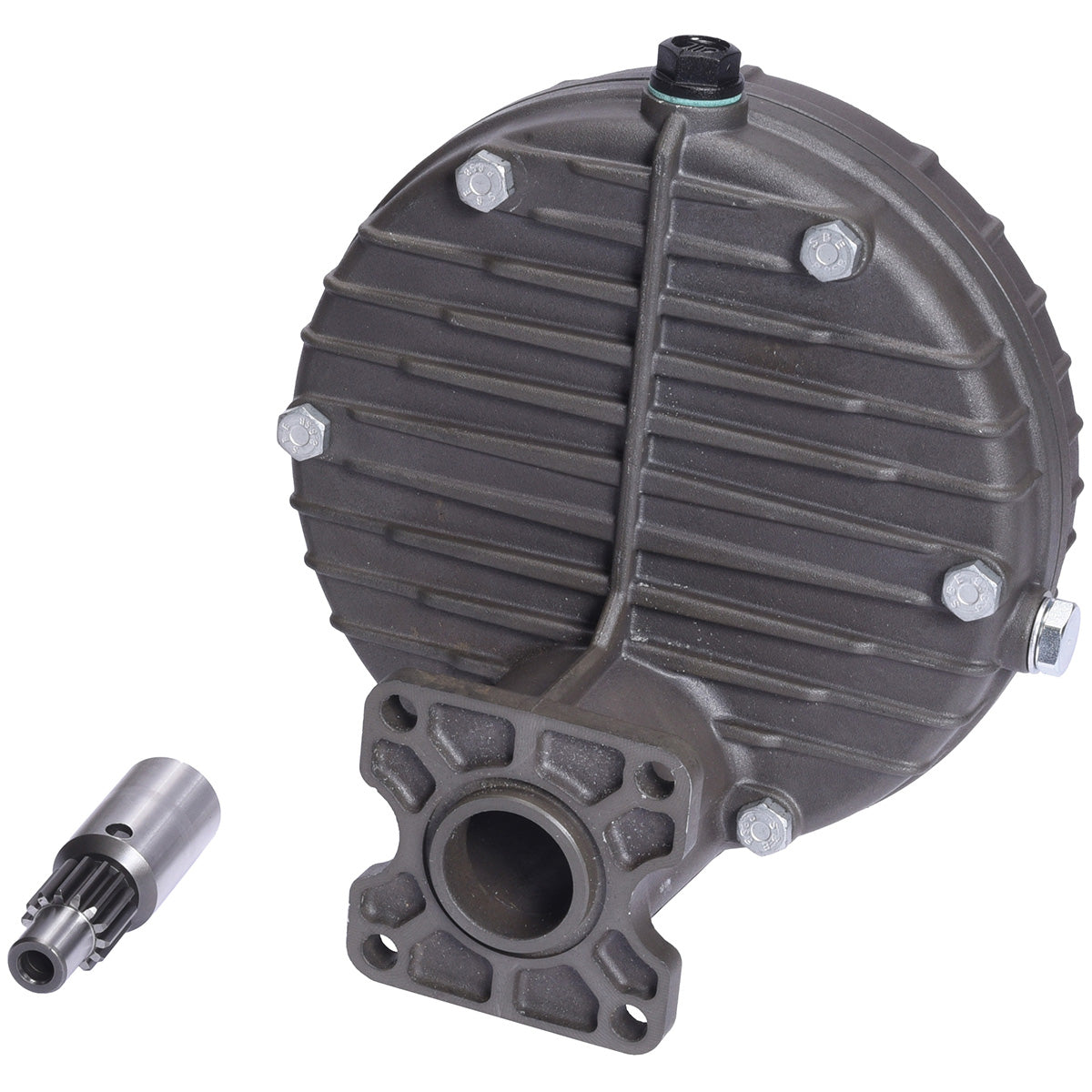

5027.75 Gear Box 3/4" Shaft

5027.75 Gear Box 3/4" Shaft

Brand:
Udor
Weight:
7.42 lb
Item #
502775
1 1

5027.75 Gear Box 3/4" Shaft

5027.75 Gear Box 3/4" Shaft

Brand:
Udor
Weight:
7.42 lb
Item #
502775

$454.74
$454.74 List Price: $699.60

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 1,364 points with this purchase.

See Details

View full details

Product Overview

Designed for use with 4, 5.5, and 6.5 HP Honda engines, this Udor gear box with a 3/4" hollow shaft is compatible with several of Udor's diaphragm pump models. As with all gear reducers from Udor, it is bearing supported and includes cooling vents to minimize the heat stress on the machinery and help prolong its lifetime.

Manufacturer description

All UDOR gear reductions are black anodized, bearing supported and vented for long life and cooler operation. 6:1 gearbox with 3/4" hollow shaft for mounting on 4 to 6.5 hp gas engines. For pump models KAPPA-30/40/55, RO-70/110, ZETA-40/85/120.

Resources

Download Product Manual

Features

  • Fits pump models: KAPPA-30/40/55, RO-70/110, ZETA-40/85
  • Gear ratio: 6 to 1
  • Engine Size: 4 to 6.5 hp with 3/4" solid keyed shaft
  • Weight: 8 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Gear Shaft
    • Ref No: 112
    • Part No: 000418
    • Qty Req: 1
    Our price: $235.80 List price: $284.10
  • Bearing (5027.75 Gear Box)
    • Ref No: 137
    • Part No: 000608
    • Qty Req: 1
    Our price: $59.84 List price: $72.10
  • Pump Gear (3/4" Shaft Gearbox- 5027.75)
    • Ref No: 681
    • Part No: 021322
    • Qty Req: 1
    Our price: $328.51 List price: $395.80
  • Gear Case (3/4" Shaft Udor Gearboxes- 5027.75 & 5071.75)
    • Ref No: 756
    • Part No: 022823
    • Qty Req: 1
    Our price: $408.28 List price: $491.90
  • Gasket for Udor Gear Reduction
    • Ref No: 977
    • Part No: 060205
    • Qty Req: 1
    Our price: $3.74 List price: $4.50
  • Gasket
    • Ref No: 988
    • Part No: 060227
    • Qty Req: 1
    Our price: $7.55 List price: $9.10
  • Aluminum Gasket
    • Ref No: 1072
    • Part No: 060509
    • Qty Req: 1
    Our price: $1.74 List price: $2.10
  • O-Ring
    • Ref No: 1400
    • Part No: 110157
    • Qty Req: 1
    Our price: $4.98 List price: $6.00
  • Washer
    • Ref No: 1845
    • Part No: 140310
    • Qty Req: 4
    Our price: $0.94 List price: $1.13
  • Washer
    • Ref No: 1847
    • Part No: 140312
    • Qty Req: 1
    Our price: $1.74 List price: $2.10
  • Gear Case
    • Ref No: 2034
    • Part No: 150529
    • Qty Req: 1
    Our price: $382.13 List price: $460.40
  • Oil Plug
    • Ref No: 2251
    • Part No: 160302
    • Qty Req: 1
    Our price: $8.47 List price: $10.20
  • Oil Sight Glass
    • Ref No: 2283
    • Part No: 160369
    • Qty Req: 1
    Our price: $11.87 List price: $14.30
  • Vent Cap
    • Ref No: 2288
    • Part No: 160381
    • Qty Req: 1
    Our price: $9.21 List price: $11.10
  • Bolt
    • Ref No: 2580
    • Part No: 180501
    • Qty Req: 4
    Our price: $2.57 List price: $3.10
  • Bolt
    • Ref No: 2582
    • Part No: 180504
    • Qty Req: 3
    Our price: $2.49 List price: $3.00
  • Bolt
    • Ref No: 2596
    • Part No: 180523
    • Qty Req: 6
    Our price: $2.57 List price: $3.10
  • Bolt - 5/16" X 1"
    • Ref No: 2622
    • Part No: 180707
    • Qty Req: 4
    Our price: $2.41 List price: $2.90
  • Bolt - 5/16" X 2-1/4"
    • Ref No: 2623
    • Part No: 180708
    • Qty Req: 1
    Our price: $3.74 List price: $4.50
  • Guide Pin
    • Ref No: 5678
    • Part No: 151208
    • Qty Req: 1
    Our price: $3.07 List price: $3.70
  • Side Plug
    • Ref No: 5650
    • Part No: 180477
    • Qty Req: 1
    Our price: $1.99 List price: $2.40
  • Bolt
    • Ref No: 5949
    • Part No: 180472
    • Qty Req: 6
    Our price: $2.32 List price: $2.80
