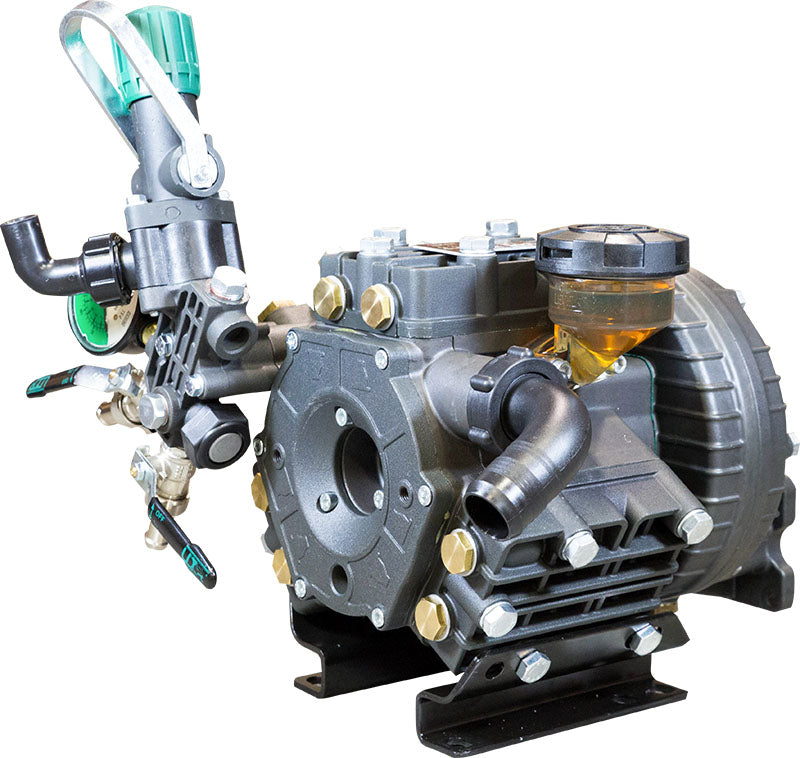

Udor KAPPA-55/GR-5 Diaphragm Pump

Udor KAPPA-55/GR-5 Diaphragm Pump

Brand:
Udor
Weight:
43.0 lb
Item #
KAPPA55GR5

Regular price $1,394.86
Sale price $1,394.86 Regular price List Price: $2,536.10

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 4,185 points with this purchase.

View full details

Collapsible content

Product Overview

The Udor KAPPA-55/GR-5 Diaphragm Pump can have many different kinds of uses. While this product is most often seen in an agricultural setting, it is possible for it to be used in industrial ways as well. This diaphragm pump is ready to be used with a small gas engine, such as one that is 5 to 6.5 HP. Like with other diaphragm pumps, this product uses positive displacement along with reciprocating action.

Manufacturer description

KAPPA-55 3-cylinder, medium pressure diaphragm pump with control unit and gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines. These pumps are excellent choices for various horticulture, agricultural, lawn care, nursery, pest control and turf spraying applications. They are also effectively used in other applications such as aircraft de-icing, hydrostatic testing and cleaning. KAPPA-55 pumps are constructed of anodized aluminum with anodized aluminum and stainless steel liquid handling parts. Built-in pulsation dampener, control valve and pressure gauge are standard on all models. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features

  • Max flow: 15 gpm
  • Max pressure: 350 psi

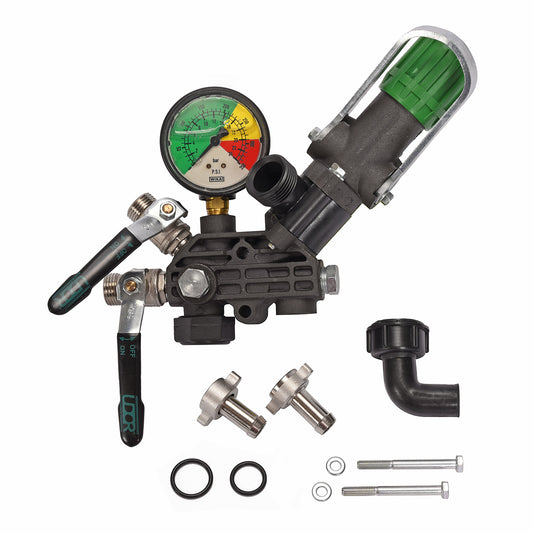

  • Includes 6010.24/LP control unit and 5027.75 gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines
  • Port sizes: 1-1/4" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 47 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Retaining Ring (KAPPA-30, KAPPA-40, KAPPA-55)
    • Ref No: 4
    • Part No: 000106
    • Qty Req: 2
    Our price: $36.02 List price: $43.40
  • Crankshaft (T.S. Models Only)
    • Ref No: 17
    • Part No: 000272
    • Qty Req: 1
    Our price: $552.95 List price: $666.20
  • Crankshaft
    • Ref No: 21
    • Part No: 000271
    • Qty Req: 1
    Our price: $396.57 List price: $477.80
  • Bearing (KAPPA-30/40/55)
    • Ref No: 133
    • Part No: 000602
    • Qty Req: 1
    Our price: $67.81 List price: $81.70
  • Seal (KAPPA-30/40/55, RO-70)
    • Ref No: 155
    • Part No: 000701
    • Qty Req: 1
    Our price: $41.92 List price: $50.50
  • Oil Seal
    • Ref No: 163
    • Part No: 000719
    • Qty Req: 1
    Our price: $20.42 List price: $24.60
  • Diaphragm Bolt (KAPPA-30/33/40/43/55/75/100)
    • Ref No: 240
    • Part No: 0010204
    • Qty Req: 3
    Our price: $21.66 List price: $26.10
  • Suction Elbow (KAPPA-55/75, RO-70)
    • Ref No: 365
    • Part No: 020252
    • Qty Req: 1
    Our price: $19.51 List price: $23.50
  • Piston Sleeve (KAPPA-55)
    • Ref No: 500
    • Part No: 020631
    • Qty Req: 3
    Our price: $126.99 List price: $153.00
  • Oil Cap **Obsolete - no longer available. Must buy 603301 complete assembly**
    • Ref No: 540
    • Part No: 020898
    • Qty Req: 1
    Our price: $16.52 List price: $19.90
  • Accumulator Head
    • Ref No: 569
    • Part No: 020846
    • Qty Req: 1
    Our price: $71.96 List price: $86.70
  • Pump Body (KAPPA-55)
    • Ref No: 629
    • Part No: 020944
    • Qty Req: 1
    Our price: $470.00 List price: $587.50
  • Pump Body T.S.(KAPPA-55/TS)
    • Ref No: 630
    • Part No: 020946
    • Qty Req: 1
    Our price: $487.63 List price: $587.50
  • Ball Bearing (KAPPA-30/40/55/75/100, RO-70)
    • Ref No: 698
    • Part No: 021401
    • Qty Req: 1
    Our price: $231.32 List price: $278.70
  • Retainer Washer (KAPPA-30/40/55/75/100)
    • Ref No: 794
    • Part No: 030114
    • Qty Req: 3
    Our price: $13.20 List price: $15.90
  • Washer (KAPPA-30/40/55)
    • Ref No: 803
    • Part No: 030130
    • Qty Req: 1
    Our price: $8.96 List price: $10.80
  • Spacer (KAPPA-30/40/55)
    • Ref No: 831
    • Part No: 030250
    • Qty Req: 2
    Our price: $13.70 List price: $16.50
  • Flange
    • Ref No: 928
    • Part No: 050185
    • Qty Req: 1
    Our price: $59.35 List price: $71.50
  • Suction Nut
    • Ref No: 1038
    • Part No: 060418
    • Qty Req: 1
    Our price: $13.20 List price: $15.90
  • Aluminum Gasket
    • Ref No: 1072
    • Part No: 060509
    • Qty Req: 1
    Our price: $1.74 List price: $2.10
  • Air Valve Assembly
    • Ref No: 1126
    • Part No: 060816
    • Qty Req: 1
    Our price: $20.50 List price: $24.70
  • Accumulator Diaphragm - Udor KAPPA-55
    • Ref No: 1295
    • Part No: 090308
    • Qty Req: 1
    Our price: $18.92 List price: $22.80
  • Piston Diaphragm Buna-N (Opt.)
    • Ref No: 1305
    • Part No: 090343
    • Qty Req: 3
    Our price: $29.05 List price: $35.00
  • O-Ring
    • Ref No: 1376
    • Part No: 110116
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1381
    • Part No: 110127
    • Qty Req: 6
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: 1382
    • Part No: 110129
    • Qty Req: 7
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: 1386
    • Part No: 110133
    • Qty Req: 1
    Our price: $5.56 List price: $6.70
  • O-Ring
    • Ref No: 1389
    • Part No: 110141
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1407
    • Part No: 110162
    • Qty Req: 1
    Our price: $6.06 List price: $7.30
  • O-Ring
    • Ref No: 1413
    • Part No: 110187
    • Qty Req: 1
    Our price: $11.21 List price: $13.50
  • O-Ring
    • Ref No: 1434
    • Part No: 1101D1
    • Qty Req: 1
    Our price: $5.81 List price: $7.00
  • Piston
    • Ref No: 1570
    • Part No: 120507
    • Qty Req: 3
    Our price: $91.80 List price: $110.60
  • Valve Assembly for Udor Diaphragm Pumps
    • Ref No: 1702
    • Part No: 600601
    • Qty Req: 6
    Our price: $29.63 List price: $35.70
  • Head Assembly
    • Ref No: 1722
    • Part No: 601713
    • Qty Req: 3
    Our price: $121.35 List price: $146.20
  • Oil Reservoir Assembly
    • Ref No: 1740
    • Part No: 603301
    • Qty Req: 1
    Our price: $68.23 List price: $82.20
  • Piston/Rod Assembly
    • Ref No: 1799
    • Part No: 601527
    • Qty Req: 3
    Our price: $166.33 List price: $200.40
  • Washer
    • Ref No: 1843
    • Part No: 140307
    • Qty Req: 2
    Our price: $1.33 List price: $1.60
  • Washer
    • Ref No: 1844
    • Part No: 140309
    • Qty Req: 4
    Our price: $1.33 List price: $1.60
  • Connecting Rod Pin
    • Ref No: 1964
    • Part No: 150203
    • Qty Req: 3
    Our price: $15.36 List price: $18.50
  • Snap Ring
    • Ref No: 2045
    • Part No: 150601
    • Qty Req: 1
    Our price: $7.64 List price: $9.20
  • Snap Ring
    • Ref No: 2051
    • Part No: 150615
    • Qty Req: 6
    Our price: $1.91 List price: $2.30
  • Connecting Rod
    • Ref No: 2150
    • Part No: 151918
    • Qty Req: 3
    Our price: $51.29 List price: $61.80
  • Oil Plug
    • Ref No: 2251
    • Part No: 160302
    • Qty Req: 1
    Our price: $8.47 List price: $10.20
  • Head Plug
    • Ref No: 2268
    • Part No: 160332
    • Qty Req: 6
    Our price: $7.89 List price: $9.50
  • Plug
    • Ref No: 2271
    • Part No: 160344
    • Qty Req: 2
    Our price: $4.73 List price: $5.70
  • Bolt
    • Ref No: 2582
    • Part No: 180504
    • Qty Req: 4
    Our price: $2.49 List price: $3.00
  • Bolt
    • Ref No: 2588
    • Part No: 180521
    • Qty Req: 9
    Our price: $2.32 List price: $2.80
  • Bolt
    • Ref No: 2589
    • Part No: 180531
    • Qty Req: 2
    Our price: $1.91 List price: $2.30
  • Head Bolt (Allen Head-Old Style)
    • Ref No: 2602
    • Part No: 180525
    • Qty Req: 19
    Our price: $3.07 List price: $3.70
  • Seal Retainer (Udor Diaphragm Pump- Kappa-55)
    • Ref No: 7250
    • Part No: 0050102
    • Qty Req: 1
    Our price: $16.43 List price: $19.80
  • Head Bolt (Hex Head - New Style)
    • Ref No: 7948
    • Part No: 180445
    • Qty Req: 19
    Our price: $4.32 List price: $5.20
  • Piston Diaphragm Desmopan (Std.)
    • Ref No: 8120
    • Part No: 090350
    • Qty Req: 3
    Our price: $42.75 List price: $51.50
  • Mounting Rail - Right Side
    • Ref No: 8151
    • Part No: 120263
    • Qty Req: 1
    Our price: $55.44 List price: $66.80
  • Mounting Rail - Left Side
    • Ref No: 8152
    • Part No: 120264
    • Qty Req: 1
    Our price: $55.44 List price: $66.80
