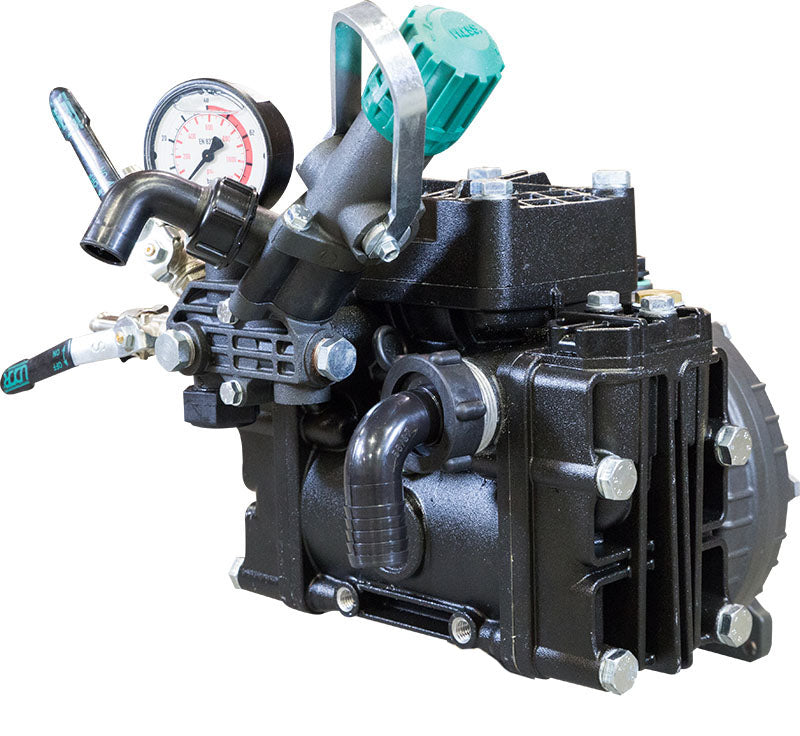

Udor KAPPA-40/GR Diaphragm Pump

Udor KAPPA-40/GR Diaphragm Pump

2 reviews
Item Code:
KAPPA40GR
Weight:
28.0 lb
Manufacturer:
Udor
Our price:
$1,042.42
List price:
$1,895.30
Overview:

The KAPPA-40/GR two diaphragm pump from Udor allows for adjustable pressure regulation from the control unit and is ready for heavy duty use with internally manifolded anodized aluminum construction. With a maximum psi of 560, this pump comes complete with a pressure gauge, a manual dump lever, and dual ball valve outlets.

Manufacturer Description:

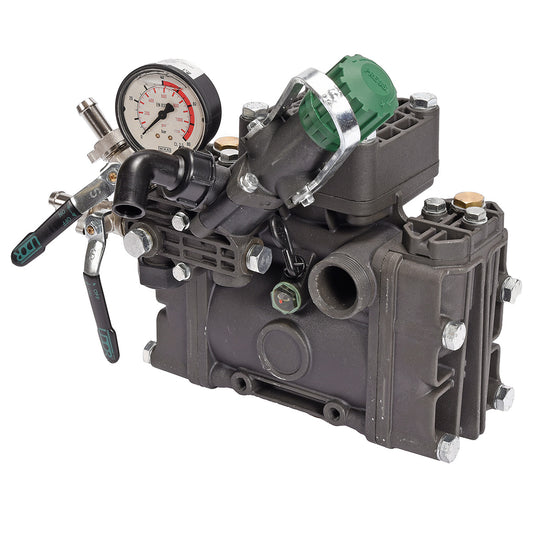

**Replaced by KAPPA-41/GR**

KAPPA-40 medium pressure, 2-cylinder diaphragm pumps are excellent choices for various horticulture, agricultural, lawn care, pest control and turf spraying applications. They are also effectively used in other applications such as aircraft de-icing, hydrostatic testing and cleaning. KAPPA-40 pumps are constructed of anodized aluminum with anodized aluminum and stainless steel liquid handling parts. Built-in pulsation dampener, control valve and pressure gauge are standard on all models. "GR" version pumps include gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp gas engines. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features:

  • Max flow: 10.5 gpm
  • Max pressure: 560 psi

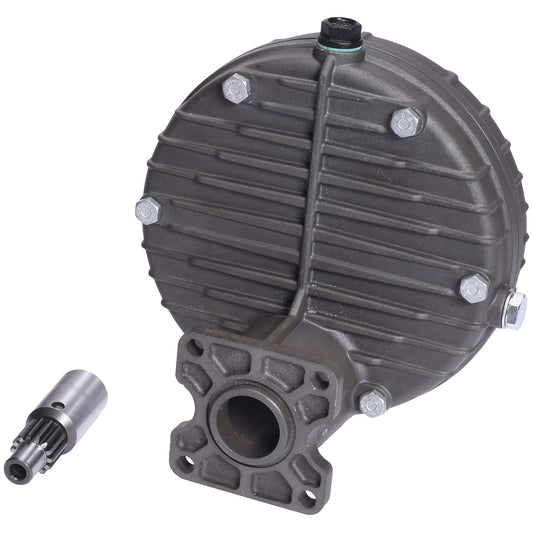

  • Includes 6010.24 control unit and 5027.75 gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines
  • Port sizes: 1" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 39 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 21
  • Part No: 000271
  • Qty Req: 1
Our price: $353.17 List price: $425.50
  • Ref No: 163
  • Part No: 000719
  • Qty Req: 1
Our price: $18.09 List price: $21.80
  • Ref No: 567
  • Part No: 020834
  • Qty Req: 1
Our price: $73.69 List price: $88.79
  • Ref No: 1038
  • Part No: 060418
  • Qty Req: 1
Our price: $11.70 List price: $14.10
  • Ref No: 1072
  • Part No: 060509
  • Qty Req: 1
Our price: $1.49 List price: $1.80
  • Ref No: 1126
  • Part No: 060816
  • Qty Req: 1
Our price: $18.18 List price: $21.90
  • Ref No: 1300
  • Part No: 090314
  • Qty Req: 1
Our price: $24.82 List price: $29.90
  • Ref No: 1376
  • Part No: 110116
  • Qty Req: 1
Our price: $2.24 List price: $2.70
  • Ref No: 1381
  • Part No: 110127
  • Qty Req: 4
Our price: $2.49 List price: $3.00
  • Ref No: 1382
  • Part No: 110129
  • Qty Req: 4
Our price: $2.16 List price: $2.60
  • Ref No: 1389
  • Part No: 110141
  • Qty Req: 1
Our price: $2.24 List price: $2.70
  • Ref No: 1570
  • Part No: 120507
  • Qty Req: 2
Our price: $81.67 List price: $98.40
  • Ref No: 1702
  • Part No: 600601
  • Qty Req: 4
Our price: $25.39 List price: $30.59
  • Ref No: 1721
  • Part No: 601706
  • Qty Req: 2
Our price: $117.53 List price: $141.60
  • Ref No: 1964
  • Part No: 150203
  • Qty Req: 2
Our price: $13.61 List price: $16.40
  • Ref No: 2045
  • Part No: 150601
  • Qty Req: 1
Our price: $6.72 List price: $8.10
  • Ref No: 2051
  • Part No: 150615
  • Qty Req: 4
Our price: $1.66 List price: $2.00
  • Ref No: 2147
  • Part No: 151918
  • Qty Req: 2
Our price: $45.65 List price: $55.00
  • Ref No: 2251
  • Part No: 160302
  • Qty Req: 1
Our price: $7.47 List price: $9.00
  • Ref No: 2262
  • Part No: 160324
  • Qty Req: 1
Our price: $8.88 List price: $10.70
  • Ref No: 2268
  • Part No: 160332
  • Qty Req: 4
Our price: $6.97 List price: $8.40
  • Ref No: 2269
  • Part No: 160333
  • Qty Req: 1
Our price: $12.04 List price: $14.50
  • Ref No: 7671
  • Part No: 140309
  • Qty Req: 14
Our price: $1.08 List price: $1.30
