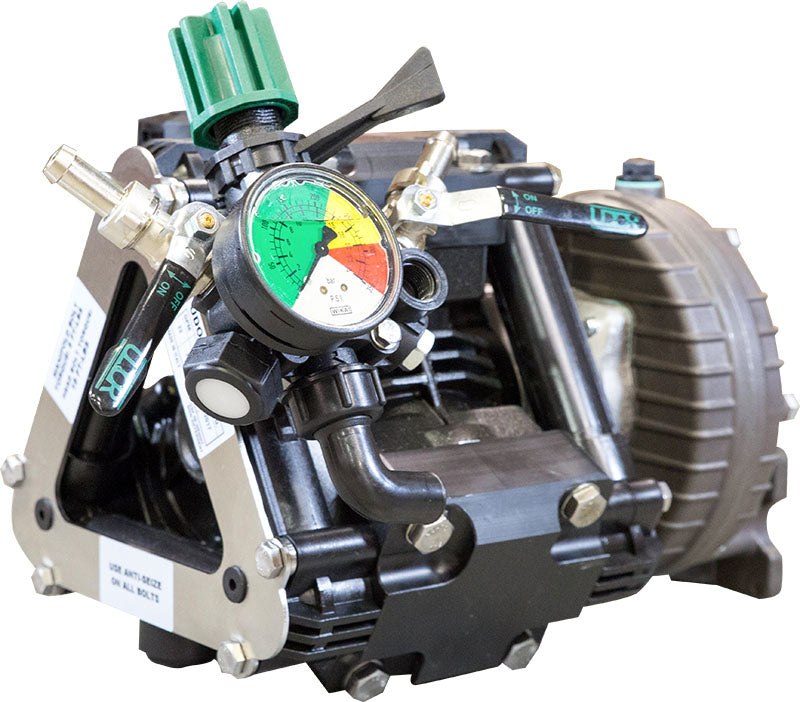

Udor ZETA-85P/GR-5 Diaphragm Pump

Udor ZETA-85P/GR-5 Diaphragm Pump

Brand:
Udor
Weight:
43.0 lb
Item #
ZETA85PGR5

Regular price $1,803.51
Sale price $1,803.51 Regular price List Price: $3,279.10

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 5,411 points with this purchase.

View full details

Collapsible content

Product Overview

With three diaphragms and fully adjustable pressure levels, the ZETA-85P with gear reduction is only of the most versatile commercial pumps on the market. The additional gear box allows the engine to run at varying speeds between 4 and 6.5 HP. The manual dump lever makes cleaning out the system simple, and the dual valve outlets make wide coverage easier than ever.

Manufacturer description

Three diaphragm poly pump (poly heads) with control unit with adjustable pressure regulator, manual dump lever, dual ball valve outlets & pressure gauge and gearbox for mounting on 5 to 6.5 hp engines. ZETA-85P low pressure, 3-cylinder poly diaphragm pumps are excellent for various horticultural and agricultural spraying applications. These pumps are also very effective for mild chlorine and abrasive fluids. Simplicity of design and common parts allow easy and affordable maintenance. ZETA-40P and ZETA-85P pumps have anodized aluminum bodies, stainless steel valves, stainless steel diaphragm bolts, poly heads and poly manifolds. A control valve and pressure gauge are standard on both models. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features

  • Max flow: 22 gpm
  • Max pressure: 300 psi

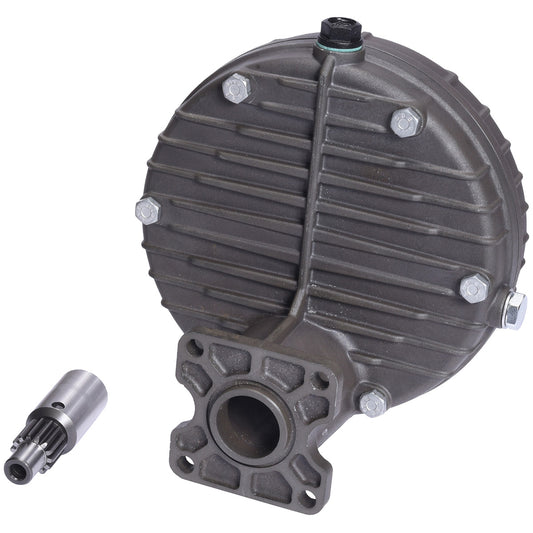

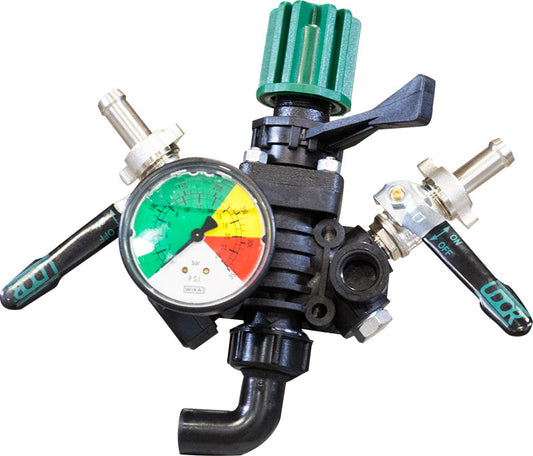

  • Includes 6010.96 control unit and 5027.75 gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp gas engines
  • Port sizes: 1-1/4" HB inlet, (2) 1/2" HB outlet and 3/4" HB Bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
  • Head material: Polypropylene for increased chemical resistance
  • Max fluid temperature: 140°F
  • Weight: 48 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Retainer Ring (BETA-150, OMEGA-140, OMEGA-170)
    • Ref No: 2
    • Part No: 000101
    • Qty Req: 2
    Our price: $73.46 List price: $88.50
  • Bearing (RO-110, ZETA-40, ZETA-85)
    • Ref No: 136
    • Part No: 000607
    • Qty Req: 1
    Our price: $94.62 List price: $114.00
  • Crankshaft (ZETA-40)
    • Ref No: 139
    • Part No: 0002D7
    • Qty Req: 1
    Our price: $419.23 List price: $505.10
  • Seal (KAPPA-33/43, RO-110, ZETA-40/85)
    • Ref No: 157
    • Part No: 000705
    • Qty Req: 1
    Our price: $23.99 List price: $28.90
  • Diaphragm Bolt S.S.
    • Ref No: 240
    • Part No: 010216
    • Qty Req: 3
    Our price: $24.88 List price: $29.97
  • Hose Barb Elbow (KAPPA-100, RO-160/320)
    • Ref No: 375
    • Part No: 020278
    • Qty Req: 1
    Our price: $24.73 List price: $29.80
  • Piston Sleeve (ZETA-85/P)
    • Ref No: 515
    • Part No: 020644
    • Qty Req: 3
    Our price: $121.76 List price: $146.70
  • SPACER
    • Ref No: 792
    • Part No: 030112
    • Qty Req: 1
    Our price: $15.11 List price: $18.20
  • Oil Cap **Obsolete - no longer available. Must buy 603301 complete assembly**
    • Ref No: 540
    • Part No: 020898
    • Qty Req: 1
    Our price: $16.52 List price: $19.90
  • Pump Body
    • Ref No: 590
    • Part No: 020976
    • Qty Req: 1
    Our price: $404.54 List price: $487.40
  • Diaphragm Washer
    • Ref No: 808
    • Part No: 030143
    • Qty Req: 3
    Our price: $13.61 List price: $16.40
  • Bearing
    • Ref No: 701
    • Part No: 021405
    • Qty Req: 1
    Our price: $127.07 List price: $153.10
  • SPACER
    • Ref No: 833
    • Part No: 030252
    • Qty Req: 2
    Our price: $14.86 List price: $17.90
  • SPACER
    • Ref No: 799
    • Part No: 0030124
    • Qty Req: 1
    Our price: $13.45 List price: $16.20
  • Flange (RO-110, ZETA-40/85)
    • Ref No: 916
    • Part No: 050162
    • Qty Req: 1
    Our price: $181.77 List price: $219.00
  • Flange (RO-110, ZETA-40/85)
    • Ref No: 927
    • Part No: 050179
    • Qty Req: 1
    Our price: $161.02 List price: $194.00
  • Suction Nut
    • Ref No: 1055
    • Part No: 060450
    • Qty Req: 1
    Our price: $18.09 List price: $21.80
  • Gasket
    • Ref No: 1083
    • Part No: 060549
    • Qty Req: 1
    Our price: $2.32 List price: $2.80
  • Key
    • Ref No: 1199
    • Part No: 080111
    • Qty Req: 1
    Our price: $5.64 List price: $6.80
  • O-Ring
    • Ref No: 1381
    • Part No: 110127
    • Qty Req: 6
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: 1382
    • Part No: 110129
    • Qty Req: 1
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: 1398
    • Part No: 110142
    • Qty Req: 1
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: 1434
    • Part No: 1101D1
    • Qty Req: 1
    Our price: $5.81 List price: $7.00
  • Piston
    • Ref No: 1578
    • Part No: 120518
    • Qty Req: 3
    Our price: $104.75 List price: $126.20
  • Stud
    • Ref No: 1607
    • Part No: 120622
    • Qty Req: 3
    Our price: $3.57 List price: $4.30
  • Valve Assembly
    • Ref No: 1700
    • Part No: 600636
    • Qty Req: 6
    Our price: $39.92 List price: $48.10
  • Oil Reservoir Assembly
    • Ref No: 1740
    • Part No: 603301
    • Qty Req: 1
    Our price: $68.23 List price: $82.20
  • Washer S.S.
    • Ref No: 1843
    • Part No: 140004
    • Qty Req: 2
    Our price: $1.33 List price: $1.60
  • Washer S.S.
    • Ref No: 1844
    • Part No: 140003
    • Qty Req: 15
    Our price: $1.99 List price: $2.40
  • Washer S.S.
    • Ref No: 1845
    • Part No: 141402
    • Qty Req: 12
    Our price: $1.49 List price: $1.80
  • Connecting Rod Pin
    • Ref No: 1967
    • Part No: 150207
    • Qty Req: 3
    Our price: $26.31 List price: $31.70
  • Snap Ring
    • Ref No: 2051
    • Part No: 150615
    • Qty Req: 6
    Our price: $1.91 List price: $2.30
  • Connecting Rod
    • Ref No: 2135
    • Part No: 151930
    • Qty Req: 3
    Our price: $38.76 List price: $46.70
  • Manifold Tube for Udor ZETA-40/85P
    • Ref No: 2192
    • Part No: 160125
    • Qty Req: 3
    Our price: $29.88 List price: $36.00
  • Inlet (Suction) Manifold Tube for Udor ZETA-40/85P
    • Ref No: 2193
    • Part No: 160126
    • Qty Req: 1
    Our price: $29.88 List price: $36.00
  • Poly Head
    • Ref No: 2342
    • Part No: 160494P
    • Qty Req: 3
    Our price: $207.42 List price: $249.90
  • Discharge Manifold Tube for Udor ZETA-40/85P Diaphragm Pumps
    • Ref No: 2367
    • Part No: 160528
    • Qty Req: 2
    Our price: $31.71 List price: $38.20
  • Suction Manifold Bolt S.S.
    • Ref No: 2497
    • Part No: 190002
    • Qty Req: 6
    Our price: $5.64 List price: $6.80
  • Discharge Manifold Bolt S.S.
    • Ref No: 2498
    • Part No: 190001
    • Qty Req: 6
    Our price: $5.64 List price: $6.80
  • Oil Cup Bolt S.S.
    • Ref No: 2589
    • Part No: 190004
    • Qty Req: 2
    Our price: $6.23 List price: $7.50
  • Washer
    • Ref No: 5599
    • Part No: 140302
    • Qty Req: 1
    Our price: $1.99 List price: $2.40
  • Head Bolt S.S.
    • Ref No: 7948
    • Part No: 181621
    • Qty Req: 12
    Our price: $7.89 List price: $9.50
  • Rail Bolt S.S.
    • Ref No: 7949
    • Part No: 190000
    • Qty Req: 4
    Our price: $7.97 List price: $9.60
  • Piston Diaphragm Desmopan (Std.)
    • Ref No: 8117
    • Part No: 090338
    • Qty Req: 3
    Our price: $50.22 List price: $60.50
  • Mounting Rail - Right Side
    • Ref No: 8151
    • Part No: 120263
    • Qty Req: 1
    Our price: $55.44 List price: $66.80
  • Mounting Rail - Left Side
    • Ref No: 8152
    • Part No: 120264
    • Qty Req: 1
    Our price: $55.44 List price: $66.80
  • PISTON
    • Ref No: NA
    • Part No: 601549
    • Qty Req: 0
    Our price: $186.09 List price: $224.20
  • Manifold Plate (ZETA-40/85)
    • Ref No: 9995
    • Part No: 050809
    • Qty Req: 1
    Our price: $73.87 List price: $89.00
  • Manifold Spacer S.S.
    • Ref No: 9997
    • Part No: 140000
    • Qty Req: 6
    Our price: $10.38 List price: $12.50
  • Rail Spacer S.S.
    • Ref No: 9998
    • Part No: 140001
    • Qty Req: 4
    Our price: $12.04 List price: $14.50
  • Control Unit Adapter
    • Ref No: 9999
    • Part No: 050810
    • Qty Req: 1
    Our price: $94.21 List price: $113.50
