Udor ZETA-40P/GR Diaphragm Pump

Udor ZETA-40P/GR Diaphragm Pump

1 review
Item Code:
ZETA40PGR
Weight:
34.0 lb
Manufacturer:
Udor
Our price:
$1,665.68
List price:
$3,028.50
Overview:

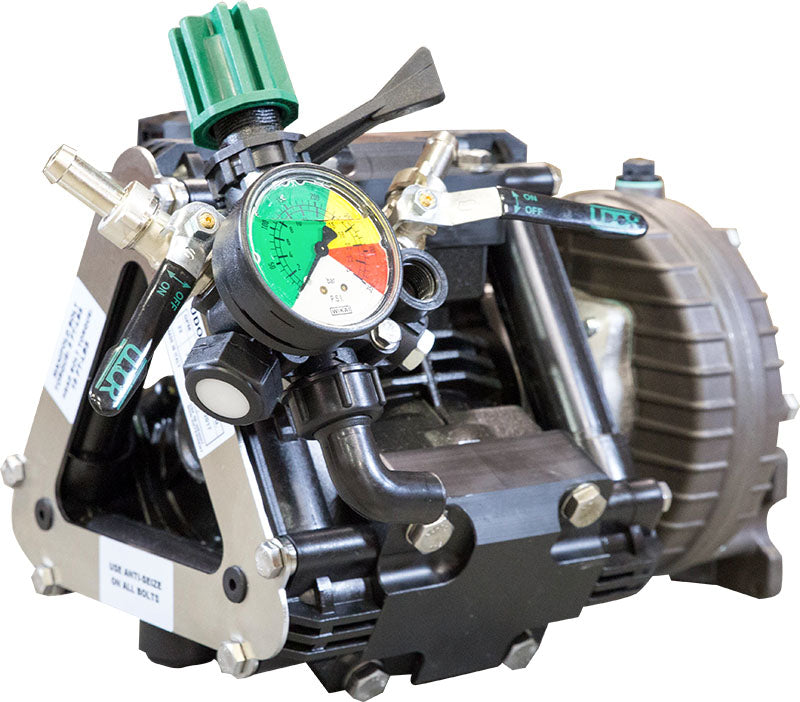

The ZETA-40P/GR diaphragm pump from the ever reliable Udor comes with a gear box so that you can fit engines of 4 to 6.5 HP. It also comes with an adjustable pressure regulator so that you can adapt it for use in a wide variety of industrial situations, and its manual dump lever helps prevent it from failing on the job.

Manufacturer Description:

Three diaphragm poly pump (poly heads) with control unit with adjustable pressure regulator, manual dump lever, dual ball valve outlets & pressure gauge. Fitted with gear box for 4-6.5 HP gasoline engines with 3/4'' shafts. ZETA-40P low pressure, 3-cylinder poly diaphragm pumps are excellent for various horticultural and agricultural spraying applications. These pumps are also very effective for mild chlorine and abrasive fluids. Simplicity of design and common parts allow easy and affordable maintenance. ZETA-40P and ZETA-85P pumps have anodized aluminum bodies, stainless steel valves, stainless steel diaphragm bolts, poly heads and poly manifolds. A control valve and pressure gauge are standard on both models. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features:

  • Max flow: 10.5 gpm
  • Max pressure: 300 psi

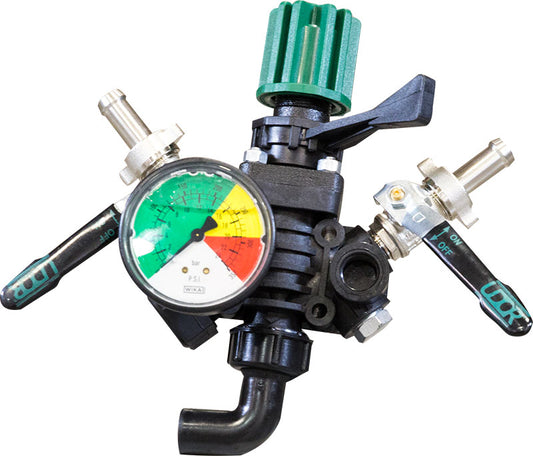

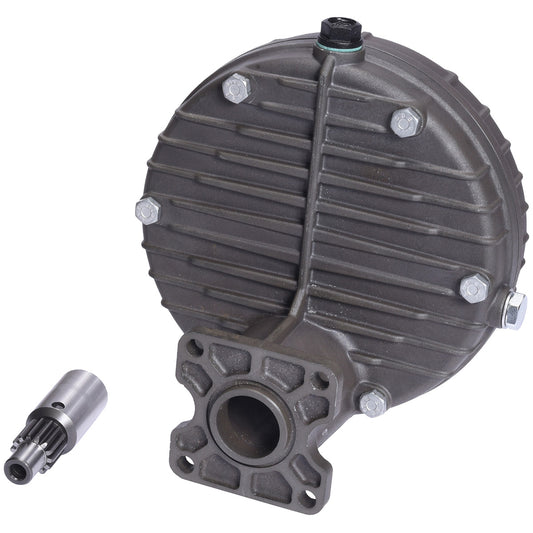

  • Includes 6010.96 control unit and 5027.75 gearbox for mounting on 4 to 6.5 hp engines
  • Port sizes: 1-1/4" HB inlet, (2) 1/2" HB outlet and 3/4" HB Bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
  • Head material: Polypropylene for increased chemical resistance
  • Max fluid temperature: 140°F
  • Weight: 46 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 139
  • Part No: 0002D7
  • Qty Req: 1
Our price: $406.95 List price: $490.30
  • Ref No: 240
  • Part No: 010216
  • Qty Req: 3
Our price: $24.88 List price: $29.97
  • Ref No: 390
  • Part No: 140694
  • Qty Req: 1
Our price: $21.00 List price: $25.30
  • Ref No: 590
  • Part No: 020976
  • Qty Req: 1
Our price: $392.76 List price: $473.20
  • Ref No: 701
  • Part No: 021405
  • Qty Req: 1
Our price: $123.34 List price: $148.60
  • Ref No: 792
  • Part No: 030112
  • Qty Req: 1
Our price: $14.61 List price: $17.60
  • Ref No: 799
  • Part No: 0030124
  • Qty Req: 1
Our price: $13.03 List price: $15.70
  • Ref No: 808
  • Part No: 030143
  • Qty Req: 3
Our price: $13.20 List price: $15.90
  • Ref No: 833
  • Part No: 030252
  • Qty Req: 2
Our price: $14.36 List price: $17.30
  • Ref No: 1055
  • Part No: 060450
  • Qty Req: 1
Our price: $17.51 List price: $21.10
  • Ref No: 1083
  • Part No: 060549
  • Qty Req: 1
Our price: $2.24 List price: $2.70
  • Ref No: 1199
  • Part No: 080111
  • Qty Req: 1
Our price: $5.48 List price: $6.60
  • Ref No: 1381
  • Part No: 110127
  • Qty Req: 6
Our price: $2.74 List price: $3.30
  • Ref No: 1382
  • Part No: 110129
  • Qty Req: 1
Our price: $2.41 List price: $2.90
  • Ref No: 1389
  • Part No: 110141
  • Qty Req: 12
Our price: $2.49 List price: $3.00
  • Ref No: 1398
  • Part No: 110142
  • Qty Req: 1
Our price: $2.74 List price: $3.30
  • Ref No: 1434
  • Part No: 1101D1
  • Qty Req: 1
Our price: $5.56 List price: $6.70
  • Ref No: 15
  • Part No: 120507
  • Qty Req: 3
Our price: $89.06 List price: $107.30
  • Ref No: 1607
  • Part No: 120622
  • Qty Req: 3
Our price: $3.40 List price: $4.10
  • Ref No: 1700
  • Part No: 600636
  • Qty Req: 6
Our price: $39.92 List price: $48.10
  • Ref No: 1843
  • Part No: 140004
  • Qty Req: 2
Our price: $1.25 List price: $1.50
  • Ref No: 1844
  • Part No: 140003
  • Qty Req: 15
Our price: $1.91 List price: $2.30
  • Ref No: 1845
  • Part No: 141402
  • Qty Req: 12
Our price: $1.41 List price: $1.70
  • Ref No: 1967
  • Part No: 150207
  • Qty Req: 3
Our price: $25.48 List price: $30.70
  • Ref No: 2051
  • Part No: 150615
  • Qty Req: 6
Our price: $1.83 List price: $2.20
  • Ref No: 2135
  • Part No: 151930
  • Qty Req: 3
Our price: $37.60 List price: $45.30
  • Ref No: 2192
  • Part No: 160125
  • Qty Req: 3
Our price: $28.97 List price: $34.90
  • Ref No: 2193
  • Part No: 160126
  • Qty Req: 1
Our price: $28.97 List price: $34.90
  • Ref No: 2342
  • Part No: 160494P
  • Qty Req: 3
Our price: $201.36 List price: $242.60
  • Ref No: 2589
  • Part No: 190004
  • Qty Req: 2
Our price: $5.98 List price: $7.20
  • Ref No: 5599
  • Part No: 140302
  • Qty Req: 1
Our price: $1.91 List price: $2.30
  • Ref No: 7948
  • Part No: 181621
  • Qty Req: 12
Our price: $7.64 List price: $9.20
  • Ref No: 7949
  • Part No: 190000
  • Qty Req: 4
Our price: $7.72 List price: $9.30
  • Ref No: 8185
  • Part No: 601551
  • Qty Req: 3
Our price: $153.72 List price: $185.20
  • Ref No: 9997
  • Part No: 140000
  • Qty Req: 6
Our price: $1,398.52 List price: $1,864.69
  • Ref No: 9998
  • Part No: 140001
  • Qty Req: 4
Our price: $99.53 List price: $132.70
  • Ref No: 9999
  • Part No: 050810
  • Qty Req: 1
Our price: $94.21 List price: $113.50
