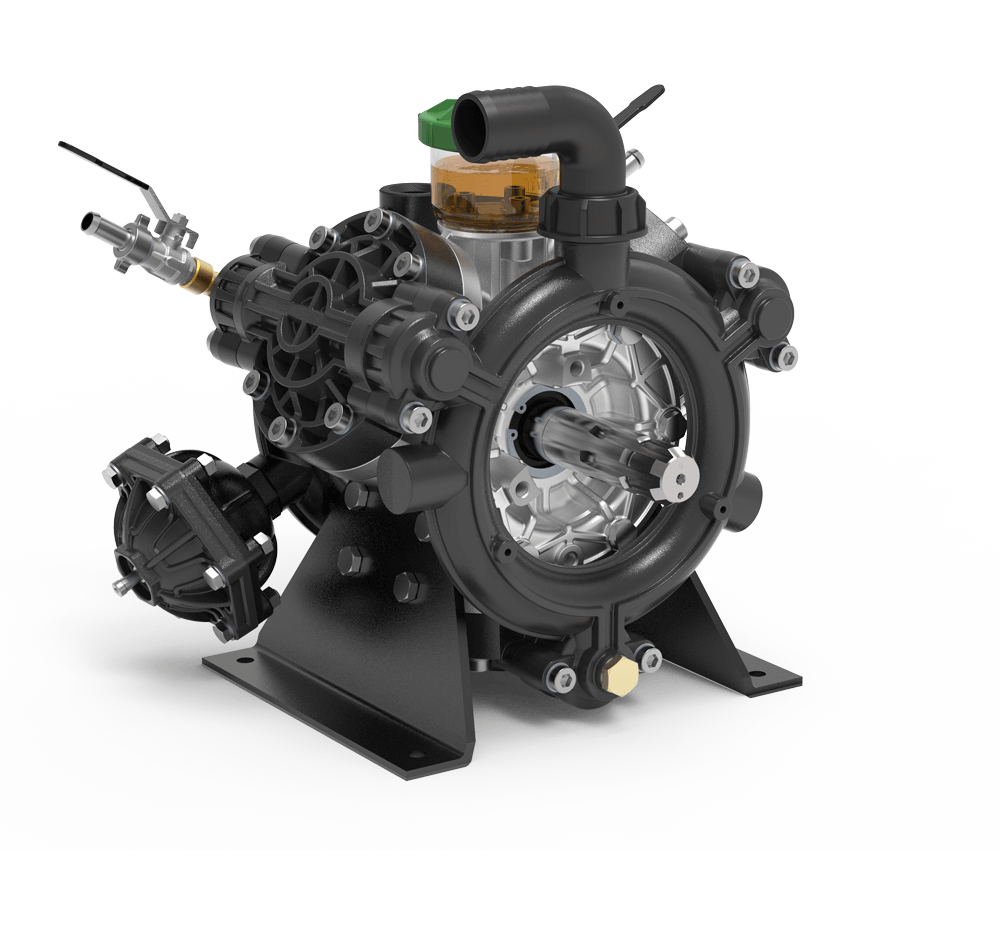

Udor OMEGA-170/CC Diaphragm Pump

Udor OMEGA-170/CC Diaphragm Pump

1 review
Item Code:
OMEGA170CC
Weight:
175.0 lb
Manufacturer:
Udor
Our price:
$2,314.15
List price:
$4,207.55
Overview:

A mechanical powerhouse that's fit for all kinds of spraying applications, the Udor OMEGA-170/CC diaphragm pump offers an efficiently designed system that's ready for many hours of use. A view diagram and parts list shows how all of the pump's many components come together and can be removed for cleaning, servicing, troubleshooting and replacement.

Manufacturer Description:

OMEGA-170/CC 4-cylinder high pressure, high volume diaphragm pumps are excellent for various horticultural and agricultural spraying applications. Simplicity of design and common parts allow easy and affordable maintenance. Control valve, pulsation dampener and pressure gauge are standard. The OMEGA-170/CC is constructed of plasticized aluminum, brass and stainless steel with plasticized aluminum, brass and stainless steel liquid handling parts.

Features:

  • Max flow: 46 gpm
  • Max pressure: 700 psi
  • Includes 6005.15 control unit and dual 1-3/8" 6-spline male PTO shafts
  • Port sizes: 1-1/2" HB inlet, (2) 1/2" HB shutoff and (2) 3/4" FNPT outlet
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 4, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 120 lbs

Parts breakdown

Parts list

  • Ref No: 78
  • Part No: 000310
  • Qty Req: 1
Our price: $199.02 List price: $239.78
  • Ref No: 156
  • Part No: 000702
  • Qty Req: 2
Our price: $17.44 List price: $21.01
  • Ref No: 558
  • Part No: 020821
  • Qty Req: 1
Our price: $179.87 List price: $216.71
  • Ref No: 559
  • Part No: 020822
  • Qty Req: 1
Our price: $12.99 List price: $15.66
  • Ref No: 787
  • Part No: 030103
  • Qty Req: 4
Our price: $10.60 List price: $12.77
  • Ref No: 845
  • Part No: 030301
  • Qty Req: 8
Our price: $1.33 List price: $1.60
  • Ref No: 1034
  • Part No: 060409
  • Qty Req: 2
Our price: $7.35 List price: $8.86
  • Ref No: 1055
  • Part No: 060450
  • Qty Req: 1
Our price: $14.19 List price: $17.10
  • Ref No: 11
  • Part No: 060816
  • Qty Req: 1
Our price: $16.07 List price: $19.36
  • Ref No: 1301
  • Part No: 090316
  • Qty Req: 1
Our price: $32.32 List price: $38.93
  • Ref No: 1365
  • Part No: 110101
  • Qty Req: 8
Our price: $3.16 List price: $3.81
  • Ref No: 1376
  • Part No: 110116
  • Qty Req: 1
Our price: $1.97 List price: $2.37
  • Ref No: 1385
  • Part No: 110132
  • Qty Req: 1
Our price: $5.39 List price: $6.49
  • Ref No: 1398
  • Part No: 110142
  • Qty Req: 1
Our price: $2.14 List price: $2.58
  • Ref No: 1409
  • Part No: 110168
  • Qty Req: 1
Our price: $4.45 List price: $5.36
  • Ref No: 1420
  • Part No: 110171
  • Qty Req: 1
Our price: $8.04 List price: $9.68
  • Ref No: 1571
  • Part No: 120508
  • Qty Req: 4
Our price: $85.40 List price: $102.90
  • Ref No: 1709
  • Part No: 600608
  • Qty Req: 8
Our price: $33.26 List price: $40.07
  • Ref No: 1778
  • Part No: 601501
  • Qty Req: 4
Our price: $190.13 List price: $229.07
  • Ref No: 18
  • Part No: 140309
  • Qty Req: 20
Our price: $0.94 List price: $1.13
  • Ref No: 1845
  • Part No: 140310
  • Qty Req: 3
Our price: $0.94 List price: $1.13
  • Ref No: 1962
  • Part No: 150201
  • Qty Req: 4
Our price: $17.27 List price: $20.81
  • Ref No: 2046
  • Part No: 150602
  • Qty Req: 8
Our price: $1.37 List price: $1.65
  • Ref No: 2052
  • Part No: 150616
  • Qty Req: 1
Our price: $3.76 List price: $4.53
  • Ref No: 2111
  • Part No: 150905
  • Qty Req: 4
Our price: $13.25 List price: $15.97
  • Ref No: 2138
  • Part No: 151903
  • Qty Req: 4
Our price: $68.90 List price: $83.02
  • Ref No: 2198
  • Part No: 160129
  • Qty Req: 1
Our price: $322.38 List price: $388.41
  • Ref No: 2244
  • Part No: 160364
  • Qty Req: 2
Our price: $8.63 List price: $10.80
  • Ref No: 22
  • Part No: 160344
  • Qty Req: 1
Our price: $3.59 List price: $4.33
  • Ref No: 2374
  • Part No: 160533
  • Qty Req: 1
Our price: $303.06 List price: $365.14
  • Ref No: 2465
  • Part No: 180403
  • Qty Req: 9
Our price: $1.71 List price: $2.06
  • Ref No: 2466
  • Part No: 180406
  • Qty Req: 3
Our price: $1.62 List price: $1.96
  • Ref No: 2473
  • Part No: 180454
  • Qty Req: 8
Our price: $1.62 List price: $1.96
  • Ref No: 2582
  • Part No: 180504
  • Qty Req: 3
Our price: $1.88 List price: $2.27
  • Ref No: 2584
  • Part No: 180506
  • Qty Req: 3
Our price: $1.45 List price: $1.75
  • Ref No: 4865
  • Part No: 120283
  • Qty Req: 2
Our price: $55.14 List price: $66.44
  • Ref No: 5747
  • Part No: 1604B7
  • Qty Req: 4
Our price: $251.51 List price: $303.03
  • Ref No: 5955
  • Part No: 180423
  • Qty Req: 2
Our price: $1.71 List price: $2.06
  • Ref No: 7600
  • Part No: 140336
  • Qty Req: 3
Our price: $1.62 List price: $1.96
