6005.15 Control Unit/Pressure Regulator

6005.15 Control Unit/Pressure Regulator

Brand:
Udor
Weight:
5.2 lb
Item #
600515
2 reviews
1 1

6005.15 Control Unit/Pressure Regulator

6005.15 Control Unit/Pressure Regulator

Brand:
Udor
Weight:
5.2 lb
Item #
600515
2 reviews

$417.85
$417.85 List Price: $572.40

Free Shipping on Qualified Orders Over $100

In stock orders placed within

2 hrs 59 minsship out same day. Learn more

Earn 1,254 points with this purchase.

See Details

View full details

Product Overview

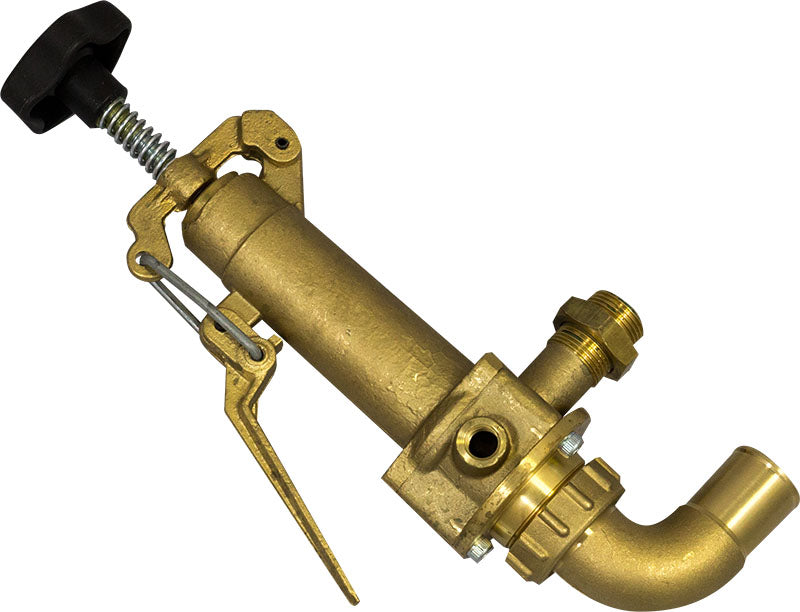

The Udor 6005.15 Control Unit/Pressure Regulator control unit is a high volume, adjustable brass pressure regulator that features a master on and off switch, a hose barb bypass port, and a male BSP inlet port with a quarter-inch gauge port. It is capable of producing a flow rate of up to 45 GPM with a maximum pressure of 1000 PSI.
High volume adjustable brass pressure regulator with master on/off lever, 3/4" male BSP inlet port, 1/4" gauge port & 1" hose barb bypass port. Standard on BETA -110/150, OMEGA-140/170 & KAPPA-120/150 pumps. For use with GAMMA-62/95/100 pumps.

Download Product Manual

  • Mounts to pump models: BETA-110, BETA-150, OMEGA-140, OMEGA-170, KAPPA-120, KAPPA-150, GAMMA-62, GAMMA-95, GAMMA-100
  • Max flow: 45 gpm
  • Max pressure: 1000 psi
  • Port sizes: 3/4" male BSP inlet, 1" hose barb bypass and 1/4" gauge port
  • Weight: 5 lbs

Diagram

Diagram parts

Parts list

  • Lever Guide (Control Unit 600514)
    • Ref No: 210
    • Part No: 010101
    • Qty Req: 1
    Our price: $20.42 List price: $24.60
  • 1" Brass Elbow Hose Barb
    • Ref No: 352
    • Part No: 020204
    • Qty Req: 1
    Our price: $47.39 List price: $57.10
  • Valve Body (Control Unit- 600514)
    • Ref No: 423
    • Part No: 020431
    • Qty Req: 1
    Our price: $182.93 List price: $220.40
  • Valve Cylinder (Udor Control Units- 600514 & 600515)
    • Ref No: 458
    • Part No: 020509
    • Qty Req: 1
    Our price: $30.63 List price: $36.90
  • Nut (Udor Control Units- 6005.14 & 6005.15)
    • Ref No: 854
    • Part No: 030341
    • Qty Req: 1
    Our price: $12.20 List price: $14.70
  • Flange (Udor Control Unit- 6005.15)
    • Ref No: 892
    • Part No: 050112
    • Qty Req: 1
    Our price: $99.85 List price: $120.30
  • Barb Nut
    • Ref No: 1032
    • Part No: 060401
    • Qty Req: 1
    Our price: $18.92 List price: $22.80
  • Pressure Bail
    • Ref No: 1218
    • Part No: 090110
    • Qty Req: 1
    Our price: $8.22 List price: $9.90
  • Spring
    • Ref No: 1225
    • Part No: 090126
    • Qty Req: 1
    Our price: $29.80 List price: $35.90
  • Spring - Small
    • Ref No: 1230
    • Part No: 090105
    • Qty Req: 1
    Our price: $4.32 List price: $5.20
  • Handle
    • Ref No: 1266
    • Part No: 090201
    • Qty Req: 1
    Our price: $34.86 List price: $42.00
  • Diaphragm
    • Ref No: 1303
    • Part No: 090325
    • Qty Req: 1
    Our price: $13.61 List price: $16.40
  • O-Ring
    • Ref No: 1365
    • Part No: 110101
    • Qty Req: 1
    Our price: $4.15 List price: $5.00
  • O-Ring
    • Ref No: 1369
    • Part No: 110105
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • Relief Valve Inlet
    • Ref No: 1496
    • Part No: 120335
    • Qty Req: 1
    Our price: $152.22 List price: $183.40
  • Poppet
    • Ref No: 1540
    • Part No: 120413
    • Qty Req: 1
    Our price: $77.69 List price: $93.60
  • Seat
    • Ref No: 1938
    • Part No: 150125
    • Qty Req: 1
    Our price: $45.48 List price: $54.80
  • Regulator Stem
    • Ref No: 2000
    • Part No: 150311
    • Qty Req: 1
    Our price: $77.85 List price: $93.80
  • Pin
    • Ref No: 2082
    • Part No: 150707
    • Qty Req: 2
    Our price: $1.74 List price: $2.10
  • Adjustment Knob
    • Ref No: 2375
    • Part No: 180101
    • Qty Req: 1
    Our price: $34.69 List price: $41.80
  • Bolt
    • Ref No: 2589
    • Part No: 180526
    • Qty Req: 3
    Our price: $2.24 List price: $2.70
  • S.S. Bolt
    • Ref No: 2630
    • Part No: 181001
    • Qty Req: 1
    Our price: $5.64 List price: $6.80
  • 3/4" MNPT Relief Valve Inlet
    • Ref No: 9100
    • Part No: 120335N
    • Qty Req: 1
    Our price: $168.74 List price: $203.30

Related Products

NaN
Customer Reviews
5.0 Based on 2 Reviews
5 ★
100%
2
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
GF
05/08/2024
Greg F.
United States
  • Use Case Arboriculture
  • Ease of Use Very Easy
  • Was Customer Service Helpful? I didn't interact with Customer Service

Udor Pressure relief valve.

I’ve used one of these for over 20 years and it’s been bulletproof. This upgraded version from those years is smoother and a better valve. Larger dial wheel makes adjustments easier. It’s a dependable piece of equipment worth the cost for high pressure tree spraying.
