Name: Udor KAPPA-7/12 Volt Diaphragm Pump
Brand: Udor
SKU: KAPPA712V
Price: 757.46 USD
Availability: InStock

Udor KAPPA-7/12 Volt Diaphragm Pump

Brand:

Udor

Weight:

22.0 lb

Item #

KAPPA712V

1 1

Udor KAPPA-7/12 Volt Diaphragm Pump

Brand:

Udor

Weight:

22.0 lb

Item #

KAPPA712V

$757.46

$757.46 List Price: ~~$1,377.20~~

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Product variants

Earn 2,272 points with this purchase.

See Details

View full details

Product Overview

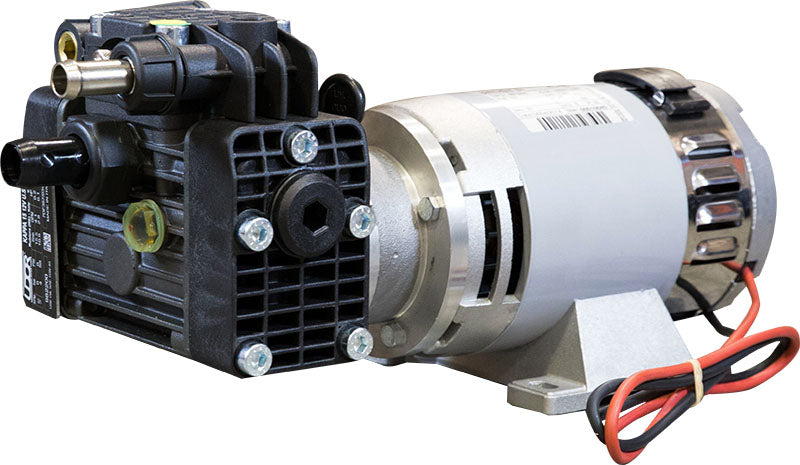

KAPPA-7/12 Volt Diaphragm Pump

2 gpm, 200 psi. 3/4" Inlet, 3/8" Outlet.

Two diaphragm pump with pulsation dampener. Equipped with 12-volt DC motor. Gravity feed only.

UDOR KAPPA Series Pumps Are Internally Manifolded With Anodized Aluminum Construction. KAPPA-7, 15, 18 Have Glass Filled, Nylon Heads.

Parts breakdown

Diagram

Parts list

Bearing (KAPPA-7/12V, KAPPA-15/12V, KAPPA-18/12V)
- Ref No: 143
- Part No: 000613
- Qty Req: 1
Our price: $32.62 List price: $39.30
Seal (KAPPA-7/12V, KAPPA-15/12V, KAPPA-18/12V)
- Ref No: 174
- Part No: 000737
- Qty Req: 1
Our price: $22.41 List price: $27.00
Diaphragm Bolt (KAPPA-15, KAPPA-18, IOTA-20, KAPPA-7/12V)
- Ref No: 239
- Part No: 010202
- Qty Req: 2
Our price: $14.86 List price: $17.90
Connecting Rod (KAPPA-7/12V, KAPPA-15/12V, KAPPA-18/12V)
- Ref No: 263
- Part No: 010307
- Qty Req: 2
Our price: $33.70 List price: $40.60
Shaft Coupler (KAPPA-7/12V, KAPPA-15/12V, KAPPA-18/12V)
- Ref No: 334
- Part No: 011318
- Qty Req: 1
Our price: $76.53 List price: $92.20
Suction Hose Barb
- Ref No: 362
- Part No: 020227
- Qty Req: 1
Our price: $7.06 List price: $8.50
Piston Sleeve (Udor Diaphragm Pumps- Kappa-18/17-12V)
- Ref No: 507
- Part No: 020635
- Qty Req: 2
Our price: $49.55 List price: $59.70
Accumulator Head
- Ref No: 573
- Part No: 02084712V
- Qty Req: 1
Our price: $63.08 List price: $76.00
Pump Body (KAPPA-7/12V, KAPPA-15/12V, KAPPA-18/12V)
- Ref No: 636
- Part No: 020948
- Qty Req: 1
Our price: $202.11 List price: $243.50
Bearing (Udor Diaphragm Pumps- Kappa-15-12V/18-12V/7-12V)
- Ref No: 709
- Part No: 021417
- Qty Req: 1
Our price: $31.62 List price: $38.10
Spacer (Udor Diaphragm Pumps- Kappa-7-12V/15-12v/18-12V)
- Ref No: 806
- Part No: 0030135
- Qty Req: 1
Our price: $4.81 List price: $5.80
Washer (Udor Diaphragm Pumps- Kappa-7-12V/15-12V/18-12V)
- Ref No: 807
- Part No: 030137
- Qty Req: 2
Our price: $5.15 List price: $6.20
Flange (Udor Diaphragm Pump- Kappa-7-12V/15-12V/18-12V)
- Ref No: 931
- Part No: 050192
- Qty Req: 1
Our price: $127.57 List price: $153.70
Air Valve Assembly
- Ref No: V=
- Part No: 060816
- Qty Req: 1
Our price: $20.50 List price: $24.70
Shaft Key
- Ref No: 1195
- Part No: 080108
- Qty Req: 1
Our price: $3.40 List price: $4.10
Accumulator Diaphragm
- Ref No: 1306
- Part No: 090344
- Qty Req: 1
Our price: $38.84 List price: $46.80
Piston Diaphragm (Buna-N)
- Ref No: 1307
- Part No: 090345
- Qty Req: 2
Our price: $25.40 List price: $30.60
O-Ring
- Ref No: 1380
- Part No: 110125
- Qty Req: 4
Our price: $2.57 List price: $3.10
O-Ring
- Ref No: 1422
- Part No: 110178
- Qty Req: 4
Our price: $2.57 List price: $3.10
Piston
- Ref No: 1580
- Part No: 120527
- Qty Req: 2
Our price: $49.05 List price: $59.10
Valve Assembly
- Ref No: 1710
- Part No: 600611
- Qty Req: 4
Our price: $20.25 List price: $24.40
Pump Head
- Ref No: 1724
- Part No: 601714
- Qty Req: 2
Our price: $68.14 List price: $82.10
Piston/Rod Assembly
- Ref No: 1775
- Part No: 601531
- Qty Req: 2
Our price: $77.85 List price: $93.80
Washer
- Ref No: 1845
- Part No: 140310
- Qty Req: 0
Our price: $0.94 List price: $1.13
Wrist Pin
- Ref No: 1969
- Part No: 150211
- Qty Req: 2
Our price: $11.29 List price: $13.60
Snap Ring
- Ref No: 2056
- Part No: 150624
- Qty Req: 2
Our price: $1.74 List price: $2.10
Oil Plug (O-Rings Sold Separately 110116)
- Ref No: 2262
- Part No: 160324
- Qty Req: 1
Our price: $10.04 List price: $12.10
Oil Sight Glass
- Ref No: 2269
- Part No: 160369
- Qty Req: 1
Our price: $11.87 List price: $14.30
Plug
- Ref No: 2286
- Part No: 160387
- Qty Req: 3
Our price: $5.64 List price: $6.80
Barb Nut
- Ref No: 7330
- Part No: 060429
- Qty Req: 0
Our price: $7.55 List price: $9.10
Piston Diaphragm (Desmopan)
- Ref No: 8121
- Part No: 090349
- Qty Req: 2
Our price: $23.74 List price: $28.60
Disc
- Ref No: 9100
- Part No: 060249
- Qty Req: 1
Our price: $3.98 List price: $4.80
Crankshaft (KAPPA-7)
- Ref No: 9251
- Part No: 280
- Qty Req: 1
Our price: $167.00 List price: $201.20
