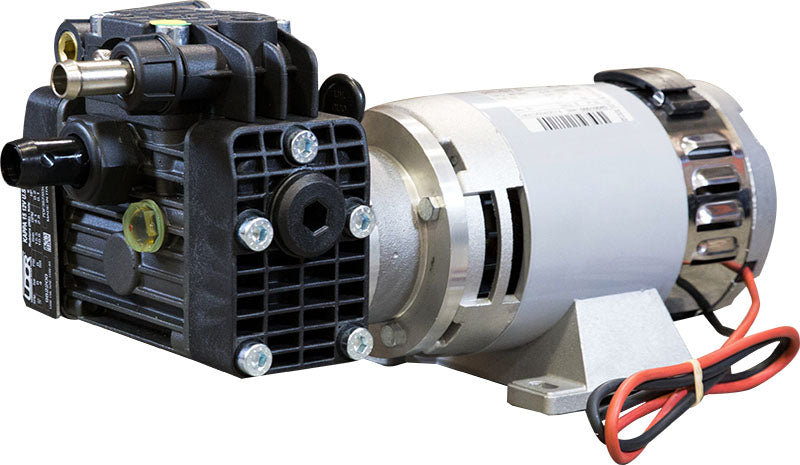

Udor KAPPA-18/12 Volt Diaphragm Pump

Udor KAPPA-18/12 Volt Diaphragm Pump

Item Code:
KAPPA1812V
Weight:
20.0 lb
Manufacturer:
Udor
Our price:
$712.91
List price:
$1,296.20
Overview:

Udor only makes diaphragm pumps that are durable, reliable, and ready to tackle any agricultural or industrial task that you face. The Udor KAPPA Volt Diaphragm Pump is no exception, having glass filled, nylon heads and are internally manifolded. The anodized aluminum construction gives them extra strength so they continue working for years to come. Trust Udor with your pumping needs.

Manufacturer Description:

KAPPA Series 12-Volt Diaphragm Pumps are excellent for various pest control, agricultural, lawn care & injection spraying applications. They are internally manifolded with anodized aluminum construction and have glass filled, nylon heads. Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features:

  • KAPPA-18 pump coupled to 12-volt DC motor
  • Max flow: 4.2 gpm
  • Max pressure: 70 psi
  • Port sizes: 3/4" HB inlet, 1/2" HB outlet
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Recommended regulator: UD1/4-150 or 6815-1/2-300
  • Max amp draw: 28
  • Max fluid temperature: 140°F
  • Weight: 22 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 362
  • Part No: 020227
  • Qty Req: 1
Our price: $5.81 List price: $7.00
  • Ref No: 573
  • Part No: 02084712V
  • Qty Req: 1
Our price: $48.39 List price: $58.30
  • Ref No: 1
  • Part No: 060816
  • Qty Req: 1
Our price: $16.93 List price: $20.40
  • Ref No: 1195
  • Part No: 080108
  • Qty Req: 1
Our price: $2.66 List price: $3.20
  • Ref No: 1306
  • Part No: 090344
  • Qty Req: 1
Our price: $32.20 List price: $38.80
  • Ref No: 1380
  • Part No: 110125
  • Qty Req: 4
Our price: $2.08 List price: $2.50
  • Ref No: 1422
  • Part No: 110178
  • Qty Req: 4
Our price: $2.08 List price: $2.50
  • Ref No: 1580
  • Part No: 120527
  • Qty Req: 2
Our price: $40.67 List price: $49.00
  • Ref No: 1710
  • Part No: 600611
  • Qty Req: 4
Our price: $18.34 List price: $22.10
  • Ref No: 1724
  • Part No: 601714
  • Qty Req: 2
Our price: $56.69 List price: $68.30
  • Ref No: 1775
  • Part No: 601531
  • Qty Req: 2
Our price: $64.66 List price: $77.90
  • Ref No: 1845
  • Part No: 140310
  • Qty Req: 0
Our price: $0.94 List price: $1.13
  • Ref No: 1969
  • Part No: 150211
  • Qty Req: 2
Our price: $9.38 List price: $11.30
  • Ref No: 2056
  • Part No: 150624
  • Qty Req: 2
Our price: $1.33 List price: $1.60
  • Ref No: 2262
  • Part No: 160324
  • Qty Req: 1
Our price: $8.80 List price: $10.60
  • Ref No: 2269
  • Part No: 160369
  • Qty Req: 1
Our price: $9.71 List price: $11.70
  • Ref No: 2286
  • Part No: 160387
  • Qty Req: 3
Our price: $4.65 List price: $5.60
  • Ref No: 7330
  • Part No: 060429
  • Qty Req: 1
Our price: $6.14 List price: $7.40
  • Ref No: 9100
  • Part No: 060249
  • Qty Req: 1
Our price: $3.24 List price: $3.90
  • Ref No: 9252
  • Part No: 000296
  • Qty Req: 1
Our price: $178.95 List price: $215.60
