Udor KAPPA-15/12 Volt Diaphragm Pump

Udor KAPPA-15/12 Volt Diaphragm Pump

1 review
Item Code:
KAPPA1512V
Weight:
22.0 lb
Manufacturer:
Udor
Our price:
$654.31
List price:
$1,189.65
Overview:

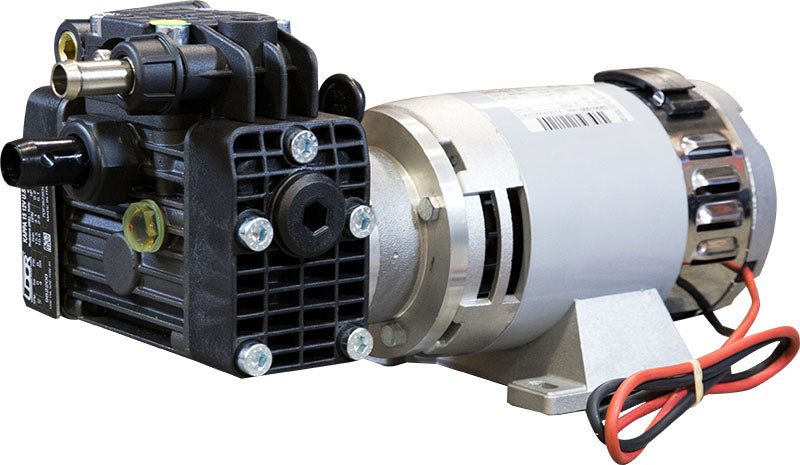

Once again, Udor delivers on durability, reliability and function with this KAPPA-15/12 Volt Diaphragm Pump. Include it in your agricultural, commercial and industrial sprayer systems where lower pressures are needed. With a maximum pressure of 70 PSI and an upper flow rate of 3.5 GPM, this two-diaphragm pump with pulsation damper also features a sturdy construction and is outfitted with a 12-volt DC motor.

Manufacturer Description:

KAPPA Series 12-Volt Diaphragm Pumps are excellent for various pest control, agricultural, lawn care & injection spraying applications. They are internally manifolded with anodized aluminum construction and have glass filled, nylon heads. Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features:

  • KAPPA-15 pump coupled to 12-volt DC motor
  • Max flow: 3.5 gpm
  • Max pressure: 70 psi
  • Port sizes: 3/4" HB inlet, 1/2" HB outlet
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Recommended regulator: UD1/4-150 or 6815-1/2-300
  • Max amp draw: 25
  • Max fluid temperature: 140°F
  • Weight: 22 lbs

Parts breakdown

Parts list

  • Ref No: 22
  • Part No: 000275
  • Qty Req: 1
Our price: $127.24 List price: $159.40
  • Ref No: 362
  • Part No: 020227
  • Qty Req: 1
Our price: $5.47 List price: $6.59
  • Ref No: 573
  • Part No: 02084712V
  • Qty Req: 1
Our price: $48.39 List price: $58.30
  • Ref No: 11
  • Part No: 060816
  • Qty Req: 1
Our price: $16.07 List price: $19.36
  • Ref No: 1195
  • Part No: 080108
  • Qty Req: 1
Our price: $2.48 List price: $2.99
  • Ref No: 1306
  • Part No: 090344
  • Qty Req: 1
Our price: $30.61 List price: $36.87
  • Ref No: 1380
  • Part No: 110125
  • Qty Req: 4
Our price: $1.97 List price: $2.37
  • Ref No: 1422
  • Part No: 110178
  • Qty Req: 4
Our price: $1.97 List price: $2.37
  • Ref No: 1580
  • Part No: 120527
  • Qty Req: 2
Our price: $26.50 List price: $31.93
  • Ref No: 1710
  • Part No: 600611
  • Qty Req: 4
Our price: $17.44 List price: $21.01
  • Ref No: 1724
  • Part No: 601714
  • Qty Req: 2
Our price: $34.03 List price: $40.99
  • Ref No: 1775
  • Part No: 601531
  • Qty Req: 2
Our price: $61.55 List price: $74.16
  • Ref No: 1845
  • Part No: 140310
  • Qty Req: 8
Our price: $0.94 List price: $1.13
  • Ref No: 1969
  • Part No: 150211
  • Qty Req: 2
Our price: $8.89 List price: $10.71
  • Ref No: 2056
  • Part No: 150624
  • Qty Req: 2
Our price: $1.20 List price: $1.44
  • Ref No: 2262
  • Part No: 160324
  • Qty Req: 1
Our price: $8.38 List price: $10.09
  • Ref No: 2269
  • Part No: 160369
  • Qty Req: 1
Our price: $9.23 List price: $11.12
  • Ref No: 2286
  • Part No: 160387
  • Qty Req: 3
Our price: $4.36 List price: $5.25
  • Ref No: 7330
  • Part No: 060429
  • Qty Req: 1
Our price: $5.81 List price: $7.00
  • Ref No: 9100
  • Part No: 060249
  • Qty Req: 1
Our price: $3.08 List price: $3.71
