Udor KAPPA-43 Diaphragm Pump

Udor KAPPA-43 Diaphragm Pump

2 reviews
Item Code:
KAPPA43
Weight:
29.0 lb
Manufacturer:
Udor
Our price:
$657.14
List price:
$1,194.80
Overview:

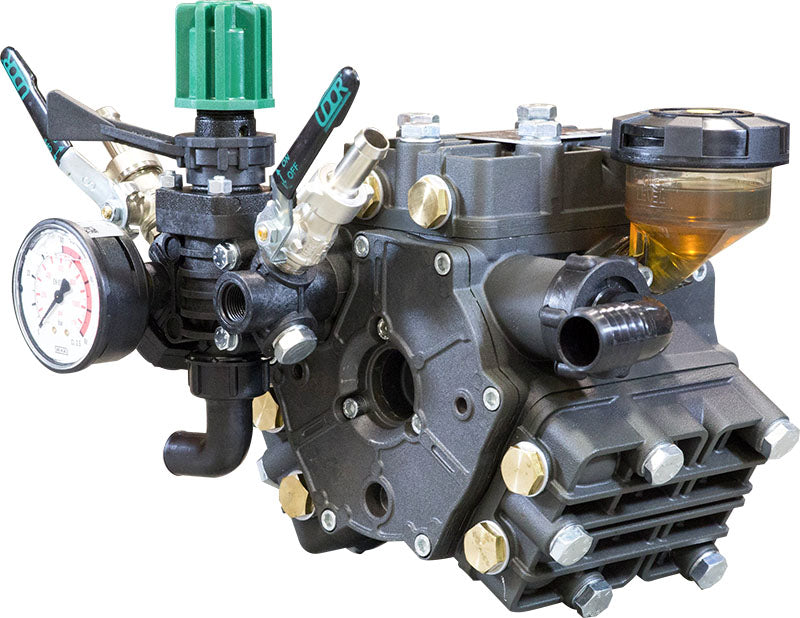

The Udor KAPPA-43 diaphragm pump is extremely reliable because of its anodized aluminum construction, making it impervious to any industrial fluid that you need to use it for. With an adjustable pressure regulator, a manual dump lever, dual ball valve outlets and a pressure gauge, you have full control in the field.

Manufacturer Description:

Three diaphragm pump with control unit with adjustable pressure regulator, manual dump lever, dual ball valve outlets & pressure gauge. Fitted with gearbox for 4-6.5 HP gasoline engines with 3/4" shafts. KAPPA-33/43/53 3-cylinder, medium pressure diaphragm pumps are excellent choices for various horticulture, agricultural, lawn care, nursery, pest control and turf spraying applications. They are also effectively used in other applications such as aircraft de-icing, hydrostatic testing and cleaning. The KAPPA-43 pumps come with a 25mm solid keyed shaft. KAPPA-43 pumps are constructed of anodized aluminum with anodized aluminum and stainless steel liquid hadling parts. Control valve and pressure gauge are standard on all models. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features:

  • Max flow: 10.5 gpm
  • Max pressure: 560 psi
  • Includes 6010.93 control unit
  • Port sizes: 1" HB inlet, (2) 1/2" HB outlet and 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum

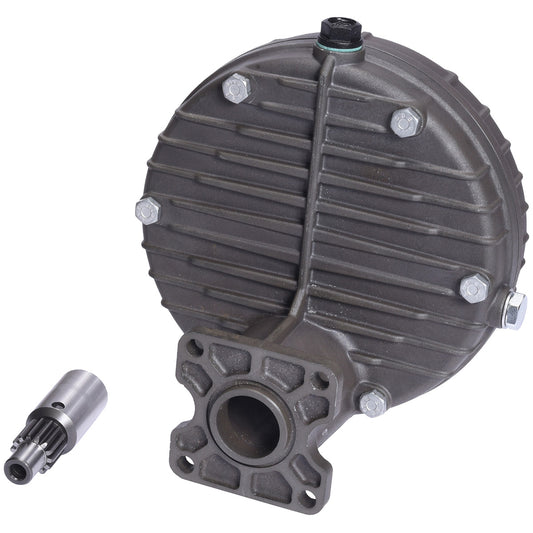

  • Recommended gearbox: 5071.75 with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines
  • Max fluid temperature: 140°F
  • Weight: 29 lbs

Parts breakdown

Parts list

  • Ref No: 146
  • Part No: 000614
  • Qty Req: 1
Our price: $58.73 List price: $70.76
  • Ref No: 540
  • Part No: 020898
  • Qty Req: 1
Our price: $12.99 List price: $15.66
  • Ref No: 592
  • Part No: 020973
  • Qty Req: 1
Our price: $300.67 List price: $362.25
  • Ref No: 701
  • Part No: 021405
  • Qty Req: 1
Our price: $100.62 List price: $121.23
  • Ref No: 808
  • Part No: 030143
  • Qty Req: 3
Our price: $10.60 List price: $12.77
  • Ref No: 816
  • Part No: 030154
  • Qty Req: 1
Our price: $6.84 List price: $8.24
  • Ref No: 817
  • Part No: 030266
  • Qty Req: 2
Our price: $10.86 List price: $13.08
  • Ref No: 964
  • Part No: 0501E2
  • Qty Req: 1
Our price: $41.67 List price: $50.20
  • Ref No: 1038
  • Part No: 060418
  • Qty Req: 1
Our price: $10.34 List price: $12.46
  • Ref No: 1075
  • Part No: 060543
  • Qty Req: 1
Our price: $2.14 List price: $2.58
  • Ref No: 1192
  • Part No: 080102
  • Qty Req: 1
Our price: $3.08 List price: $3.71
  • Ref No: 1381
  • Part No: 110127
  • Qty Req: 6
Our price: $2.14 List price: $2.58
  • Ref No: 1382
  • Part No: 110129
  • Qty Req: 7
Our price: $1.88 List price: $2.27
  • Ref No: 1389
  • Part No: 110141
  • Qty Req: 1
Our price: $1.97 List price: $2.37
  • Ref No: 1421
  • Part No: 110188
  • Qty Req: 1
Our price: $7.87 List price: $9.48
  • Ref No: 1434
  • Part No: 1101D1
  • Qty Req: 1
Our price: $4.45 List price: $5.36
  • Ref No: 1570
  • Part No: 120507
  • Qty Req: 3
Our price: $72.58 List price: $87.45
  • Ref No: 1702
  • Part No: 600601
  • Qty Req: 6
Our price: $25.39 List price: $30.59
  • Ref No: 1722
  • Part No: 601713
  • Qty Req: 3
Our price: $96.01 List price: $115.67
  • Ref No: 1828
  • Part No: 601545
  • Qty Req: 3
Our price: $110.45 List price: $133.08
  • Ref No: 1843
  • Part No: 140307
  • Qty Req: 2
Our price: $0.94 List price: $1.13
  • Ref No: 1844
  • Part No: 140309
  • Qty Req: 11
Our price: $0.94 List price: $1.13
  • Ref No: 1964
  • Part No: 150203
  • Qty Req: 3
Our price: $12.05 List price: $14.52
  • Ref No: 2048
  • Part No: 150607
  • Qty Req: 1
Our price: $6.33 List price: $7.62
  • Ref No: 2051
  • Part No: 150615
  • Qty Req: 6
Our price: $1.37 List price: $1.65
  • Ref No: 2136
  • Part No: 151928
  • Qty Req: 3
Our price: $38.98 List price: $46.97
  • Ref No: 2251
  • Part No: 160302
  • Qty Req: 1
Our price: $3.82 List price: $4.60
  • Ref No: 2268
  • Part No: 160332
  • Qty Req: 6
Our price: $6.16 List price: $7.42
  • Ref No: 2587
  • Part No: 180520
  • Qty Req: 6
Our price: $1.71 List price: $2.06
  • Ref No: 2589
  • Part No: 180531
  • Qty Req: 2
Our price: $1.37 List price: $1.65
  • Ref No: 4801
  • Part No: 1101C3
  • Qty Req: 1
Our price: $3.08 List price: $3.71
  • Ref No: 7947
  • Part No: 180421
  • Qty Req: 15
Our price: $3.25 List price: $3.91
