6010.93 Control Unit KAPPA-33/43/53

6010.93 Control Unit KAPPA-33/43/53

Brand:
Udor
Weight:
2.4 lb
Item #
601093
6 reviews
1 1

6010.93 Control Unit KAPPA-33/43/53

6010.93 Control Unit KAPPA-33/43/53

Brand:
Udor
Weight:
2.4 lb
Item #
601093
6 reviews

$248.27
$248.27 List Price: $340.10

Earn 745 points with this purchase.

See Details

View full details

Product Overview

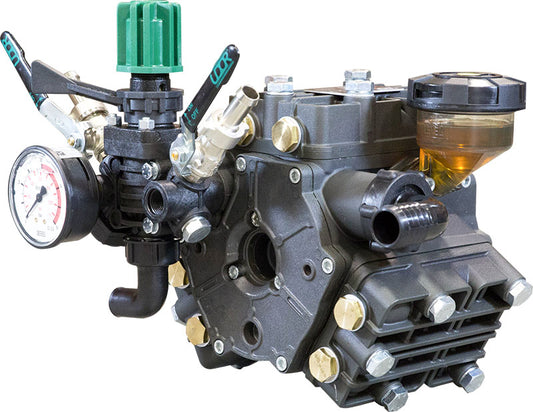

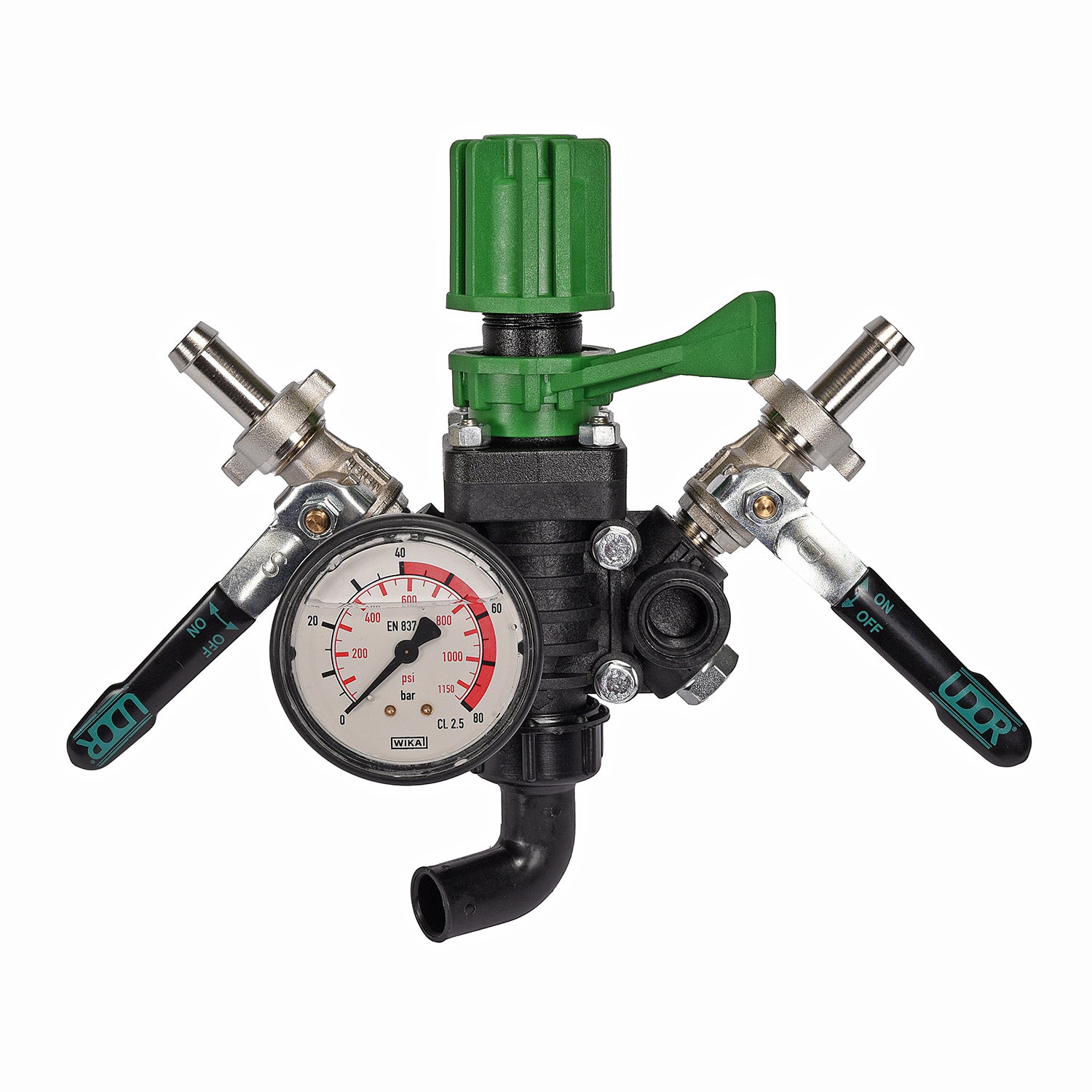

Improve the life of your Udor KAPPA 33, 43 or 53 diaphragm pump with a new control unit. The control unit assists in regulating the pressure and discharge rate of your pump, allowing for more responsive control. The part includes a new pressure gauge, convenient right angle entry to the body of the pump and two half-inch discharge ball valves.

Manufacturer description

Pump or remote mounted control with right angle entry from main body to adjustable pressure regulator for smoother operation & longer life. Includes manual dump lever, two 1/2" ball valve discharge ports & pressure gauge. Standard on KAPPA-33, KAPPA-43 & KAPPA-53.

Resources

Download Product Manual

Features

  • Mounts to pump models: KAPPA-43
  • Max flow: 20 gpm
  • Max pressure: 560 psi
  • Port sizes: 3/4" hose barb bypass, two 1/2" hose barb outlets with individual shut-offs
  • Pressure gauge: 0-1000 psi, glycerin filled
  • Weight: 3 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Valve Body (Udor Control Units- 601093 & 601095)
    • Ref No: 439
    • Part No: 020469
    • Qty Req: 1
    Our price: $44.99 List price: $54.20
  • Cylinder (Udor Control Units- 601093 & 601095)
    • Ref No: 454
    • Part No: 020519
    • Qty Req: 1
    Our price: $31.70 List price: $38.20
  • Body
    • Ref No: 774
    • Part No: 020470
    • Qty Req: 1
    Our price: $69.73 List price: $84.00
  • Nut (Udor Control Unit- 6010.93)
    • Ref No: 846
    • Part No: 030302
    • Qty Req: 4
    Our price: $2.08 List price: $2.50
  • Barb Nut
    • Ref No: 1034
    • Part No: 060409
    • Qty Req: 2
    Our price: $11.05 List price: $13.30
  • Bypass Barb Nut
    • Ref No: 1040
    • Part No: 060426
    • Qty Req: 1
    Our price: $11.62 List price: $14.00
  • Ball Valve-Right
    • Ref No: 1124
    • Part No: 060845
    • Qty Req: 1
    Our price: $62.50 List price: $75.30
  • Ball Valve-Left
    • Ref No: 1129
    • Part No: 060846
    • Qty Req: 1
    Our price: $62.50 List price: $75.30
  • Spring (560 PSI)
    • Ref No: 1248
    • Part No: 090171
    • Qty Req: 1
    Our price: $14.94 List price: $18.00
  • Diaphragm
    • Ref No: 1304
    • Part No: 090326
    • Qty Req: 1
    Our price: $7.97 List price: $9.60
  • 0-1000 PSI Pressure Gauge (Back Mount) for Udor Pressure Regulators
    • Ref No: 1353
    • Part No: GG1000BM
    • Qty Req: 1
    Our price: $45.90 List price: $55.30
  • O-Ring
    • Ref No: 1368
    • Part No: 110104
    • Qty Req: 1
    Our price: $3.07 List price: $3.70
  • Plunger Bolt O-Ring
    • Ref No: 1370
    • Part No: 110106
    • Qty Req: 1
    Our price: $2.99 List price: $3.60
  • O-Ring
    • Ref No: 1374
    • Part No: 110112
    • Qty Req: 2
    Our price: $2.99 List price: $3.60
  • O-Ring
    • Ref No: 1379
    • Part No: 110123
    • Qty Req: 1
    Our price: $3.07 List price: $3.70
  • Washer
    • Ref No: 1843
    • Part No: 140307
    • Qty Req: 6
    Our price: $1.67 List price: $2.00
  • Pin
    • Ref No: 2091
    • Part No: 151210
    • Qty Req: 1
    Our price: $1.59 List price: $1.90
  • Plug
    • Ref No: 2274
    • Part No: 160344
    • Qty Req: 1
    Our price: $5.47 List price: $6.60
  • Adjustment Knob
    • Ref No: 2390
    • Part No: 180132
    • Qty Req: 1
    Our price: $15.53 List price: $18.70
  • Bolt
    • Ref No: 2479
    • Part No: 180474
    • Qty Req: 2
    Our price: $2.74 List price: $3.30
  • 1/2" Hose Barb
    • Ref No: 4640
    • Part No: 020219
    • Qty Req: 2
    Our price: $11.87 List price: $14.30
  • Bypass Elbow Hose Barb
    • Ref No: 7132
    • Part No: 025404
    • Qty Req: 1
    Our price: $13.03 List price: $15.70
  • Barb Nut
    • Ref No: 7330
    • Part No: 060429
    • Qty Req: 1
    Our price: $8.71 List price: $10.50
  • Lever
    • Ref No: 7379
    • Part No: 080321
    • Qty Req: 1
    Our price: $7.23 List price: $8.70
  • Plug
    • Ref No: 7700
    • Part No: 160322
    • Qty Req: 1
    Our price: $2.66 List price: $3.20
  • S.S. Bolt
    • Ref No: 7946
    • Part No: 181003
    • Qty Req: 1
    Our price: $8.05 List price: $9.70
