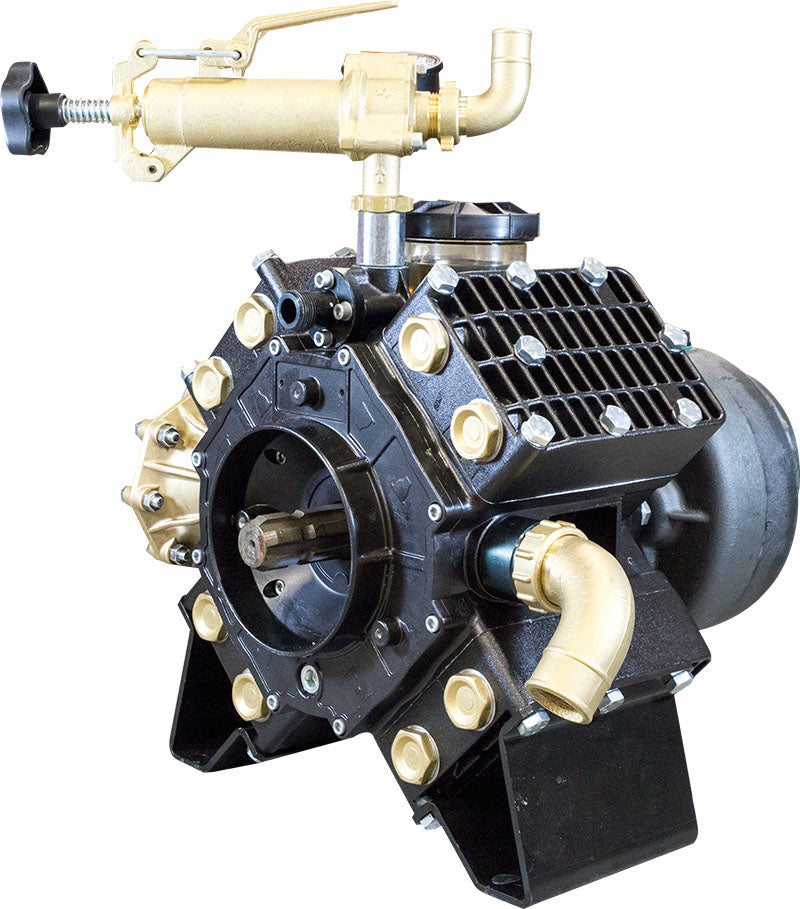

Udor KAPPA-120/GR Diaphragm Pump

Udor KAPPA-120/GR Diaphragm Pump

Item Code:
KAPPA120GR
Weight:
130.0 lb
Manufacturer:
Udor
Our price:
$2,485.20
List price:
$4,560.00
Overview:

The Udor KAPPA-120/GR Diaphragm Pump uses gear reduction to enable use on 18 Ð 23 horsepower engines with 1" shafts. This pump generates a maximum gallons per minute rate of 35 with a maximum of 700 pounds per square inch and is internally manifolded with anodized aluminum. Large 1-1/2" hose barb inlet allows for maximum flow.

Manufacturer Description:

KAPPA-120 pump with control unit and gear reduction for use on 18-23 HP gasoline engines with 1" shaft. High pressure, high volume diaphragm pumps are excellent for various horticultural and agricultural spraying applications. Simplicity of design and common parts allow easy and affordable maintenance. Liquid handling parts are anodized aluminum, brass and stainless steel. Pulsation dampener, control valve and pressure gauge are standard. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features:

  • Max flow: 35 gpm
  • Max pressure: 700 psi
  • Includes 6005.15 control unit and 5034.B5 gearbox with 1" hollow shaft for mounting on 18 to 23 hp engines
  • Port sizes: 1-1/2" HB inlet, 3/4" MNPT outlet, 1" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 4, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 130 lbs

Parts breakdown

Parts list

  • Ref No: 6
  • Part No: 000108
  • Qty Req: 2
Our price: $45.98 List price: $55.40
  • Ref No: 78
  • Part No: 000310
  • Qty Req: 1
Our price: $193.22 List price: $232.80
  • Ref No: 156
  • Part No: 000702
  • Qty Req: 2
Our price: $16.93 List price: $20.40
  • Ref No: 172
  • Part No: 000734
  • Qty Req: 1
Our price: $17.85 List price: $21.50
  • Ref No: 358
  • Part No: 020219
  • Qty Req: 2
Our price: $7.80 List price: $9.40
  • Ref No: 558
  • Part No: 020821
  • Qty Req: 1
Our price: $174.63 List price: $210.40
  • Ref No: 559
  • Part No: 020822
  • Qty Req: 1
Our price: $12.62 List price: $15.20
  • Ref No: 631
  • Part No: 020933
  • Qty Req: 1
Our price: $1,252.22 List price: $1,508.70
  • Ref No: 708
  • Part No: 021416
  • Qty Req: 2
Our price: $239.95 List price: $289.10
  • Ref No: 805
  • Part No: 030134
  • Qty Req: 2
Our price: $55.44 List price: $66.80
  • Ref No: 845
  • Part No: 030301
  • Qty Req: 8
Our price: $1.33 List price: $1.60
  • Ref No: 885
  • Part No: 050181
  • Qty Req: 1
Our price: $162.18 List price: $195.40
  • Ref No: 886
  • Part No: 050180
  • Qty Req: 1
Our price: $223.52 List price: $269.30
  • Ref No: 914
  • Part No: 050182
  • Qty Req: 1
Our price: $165.17 List price: $199.00
  • Ref No: 1034
  • Part No: 060409
  • Qty Req: 2
Our price: $7.14 List price: $8.60
  • Ref No: 1036
  • Part No: 060448
  • Qty Req: 1
Our price: $52.04 List price: $62.70
  • Ref No: 1071
  • Part No: 060505
  • Qty Req: 2
Our price: $1.33 List price: $1.60
  • Ref No: 1078
  • Part No: 060542
  • Qty Req: 8
Our price: $1.66 List price: $2.00
  • Ref No: 1122
  • Part No: 060816
  • Qty Req: 1
Our price: $15.60 List price: $18.80
  • Ref No: 1124
  • Part No: 060845
  • Qty Req: 1
Our price: $41.75 List price: $50.30
  • Ref No: 1301
  • Part No: 090316
  • Qty Req: 1
Our price: $31.37 List price: $37.80
  • Ref No: 1310
  • Part No: 100104
  • Qty Req: 1
Our price: $24.82 List price: $31.10
  • Ref No: 1365
  • Part No: 110101
  • Qty Req: 8
Our price: $3.07 List price: $3.70
  • Ref No: 1368
  • Part No: 110104
  • Qty Req: 1
Our price: $1.91 List price: $2.30
  • Ref No: 1376
  • Part No: 110116
  • Qty Req: 1
Our price: $1.91 List price: $2.30
  • Ref No: 1382
  • Part No: 110129
  • Qty Req: 2
Our price: $1.79 List price: $2.20
  • Ref No: 1385
  • Part No: 110132
  • Qty Req: 1
Our price: $5.23 List price: $6.30
  • Ref No: 1386
  • Part No: 110133
  • Qty Req: 1
Our price: $4.32 List price: $5.20
  • Ref No: 1398
  • Part No: 110142
  • Qty Req: 1
Our price: $2.08 List price: $2.50
  • Ref No: 1408
  • Part No: 110163
  • Qty Req: 1
Our price: $9.46 List price: $11.40
  • Ref No: 1415
  • Part No: 110177
  • Qty Req: 2
Our price: $2.08 List price: $2.50
  • Ref No: 1419
  • Part No: 110180
  • Qty Req: 1
Our price: $16.60 List price: $20.00
  • Ref No: 1420
  • Part No: 110171
  • Qty Req: 1
Our price: $7.80 List price: $9.40
  • Ref No: 1459
  • Part No: 120236
  • Qty Req: 2
Our price: $43.66 List price: $52.60
  • Ref No: 1492
  • Part No: 120330
  • Qty Req: 1
Our price: $39.51 List price: $47.60
  • Ref No: 1569
  • Part No: 120506
  • Qty Req: 4
Our price: $82.92 List price: $99.90
  • Ref No: 1709
  • Part No: 600608
  • Qty Req: 8
Our price: $32.29 List price: $38.90
  • Ref No: 1843
  • Part No: 140307
  • Qty Req: 4
Our price: $0.91 List price: $1.10
  • Ref No: 1844
  • Part No: 140309
  • Qty Req: 24
Our price: $0.91 List price: $1.10
  • Ref No: 1845
  • Part No: 140310
  • Qty Req: 2
Our price: $0.91 List price: $1.10
  • Ref No: 1962
  • Part No: 150201
  • Qty Req: 4
Our price: $16.77 List price: $20.20
  • Ref No: 2013
  • Part No: 150404
  • Qty Req: 1
Our price: $36.77 List price: $44.30
  • Ref No: 2046
  • Part No: 150602
  • Qty Req: 8
Our price: $1.33 List price: $1.60
  • Ref No: 2151
  • Part No: 151924
  • Qty Req: 4
Our price: $64.49 List price: $77.70
  • Ref No: 2268
  • Part No: 160332
  • Qty Req: 2
Our price: $5.98 List price: $7.20
  • Ref No: 2272
  • Part No: 1603A3
  • Qty Req: 8
Our price: $5.98 List price: $7.20
  • Ref No: 2326
  • Part No: 160451
  • Qty Req: 4
Our price: $155.38 List price: $187.20
  • Ref No: 2465
  • Part No: 180403
  • Qty Req: 6
Our price: $1.66 List price: $2.00
  • Ref No: 2473
  • Part No: 180454
  • Qty Req: 8
Our price: $1.58 List price: $1.90
  • Ref No: 2487
  • Part No: 180425
  • Qty Req: 32
Our price: $2.99 List price: $3.60
  • Ref No: 2584
  • Part No: 180506
  • Qty Req: 3
Our price: $1.41 List price: $1.70
  • Ref No: 2588
  • Part No: 180521
  • Qty Req: 9
Our price: $1.41 List price: $1.70
  • Ref No: 5003
  • Part No: 060846
  • Qty Req: 1
Our price: $41.75 List price: $50.30
  • Ref No: 5310
  • Part No: 601536
  • Qty Req: 4
Our price: $184.18 List price: $221.90
  • Ref No: 7263
  • Part No: 050813
  • Qty Req: 1
Our price: $83.33 List price: $100.40
