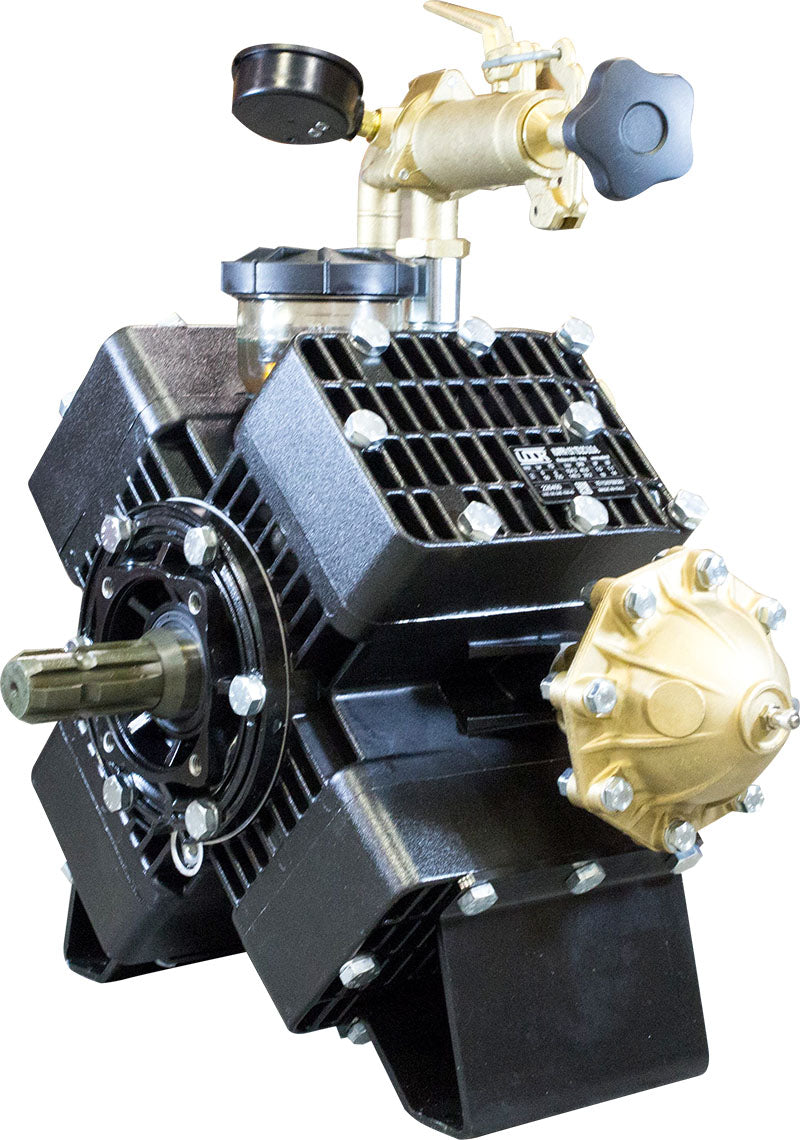

Udor KAPPA-120/CC Diaphragm Pump

Udor KAPPA-120/CC Diaphragm Pump

Brand:
Udor
Weight:
105.0 lb
Item #
KAPPA120CC

Regular price $2,291.85
Sale price $2,291.85 Regular price List Price: $4,167.00

Earn 6,876 points with this purchase.

View full details

Collapsible content

Product Overview

35 gpm, 700 psi.

Four diaphragm pump with pulsation dampener & control unit with adjustable pressure regulator, manual dump lever & pressure gauge. Has dual 1-3/8", 6-spline male PTO shaft.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Connecting Rod Ring
    • Ref No: 6
    • Part No: 000108
    • Qty Req: 2
    Our price: $59.84 List price: $72.10
  • Accumulator Body
    • Ref No: 78
    • Part No: 000310
    • Qty Req: 1
    Our price: $243.85 List price: $293.80
  • Seal
    • Ref No: 156
    • Part No: 000702
    • Qty Req: 2
    Our price: $18.27 List price: $22.01
  • Seal
    • Ref No: 172
    • Part No: 000734
    • Qty Req: 1
    Our price: $23.41 List price: $28.20
  • Seal (KAPPA-120, KAPPA-15/12V, KAPPA18/12V, KAPPA-7/12V)
    • Ref No: 173
    • Part No: 000735
    • Qty Req: 1
    Our price: $38.60 List price: $46.50
  • Diaphragm Bolt (BETA-150/200/240, OMEGA-140/170, RO-70/160/210/250/320)
    • Ref No: 238
    • Part No: 0010203
    • Qty Req: 4
    Our price: $18.59 List price: $22.40
  • 1/2" Hose Barb
    • Ref No: 358
    • Part No: 020219
    • Qty Req: 2
    Our price: $10.29 List price: $12.40
  • Piston Sleeve (KAPPA-120)
    • Ref No: 501
    • Part No: 020628
    • Qty Req: 4
    Our price: $190.24 List price: $229.20
  • Accumulator Head
    • Ref No: 558
    • Part No: 020821
    • Qty Req: 1
    Our price: $227.09 List price: $273.60
  • Oil Cap
    • Ref No: 559
    • Part No: 020822
    • Qty Req: 1
    Our price: $16.52 List price: $19.90
  • Pump Body (KAPPA-120)
    • Ref No: 631
    • Part No: 020933
    • Qty Req: 1
    Our price: $1,579.66 List price: $1,903.20
  • Bearing (KAPPA-120)
    • Ref No: 708
    • Part No: 021416
    • Qty Req: 2
    Our price: $311.91 List price: $375.80
  • Air Valve Cap (KAPPA-100/120, RO-70/110/160)
    • Ref No: 747
    • Part No: 021801
    • Qty Req: 1
    Our price: $3.07 List price: $3.70
  • Washer (KAPPA-120)
    • Ref No: 805
    • Part No: 030134
    • Qty Req: 2
    Our price: $72.21 List price: $87.00
  • Nut
    • Ref No: 845
    • Part No: 030301
    • Qty Req: 8
    Our price: $1.91 List price: $2.30
  • Retainer (KAPPA-120)
    • Ref No: 885
    • Part No: 050181
    • Qty Req: 1
    Our price: $204.68 List price: $246.60
  • Flange (KAPPA-120)
    • Ref No: 886
    • Part No: 050180
    • Qty Req: 1
    Our price: $282.03 List price: $339.80
  • Flange (KAPPA-120)
    • Ref No: 914
    • Part No: 050182
    • Qty Req: 1
    Our price: $214.80 List price: $258.80
  • Barb Nut
    • Ref No: 1034
    • Part No: 060409
    • Qty Req: 2
    Our price: $9.55 List price: $11.50
  • Barb Nut
    • Ref No: 1036
    • Part No: 060448
    • Qty Req: 1
    Our price: $67.81 List price: $81.70
  • Gasket
    • Ref No: 1071
    • Part No: 060505
    • Qty Req: 2
    Our price: $1.83 List price: $2.20
  • Gasket
    • Ref No: 1078
    • Part No: 060542
    • Qty Req: 8
    Our price: $2.41 List price: $2.90
  • Air Valve Assembly
    • Ref No: 1122
    • Part No: 060816
    • Qty Req: 1
    Our price: $20.50 List price: $24.70
  • Ball Valve-Right
    • Ref No: 1124
    • Part No: 060845
    • Qty Req: 1
    Our price: $54.53 List price: $65.70
  • Diaphragm Buna-N (Opt.)
    • Ref No: 1291
    • Part No: 090302
    • Qty Req: 4
    Our price: $31.46 List price: $37.90
  • Accumulator Diaphragm
    • Ref No: 1301
    • Part No: 090316
    • Qty Req: 1
    Our price: $40.92 List price: $49.30
  • 3/4" Adapter Fitting
    • Ref No: 1310
    • Part No: 100104
    • Qty Req: 1
    Our price: $33.70 List price: $40.60
  • O-Ring
    • Ref No: 1365
    • Part No: 110101
    • Qty Req: 8
    Our price: $4.15 List price: $5.00
  • O-Ring
    • Ref No: 1368
    • Part No: 110104
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1376
    • Part No: 110116
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1382
    • Part No: 110129
    • Qty Req: 2
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: 1385
    • Part No: 110132
    • Qty Req: 1
    Our price: $6.97 List price: $8.40
  • O-Ring
    • Ref No: 1386
    • Part No: 110133
    • Qty Req: 1
    Our price: $5.56 List price: $6.70
  • O-Ring
    • Ref No: 1398
    • Part No: 110142
    • Qty Req: 1
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: 1408
    • Part No: 110163
    • Qty Req: 1
    Our price: $12.45 List price: $15.00
  • O-Ring
    • Ref No: 1415
    • Part No: 110177
    • Qty Req: 2
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: 1419
    • Part No: 110180
    • Qty Req: 1
    Our price: $21.08 List price: $25.40
  • O-Ring
    • Ref No: 1420
    • Part No: 110171
    • Qty Req: 1
    Our price: $10.29 List price: $12.40
  • Mounting Rail
    • Ref No: 1459
    • Part No: 120236
    • Qty Req: 2
    Our price: $56.77 List price: $68.40
  • Oil Reservoir
    • Ref No: 1492
    • Part No: 120330
    • Qty Req: 1
    Our price: $49.97 List price: $60.20
  • Piston
    • Ref No: 1569
    • Part No: 120506
    • Qty Req: 4
    Our price: $104.75 List price: $126.20
  • Valve Assembly
    • Ref No: 1709
    • Part No: 600608
    • Qty Req: 8
    Our price: $42.08 List price: $50.70
  • Oil Reservoir Assembly
    • Ref No: 1741
    • Part No: 603302
    • Qty Req: 1
    Our price: $84.49 List price: $101.80
  • 6031.02 Pulsation Dampener
    • Ref No: 1804
    • Part No: 603102
    • Qty Req: 1
    Our price: $401.28 List price: $549.70
  • Washer
    • Ref No: 1843
    • Part No: 140307
    • Qty Req: 4
    Our price: $1.33 List price: $1.60
  • Washer
    • Ref No: 1844
    • Part No: 140309
    • Qty Req: 24
    Our price: $1.33 List price: $1.60
  • Washer
    • Ref No: 1845
    • Part No: 140310
    • Qty Req: 2
    Our price: $0.94 List price: $1.13
  • Connecting Rod Pin
    • Ref No: 1962
    • Part No: 150201
    • Qty Req: 4
    Our price: $22.00 List price: $26.50
  • Snap Ring
    • Ref No: 2046
    • Part No: 150602
    • Qty Req: 8
    Our price: $1.91 List price: $2.30
  • Connecting Rod
    • Ref No: 2151
    • Part No: 151924
    • Qty Req: 4
    Our price: $83.91 List price: $101.10
  • Head Plug
    • Ref No: 2268
    • Part No: 160332
    • Qty Req: 2
    Our price: $7.89 List price: $9.50
  • Plug
    • Ref No: 2272
    • Part No: 1603A3
    • Qty Req: 8
    Our price: $6.97 List price: $8.40
  • Head
    • Ref No: 2326
    • Part No: 160451
    • Qty Req: 4
    Our price: $202.02 List price: $243.40
  • Bolt
    • Ref No: 2465
    • Part No: 180403
    • Qty Req: 6
    Our price: $2.32 List price: $2.80
  • Bolt
    • Ref No: 2473
    • Part No: 180454
    • Qty Req: 8
    Our price: $2.24 List price: $2.70
  • Bolt
    • Ref No: 2487
    • Part No: 180425
    • Qty Req: 32
    Our price: $5.15 List price: $6.20
  • Bolt
    • Ref No: 2584
    • Part No: 180506
    • Qty Req: 3
    Our price: $1.99 List price: $2.40
  • Bolt
    • Ref No: 2588
    • Part No: 180521
    • Qty Req: 9
    Our price: $2.32 List price: $2.80
  • Ball Valve-Left
    • Ref No: 5003
    • Part No: 060846
    • Qty Req: 1
    Our price: $54.53 List price: $65.70
  • Piston/Rod Assembly
    • Ref No: 5310
    • Part No: 601536
    • Qty Req: 4
    Our price: $239.37 List price: $288.40
  • Discharge Manifold
    • Ref No: 7263
    • Part No: 050813
    • Qty Req: 1
    Our price: $145.75 List price: $175.60
  • PTO Safety Shield (Optional)
    • Ref No: 7650
    • Part No: 121902
    • Qty Req: 1
    Our price: $41.83 List price: $50.40
  • Thru-Shaft Protector (Optional)
    • Ref No: 7653
    • Part No: 121915
    • Qty Req: 1
    Our price: $17.76 List price: $21.40
  • Diaphragm Desmopan (Std.)
    • Ref No: 8113
    • Part No: 090334
    • Qty Req: 4
    Our price: $52.21 List price: $62.90
