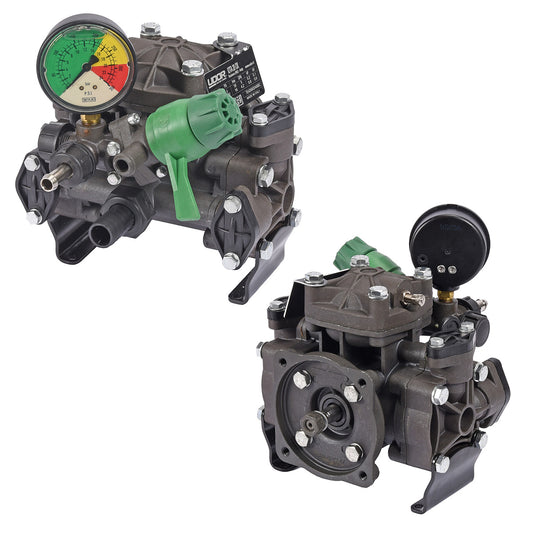

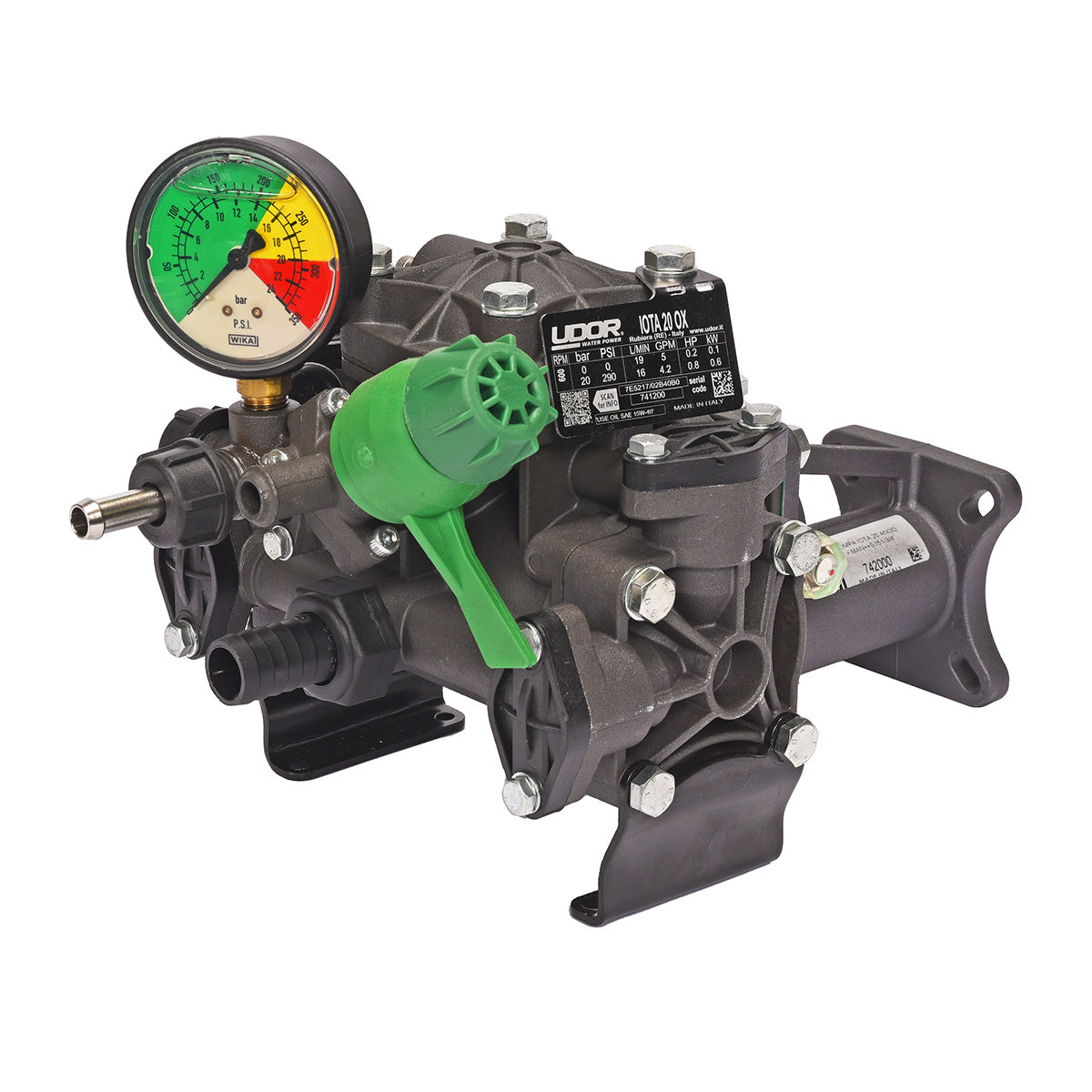

Udor IOTA-20/GR Diaphragm Pump

Udor IOTA-20/GR Diaphragm Pump

Item Code:
IOTA20GR
Weight:
13.0 lb
Manufacturer:
Udor
Our price:
$577.83
List price:
$1,050.60
Overview:

The Udor IOTA-20/GR diaphragm pump is built to last with anodized aluminum construction internally manifolded in the unit. With a maximum pump speed of 540 rpm, the IOTA-20/GR works great on three to five horsepower engines with _" shafts and a gear reduction. This pump weighs 17 pounds and has a maximum psi of 275.

Manufacturer Description:

Two diaphragm pump with pulsation dampener & control unit with adjustable pressure regulator, manual dump lever & pressure gauge. The "GR" version includes a gearbox with 3/4" hollow shaft for mounting to 3-6.5 hp gas engines. Also a replacement pump for any IOTA-17/GR. UDOR IOTA Series Pumps are internally manifolded with anodized aluminum construction. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features:

  • Max flow: 5 gpm
  • Max pressure: 275 psi

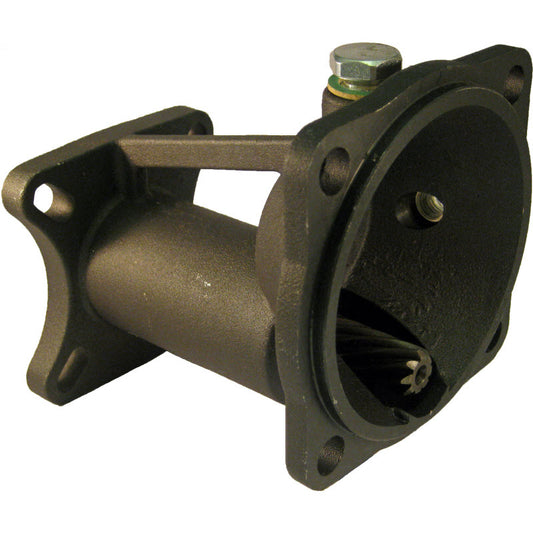

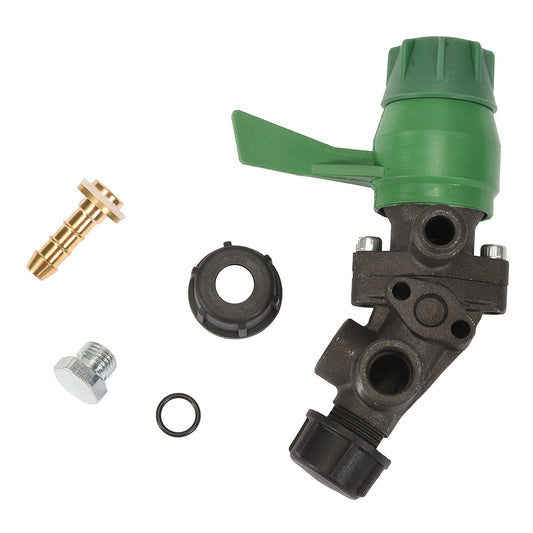

  • Includes 6010.23 control unit and 5094.76 gearbox with 3/4" hollow shaft for mounting to 3 to 6.5 hp gas engines
  • Port sizes: 3/4" HB inlet, 3/8" HB outlet, 5/8" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 14 lbs

Parts breakdown

Parts list

  • Ref No: 29
  • Part No: 0002E2
  • Qty Req: 1
Our price: $144.65 List price: $174.28
  • Ref No: 132
  • Part No: 000601
  • Qty Req: 1
Our price: $40.69 List price: $49.03
  • Ref No: 160
  • Part No: 000711
  • Qty Req: 1
Our price: $13.08 List price: $15.76
  • Ref No: 565
  • Part No: 020831
  • Qty Req: 1
Our price: $51.21 List price: $61.70
  • Ref No: 612
  • Part No: 020990
  • Qty Req: 1
Our price: $174.23 List price: $209.91
  • Ref No: 703
  • Part No: 021408
  • Qty Req: 1
Our price: $35.39 List price: $42.64
  • Ref No: 789
  • Part No: 0030108
  • Qty Req: 1
Our price: $4.10 List price: $4.94
  • Ref No: 903
  • Part No: 050147
  • Qty Req: 1
Our price: $120.63 List price: $145.33
  • Ref No: 906
  • Part No: 050105
  • Qty Req: 1
Our price: $99.25 List price: $119.58
  • Ref No: 1122
  • Part No: 060816
  • Qty Req: 1
Our price: $16.07 List price: $19.36
  • Ref No: 1193
  • Part No: 080103
  • Qty Req: 1
Our price: $2.65 List price: $3.19
  • Ref No: 1295
  • Part No: 090308
  • Qty Req: 1
Our price: $14.79 List price: $17.82
  • Ref No: 1370
  • Part No: 1101A2
  • Qty Req: 1
Our price: $1.62 List price: $1.96
  • Ref No: 1373
  • Part No: 110152
  • Qty Req: 4
Our price: $1.62 List price: $1.96
  • Ref No: 1388
  • Part No: 110136
  • Qty Req: 1
Our price: $2.14 List price: $2.58
  • Ref No: 1405
  • Part No: 110110
  • Qty Req: 4
Our price: $2.05 List price: $2.47
  • Ref No: 1406
  • Part No: 110117
  • Qty Req: 4
Our price: $1.97 List price: $2.37
  • Ref No: 1453
  • Part No: 120217
  • Qty Req: 1
Our price: $15.39 List price: $18.54
  • Ref No: 1575
  • Part No: 120513
  • Qty Req: 2
Our price: $58.73 List price: $70.76
  • Ref No: 1681
  • Part No: 600086
  • Qty Req: 2
Our price: $90.36 List price: $108.87
  • Ref No: 1705
  • Part No: 600604
  • Qty Req: 4
Our price: $17.44 List price: $21.01
  • Ref No: 1843
  • Part No: 140307
  • Qty Req: 8
Our price: $0.94 List price: $1.13
  • Ref No: 1845
  • Part No: 140310
  • Qty Req: 8
Our price: $0.94 List price: $1.13
  • Ref No: 1847
  • Part No: 140312
  • Qty Req: 4
Our price: $1.20 List price: $1.44
  • Ref No: 1875
  • Part No: 140401
  • Qty Req: 1
Our price: $1.20 List price: $1.44
  • Ref No: 1965
  • Part No: 150204
  • Qty Req: 2
Our price: $11.54 List price: $13.91
  • Ref No: 2049
  • Part No: 150611
  • Qty Req: 2
Our price: $1.37 List price: $1.65
  • Ref No: 2262
  • Part No: 160324
  • Qty Req: 1
Our price: $8.38 List price: $10.09
  • Ref No: 2314
  • Part No: 1604B8
  • Qty Req: 2
Our price: $78.82 List price: $94.97
  • Ref No: 2474
  • Part No: 180457
  • Qty Req: 4
Our price: $1.45 List price: $1.75
  • Ref No: 2477
  • Part No: 180467
  • Qty Req: 8
Our price: $1.20 List price: $1.44
  • Ref No: 2482
  • Part No: 180409
  • Qty Req: 12
Our price: $1.62 List price: $1.96
  • Ref No: 7330
  • Part No: 060429
  • Qty Req: 1
Our price: $5.81 List price: $7.00
