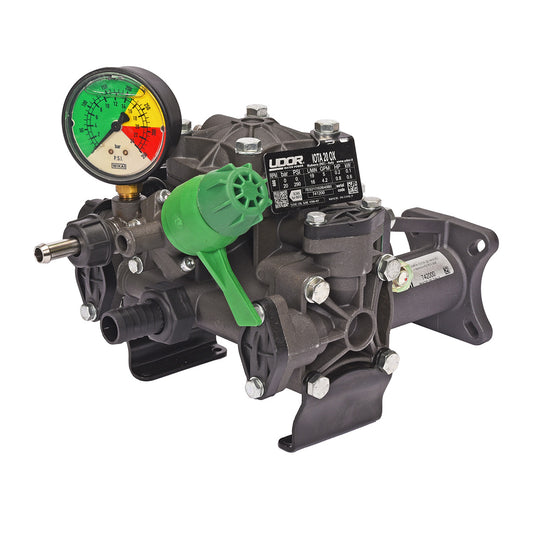

Udor IOTA-20 Diaphragm Pump

Udor IOTA-20 Diaphragm Pump

Brand:
Udor
Weight:
11.0 lb
Item #
IOTA20
3 reviews

Regular price $523.60
Sale price $523.60 Regular price List Price: $952.00

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 1,571 points with this purchase.

View full details

Collapsible content

Product Overview

The Udor Iota-20 Diaphragm Pump is well-suited for a broad array of applications, such as de-icing, lawn care, weed and pest control, tree spraying, dust suppression, and much more. While the design of this pump makes it ideal for nursery and horticulture spraying jobs, it is also an outstanding low-pressure diaphragm pump particularly useful for concrete cleaning and seal coating.

Manufacturer description

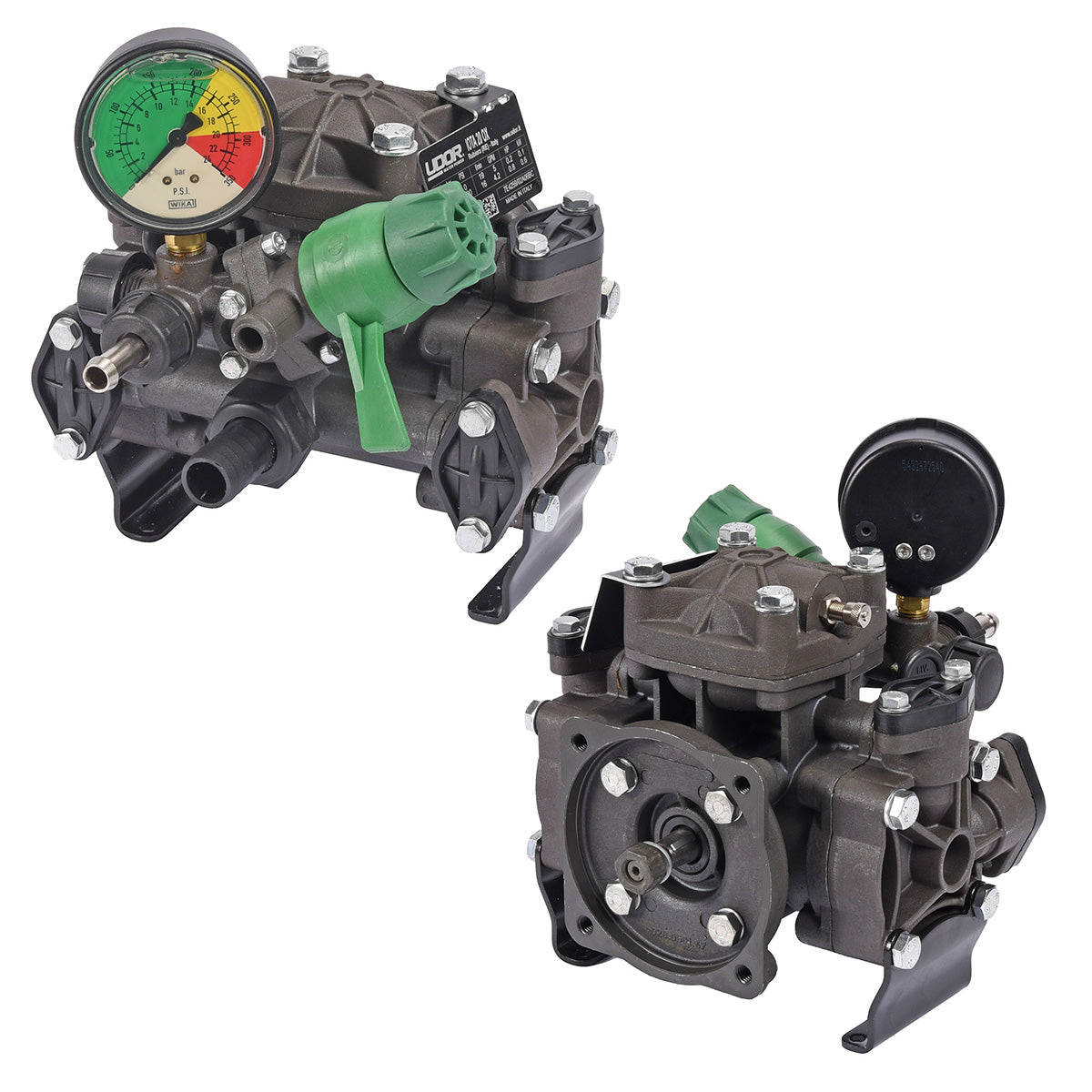

Two diaphragm pump with pulsation dampener & control unit with adjustable pressure regulator, manual dump lever & pressure gauge. Also a replacement pump for any IOTA-17. UDOR IOTA Series Pumps are internally manifolded with anodized aluminum construction. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features

  • Max flow: 5 gpm
  • Max pressure: 275 psi

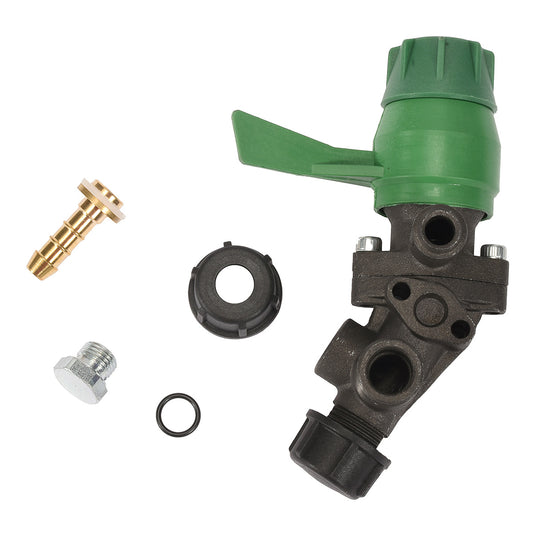

  • Includes 6010.23 control unit
  • Port sizes: 3/4" HB inlet, 3/8" HB outlet
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Recommended gearbox: 5094.76 with 3/4" hollow shaft for mounting on 3.5 to 6.5 hp engines
  • Max fluid temperature: 140°F
  • Weight: 11 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Crankshaft
    • Ref No: 29
    • Part No: 0002E2
    • Qty Req: 1
    Our price: $172.81 List price: $208.20
  • Bearing (5033.A4)
    • Ref No: 132
    • Part No: 000601
    • Qty Req: 1
    Our price: $51.54 List price: $62.10
  • Seal (IOTA-20/GR)
    • Ref No: 160
    • Part No: 000711
    • Qty Req: 1
    Our price: $16.68 List price: $20.10
  • Diaphragm Bolt (KAPPA-15, KAPPA-18, IOTA-20, KAPPA-7/12V)
    • Ref No: 239
    • Part No: 010202
    • Qty Req: 2
    Our price: $14.86 List price: $17.90
  • Suction Barb (IOTA-20)
    • Ref No: 362
    • Part No: 0202A1
    • Qty Req: 1
    Our price: $8.47 List price: $10.20
  • Piston Sleeve (IOTA-20)
    • Ref No: 490
    • Part No: 020616
    • Qty Req: 2
    Our price: $77.52 List price: $93.40
  • Accumulator Head
    • Ref No: 565
    • Part No: 020831
    • Qty Req: 1
    Our price: $64.74 List price: $78.00
  • Pump Body (IOTA-20)
    • Ref No: 612
    • Part No: 020990
    • Qty Req: 1
    Our price: $213.56 List price: $257.30
  • Valve Retainer (IOTA-20)
    • Ref No: 655
    • Part No: 021104
    • Qty Req: 4
    Our price: $10.38 List price: $12.50
  • Ball Bearing
    • Ref No: 703
    • Part No: 021408
    • Qty Req: 1
    Our price: $44.82 List price: $54.00
  • Washer (IOTA-20)
    • Ref No: 789
    • Part No: 0030108
    • Qty Req: 1
    Our price: $5.31 List price: $6.40
  • Retainer Washer (IOTA-20)
    • Ref No: 790
    • Part No: 0030109
    • Qty Req: 2
    Our price: $8.55 List price: $10.30
  • Flange (IOTA-20)
    • Ref No: 903
    • Part No: 050147
    • Qty Req: 1
    Our price: $152.22 List price: $183.40
  • Crankshaft Adapter
    • Ref No: 906
    • Part No: 050105
    • Qty Req: 1
    Our price: $125.25 List price: $150.90
  • Air Valve Assembly
    • Ref No: 1122
    • Part No: 060816
    • Qty Req: 1
    Our price: $20.50 List price: $24.70
  • Key
    • Ref No: 1193
    • Part No: 080103
    • Qty Req: 1
    Our price: $3.57 List price: $4.30
  • Accumulator Diaphragm - Udor KAPPA-55
    • Ref No: 1295
    • Part No: 090308
    • Qty Req: 1
    Our price: $18.92 List price: $22.80
  • O-Ring
    • Ref No: 1370
    • Part No: 1101A2
    • Qty Req: 1
    Our price: $2.24 List price: $2.70
  • O-Ring
    • Ref No: 1373
    • Part No: 110152
    • Qty Req: 4
    Our price: $2.24 List price: $2.70
  • O-Ring
    • Ref No: 1388
    • Part No: 110136
    • Qty Req: 1
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: 1405
    • Part No: 110110
    • Qty Req: 4
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1406
    • Part No: 110117
    • Qty Req: 4
    Our price: $2.57 List price: $3.10
  • Mounting Rail
    • Ref No: 1453
    • Part No: 120217
    • Qty Req: 1
    Our price: $19.51 List price: $23.50
  • Piston
    • Ref No: 1575
    • Part No: 120513
    • Qty Req: 2
    Our price: $74.29 List price: $89.50
  • Piston & Rod Assembly
    • Ref No: 1681
    • Part No: 600086
    • Qty Req: 2
    Our price: $114.29 List price: $137.70
  • Valve Assembly
    • Ref No: 1705
    • Part No: 600604
    • Qty Req: 4
    Our price: $22.00 List price: $26.50
  • Washer
    • Ref No: 1843
    • Part No: 140307
    • Qty Req: 8
    Our price: $1.33 List price: $1.60
  • Washer
    • Ref No: 1845
    • Part No: 140310
    • Qty Req: 8
    Our price: $0.94 List price: $1.13
  • Washer
    • Ref No: 1847
    • Part No: 140312
    • Qty Req: 4
    Our price: $1.74 List price: $2.10
  • Washer
    • Ref No: 1875
    • Part No: 140401
    • Qty Req: 1
    Our price: $1.74 List price: $2.10
  • Connecting Rod Pin
    • Ref No: 1965
    • Part No: 150204
    • Qty Req: 2
    Our price: $14.86 List price: $17.90
  • Snap Ring
    • Ref No: 2049
    • Part No: 150611
    • Qty Req: 2
    Our price: $1.91 List price: $2.30
  • Connecting Rod (IOTA-20)
    • Ref No: 2141
    • Part No: 010356
    • Qty Req: 2
    Our price: $35.69 List price: $43.00
  • Oil Plug (O-Rings Sold Separately 110116)
    • Ref No: 2262
    • Part No: 160324
    • Qty Req: 1
    Our price: $10.04 List price: $12.10
  • Head
    • Ref No: 2314
    • Part No: 1604B8
    • Qty Req: 2
    Our price: $99.60 List price: $120.00
  • Bolt
    • Ref No: 2474
    • Part No: 180457
    • Qty Req: 4
    Our price: $1.99 List price: $2.40
  • Bolt
    • Ref No: 2477
    • Part No: 180467
    • Qty Req: 8
    Our price: $1.74 List price: $2.10
  • Bolt
    • Ref No: 2482
    • Part No: 180409
    • Qty Req: 12
    Our price: $2.24 List price: $2.70
  • Barb Nut
    • Ref No: 7330
    • Part No: 060429
    • Qty Req: 1
    Our price: $7.55 List price: $9.10
  • Piston Diaphragm Desmopan (Std.)
    • Ref No: 8119
    • Part No: 090341
    • Qty Req: 2
    Our price: $34.03 List price: $41.00
