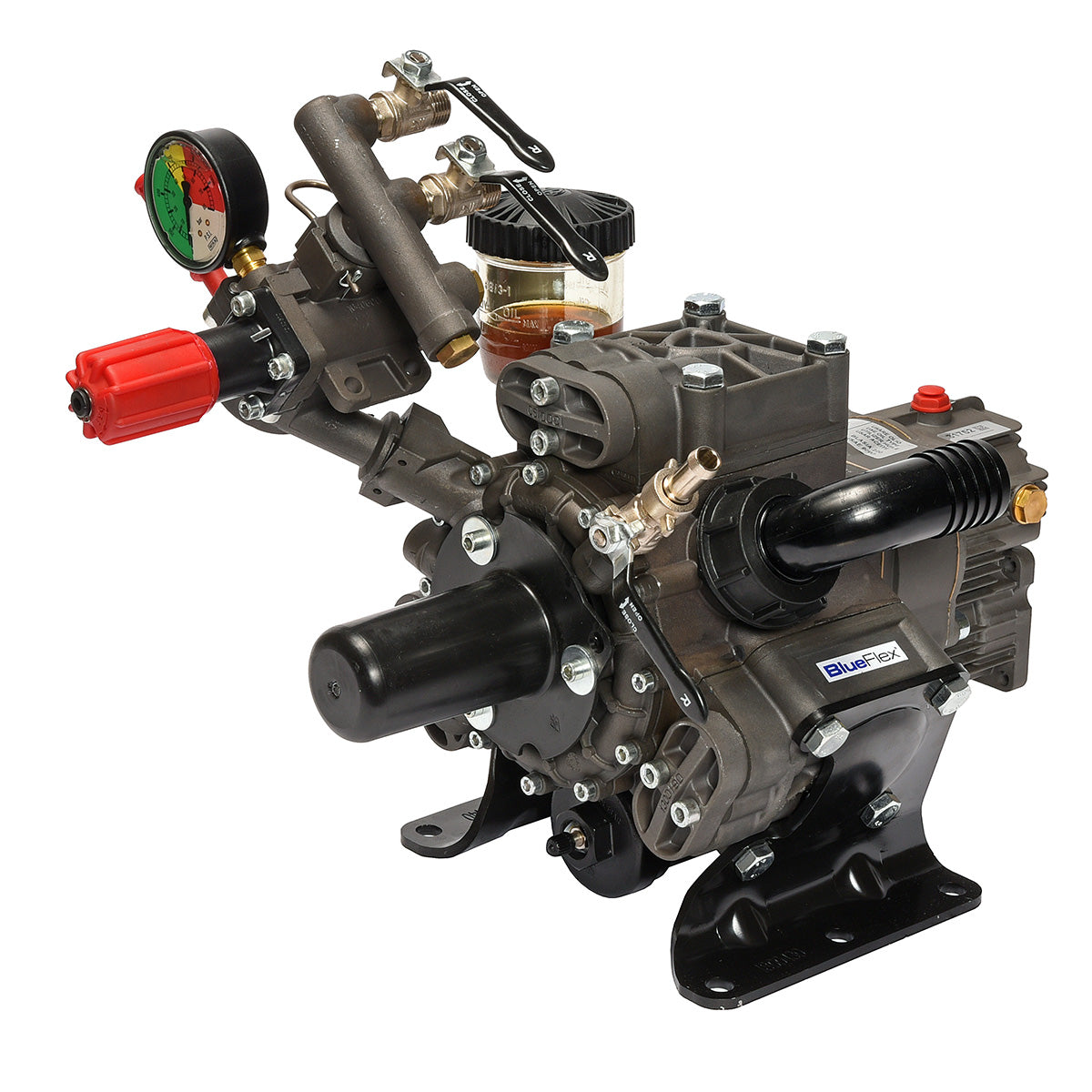

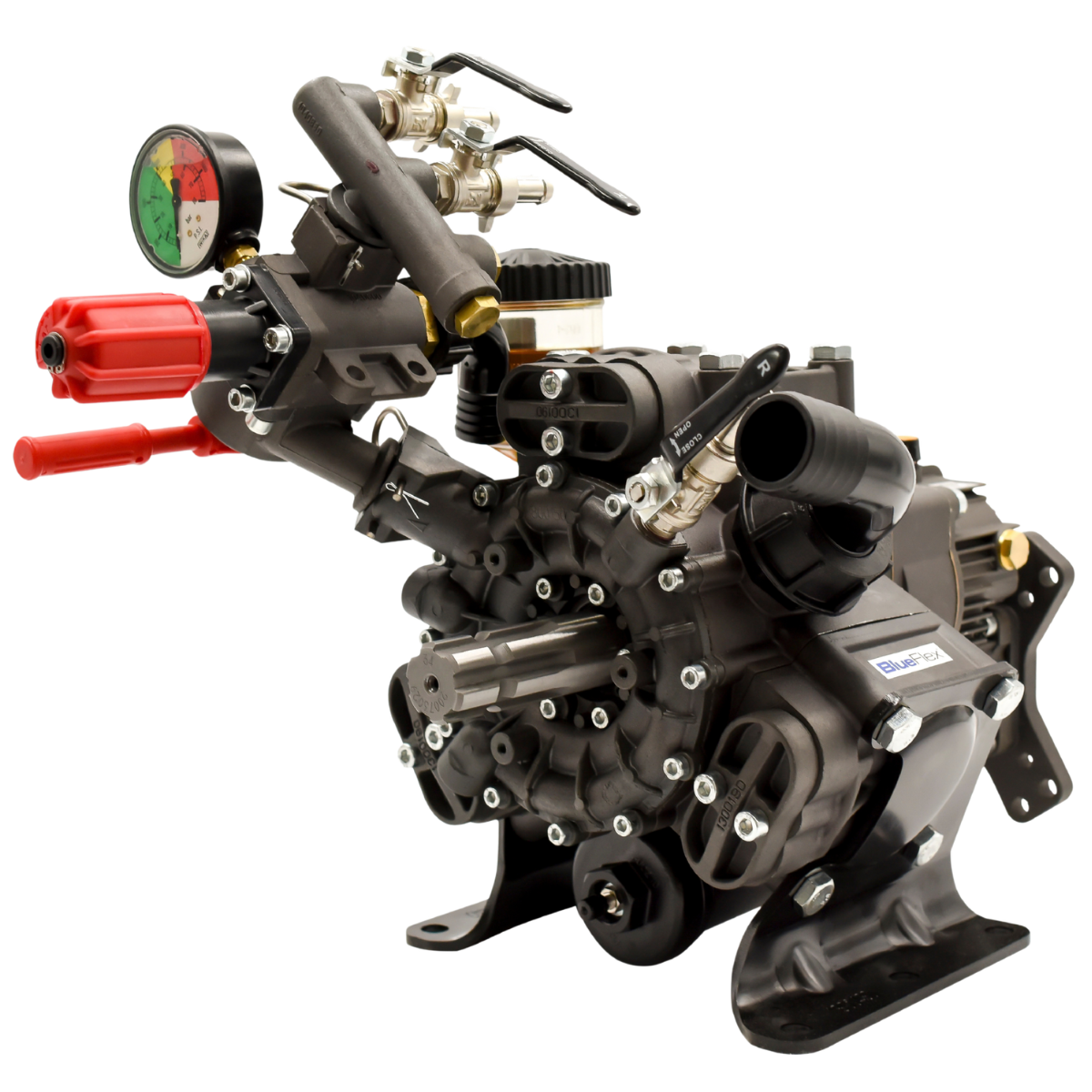

Hypro D813GRGI Pump

Hypro D813GRGI Pump

Brand:
Hypro
Weight:
68.7 lb
Item #
9910D813GRGI

Regular price $1,595.00
Sale price $1,595.00 Regular price List Price: $3,548.00

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 4,785 points with this purchase.

View full details

Collapsible content

Product Overview

The Hypro D813GRGI Pump is a powerful, high-pressure pump ideal for spraying liquid fertilizers, pesticides, herbicides, and a variety of other fluids that are challenging to handle. The nearly wear-free operation, low-cost maintenance, and a maximum pressure of 725 psi make this pump the perfect choice for a broad range of spraying jobs. A pressure regulator and gearbox are included for extra handling convenience.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon.

Manufacturer description

Hypro high pressure diaphragm pumps are recommended for spraying of herbicides, pesticides, liquid fertilizers and many other hard to handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of medium to large-sized sprayers. Hypro high pressure diaphragm pumps are supplied with single or double-splined through-shafts. Pumps include pulsation dampeners.

Features

  • Max flow: 21.4 gpm
  • Max pressure: 725 psi

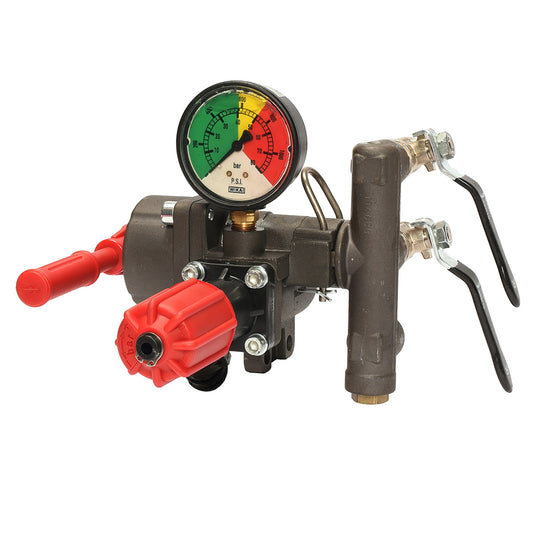

  • Includes 9910-VDR50 pressure regulator and 9910-KIT1642 gearbox for mounting on 9-13 hp gas engines
  • Port sizes: 1-1/2" HB inlet, 3/4" NPT outlet
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 66 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Diaphragm Bolt
    • Ref No: 1
    • Part No: 9910580360
    • Qty Req: 3
    Our price: $14.04 List price: $17.33
  • Retaining Washer
    • Ref No: 2
    • Part No: 99101040180
    • Qty Req: 3
    Our price: $18.78 List price: $23.18
  • Diaphragm, Desmopan (Std.)
    • Ref No: 3
    • Part No: 99101040080
    • Qty Req: 3
    Our price: $45.59 List price: $56.28
  • Diaphragm, Buna-N (Opt.)
    • Ref No: 3A
    • Part No: 99101040081
    • Qty Req: 3
    Our price: $48.78 List price: $60.22
  • Piston Sleeve
    • Ref No: 4
    • Part No: 99101500080
    • Qty Req: 3
    Our price: $87.11 List price: $107.54
  • Piston Ring
    • Ref No: 5
    • Part No: 9910650190
    • Qty Req: 3
    Our price: $18.08 List price: $22.32
  • Piston
    • Ref No: 6
    • Part No: 99101040120
    • Qty Req: 3
    Our price: $124.91 List price: $154.21
  • Connecting pin
    • Ref No: 7
    • Part No: 99101040070
    • Qty Req: 3
    Our price: $33.99 List price: $41.96
  • Snap Ring
    • Ref No: 8
    • Part No: 99101040270
    • Qty Req: 6
    Our price: $5.32 List price: $6.57
  • Connecting Rod for Hypro D813 & D1064
    • Ref No: 9
    • Part No: 99101800050
    • Qty Req: 3
    Our price: $107.45 List price: $132.66
  • Roller Bearing
    • Ref No: 11
    • Part No: 9910650200
    • Qty Req: 1
    Our price: $271.70 List price: $335.43
  • Crankshaft
    • Ref No: 12
    • Part No: 99101800200
    • Qty Req: 1
    Our price: $580.77 List price: $717.00
  • Retainer Ring
    • Ref No: 13
    • Part No: 9910161050
    • Qty Req: 1
    Our price: $15.30 List price: $18.89
  • Bearing
    • Ref No: 14
    • Part No: 9910161060
    • Qty Req: 1
    Our price: $65.53 List price: $80.90
  • Head-Right (DX)
    • Ref No: 15
    • Part No: 99101040551
    • Qty Req: 2
    Our price: $223.38 List price: $275.78
  • Cap
    • Ref No: 16
    • Part No: 99101800060
    • Qty Req: 1
    Our price: $17.17 List price: $21.20
  • Oil Reservoir
    • Ref No: 17
    • Part No: 9910680031
    • Qty Req: 1
    Our price: $66.78 List price: $82.45
  • Bolt
    • Ref No: 18
    • Part No: 9910680350
    • Qty Req: 2
    Our price: $2.48 List price: $3.06
  • Washer
    • Ref No: 19
    • Part No: 9910380241
    • Qty Req: 2
    Our price: $1.51 List price: $1.86
  • O-Ring
    • Ref No: 20
    • Part No: 9910390180
    • Qty Req: 3
    Our price: $1.51 List price: $1.86
  • Head-Left (SX)
    • Ref No: 21
    • Part No: 99101040552
    • Qty Req: 1
    Our price: $199.45 List price: $246.23
  • Bolt
    • Ref No: 22
    • Part No: 99101480040
    • Qty Req: 8
    Our price: $7.88 List price: $9.73
  • Left Base
    • Ref No: 23
    • Part No: 99101800440
    • Qty Req: 1
    Our price: $88.54 List price: $109.31
  • Bolt
    • Ref No: 24
    • Part No: 9910750060
    • Qty Req: 4
    Our price: $8.59 List price: $10.61
  • Plug
    • Ref No: 25
    • Part No: 99101040470
    • Qty Req: 2
    Our price: $4.66 List price: $5.75
  • Bolt
    • Ref No: 26
    • Part No: 9910320360
    • Qty Req: 2
    Our price: $1.72 List price: $2.12
  • Plug
    • Ref No: 27
    • Part No: 99101040260
    • Qty Req: 1
    Our price: $13.41 List price: $16.56
  • Air Chamber Connector
    • Ref No: 28
    • Part No: 99101800290
    • Qty Req: 1
    Our price: $88.13 List price: $108.80
  • Complete Valve Assembly
    • Ref No: 29
    • Part No: 99101409050
    • Qty Req: 6
    Our price: $28.70 List price: $35.43
  • O-Ring
    • Ref No: 30
    • Part No: 9910540360
    • Qty Req: 1
    Our price: $2.60 List price: $3.21
  • Pulsation Damper Body
    • Ref No: 31
    • Part No: 99101800280
    • Qty Req: 1
    Our price: $118.04 List price: $145.73
  • Diaphragm
    • Ref No: 32
    • Part No: 99101800300
    • Qty Req: 1
    Our price: $22.30 List price: $27.53
  • Pulsation Damper Cap
    • Ref No: 33
    • Part No: 99101800270
    • Qty Req: 1
    Our price: $55.62 List price: $68.67
  • O-ring
    • Ref No: 34
    • Part No: 9910650542
    • Qty Req: 1
    Our price: $1.97 List price: $2.43
  • Air Valve
    • Ref No: 35
    • Part No: 99101800350
    • Qty Req: 1
    Our price: $16.29 List price: $20.11
  • O-Ring
    • Ref No: 36
    • Part No: 9910640070
    • Qty Req: 1
    Our price: $1.51 List price: $1.86
  • Retaining ring
    • Ref No: 37
    • Part No: 99101040340
    • Qty Req: 2
    Our price: $41.93 List price: $51.76
  • Pump Body
    • Ref No: 38
    • Part No: 99101800140
    • Qty Req: 1
    Our price: $473.78 List price: $584.91
  • O-Ring
    • Ref No: 39
    • Part No: 9910250310
    • Qty Req: 2
    Our price: $1.93 List price: $2.38
  • Threaded Adapter
    • Ref No: 40
    • Part No: 9910540530
    • Qty Req: 1
    Our price: $25.60 List price: $31.60
  • O-Ring, Viton
    • Ref No: 41
    • Part No: 9910770571
    • Qty Req: 6
    Our price: $1.89 List price: $2.33
  • Ring Nut
    • Ref No: 42
    • Part No: 9910540540
    • Qty Req: 1
    Our price: $18.08 List price: $22.32
  • Elbow 1-1/2"
    • Ref No: 43
    • Part No: 9910540550
    • Qty Req: 1
    Our price: $29.71 List price: $36.68
  • Retaining Ring
    • Ref No: 44
    • Part No: 99101040570
    • Qty Req: 1
    Our price: $14.47 List price: $17.86
  • Oil Seal
    • Ref No: 45
    • Part No: 99101040050
    • Qty Req: 1
    Our price: $49.69 List price: $61.34
  • O-Ring
    • Ref No: 47
    • Part No: 99101040060
    • Qty Req: 3
    Our price: $8.74 List price: $10.79
  • Manifold
    • Ref No: 48
    • Part No: 99101800150
    • Qty Req: 1
    Our price: $165.03 List price: $203.74
  • Bolt
    • Ref No: 49
    • Part No: 99101040370
    • Qty Req: 12
    Our price: $4.02 List price: $4.96
  • Bolt
    • Ref No: 50
    • Part No: 9910780060
    • Qty Req: 6
    Our price: $1.72 List price: $2.12
  • Outlet ball valve w/o barb
    • Ref No: 51
    • Part No: 9910130491
    • Qty Req: 1
    Our price: $85.55 List price: $106.94
  • Retainer Clip
    • Ref No: 52
    • Part No: 99101040690
    • Qty Req: 1
    Our price: $24.41 List price: $30.14
  • O-Ring
    • Ref No: 53
    • Part No: 9910620030
    • Qty Req: 6
    Our price: $1.97 List price: $2.43
  • Pulsation Damper Assembly
    • Ref No: 54
    • Part No: 9910KIT1536
    • Qty Req: 1
    Our price: $233.96 List price: $389.94
  • Right Base
    • Ref No: 55
    • Part No: 99101800430
    • Qty Req: 1
    Our price: $88.54 List price: $109.31
  • Flange
    • Ref No: 56
    • Part No: 99101400140
    • Qty Req: 1
    Our price: $19.40 List price: $23.95
  • Shield, 199 mm
    • Ref No: 57
    • Part No: 99101500350
    • Qty Req: 1
    Our price: $52.50 List price: $64.82
  • M10 X 16 Bolt
    • Ref No: 58
    • Part No: 9910820670
    • Qty Req: 4
    Our price: $2.48 List price: $3.06
  • Valve Retainer
    • Ref No: 59
    • Part No: 99101300190
    • Qty Req: 3
    Our price: $46.27 List price: $57.12
  • Bolt
    • Ref No: 60
    • Part No: 9910620610
    • Qty Req: 6
    Our price: $1.76 List price: $2.17
  • Outlet adapter (3/4" NPT)
    • Ref No: 61
    • Part No: 99101040760
    • Qty Req: 1
    Our price: $53.33 List price: $65.84
  • 3/8" Hose Barb & Nut
    • Ref No: 62
    • Part No: 9910110131
    • Qty Req: 2
    Our price: $11.15 List price: $13.76
  • Support Washer
    • Ref No: 63
    • Part No: 99101400110
    • Qty Req: 1
    Our price: $37.85 List price: $46.73
  • O-Ring
    • Ref No: 64
    • Part No: 9910540361
    • Qty Req: 6
    Our price: $1.97 List price: $2.43
  • Cotter Pin
    • Ref No: 65
    • Part No: 99101040950
    • Qty Req: 1
    Our price: $1.39 List price: $1.71
  • Washer
    • Ref No: 67
    • Part No: 99101040850
    • Qty Req: 1
    Our price: $8.03 List price: $9.91
  • Dampener O-Ring
    • Ref No: 68
    • Part No: 9910650560
    • Qty Req: 1
    Our price: $2.77 List price: $3.42
  • O-Ring
    • Ref No: 69
    • Part No: 99101400120
    • Qty Req: 1
    Our price: $3.98 List price: $4.91
  • Bolt
    • Ref No: 70
    • Part No: 99101343510
    • Qty Req: 3
    Our price: $1.30 List price: $1.61
  • Washer
    • Ref No: 71
    • Part No: 9910881710
    • Qty Req: 3
    Our price: $1.39 List price: $1.71
  • Plug
    • Ref No: 73
    • Part No: 99101800240
    • Qty Req: 2
    Our price: $10.27 List price: $12.68
  • Snap Ring
    • Ref No: 74
    • Part No: 99101460490
    • Qty Req: 1
    Our price: $2.01 List price: $2.48
  • Flange
    • Ref No: 75
    • Part No: 99101800210
    • Qty Req: 1
    Our price: $169.32 List price: $209.04
  • Bolt
    • Ref No: 76
    • Part No: 9910180030
    • Qty Req: 8
    Our price: $1.89 List price: $2.33
  • Plate
    • Ref No: 77
    • Part No: 99101800311
    • Qty Req: 1
    Our price: $25.75 List price: $31.79
