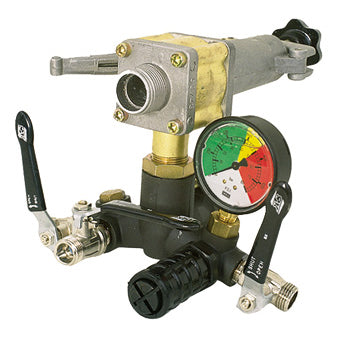

Hypro GS50GI Control Unit

Hypro GS50GI Control Unit

Brand:
Hypro
Weight:
8.83 lb
Item #
9910GS50GI
  • Hypro GS50GI Control Unit
1 1

Hypro GS50GI Control Unit

Hypro GS50GI Control Unit

Brand:
Hypro
Weight:
8.83 lb
Item #
9910GS50GI

$406.55
$406.55 List Price: $515.27

Free Shipping on Qualified Orders Over $100

Orders of in-stock products placed within

ship out same day. Learn more

Earn 1,220 points with this purchase.

See Details

View full details

Product Overview

This remote control unit, for pump models 9910-D813, 9910-D1064, 9910-D1265 and 9910-D1516, is capable of handling flow rates up to 48 gpm (181.7 lpm) and pressures up to 725 psi (50 bar). It includes a pressure gauge, one adjustable high pressure relief valve, one complete bypass lever, ¾" inlet, three 1/2" HB outlets with individual shut-offs, and one 1" HB bypass. Kit 9910-KIT1742 is available for remote mounting.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Adjustment Control Knob
    • Ref No: 1
    • Part No: 9910660130
    • Qty Req: 1
    Our price: $25.53 List price: $32.74
  • Nut
    • Ref No: 2
    • Part No: 9910180150
    • Qty Req: 1
    Our price: $1.79 List price: $1.89
  • Tension Adj. Support
    • Ref No: 3
    • Part No: 9910680442
    • Qty Req: 1
    Our price: $64.04 List price: $82.12
  • Support Pin
    • Ref No: 4
    • Part No: 9910680540
    • Qty Req: 1
    Our price: $2.09 List price: $2.68
  • Support Housing
    • Ref No: 5
    • Part No: 9910680420
    • Qty Req: 1
    Our price: $79.03 List price: $94.27
  • Spring Guide
    • Ref No: 6
    • Part No: 9910680510
    • Qty Req: 1
    Our price: $14.54 List price: $18.65
  • Lever Guide Pin
    • Ref No: 7
    • Part No: 9910680530
    • Qty Req: 1
    Our price: $2.22 List price: $2.66
  • Lever Guide
    • Ref No: 8
    • Part No: 9910680520
    • Qty Req: 1
    Our price: $10.91 List price: $13.99
  • Pin
    • Ref No: 9
    • Part No: 9910680550
    • Qty Req: 1
    Our price: $2.09 List price: $2.68
  • Control Lever
    • Ref No: 11
    • Part No: 9910680452
    • Qty Req: 1
    Our price: $76.12 List price: $97.61
  • Tension Spring
    • Ref No: 12
    • Part No: 9910680500
    • Qty Req: 1
    Our price: $18.91 List price: $24.24
  • Piston Valve Seat
    • Ref No: 13
    • Part No: 9910680490
    • Qty Req: 1
    Our price: $32.94 List price: $42.24
  • Piston Valve
    • Ref No: 14
    • Part No: 9910680480
    • Qty Req: 1
    Our price: $32.24 List price: $41.34
  • Seat
    • Ref No: 16
    • Part No: 9910680470
    • Qty Req: 1
    Our price: $49.64 List price: $63.66
  • Tension Spring
    • Ref No: 17
    • Part No: 9910320420
    • Qty Req: 1
    Our price: $7.66 List price: $9.81
  • Support Seat
    • Ref No: 18
    • Part No: 9910680460
    • Qty Req: 1
    Our price: $64.81 List price: $77.07
  • Bolt
    • Ref No: 19
    • Part No: 9910680700
    • Qty Req: 1
    Our price: $9.11 List price: $10.93
  • Body
    • Ref No: 20
    • Part No: 9910680410
    • Qty Req: 1
    Our price: $201.94 List price: $240.88
  • O-Ring
    • Ref No: 21
    • Part No: 9910280220
    • Qty Req: 1
    Our price: $3.11 List price: $3.73
  • Discharge Flange
    • Ref No: 22
    • Part No: 9910680432
    • Qty Req: 1
    Our price: $69.84 List price: $85.08
  • Screw
    • Ref No: 23
    • Part No: 9910680570
    • Qty Req: 1
    Our price: $4.42 List price: $5.07
  • Ring Nut
    • Ref No: 24
    • Part No: 9910550242
    • Qty Req: 1
    Our price: $10.03 List price: $10.64
  • Hose Barb 1"
    • Ref No: 25
    • Part No: 9910550370
    • Qty Req: 1
    Our price: $14.34 List price: $16.97
  • O-Ring
    • Ref No: 26
    • Part No: 9910550350
    • Qty Req: 6
    Our price: $1.95 List price: $2.19
  • Diaphragm
    • Ref No: 27
    • Part No: 9910390740
    • Qty Req: 1
    Our price: $20.97 List price: $22.91
  • Adjustment Nut
    • Ref No: 28
    • Part No: 9910680580
    • Qty Req: 1
    Our price: $15.33 List price: $18.28
  • Stud
    • Ref No: 29
    • Part No: 9910720390
    • Qty Req: 1
    Our price: $6.70 List price: $8.34
  • Body Assembly
    • Ref No: 31
    • Part No: 9910680400
    • Qty Req: 1
    Our price: $126.82 List price: $141.62
  • Plug
    • Ref No: 32
    • Part No: 9910130171
    • Qty Req: 2
    Our price: $4.99 List price: $6.27
  • Pipe Reducer
    • Ref No: 34
    • Part No: 9910130170
    • Qty Req: 1
    Our price: $19.60 List price: $21.71
  • Valve Assembly
    • Ref No: 35
    • Part No: 9910269050
    • Qty Req: 1
    Our price: $79.47 List price: $101.91
  • Port Adapter
    • Ref No: 37
    • Part No: 9910550393
    • Qty Req: 1
    Our price: $91.13 List price: $109.36
  • Remote Discharge Mounting Bracket
    • Ref No: 38
    • Part No: 9910320406
    • Qty Req: 1
    Our price: $38.26 List price: $47.61
  • M8 X 60 Bolt
    • Ref No: 39
    • Part No: 9910280080
    • Qty Req: 2
    Our price: $3.72 List price: $3.73
  • Nut
    • Ref No: 40
    • Part No: 9910380240
    • Qty Req: 6
    Our price: $1.64 List price: $2.08
  • Regulator Valve
    • Ref No: 41
    • Part No: 9910689060
    • Qty Req: 1
    Our price: $566.75 List price: $690.22
