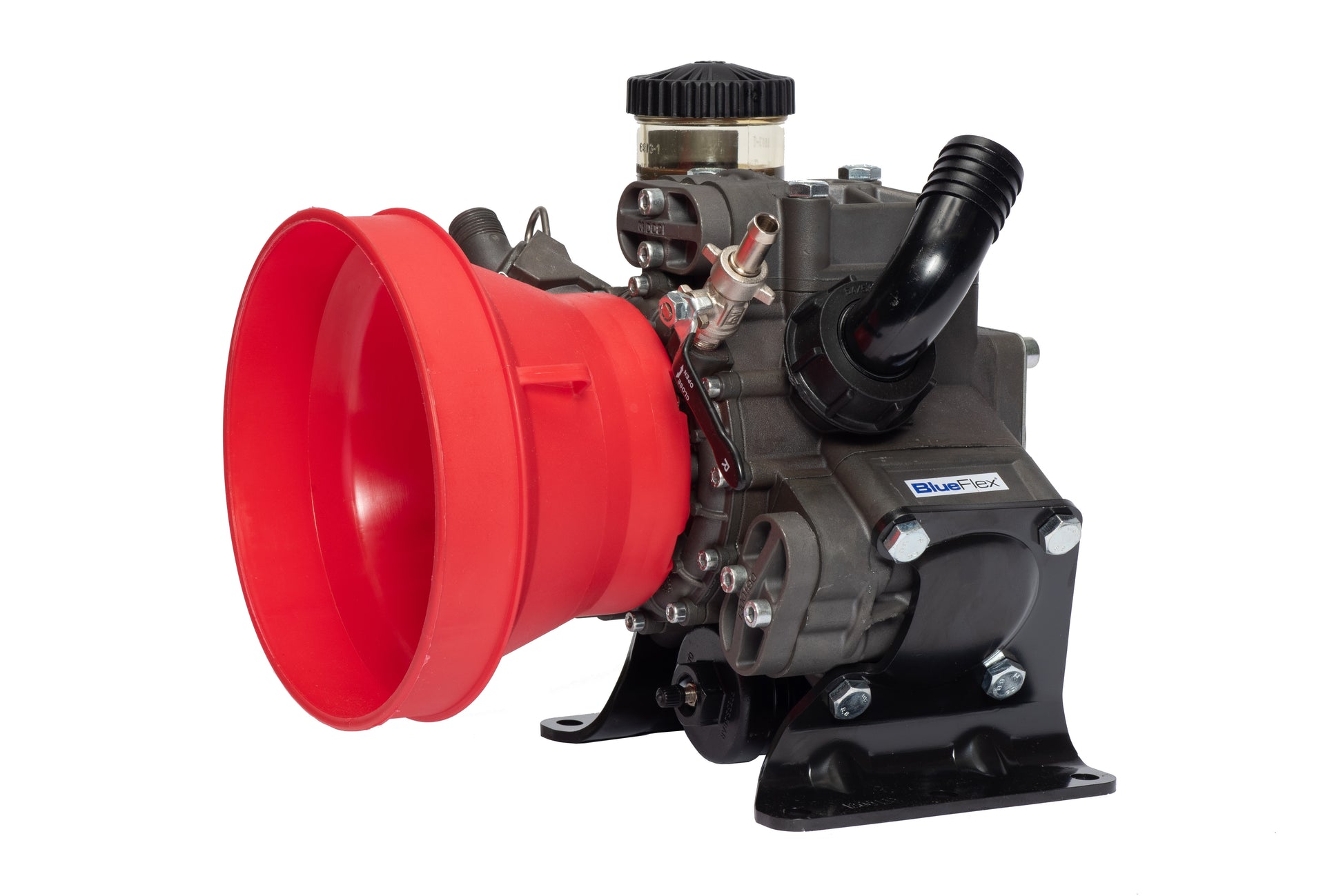

Hypro D813 Pump

Hypro D813 Pump

Item Code:
9910D813
Weight:
51.3 lb
Manufacturer:
Hypro
Our price:
$931.00
List price:
$2,073.00
Overview:
The Hypro D813 Pump is capable of creating both a high flow of water and high water pressure. This flow may be measured in gallons per minute or per hour. This type of product may be at the heart of a cleaning system and may be used in industrial or commercial settings. A pump is almost opposite to an engine. Where an engine uses pistons to turn the crankshaft, a pump uses the movement of the crankshaft to move the pistons.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon. If you order one of these products you may receive the original factory version manufactured by AR in Italy. Specs and performance are the same.

Manufacturer Description:

Hypro high pressure diaphragm pumps are recommended for spraying of herbicides, pesticides, liquid fertilizers and many other hard to handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of medium to large-sized sprayers. Hypro high pressure diaphragm pumps are supplied with single or double-splined through-shafts. Pumps include pulsation dampeners.

Features:

  • Max flow: 21.4 gpm
  • Max pressure: 725 psi
  • Max speed: 550 rpm
  • Shaft: Flanged adapter and 1-3/8" 6 spline male PTO shaft
  • Port sizes: 1-1/2" HB inlet, 3/4" NPT outlet
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Desmopan standard Buna available
  • Housing: Anodized aluminum
  • Mounting base: Included

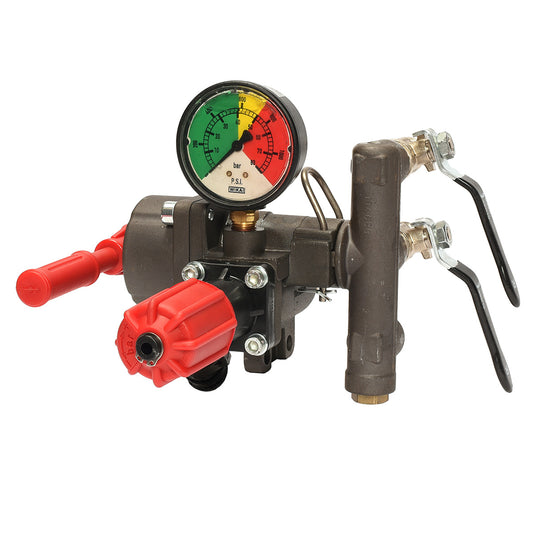

  • Recommended control unit: 9910-VDR50 (direct mount) or 9910-GS50GI (remote mount)
  • Recommended gearbox: 9910-KIT1642 with 1" hollow shaft for mounting on 9 to 13 hp engines
  • Max fluid temperature: 140F

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 1
  • Part No: 9910580360
  • Qty Req: 3
Our price: $13.20 List price: $16.30
  • Ref No: 2
  • Part No: 99101040180
  • Qty Req: 3
Our price: $18.78 List price: $23.18
  • Ref No: 4
  • Part No: 99101500080
  • Qty Req: 3
Our price: $87.11 List price: $107.54
  • Ref No: 5
  • Part No: 9910650190
  • Qty Req: 3
Our price: $18.08 List price: $22.32
  • Ref No: 6
  • Part No: 99101040120
  • Qty Req: 3
Our price: $124.91 List price: $154.21
  • Ref No: 7
  • Part No: 99101040070
  • Qty Req: 3
Our price: $33.99 List price: $41.96
  • Ref No: 8
  • Part No: 99101040270
  • Qty Req: 6
Our price: $5.32 List price: $6.57
  • Ref No: 10
  • Part No: 99101400150
  • Qty Req: 1
Our price: $28.27 List price: $34.90
  • Ref No: 11
  • Part No: 9910650200
  • Qty Req: 1
Our price: $271.70 List price: $335.43
  • Ref No: 12
  • Part No: 99101800200
  • Qty Req: 1
Our price: $580.77 List price: $717.00
  • Ref No: 13
  • Part No: 9910161050
  • Qty Req: 1
Our price: $15.30 List price: $18.89
  • Ref No: 14
  • Part No: 9910161060
  • Qty Req: 1
Our price: $65.53 List price: $80.90
  • Ref No: 15
  • Part No: 99101040551
  • Qty Req: 2
Our price: $223.38 List price: $275.78
  • Ref No: 16
  • Part No: 99101800060
  • Qty Req: 1
Our price: $15.93 List price: $19.67
  • Ref No: 17
  • Part No: 9910680031
  • Qty Req: 1
Our price: $66.78 List price: $82.45
  • Ref No: 18
  • Part No: 9910680350
  • Qty Req: 2
Our price: $2.48 List price: $3.06
  • Ref No: 19
  • Part No: 9910380241
  • Qty Req: 2
Our price: $1.51 List price: $1.86
  • Ref No: 20
  • Part No: 9910390180
  • Qty Req: 3
Our price: $1.51 List price: $1.86
  • Ref No: 21
  • Part No: 99101040552
  • Qty Req: 1
Our price: $199.45 List price: $246.23
  • Ref No: 22
  • Part No: 99101480040
  • Qty Req: 8
Our price: $7.88 List price: $9.73
  • Ref No: 23
  • Part No: 99101800440
  • Qty Req: 1
Our price: $84.11 List price: $103.84
  • Ref No: 24
  • Part No: 9910750060
  • Qty Req: 4
Our price: $8.59 List price: $10.61
  • Ref No: 25
  • Part No: 99101040470
  • Qty Req: 2
Our price: $4.66 List price: $5.75
  • Ref No: 26
  • Part No: 9910320360
  • Qty Req: 2
Our price: $1.72 List price: $2.12
  • Ref No: 27
  • Part No: 99101040260
  • Qty Req: 1
Our price: $13.41 List price: $16.56
  • Ref No: 28
  • Part No: 99101800290
  • Qty Req: 1
Our price: $79.17 List price: $97.74
  • Ref No: 30
  • Part No: 9910540360
  • Qty Req: 1
Our price: $2.60 List price: $3.21
  • Ref No: 31
  • Part No: 99101800280
  • Qty Req: 1
Our price: $118.04 List price: $145.73
  • Ref No: 32
  • Part No: 99101800300
  • Qty Req: 1
Our price: $20.96 List price: $25.88
  • Ref No: 33
  • Part No: 99101800270
  • Qty Req: 1
Our price: $55.62 List price: $68.67
  • Ref No: 34
  • Part No: 9910650542
  • Qty Req: 1
Our price: $1.97 List price: $2.43
  • Ref No: 35
  • Part No: 99101800350
  • Qty Req: 1
Our price: $15.30 List price: $18.89
  • Ref No: 36
  • Part No: 9910640070
  • Qty Req: 1
Our price: $1.51 List price: $1.86
  • Ref No: 37
  • Part No: 99101040340
  • Qty Req: 2
Our price: $41.93 List price: $51.76
  • Ref No: 38
  • Part No: 99101800140
  • Qty Req: 1
Our price: $473.78 List price: $584.91
  • Ref No: 39
  • Part No: 9910250310
  • Qty Req: 2
Our price: $1.93 List price: $2.38
  • Ref No: 40
  • Part No: 9910540530
  • Qty Req: 1
Our price: $25.60 List price: $31.60
  • Ref No: 41
  • Part No: 9910770571
  • Qty Req: 6
Our price: $1.89 List price: $2.33
  • Ref No: 42
  • Part No: 9910540540
  • Qty Req: 1
Our price: $18.08 List price: $22.32
  • Ref No: 43
  • Part No: 9910540550
  • Qty Req: 1
Our price: $29.71 List price: $36.68
  • Ref No: 44
  • Part No: 99101040570
  • Qty Req: 1
Our price: $14.47 List price: $17.86
  • Ref No: 45
  • Part No: 99101040050
  • Qty Req: 1
Our price: $49.69 List price: $61.34
  • Ref No: 47
  • Part No: 99101040060
  • Qty Req: 3
Our price: $8.74 List price: $10.79
  • Ref No: 48
  • Part No: 99101800150
  • Qty Req: 1
Our price: $165.03 List price: $203.74
  • Ref No: 49
  • Part No: 99101040370
  • Qty Req: 12
Our price: $4.02 List price: $4.96
  • Ref No: 50
  • Part No: 9910780060
  • Qty Req: 6
Our price: $1.72 List price: $2.12
  • Ref No: 52
  • Part No: 99101040690
  • Qty Req: 1
Our price: $24.41 List price: $30.14
  • Ref No: 53
  • Part No: 9910620030
  • Qty Req: 6
Our price: $1.97 List price: $2.43
  • Ref No: 55
  • Part No: 99101800430
  • Qty Req: 1
Our price: $74.72 List price: $92.25
  • Ref No: 56
  • Part No: 99101400140
  • Qty Req: 1
Our price: $18.23 List price: $22.51
  • Ref No: 57
  • Part No: 99101500350
  • Qty Req: 1
Our price: $52.50 List price: $64.82
  • Ref No: 58
  • Part No: 9910820670
  • Qty Req: 4
Our price: $2.48 List price: $3.06
  • Ref No: 59
  • Part No: 99101300190
  • Qty Req: 3
Our price: $46.27 List price: $57.12
