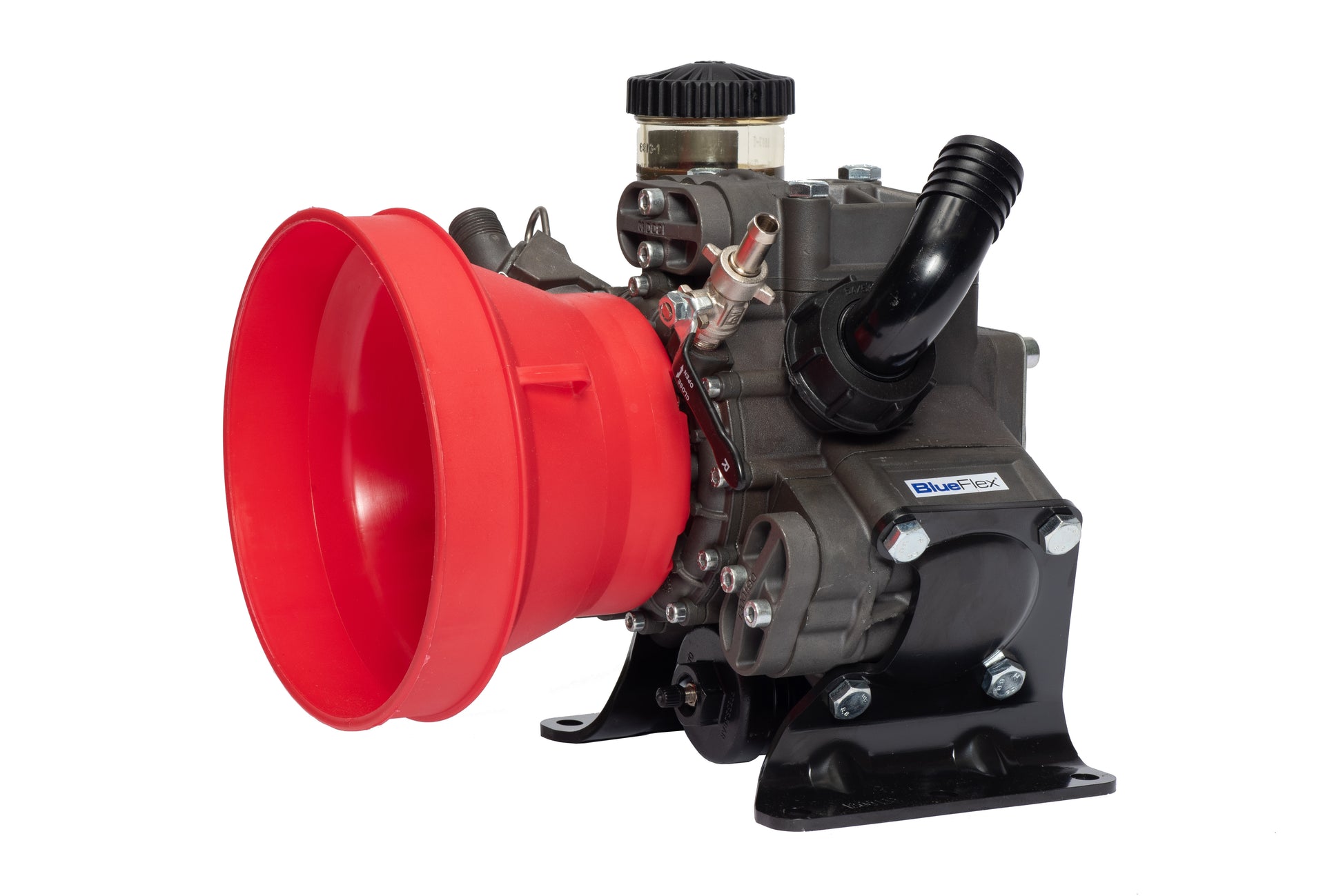

The Hypro D813 Pump is capable of creating both a high flow of water and high water pressure. This flow may be measured in gallons per minute or per hour. This type of product may be at the heart of a cleaning system and may be used in industrial or commercial settings. A pump is almost opposite to an engine. Where an engine uses pistons to turn the crankshaft, a pump uses the movement of the crankshaft to move the pistons.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps and related parts; however, the pumps and repair parts are still available and will now feature factory labeling.

** When you order this pump, you will receive the most current version, AR813-C/SP. **

Hypro/AR high pressure diaphragm pumps are recommended for spraying of herbicides, pesticides, liquid fertilizers and many other hard to handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of medium to large-sized sprayers. Hypro high pressure diaphragm pumps are supplied with single or double-splined through-shafts. Pumps include pulsation dampeners.

Download Product Manual

• Max flow: 21.4 gpm
• Max pressure: 725 psi
• Max speed: 550 rpm
• Shaft: Flanged adapter and 1-3/8" 6 spline male PTO shaft
• Port sizes: 1-1/2" HB inlet, 3/4" NPT outlet
• Pump shaft rotation: CW and CCW
• Diaphragms: 3, semi-hydraulic, BlueFlex
• Housing: Anodized aluminum
• Mounting base: Included
• Recommended control unit: 9910-VDR50 (direct mount) or 9910-GS50GI (remote mount)
• Recommended gearbox: 9910-KIT1642 with 1" hollow shaft for mounting on 9 to 13 hp engines
• Max fluid temperature: 140F
