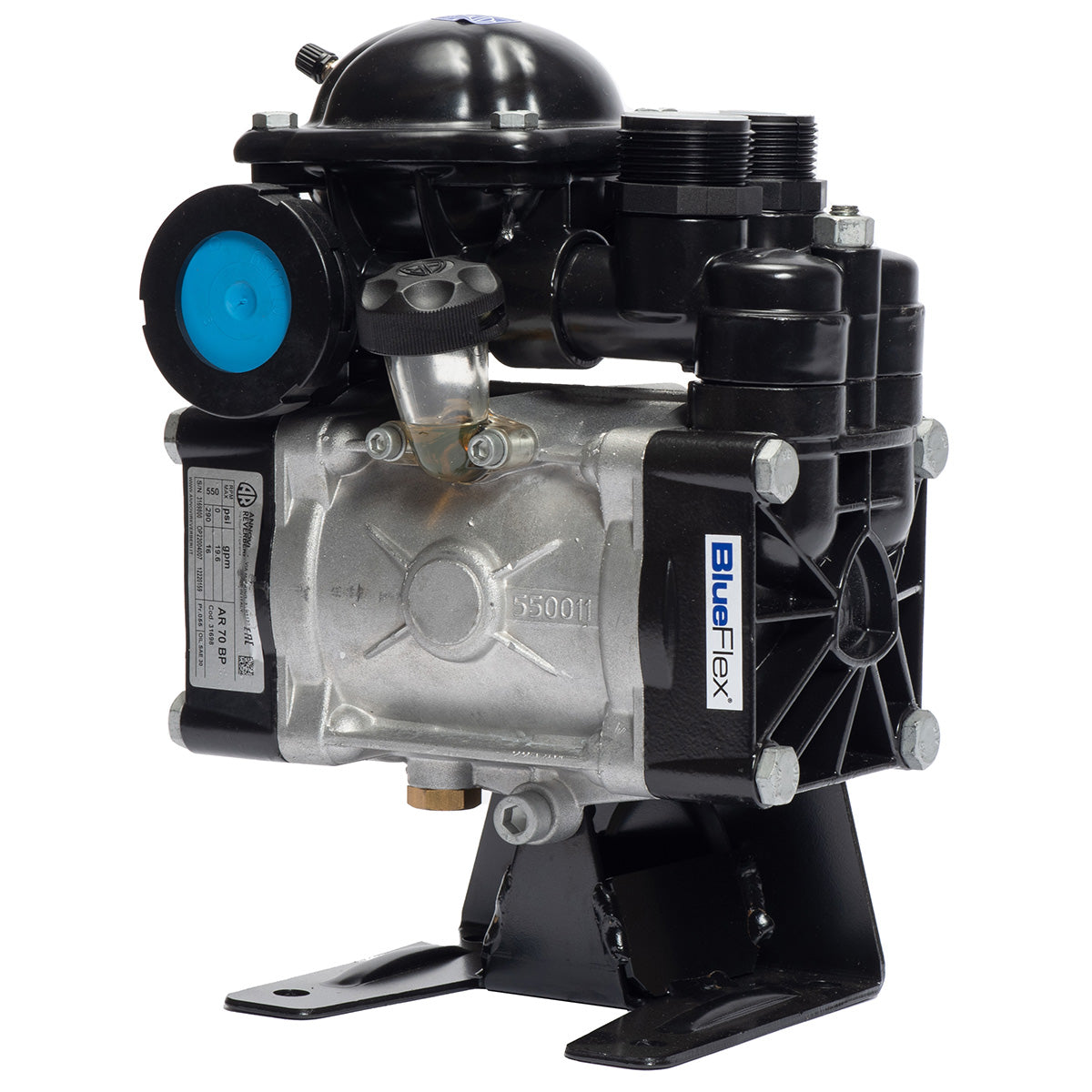

Hypro D70 Pump

Hypro D70 Pump

Item Code:
9910D70
Weight:
25.7 lb
Manufacturer:
Hypro
Our price:
$669.35
List price:
$1,266.00
Overview:

The Hypro D70 Pump (9910-D70) is excellent for spraying and pumping difficult-to-handle fluids such as liquid fertilizers, pesticides, and herbicides. The synthetic diaphragms are durable and facilitate use with various general, abrasive, and corrosive agricultural chemicals, making it suitable for many different spraying jobs. The output and pressure designs of small- to medium-sized sprayers combine to provide the best performance possible.

Manufacturer Description:

Hypro low pressure diaphragm pumps are recommended for ground and low-level spraying of herbicides, pesticides, liquid fertilizers and many other hard-to handle fluids. Low-cost maintenance and almost wearfree operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of medium to large-sized sprayers. Hypro low pressure diaphragm pumps can be adapted for splined shaft, hollow shaft, and solid shaft drive options. Pumps include a pulsation dampener.

Features:

  • Max flow: 19.6 gpm
  • Max pressure: 290 psi
  • Shaft: Flanged adapter for shaft kit
  • Port sizes: 1-1/4" HB inlet, 1" HB outlet
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Recommended control unit: 3300-0087 or 3300-0088 (remote mount)
  • Recommended gearbox: Cannot add gearbox to pump, please see model 9910-D70GR for pump with gearbox included
  • Max fluid temperature: 140°F
  • Weight: 22 lbs

Parts breakdown

Parts list

  • Ref No: 2
  • Part No: 9910550101
  • Qty Req: 1
Our price: $140.83 List price: $173.87
  • Ref No: 3
  • Part No: 9910550102
  • Qty Req: 1
Our price: $135.95 List price: $167.84
  • Ref No: 4
  • Part No: 9910550150
  • Qty Req: 1
Our price: $87.92 List price: $108.54
  • Ref No: 5
  • Part No: 9910559200
  • Qty Req: 1
Our price: $155.49 List price: $191.96
  • Ref No: 6
  • Part No: 9910580370
  • Qty Req: 2
Our price: $10.69 List price: $13.20
  • Ref No: 8
  • Part No: 9910550110
  • Qty Req: 2
Our price: $59.63 List price: $73.62
  • Ref No: 9
  • Part No: 9910550120
  • Qty Req: 1
Our price: $277.60 List price: $342.71
  • Ref No: 10
  • Part No: 9910320030
  • Qty Req: 4
Our price: $4.16 List price: $5.13
  • Ref No: 11
  • Part No: 9910759051
  • Qty Req: 4
Our price: $41.31 List price: $51.00
  • Ref No: 12
  • Part No: 9910551040
  • Qty Req: 8
Our price: $2.14 List price: $2.64
  • Ref No: 14
  • Part No: 9910580360
  • Qty Req: 2
Our price: $13.20 List price: $16.30
  • Ref No: 15
  • Part No: 9910550880
  • Qty Req: 1
Our price: $9.23 List price: $11.39
  • Ref No: 16
  • Part No: 9910580040
  • Qty Req: 1
Our price: $19.71 List price: $24.33
  • Ref No: 17
  • Part No: 9910550370
  • Qty Req: 1
Our price: $13.20 List price: $16.30
  • Ref No: 18
  • Part No: 9910550350
  • Qty Req: 1
Our price: $1.60 List price: $1.97
  • Ref No: 19
  • Part No: 9910550340
  • Qty Req: 1
Our price: $7.80 List price: $9.63
  • Ref No: 23
  • Part No: 9910550310
  • Qty Req: 1
Our price: $39.48 List price: $48.74
  • Ref No: 24
  • Part No: 9910390290
  • Qty Req: 7
Our price: $2.10 List price: $2.59
  • Ref No: 26
  • Part No: 9910550300
  • Qty Req: 1
Our price: $13.00 List price: $16.05
  • Ref No: 27
  • Part No: 9910650542
  • Qty Req: 1
Our price: $1.76 List price: $2.17
  • Ref No: 28
  • Part No: 9910550680
  • Qty Req: 4
Our price: $3.35 List price: $4.14
  • Ref No: 29
  • Part No: 9910559204
  • Qty Req: 1
Our price: $70.41 List price: $86.93
  • Ref No: 32
  • Part No: 9910550057
  • Qty Req: 1
Our price: $9.65 List price: $11.91
  • Ref No: 33
  • Part No: 9910550040
  • Qty Req: 1
Our price: $1.76 List price: $2.17
  • Ref No: 34
  • Part No: 9910550030
  • Qty Req: 2
Our price: $15.93 List price: $19.67
  • Ref No: 41
  • Part No: 9910650660
  • Qty Req: 1
Our price: $38.05 List price: $46.98
  • Ref No: 42
  • Part No: 9910650670
  • Qty Req: 1
Our price: $13.62 List price: $16.82
  • Ref No: 43
  • Part No: 9910650690
  • Qty Req: 1
Our price: $18.65 List price: $23.03
  • Ref No: 44
  • Part No: 9910200391
  • Qty Req: 1
Our price: $25.24 List price: $31.16
  • Ref No: 45
  • Part No: 9910550470
  • Qty Req: 1
Our price: $47.82 List price: $59.04
  • Ref No: 46
  • Part No: 9910550070
  • Qty Req: 1
Our price: $18.03 List price: $22.26
  • Ref No: 47
  • Part No: 9910550060
  • Qty Req: 1
Our price: $61.87 List price: $76.38
  • Ref No: 48
  • Part No: 9910550170
  • Qty Req: 1
Our price: $334.58 List price: $413.06
  • Ref No: 52
  • Part No: 9910200233
  • Qty Req: 2
Our price: $1.92 List price: $2.37
  • Ref No: 53
  • Part No: 9910320621
  • Qty Req: 5
Our price: $1.39 List price: $1.71
  • Ref No: 57
  • Part No: 9910550280
  • Qty Req: 2
Our price: $51.29 List price: $63.32
  • Ref No: 58
  • Part No: 9910550140
  • Qty Req: 1
Our price: $99.31 List price: $122.61
  • Ref No: 64
  • Part No: 9910550160
  • Qty Req: 1
Our price: $5.32 List price: $6.57
  • Ref No: 66
  • Part No: 9910550491
  • Qty Req: 1
Our price: $27.88 List price: $34.42
  • Ref No: 67
  • Part No: 9910650920
  • Qty Req: 1
Our price: $2.60 List price: $3.21
  • Ref No: 68
  • Part No: 24060023
  • Qty Req: 1
Our price: $8.23 List price: $10.16
  • Ref No: 74
  • Part No: 99101500350
  • Qty Req: 1
Our price: $52.50 List price: $64.82
  • Ref No: 75
  • Part No: 9910550332
  • Qty Req: 2
Our price: $1.39 List price: $1.71
  • Ref No: 76
  • Part No: 9910740290
  • Qty Req: 1
Our price: $1.72 List price: $2.12
  • Ref No: 77
  • Part No: 9910330173
  • Qty Req: 1
Our price: $7.13 List price: $8.80
  • Ref No: 79
  • Part No: 9910620472
  • Qty Req: 1
Our price: $2.39 List price: $2.95
  • Ref No: 87
  • Part No: 9910450120
  • Qty Req: 1
Our price: $13.62 List price: $16.82
  • Ref No: 88
  • Part No: 9910550870
  • Qty Req: 1
Our price: $13.84 List price: $17.09
