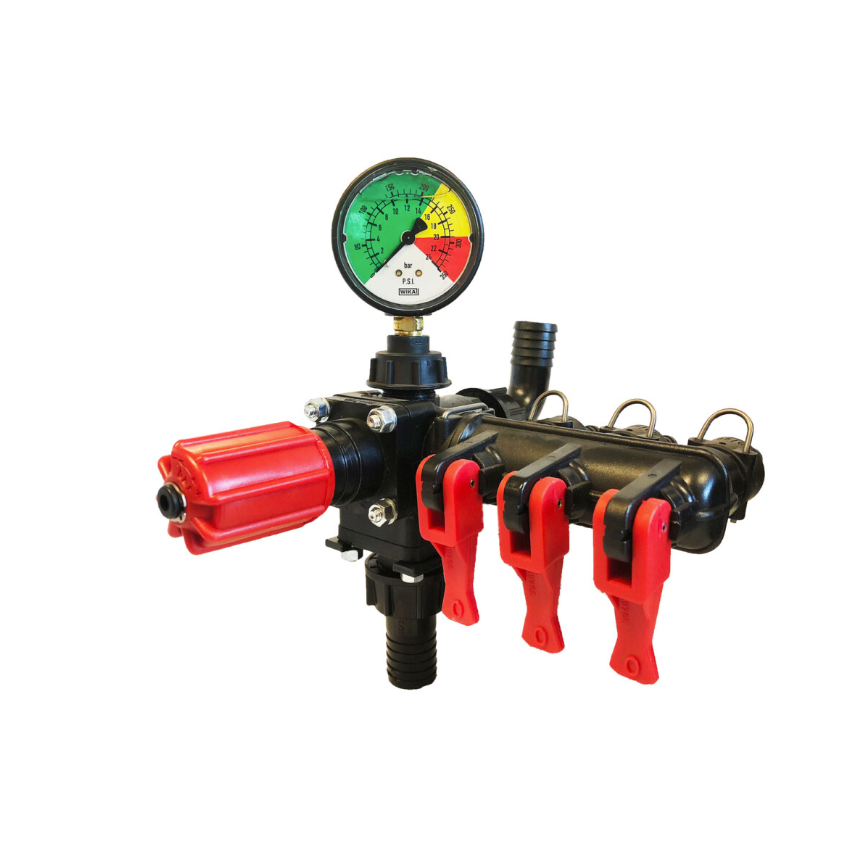

3300-0087 Control Unit/Regulator

3300-0087 Control Unit/Regulator

1 review
Item Code:
33000087
Weight:
10.0 lb
Manufacturer:
Hypro
Our price:
$374.10
List price:
$645.00
Overview:

Select this 3300-0087 Control Unit/Regulator from Hypro, which works with pump model numbers 9910-D70, 9910-D115, 9910-D135 and 9910-D160. Rated with a maximum flow of GPM and an upper pressure limit of 290 PSI, it's ideal for use in lower pressure spraying systems. Choose it for use in agricultural, commercial and industrial spraying jobs.

Manufacturer Description:

This remote control unit, for mounting on pump models 9910-D70, 9910-D115, 9910-D135 and 9910-D160, is capable of handling flow rates up to 42.5 gpm (160.9 lpm) and pressures up to 290 psi (20 bar). It includes one built-in relief valve, one 1" HB inlet, three 3/4", 1/2" and 3/8" HB outlets with individual shut-offs. Model 3300-0088 also includes a main bypass lever.

Features:

  • For pump models: 9910-D70, D115, D135, D160
  • Max flow: 42.5 gpm
  • Max pressure: 290 psi
  • Port sizes: 1" hose barb inlet, 3 hose barb outlets (1/2 or 3/8") with individual shut-offs
  • Pressure gauge: 0-400 psi, color coded, glycerin filled
  • Weight: 10 lbs
