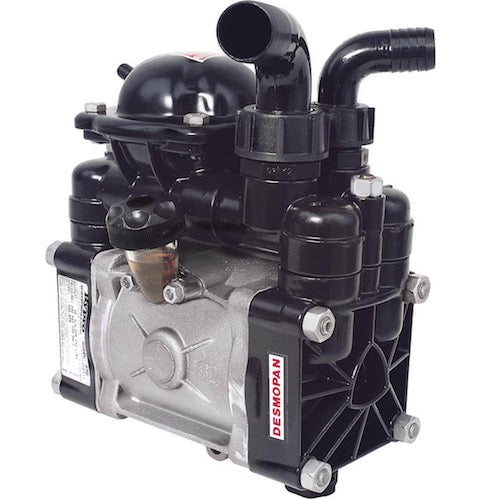

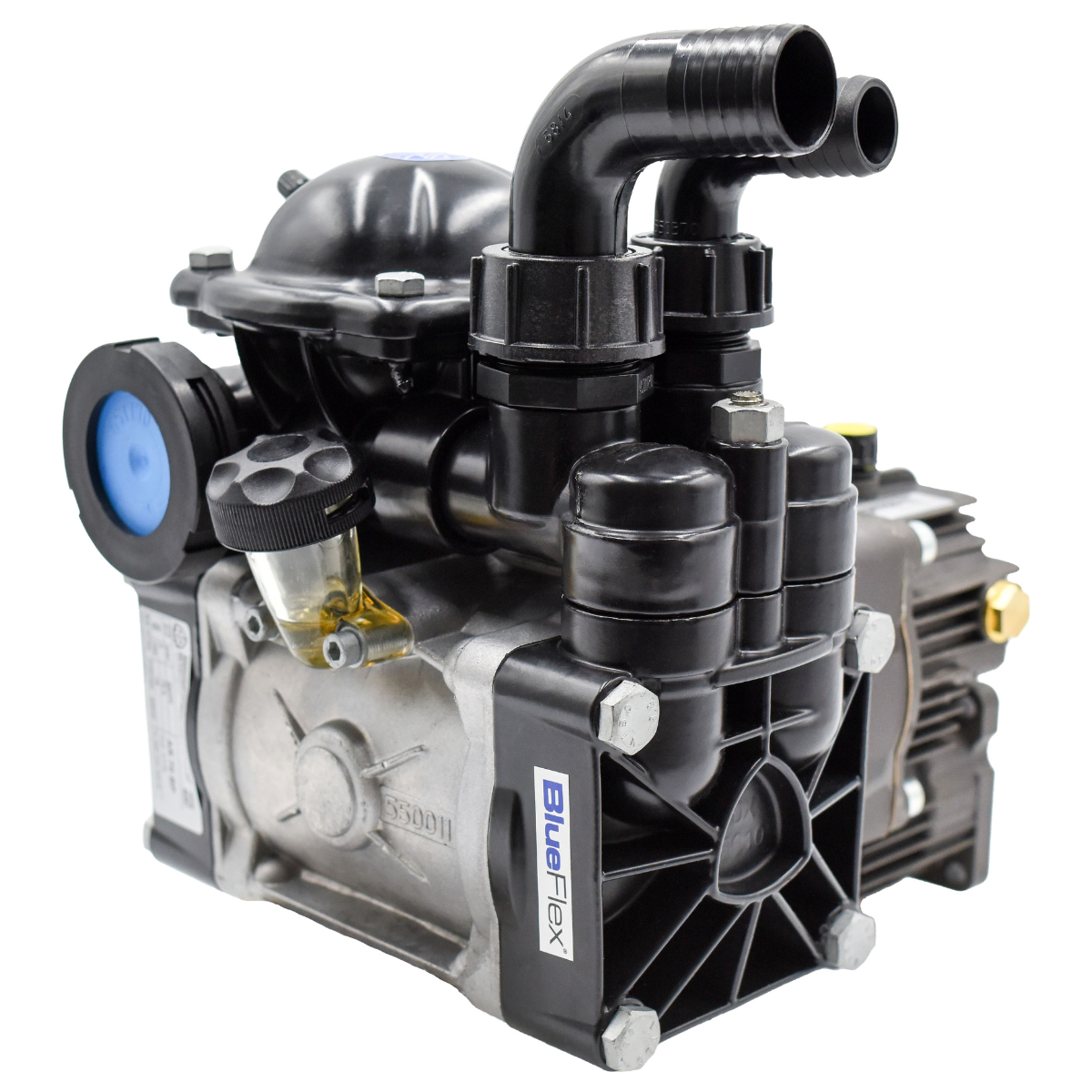

Hypro D70GR Diaphragm Pump with Gearbox, 19.6 GPM, 290 PSI

Hypro D70GR Diaphragm Pump with Gearbox, 19.6 GPM, 290 PSI

Brand:
Hypro
Weight:
31.0 lb
Item #
9910D70GR
  • Hypro D70GR Diaphragm Pump with Gearbox, 19.6 GPM, 290 PSI
1 1

Hypro D70GR Diaphragm Pump with Gearbox, 19.6 GPM, 290 PSI

Hypro D70GR Diaphragm Pump with Gearbox, 19.6 GPM, 290 PSI

Brand:
Hypro
Weight:
31.0 lb
Item #
9910D70GR

$1,314.18
$1,314.18 List Price: $2,481.77

Free Shipping on Qualified Orders Over $100

Orders of in-stock products placed within

ship out same day. Learn more

Earn 3,943 points with this purchase.

See Details

View full details

Product Overview

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts; however,  the pumps and repair parts are still available and will now feature facotry labeling.

** When you order this pump, you will receive the most current version, AR70BP-GR3/4.**

Manufacturer description

The AR70BP-GR3/4 (9910-D70GR)  diaphragm pump is widely used in the commercial, industrial and agricultural sprayer industries. With a flow rate up to 19.6 gpm and max pressure of 290 psi it is optimal for small or medium-sized sprayers, assisting in the targeted distribution of your liquid product onto desired surfaces for consistent, even coverage every time. This model is equipped with a gearbox with 3/4" hollow shaft for attaching to 5 to 6.5 hp engines.

Resources

Download Product Manual

Features

  • Max flow: 19.6 gpm
  • Max pressure: 290 psi
  • Includes AR1671 with 3/4" hollow shaft to mount on 5 to 6.5 hp engines
  • Port sizes: 1-1/4" HB inlet, 1" NPT outlet
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, BlueFlex material
  • Housing: Anodized aluminum
  • Head & Manifold material: Plastic coated aluminum
  • Recommended control unit: RM20S
  • Max fluid temperature: 140°F
  • Weight: 31 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Body
    • Ref No: 1
    • Part No: AR550011
    • Qty Req: 1
    Our price: $188.32 List price: $249.94
  • Right head DX
    • Ref No: 2
    • Part No: 9910550101
    • Qty Req: 1
    Our price: $153.05 List price: $166.64
  • Left head SX
    • Ref No: 3
    • Part No: 9910550102
    • Qty Req: 1
    Our price: $165.47 List price: $166.64
  • Accumulator manifold
    • Ref No: 4
    • Part No: 9910559200
    • Qty Req: 1
    Our price: $190.05 List price: $243.69
  • Plate
    • Ref No: 6
    • Part No: 9910580370
    • Qty Req: 2
    Our price: $12.35 List price: $15.84
  • BlueFlex Piston Diaphragm
    • Ref No: 7
    • Part No: AR550081
    • Qty Req: 2
    Our price: $44.85 List price: $59.51
  • Diaphragm Buna (Optional)
    • Ref No: 7
    • Part No: 9910550080
    • Qty Req: 2
    Our price: $47.31 List price: $50.28
  • Diaphragm Desmopan (Standard)
    • Ref No: 7
    • Part No: 9910550085
    • Qty Req: 2
    Our price: $37.71 List price: $44.97
  • Sleeve
    • Ref No: 8
    • Part No: 9910550110
    • Qty Req: 2
    Our price: $68.92 List price: $88.38
  • Piston
    • Ref No: 9
    • Part No: 9910550120
    • Qty Req: 1
    Our price: $337.88 List price: $405.46
  • O-Ring
    • Ref No: 10
    • Part No: 9910320030
    • Qty Req: 4
    Our price: $4.52 List price: $5.42
  • Complete valve
    • Ref No: 11
    • Part No: 9910759051
    • Qty Req: 4
    Our price: $47.89 List price: $57.12
  • Bolt
    • Ref No: 12
    • Part No: 9910551040
    • Qty Req: 8
    Our price: $2.60 List price: $3.17
  • Nut
    • Ref No: 13
    • Part No: 9910180152
    • Qty Req: 2
    Our price: $2.10 List price: $2.70
  • Diaphragm Bolt
    • Ref No: 14
    • Part No: 9910580360
    • Qty Req: 2
    Our price: $15.26 List price: $19.56
  • Ring Nut
    • Ref No: 15
    • Part No: 9910550242
    • Qty Req: 1
    Our price: $10.03 List price: $10.64
  • Hose Barb 1-1/4"
    • Ref No: 16
    • Part No: 9910580040
    • Qty Req: 1
    Our price: $23.99 List price: $25.93
  • Hose Barb 1"
    • Ref No: 17
    • Part No: 9910550370
    • Qty Req: 1
    Our price: $14.34 List price: $16.97
  • O-Ring
    • Ref No: 18
    • Part No: 9910550350
    • Qty Req: 1
    Our price: $1.95 List price: $2.19
  • Threaded Adapter
    • Ref No: 19
    • Part No: 9910550340
    • Qty Req: 1
    Our price: $9.50 List price: $11.60
  • Roller Bushing
    • Ref No: 23
    • Part No: 9910550310
    • Qty Req: 1
    Our price: $42.91 List price: $45.52
  • O-Ring
    • Ref No: 24
    • Part No: 9910390290
    • Qty Req: 7
    Our price: $2.28 List price: $2.54
  • Air Valve
    • Ref No: 26
    • Part No: 9910550300
    • Qty Req: 1
    Our price: $15.82 List price: $19.33
  • O-ring
    • Ref No: 27
    • Part No: 9910650542
    • Qty Req: 1
    Our price: $2.14 List price: $2.68
  • Bolt
    • Ref No: 28
    • Part No: 9910550680
    • Qty Req: 4
    Our price: $3.64 List price: $4.47
  • Upper air chamber
    • Ref No: 29
    • Part No: 9910559204
    • Qty Req: 1
    Our price: $88.18 List price: $113.06
  • AR550194 BlueFlex Accumulator Diaphragm
    • Ref No: 30
    • Part No: AR550194
    • Qty Req: 1
    Our price: $35.88 List price: $47.61
  • Accumulator Diaphragm, Buna-N
    • Ref No: 30
    • Part No: 9910550190
    • Qty Req: 1
    Our price: $26.89 List price: $34.48
  • Cap
    • Ref No: 32
    • Part No: 9910550057
    • Qty Req: 1
    Our price: $11.83 List price: $15.17
  • O-Ring
    • Ref No: 33
    • Part No: 9910550040
    • Qty Req: 1
    Our price: $1.92 List price: $2.18
  • Oil Sight Glass for Hypro D30
    • Ref No: 34
    • Part No: 9910550030
    • Qty Req: 1
    Our price: $20.65 List price: $26.48
  • O-Ring
    • Ref No: 36
    • Part No: 9910180101
    • Qty Req: 2
    Our price: $1.74 List price: $1.89
  • Suction Damping Kit for AR30 / AR50 Diaphragm Pumps - New Style
    • Ref No: 41
    • Part No: 659213
    • Qty Req: 1
    Our price: $34.90 List price: $47.87
  • Retainer ring
    • Ref No: 44
    • Part No: 9910200391
    • Qty Req: 1
    Our price: $27.43 List price: $31.22
  • Gasket retainer
    • Ref No: 45
    • Part No: 9910550470
    • Qty Req: 1
    Our price: $51.97 List price: $61.90
  • Spacer ring
    • Ref No: 46
    • Part No: 9910550070
    • Qty Req: 1
    Our price: $20.84 List price: $26.73
  • Roller bearing
    • Ref No: 47
    • Part No: 9910550060
    • Qty Req: 1
    Our price: $69.83 List price: $89.55
  • Shaft
    • Ref No: 48
    • Part No: 9910550170
    • Qty Req: 1
    Our price: $363.60 List price: $436.32
  • Washer
    • Ref No: 53
    • Part No: 9910320621
    • Qty Req: 5
    Our price: $1.52 List price: $1.80
  • Bearing
    • Ref No: 57
    • Part No: 9910550280
    • Qty Req: 2
    Our price: $57.09 List price: $73.20
  • Cylinder
    • Ref No: 58
    • Part No: 9910550140
    • Qty Req: 1
    Our price: $107.93 List price: $118.14
  • Base
    • Ref No: 61
    • Part No: 9910580080
    • Qty Req: 1
    Our price: $106.27 List price: $129.73
  • Bolt
    • Ref No: 62
    • Part No: 9910540301
    • Qty Req: 1
    Our price: $4.28 List price: $5.14
  • Spacer
    • Ref No: 64
    • Part No: 9910550160
    • Qty Req: 1
    Our price: $6.73 List price: $8.63
  • Seal ring
    • Ref No: 66
    • Part No: 9910550491
    • Qty Req: 1
    Our price: $30.30 List price: $33.02
  • O-Ring
    • Ref No: 67
    • Part No: 9910650920
    • Qty Req: 1
    Our price: $3.17 List price: $3.65
  • Plug
    • Ref No: 68
    • Part No: 9910880530
    • Qty Req: 1
    Our price: $5.28 List price: $7.07
  • Shaft
    • Ref No: 72
    • Part No: 9910550173
    • Qty Req: 1
    Our price: $306.33 List price: $367.60
  • Shield, 199 mm
    • Ref No: 74
    • Part No: 99101500350
    • Qty Req: 1
    Our price: $57.06 List price: $69.72
  • Washer
    • Ref No: 75
    • Part No: 9910550332
    • Qty Req: 2
    Our price: $1.50 List price: $1.80
  • O-Ring
    • Ref No: 76
    • Part No: 9910740290
    • Qty Req: 1
    Our price: $2.09 List price: $2.31
  • Plug
    • Ref No: 77
    • Part No: 9910330173
    • Qty Req: 1
    Our price: $8.25 List price: $10.57
  • Barb Nut
    • Ref No: 83
    • Part No: 9910550450
    • Qty Req: 1
    Our price: $4.55 List price: $5.84
  • Threaded Adapter
    • Ref No: 87
    • Part No: 9910450120
    • Qty Req: 1
    Our price: $16.02 List price: $21.42
  • Ring Nut
    • Ref No: 88
    • Part No: 9910550870
    • Qty Req: 1
    Our price: $16.27 List price: $18.42
  • 1-1/4" Hose Barb
    • Ref No: 115
    • Part No: 9910580280
    • Qty Req: 1
    Our price: $8.97 List price: $11.50
  • 1" Straight Hose Barb
    • Ref No: 116
    • Part No: 9910550210
    • Qty Req: 1
    Our price: $8.12 List price: $8.93
  • retaining washer
    • Ref No: 117
    • Part No: AR580371
    • Qty Req: 2
    Our price: $28.13 List price: $37.80
  • Nut
    • Ref No: 118
    • Part No: 99102240110
    • Qty Req: 2
    Our price: $4.26 List price: $5.46
  • Diaphragm pin
    • Ref No: 119
    • Part No: 99102240100
    • Qty Req: 2
    Our price: $15.26 List price: $19.56
