Hypro D50 & Honda GX 270 Engine Assembly

Hypro D50 & Honda GX 270 Engine Assembly

Item Code:
GXD50
Weight:
151.0 lb
Manufacturer:
Hypro
Our price:
$1,950.00
List price:
$1,950.00
Overview:

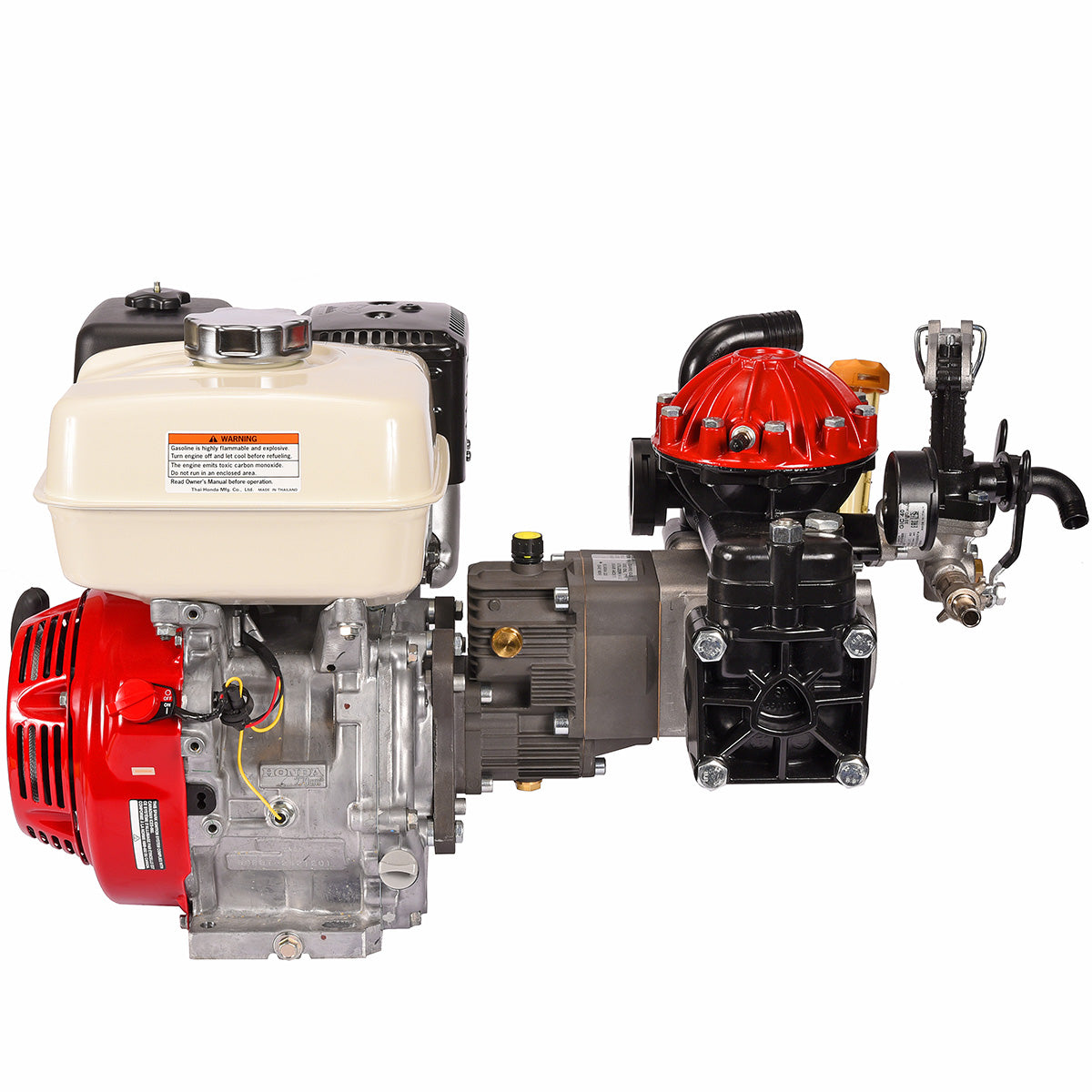

The Pentair Hypro D50GRGI8 with the Honda GX270 engine is designed for long-lasting small to medium scale commercial spraying. This pump and engine assembly is built to deliver up to 14.8 gpm and 580 psi. Lightweight, but powerful, the D50 uses diaphragms to separate the chemical you are spraying from the internal components of the crankcase for a long pump life.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon. If you order one of these products you may receive the original factory version manufactured by AR in Italy. Specs and performance are the same.

Manufacturer Description:

Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of small to medium-sized sprayers. With the GX270, you're looking at one of the best engines in the business. More power. Quieter performance. Lower fuel consumption. Lower emissions. Better features. Exceptional performance. Honda's GX series lives up to the legend, and then some.

Features:

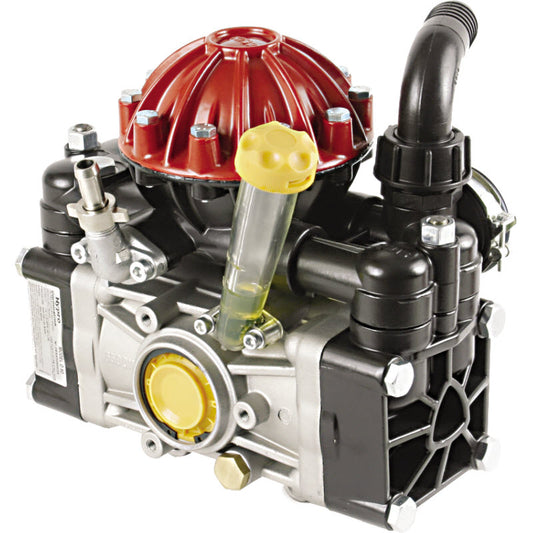

9910-D50GRGI8:
  • Max flow: 14.8 gpm
  • Max pressure: 580 psi

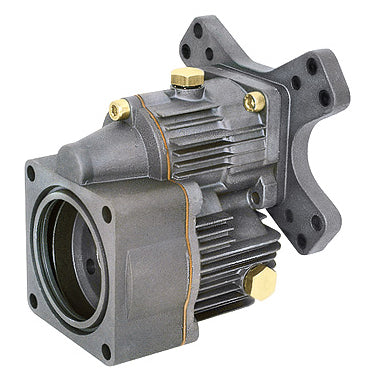

  • Includes 9910-GS40GI pressure regulator and 9910-KIT1642 gearbox with 1" hollow shaft for mounting on 8 to 9 hp gas engines
  • Port sizes: 1-1/4" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 48 lbs Honda GX270 Engine:
  • Engine type: Air-cooled 4-stroke OHV
  • Starting sytem: Recoil starter
  • Shaft: 1" solid keyed
  • Bore x stroke: 77 x 58 mm
  • Displacement: 270 cm3
  • Net power output: 8.5 HP (6.3 kW) @ 3600 rpm
  • Net torque: 14.1 lb-ft (19.1 Nm) @ 2500 rpm
  • PTO shaft rotation: Counterclockwise from PTO shaft side
  • Compression ratio: 8.5 : 1
  • Lamp/Charge coil options: 25W, 50W / 1A, 3A, 10A, 18A
  • Carburetor: Butterfly float type
  • Ignition system: Digital CDI with variable ignition timing
  • Lubrication system: Splash
  • Governor system: Centrifugal mass type
  • Air cleaner: Dual element
  • Oil capacity: 1.16 US qt. (1.1 L)
  • Fuel tank capacity: 5.6 US qts (5.3 liters)
  • Fuel: Unleaded 86 octane or higher
  • Dry weight 55 lbs (25 kg)
  • Dimensions: 15.0 in long x 16.9 in wide x 16.6 in high (380 x 429 x 422 mm)
  • Warranty: 3 year commercial warranty (limited to manufacturer defects)

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 1
  • Part No: 9910659011
  • Qty Req: 1
Our price: $253.98 List price: $313.56
  • Ref No: 2
  • Part No: 9910650102
  • Qty Req: 1
Our price: $160.47 List price: $198.11
  • Ref No: 3
  • Part No: 9910320130
  • Qty Req: 4
Our price: $1.76 List price: $2.17
  • Ref No: 4
  • Part No: 9910650101
  • Qty Req: 1
Our price: $160.47 List price: $198.11
  • Ref No: 5
  • Part No: 9910160311
  • Qty Req: 2
Our price: $6.16 List price: $7.61
  • Ref No: 6
  • Part No: 9910650390
  • Qty Req: 2
Our price: $14.88 List price: $18.37
  • Ref No: 10
  • Part No: 9910650190
  • Qty Req: 2
Our price: $18.08 List price: $22.32
  • Ref No: 12
  • Part No: 9910650121
  • Qty Req: 2
Our price: $64.92 List price: $80.15
  • Ref No: 13
  • Part No: 9910650071
  • Qty Req: 2
Our price: $28.70 List price: $35.43
  • Ref No: 14
  • Part No: 9910160691
  • Qty Req: 4
Our price: $2.48 List price: $3.06
  • Ref No: 15
  • Part No: 9910650142
  • Qty Req: 2
Our price: $65.94 List price: $81.41
  • Ref No: 16
  • Part No: 9910650130
  • Qty Req: 2
Our price: $21.17 List price: $26.14
  • Ref No: 17
  • Part No: 9910650111
  • Qty Req: 2
Our price: $109.08 List price: $134.67
  • Ref No: 18
  • Part No: 9910200390
  • Qty Req: 1
Our price: $11.95 List price: $14.75
  • Ref No: 19
  • Part No: 9910650040
  • Qty Req: 1
Our price: $13.62 List price: $16.82
  • Ref No: 20
  • Part No: 9910650920
  • Qty Req: 1
Our price: $2.92 List price: $3.60
  • Ref No: 21
  • Part No: 9910650480
  • Qty Req: 1
Our price: $13.62 List price: $16.82
  • Ref No: 22
  • Part No: 9910230330
  • Qty Req: 1
Our price: $138.51 List price: $171.00
  • Ref No: 23
  • Part No: 9910161050
  • Qty Req: 1
Our price: $15.30 List price: $18.89
  • Ref No: 25
  • Part No: 9910550331
  • Qty Req: 2
Our price: $1.51 List price: $1.86
  • Ref No: 28
  • Part No: 9910550040
  • Qty Req: 5
Our price: $1.76 List price: $2.17
  • Ref No: 29
  • Part No: 9910550056
  • Qty Req: 1
Our price: $10.06 List price: $12.42
  • Ref No: 30
  • Part No: 9910650160
  • Qty Req: 1
Our price: $10.69 List price: $13.20
  • Ref No: 31
  • Part No: 9910650200
  • Qty Req: 1
Our price: $271.70 List price: $335.43
  • Ref No: 32
  • Part No: 99101400150
  • Qty Req: 1
Our price: $28.27 List price: $34.90
  • Ref No: 33
  • Part No: 9910650170
  • Qty Req: 1
Our price: $331.32 List price: $409.04
  • Ref No: 34
  • Part No: 99101400140
  • Qty Req: 1
Our price: $18.23 List price: $22.51
  • Ref No: 36
  • Part No: 9910659050
  • Qty Req: 4
Our price: $42.62 List price: $52.62
  • Ref No: 37
  • Part No: 9910320030
  • Qty Req: 4
Our price: $4.16 List price: $5.13
  • Ref No: 39
  • Part No: 9910650520
  • Qty Req: 1
Our price: $40.12 List price: $49.53
  • Ref No: 40
  • Part No: 9910659206
  • Qty Req: 1
Our price: $109.08 List price: $134.67
  • Ref No: 41
  • Part No: 9910180020
  • Qty Req: 1
Our price: $41.03 List price: $50.66
  • Ref No: 42
  • Part No: 9910650542
  • Qty Req: 1
Our price: $1.97 List price: $2.43
  • Ref No: 43
  • Part No: 9910621780
  • Qty Req: 10
Our price: $3.19 List price: $3.94
  • Ref No: 45
  • Part No: 9910390290
  • Qty Req: 1
Our price: $2.10 List price: $2.59
  • Ref No: 46
  • Part No: 9910650150
  • Qty Req: 1
Our price: $122.17 List price: $150.83
  • Ref No: 47
  • Part No: 9910450120
  • Qty Req: 1
Our price: $15.26 List price: $18.84
  • Ref No: 48
  • Part No: 9910390290
  • Qty Req: 1
Our price: $2.10 List price: $2.59
  • Ref No: 49
  • Part No: 9910580060
  • Qty Req: 1
Our price: $13.62 List price: $16.82
  • Ref No: 50
  • Part No: 9910580040
  • Qty Req: 1
Our price: $22.07 List price: $27.25
  • Ref No: 51
  • Part No: 9910650250
  • Qty Req: 1
Our price: $4.95 List price: $6.11
  • Ref No: 53
  • Part No: 9910650171
  • Qty Req: 1
Our price: $599.01 List price: $739.52
  • Ref No: 56
  • Part No: 9910650300
  • Qty Req: 1
Our price: $163.63 List price: $202.01
  • Ref No: 57
  • Part No: 9910680350
  • Qty Req: 4
Our price: $2.48 List price: $3.06
  • Ref No: 58
  • Part No: 9910650490
  • Qty Req: 1
Our price: $20.89 List price: $25.79
  • Ref No: 59
  • Part No: 9910650041
  • Qty Req: 1
Our price: $64.31 List price: $79.40
  • Ref No: 60
  • Part No: 9910650660
  • Qty Req: 1
Our price: $42.62 List price: $52.62
  • Ref No: 61
  • Part No: 9910650670
  • Qty Req: 1
Our price: $13.62 List price: $16.82
  • Ref No: 62
  • Part No: 9910650690
  • Qty Req: 1
Our price: $18.65 List price: $23.03
  • Ref No: 63
  • Part No: 99101500350
  • Qty Req: 2
Our price: $52.50 List price: $64.82
  • Ref No: 64
  • Part No: 9910820670
  • Qty Req: 4
Our price: $2.48 List price: $3.06
  • Ref No: 65
  • Part No: 9910659080
  • Qty Req: 2
Our price: $27.81 List price: $34.33
