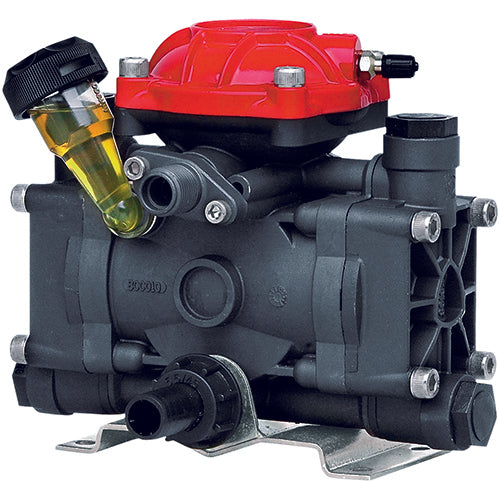

Hypro D252 Pump

Hypro D252 Pump

5 reviews
Item Code:
9910D252
Weight:
11.4 lb
Manufacturer:
Hypro
Our price:
$459.44
List price:
$913.00
Overview:

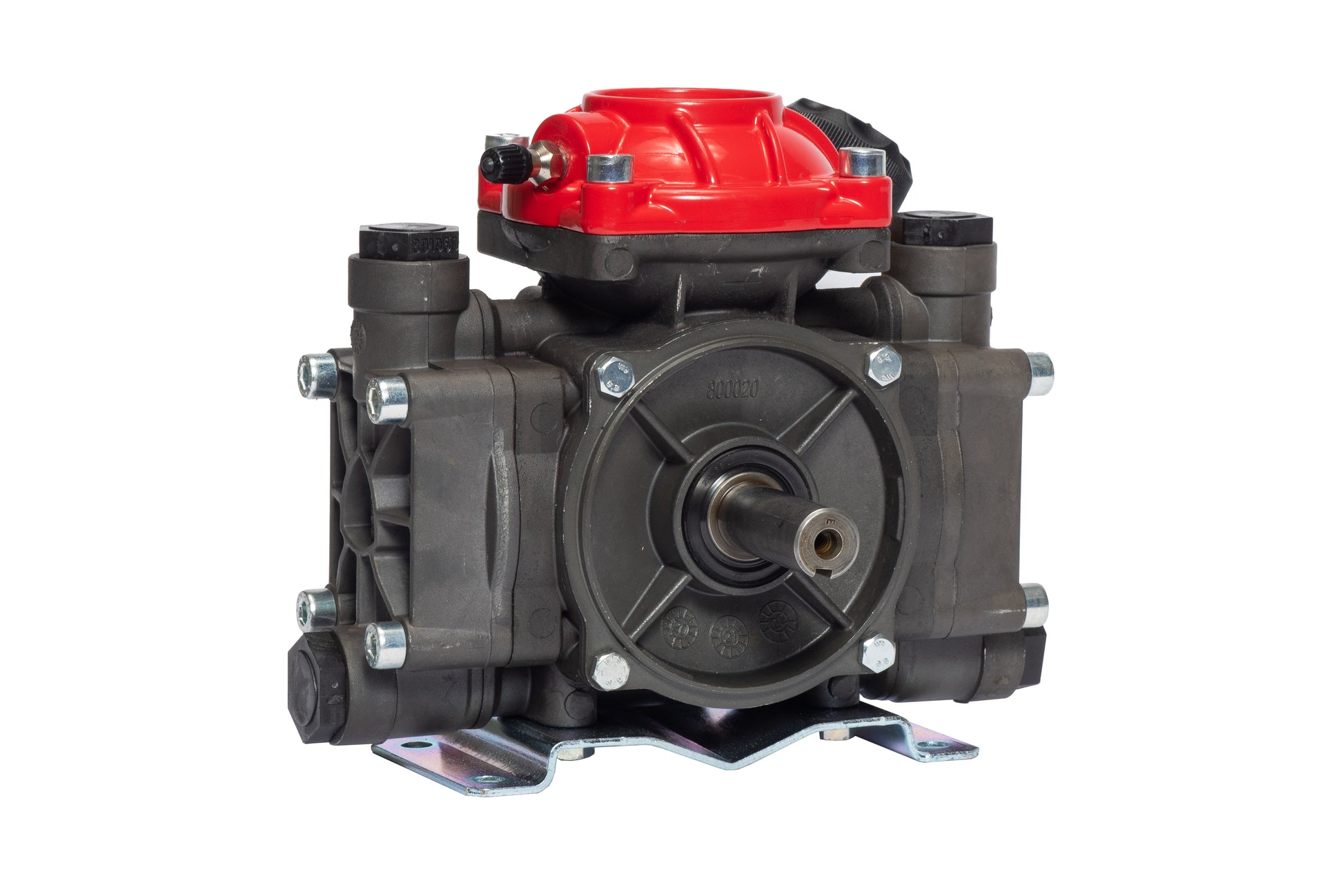

The D252 pump from Hypro is a two diaphragm semi-hydraulic aluminum anodized pump that is ideal for medium pressure spraying applications. The maximum pressure of 290 psi and maximum flow of 6 gpm can handle liquid fertilizers, herbicides, and pesticides. A mounting base is included with the 12 pound pump.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon. If you order one of these products you may receive the original factory version manufactured by AR in Italy. Specs and performance are the same.

Download Product Manual

Manufacturer Description:

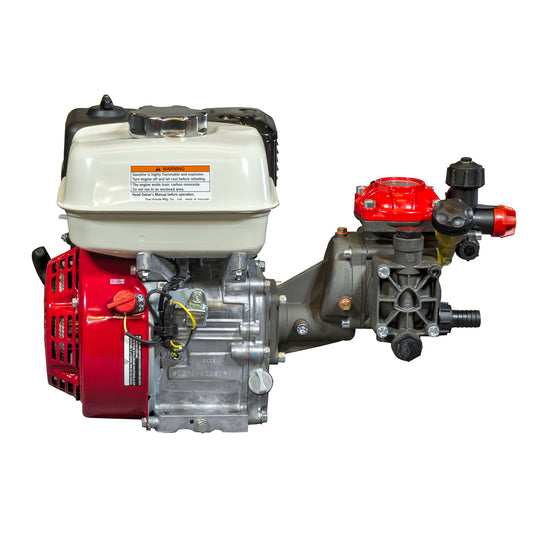

Please note if you are replacing a 9910-D252GRGI you cannot buy this pump and mount the existing gearbox. You must purchase the 9910-D252GRGI if you are replacing the pump and gearbox. Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Pressure and output are designed for optimum performance of small to medium-sized sprayers.

Features:

  • Max flow: 6 gpm
  • Max pressure: 290 psi
  • Shaft: 3/4" solid keyed (Please note if you are replacing a 9910-D252GRGI you cannot buy this pump and mount the existing gearbox. You must purchase the 9910-D252GRGI if you are replacing the pump and gearbox.)
  • Port sizes: 3/4" HB inlet, 3/8" HB outlet, 5/8" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 13 lbs

Parts breakdown

Parts breakdown parts

Parts list

Plug

  • Ref No: 4
  • Part No: 9910620301
  • Qty Req: 2
Our price: $4.02 List price: $4.96

O-Ring

  • Ref No: 5
  • Part No: 9910800380
  • Qty Req: 1
Our price: $11.27 List price: $13.91

Flange

  • Ref No: 6
  • Part No: 9910800020
  • Qty Req: 1
Our price: $78.76 List price: $97.23

3/4" Solid Shaft

  • Ref No: 7
  • Part No: 9910800172
  • Qty Req: 1
Our price: $207.59 List price: $256.28

Spacer

  • Ref No: 8
  • Part No: 9910800160
  • Qty Req: 1
Our price: $3.02 List price: $3.73

Nut

  • Ref No: 12
  • Part No: 9910390440
  • Qty Req: 4
Our price: $1.51 List price: $1.86

Seal

  • Ref No: 15
  • Part No: 9910800200
  • Qty Req: 1
Our price: $21.80 List price: $26.91

Roller Bearing

  • Ref No: 16
  • Part No: 9910800180
  • Qty Req: 1
Our price: $28.55 List price: $35.25

Stud

  • Ref No: 17
  • Part No: 9910550330
  • Qty Req: 4
Our price: $2.60 List price: $3.21

Piston

  • Ref No: 18
  • Part No: 9910802070
  • Qty Req: 2
Our price: $43.76 List price: $54.02

Connecting Rod

  • Ref No: 19
  • Part No: 9910800140
  • Qty Req: 2
Our price: $31.54 List price: $38.94

Piston Pin

  • Ref No: 20
  • Part No: 9910800130
  • Qty Req: 2
Our price: $16.20 List price: $20.00

Roller Bearing

  • Ref No: 21
  • Part No: 9910480370
  • Qty Req: 1
Our price: $29.57 List price: $36.50

O-Ring

  • Ref No: 22
  • Part No: 9910480440
  • Qty Req: 5
Our price: $1.76 List price: $2.17

Bolt

  • Ref No: 23
  • Part No: 9910680360
  • Qty Req: 1
Our price: $3.65 List price: $4.50

Bolt

  • Ref No: 24
  • Part No: 9910800220
  • Qty Req: 7
Our price: $3.35 List price: $4.14

Sleeve

  • Ref No: 26
  • Part No: 9910800110
  • Qty Req: 2
Our price: $54.88 List price: $67.75

Retaining Bolt

  • Ref No: 27
  • Part No: 9910800090
  • Qty Req: 1
Our price: $7.76 List price: $9.58

Plate

  • Ref No: 28
  • Part No: 9910800350
  • Qty Req: 2
Our price: $8.34 List price: $10.30

Piston Ring

  • Ref No: 30
  • Part No: 9910802080
  • Qty Req: 2
Our price: $10.34 List price: $12.76

Diaphragm Buna (Opt.)

  • Ref No: 31
  • Part No: 9910800080
  • Qty Req: 2
Our price: $20.42 List price: $25.21

Sleeve

  • Ref No: 32
  • Part No: 9910802050
  • Qty Req: 2
Our price: $38.05 List price: $46.98

Oil Sight Glass

  • Ref No: 34
  • Part No: 9910801960
  • Qty Req: 1
Our price: $17.14 List price: $21.16

O-Ring

  • Ref No: 36
  • Part No: 9910390180
  • Qty Req: 1
Our price: $1.51 List price: $1.86

Barb Nut

  • Ref No: 37
  • Part No: 9910550450
  • Qty Req: 1
Our price: $3.94 List price: $4.86

Bolt

  • Ref No: 42
  • Part No: 9910801080
  • Qty Req: 2
Our price: $1.89 List price: $2.33

Pump Body

  • Ref No: 61
  • Part No: 9910800010
  • Qty Req: 1
Our price: $295.40 List price: $364.69

Cap

  • Ref No: 62
  • Part No: 9910550057
  • Qty Req: 1
Our price: $9.65 List price: $11.91

Upper Air Chamber

  • Ref No: 64
  • Part No: 9910800230
  • Qty Req: 1
Our price: $60.44 List price: $74.62

Valve

  • Ref No: 65
  • Part No: 9910800650
  • Qty Req: 1
Our price: $24.62 List price: $30.40

Bolt

  • Ref No: 67
  • Part No: 9910540290
  • Qty Req: 4
Our price: $2.98 List price: $3.68

O-Ring

  • Ref No: 70
  • Part No: 9910800210
  • Qty Req: 2
Our price: $1.51 List price: $1.86

Gear

  • Ref No: 80
  • Part No: 9910800280
  • Qty Req: 1
Our price: $190.49 List price: $235.17

Key

  • Ref No: 96
  • Part No: 9910881090
  • Qty Req: 1
Our price: $10.06 List price: $12.42

Thru-Shaft AP, 5/8"

  • Ref No: 97
  • Part No: 9910800173
  • Qty Req: 1
Our price: $180.72 List price: $223.11

Driver Gear

  • Ref No: 101
  • Part No: 9910800810
  • Qty Req: 1
Our price: $256.43 List price: $316.58

Driver Gear 5/8"

  • Ref No: 101
  • Part No: 9910801230
  • Qty Req: 1
Our price: $394.79 List price: $487.39

Gear Box Body

  • Ref No: 102
  • Part No: 9910800820
  • Qty Req: 1
Our price: $229.76 List price: $283.65

Locating Bolt

  • Ref No: 103
  • Part No: 9910800800
  • Qty Req: 1
Our price: $9.02 List price: $11.13

Seal

  • Ref No: 104
  • Part No: 9910480820
  • Qty Req: 1
Our price: $25.60 List price: $31.60

Hose Barb 3/4"

  • Ref No: 10
  • Part No: 9910550460
  • Qty Req: 2
Our price: $5.03 List price: $6.21

Flange, 1/2" NPT

  • Ref No: 105
  • Part No: 9910800691
  • Qty Req: 1
Our price: $46.27 List price: $57.12

Bolt

  • Ref No: 11
  • Part No: 9910180431
  • Qty Req: 2
Our price: $1.64 List price: $2.02

Washer

  • Ref No: 11
  • Part No: 9910380241
  • Qty Req: 2
Our price: $1.51 List price: $1.86

Pulley Base

  • Ref No: 112
  • Part No: 9910800311
  • Qty Req: 1
Our price: $31.14 List price: $38.44

Bolt

  • Ref No: 113
  • Part No: 9910320350
  • Qty Req: 4
Our price: $1.51 List price: $1.86

Head

  • Ref No: 124
  • Part No: 9910801940
  • Qty Req: 2
Our price: $52.88 List price: $65.28

Valve Assembly

  • Ref No: 125
  • Part No: 9910809060V
  • Qty Req: 4
Our price: $12.37 List price: $15.27

O-Ring

  • Ref No: 12
  • Part No: 9910880830
  • Qty Req: 4
Our price: $1.89 List price: $2.33
